Instrument Panel Inflatable Restraint Module Indicator Replacement

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

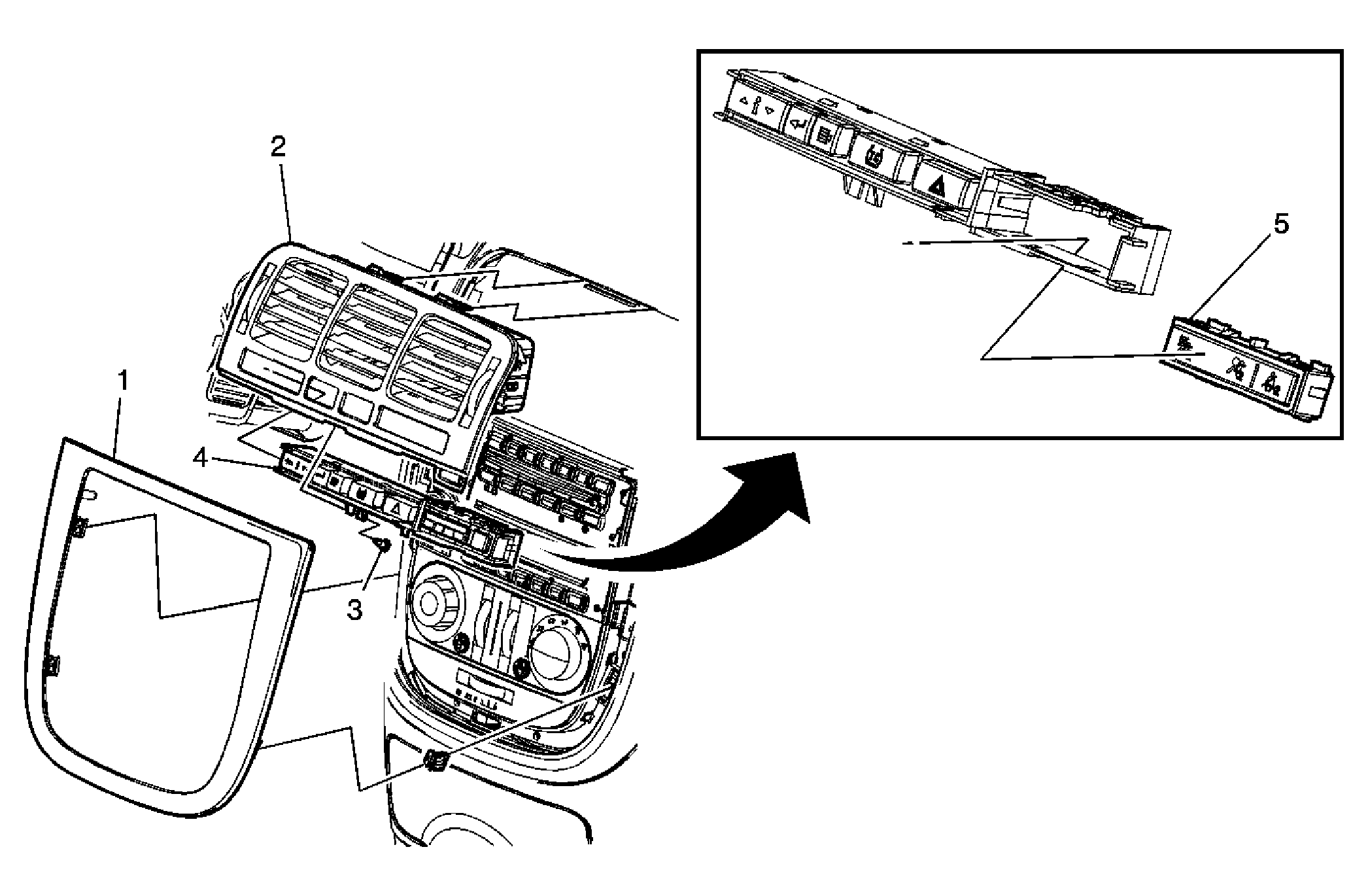

Fig 1: Instrument Panel Inflatable Restraint Module Indicator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel (I/P) Accessory Trim Panel
2	Instrument Panel Air Conditioning Center Outlet Assembly Tip: Pull rearward of the I/P to remove.
3	Driver Information Center Display Switch Screw NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
4	Driver Information Center Display Switch Assembly
5	Inflatable Restraint Instrument Panel Module Indicator Tip: Disengage the upper and lower retainers on the switch assembly in order to remove the indicator.
