Installation Procedure

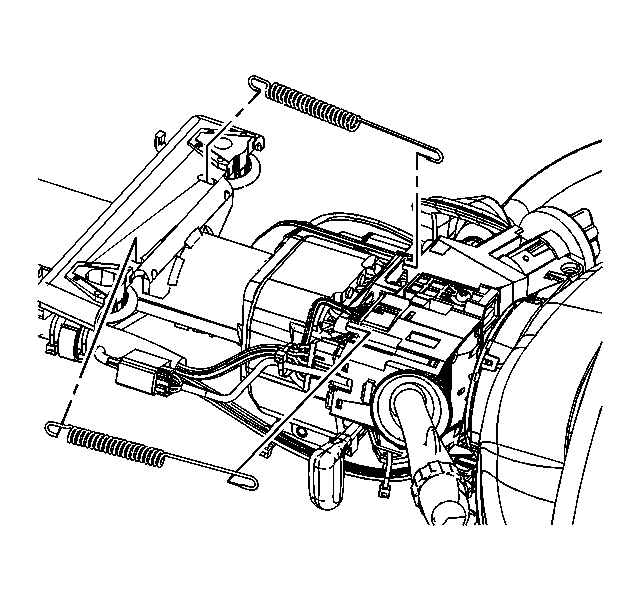

    Fig 1: Identifying Tilt Springs
    GM1536528Courtesy of GENERAL MOTORS CORP.
  1. Install the tilt spring.
  2. Install the steering column shrouds. Refer to Steering Column Trim Covers Replacement .
  3. Install the steering column. Refer to Steering Column Replacement .
