Connector Views

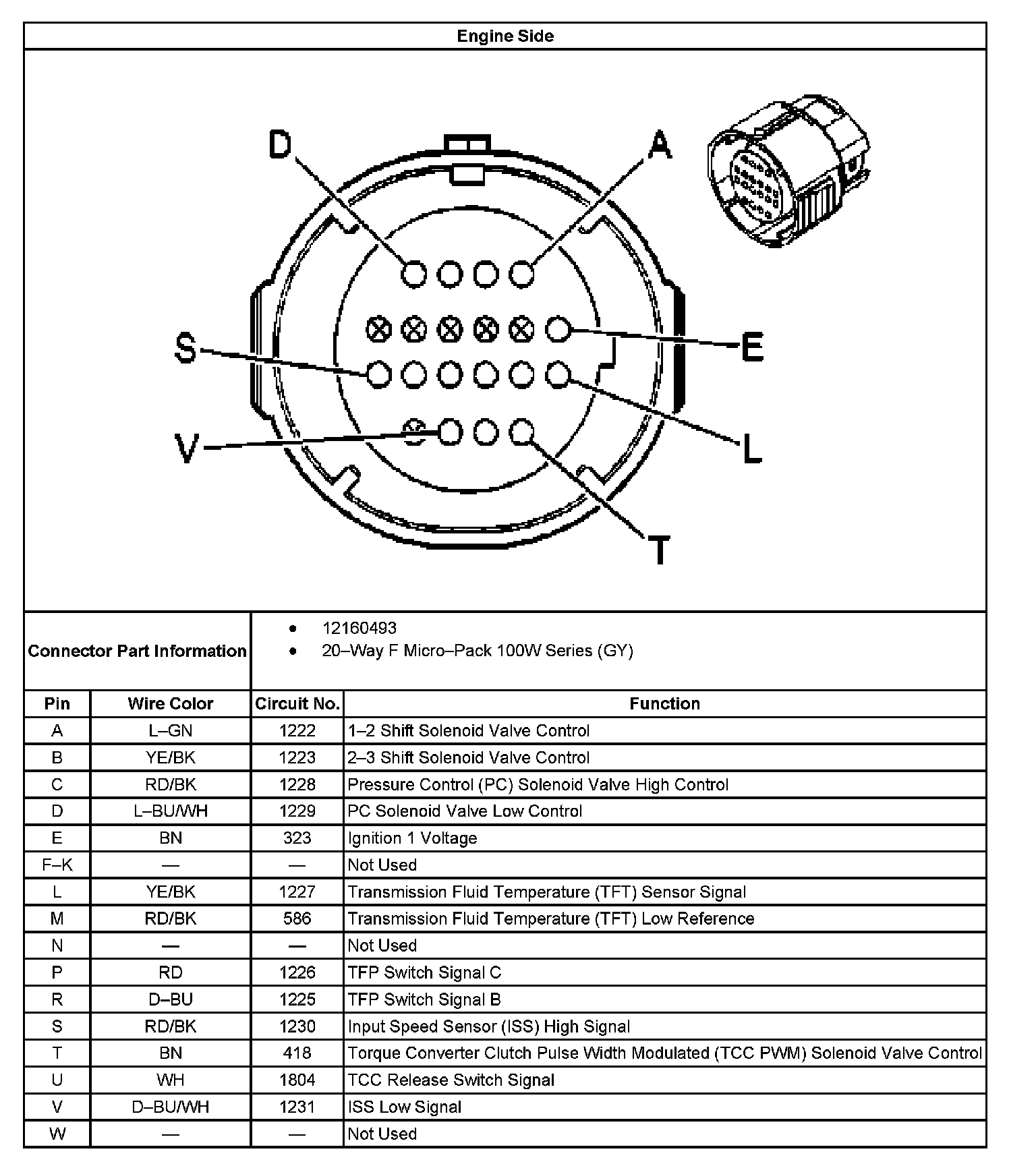

At Inline 20-Way Connector End Engine Side:

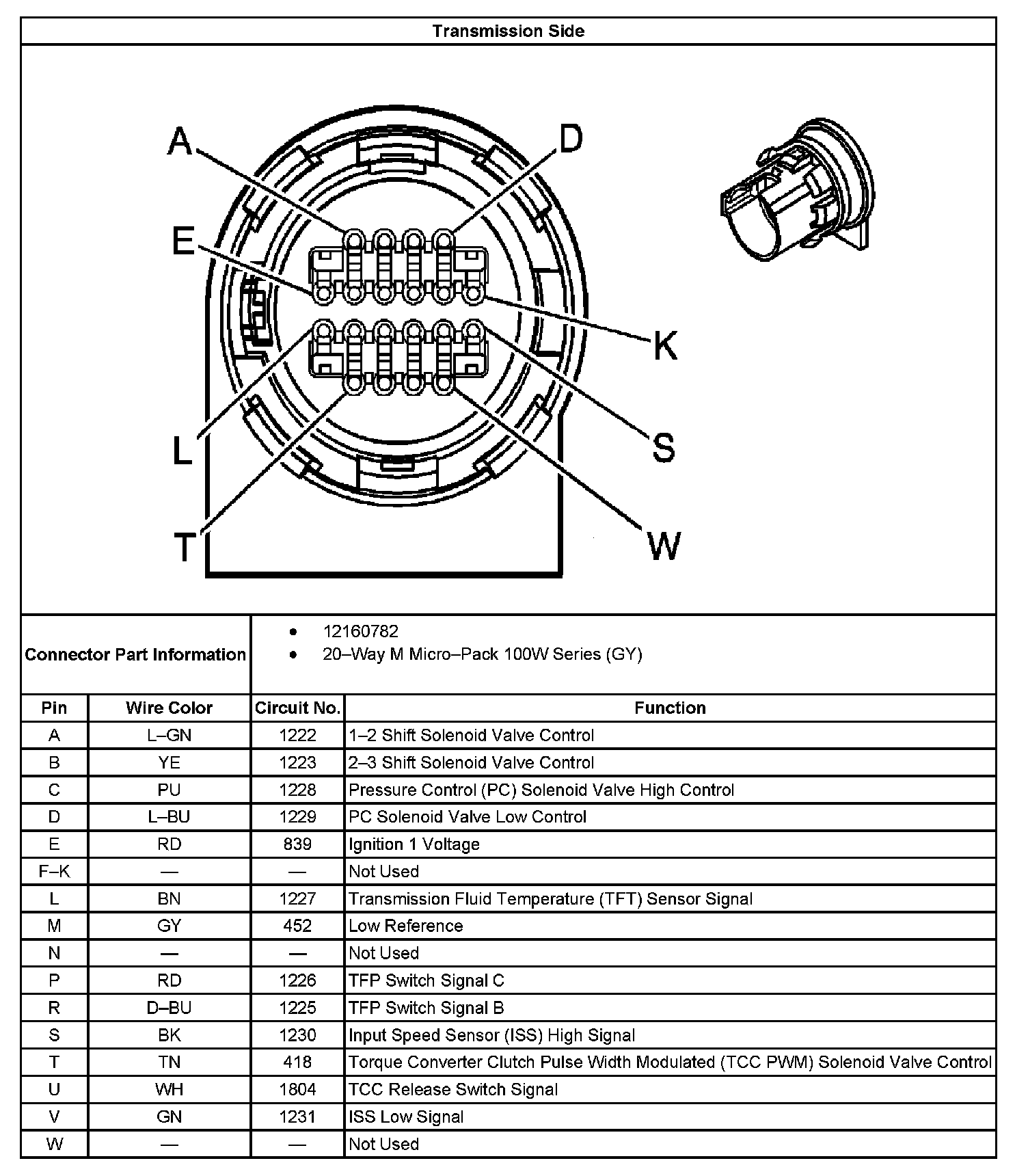

At Inline 20-Way Connector End Transmission Side:
