Getrag 5 Speed

Vehicle Speed Sensor (VSS) Replacement
Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.

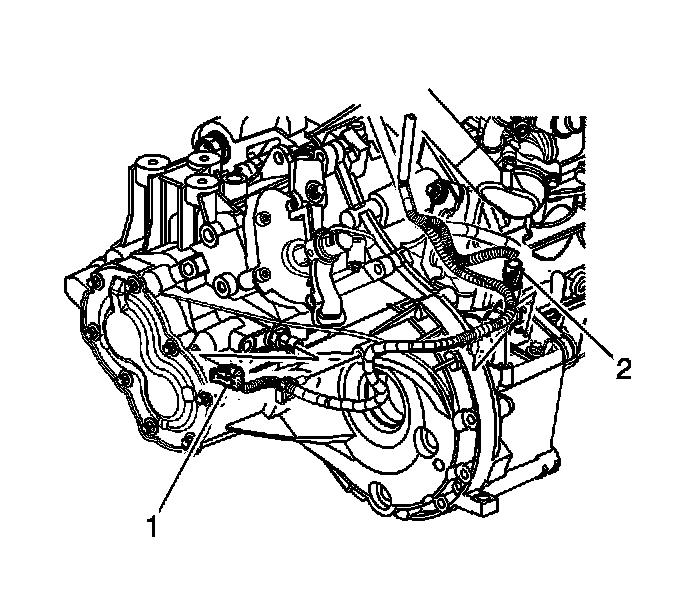

2. Disconnect the vehicle speed sensor (VSS) electrical connector (2).

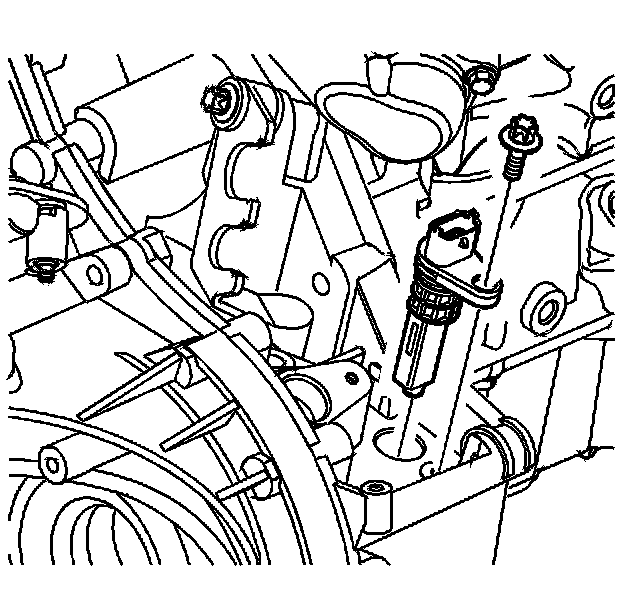

3. Remove the VSS retaining bolt.
4. Remove the VSS.

Installation Procedure





1. Install the VSS.

2. Notice: Refer to Fastener Notice in Service Precautions.

Install the VSS retaining bolt.
^ Tighten the bolt to 12 Nm (106 inch lbs.).





3. Connect the VSS electrical connector (2).
4. Lower the vehicle.
