Engine Controls Component Views

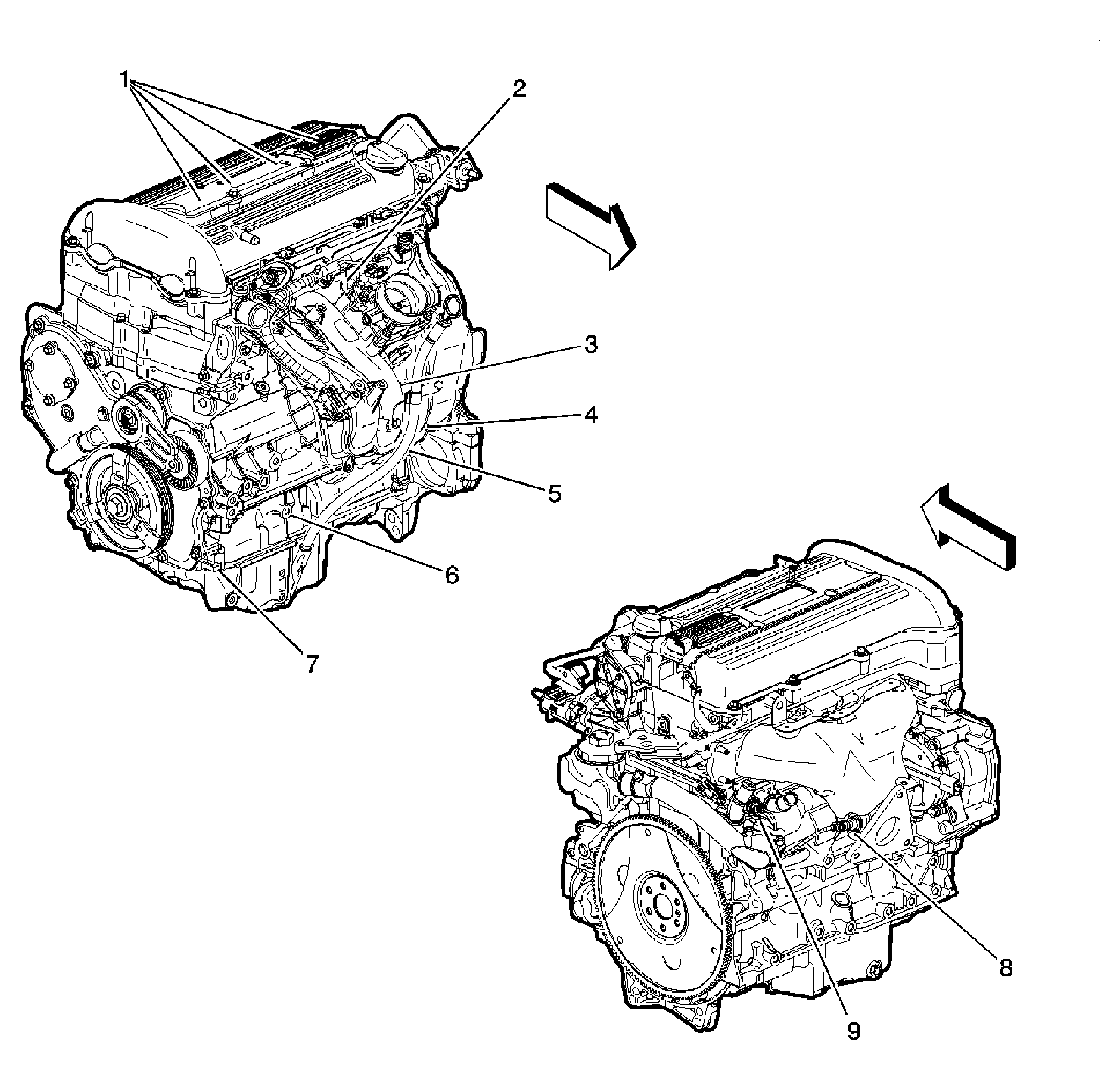

| Callout | Component Name |
|---|---|
| 1 | Spark Plugs |
| 2 | Manifold Absolute Pressure (MAP) Sensor |
| 3 | Knock Sensor (KS) |
| 4 | Crankshaft Position (CKP) Sensor |
| 5 | Engine Oil Pressure (EOP) Switch |
| 6 | Generator Mounting Location |
| 7 | A/C Compressor Clutch Location |
| 8 | Heated Oxygen Sensor (HO2S) Sensor 1 |
| 9 | Engine Coolant Temperature (ECT) Sensor |

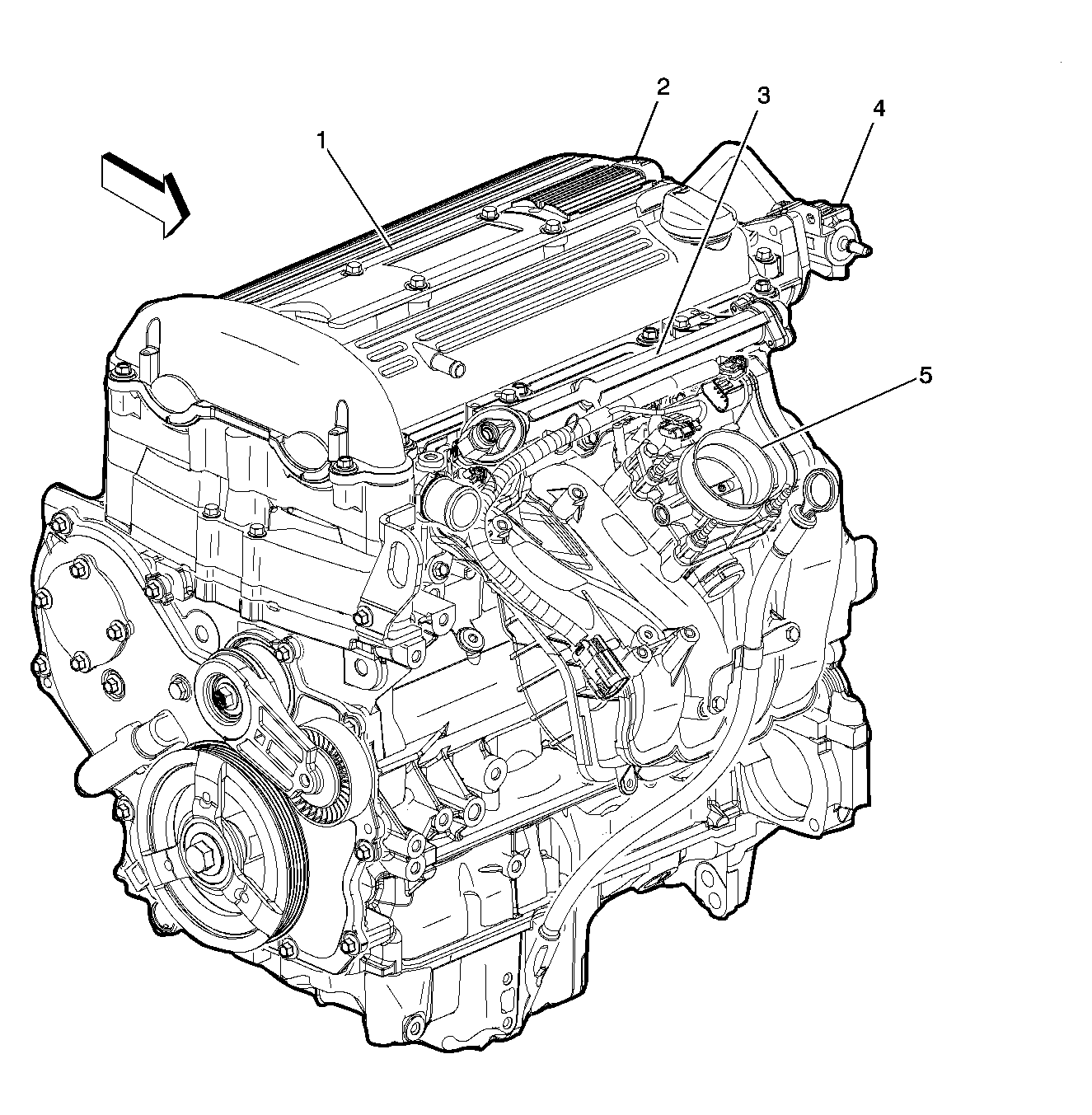

| Callout | Component Name |
|---|---|
| 1 | Ignition Coil Housing |
| 2 | Ignition Control Module (ICM) |
| 3 | Fuel Rail and Injectors |
| 4 | Evaporative Emissions (EVAP) Canister Purge Solenoid |
| 5 | Throttle Body and Throttle Actuator Control (TAC) Module |
