Engine Controls Connector End Views

Accelerator Pedal Position (APP) Sensor

GM632357Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15317832 - CPA Assembly
  • 15326829 - Connector
  • 6-Way F 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PU 1272 5-Volt Reference - A
B L-BU 1162 APP Sensor 2 Signal
C TN 1274 Low Reference
D BN 1271 Low Reference
E D-BU 1161 APP Sensor 1 Signal
F WH/BK 1164 5-Volt Reference - B
Crankshaft Position (CKP) Sensor

GM655692Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162193
  • 2-Way F Metri-Pack 150.2 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PU 574 Low Reference
B YE 573 CKP Sensor Signal
Engine Coolant Temperature (ECT) Sensor

GM655692Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336024
  • 2-Way F GT 150 Series (BK)
Pin Wire Color Circuit No. Function
A BK 2761 Low Reference
B YE 410 ECT Sensor Signal
Evaporative Emission (EVAP) Canister Purge Solenoid

GM684795Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052643
  • 2-Way F Metri-Pack 150 Series Sealed (RD)
Pin Wire Color Circuit No. Function
A WH 5291 Ignition 1 Voltage
B D-GN/WH 428 EVAP Canister Purge Solenoid Control
Evaporative Emission (EVAP) Canister Vent Solenoid

GM684795Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052643
  • 2-Way F Metri-Pack 150 Series Sealed (RD)
Pin Wire Color Circuit No. Function
A WH 5291 Ignition 1 Voltage
B WH 1310 EVAP Canister Vent Solenoid Control
Fuel Injector 1

GM366123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15236181
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
A PK 39 Ignition 1 Voltage
B BK 1744 Fuel Injector 1 Control
Fuel Injector 2

GM366123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15236181
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
A PK 39 Ignition 1 Voltage
B L-GN/BK 1745 Fuel Injector 2 Control
Fuel Injector 3

GM366123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15236181
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
A PK 39 Ignition 1 Voltage
B PK/BK 1746 Fuel Injector 3 Control
Fuel Injector 4

GM366123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15236181
  • 2-Way F (BK)
Pin Wire Color Circuit No. Function
A PK 39 Ignition 1 Voltage
B L-BU/BK 844 Fuel Injector 4 Control
Fuel Pump and Sender Assembly - Primary

GM684908Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326631
  • 4-Way F GT 280 Series Sealed 5.8 (BK)
Pin Wire Color Circuit No. Function
A GY 120 Fuel Pump Supply Voltage
B PU 1589 Fuel Level Sensor Signal
C BU 930 Fuel Level Sensor Signal - Common
D BK 850 Ground
Fuel Pump and Sender Assembly - Secondary

GM684908Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326631
  • 4-Way F GT 280 Series Sealed 5.8 (BK)
Pin Wire Color Circuit No. Function
A - - Not Used
B BU 930 Fuel Level Sensor Signal - Common
C BK/WH 2759 Low Reference
D - - Not Used
Fuel Tank Pressure (FTP) Sensor

GM516611Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059595
  • 3-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BK 2759 Low Reference
B D-BN 890 FTP Sensor Signal
C GY 2709 5-Volt Reference - A
Heated Oxygen Sensor (HO2S) 1

GM456551Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160482
  • 4-Way F (BK)
Pin Wire Color Circuit No. Function
A TN 1667 HO2S Low Signal Sensor 1
B PU 1666 HO2S High Signal Sensor 1
C D-GN 676 HO2S Heater Low Control Sensor 1
D WH 5291 Ignition 1 Voltage
Heated Oxygen Sensor (HO2S) 2

GM280761Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160825
  • 4-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A TN/WH 1669 HO2S Low Signal Sensor 2
B PU/WH 1668 HO2S High Signal Sensor 2
C BK/WH 1423 HO2S Heater Low Control Sensor 2
D WH 5291 Ignition 1 Voltage

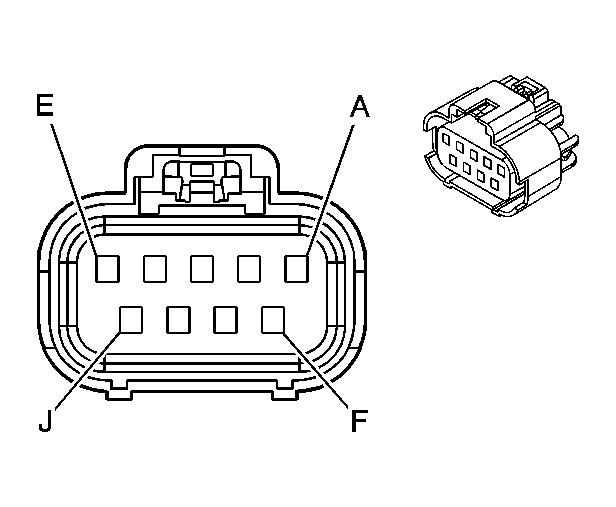

Ignition Control Module (ICM)

GM1282888Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15464997
  • 9-Way F 150 GT Series Sealed Series (BK)
Pin Wire Color Circuit No. Function
A PK 39 Ignition 1 Voltage
B WH 423 IC Timing Control 1-4
C-D - - Not Used
E BK/WH 451 Ground
F BN/WH 633 Camshaft Position Sensor Signal
G OG 406 IC Timing Control 2-3
H-J - - Not Used
Intake Air Temperature (IAT) Sensor

GM646403Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • Assembly - 15335987
  • Connector - 15335986
  • 2-Way F GT 150 Series Sealed 3.2 x 4.0 (BK)
Pin Wire Color Circuit No. Function
A BK 2760 Low Reference
B TN 472 IAT Sensor Signal
Knock Sensor (KS)

GM684799Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12077900
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A D-BU 496 Knock Sensor Signal
B GY 1716 Low Reference
Manifold Absolute Pressure (MAP) Sensor

GM684840Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129946
  • 3-Way F Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A OG/BK 469 Low Reference
B L-GN 432 MAP Sensor Signal
C GY 2704 5 Volt Reference - B
Throttle Actuator Control (TAC) Module

GM646400Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326835
  • 8-Way F GT 150 Series Sealed 4.0 (BK)
Pin Wire Color Circuit No. Function
A D-GN 485 TP Sensor 1 Signal
B BK/WH 1704 Low Reference
C GY 2701 5-Volt Reference A
D PU 486 TP Sensor 2 Signal
E BN 582 TAC Motor Control 2
F YE 581 TAC Motor Control 1
G BK 2752 Low Reference
H L-BU/BK 1688 5-Volt Reference B
