Installation Procedure

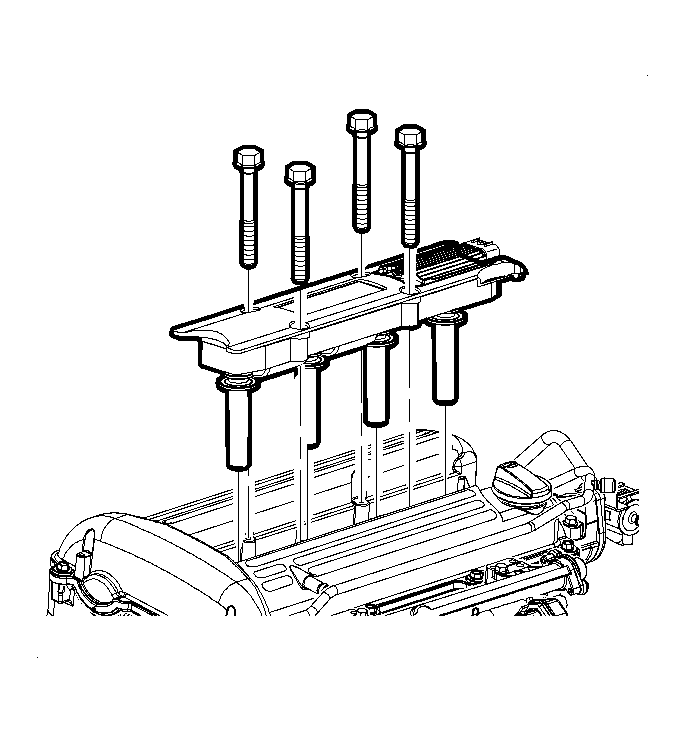

    Fig 1: View of Ignition Module Housing Assembly With Spark Plug Boots
    GM951506Courtesy of GENERAL MOTORS CORP.
  1. Apply dialectic compound to the spark plug boots and ensure no corrosion is present.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.

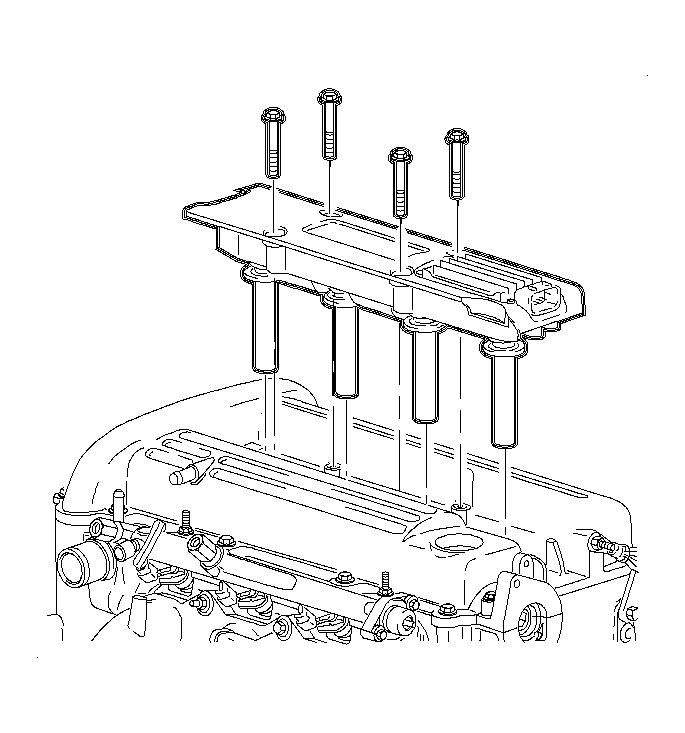

    Fig 2: Installing Ignition Module Assembly
    GM894939Courtesy of GENERAL MOTORS CORP.
  2. Install the ignition module housing assembly with spark plug boots into position.

    Tighten:  Tighten the ignition module-to-camshaft cover bolts to 10 N.m (89 lb. in.).

    3. IMPORTANT: Ensure the interconnect is line up and the interconnect seal is in place before installing the attachment screws.
    Fig 3: Removing & Installing Ignition Control Module
    GM896789Courtesy of GENERAL MOTORS CORP.
  3. Install the EI module and attachment screws (if removed).

    Tighten:  Tighten the module screws to 1.5 N.m (13 lb. in.).

  4. Connect the EI module harness connector. Push in the connector until a slick is heard, then pull back to confirm a positive engagement.
  5. Position the outlet resonator/duct assembly into position.
  6. Connect the PCV fresh air bent hose assembly.
  7. Tighten the clamp at the throttle body assembly.
  8. Position the outlet resonator/duct assembly up with the support bracket and install the push-pin.
    Fig 4: Positioning Outlet Resonator/Duct Assembly
    GM897621Courtesy of GENERAL MOTORS CORP.
  9. Tighten the clamp at the air cleaner assembly.
  10. Connect the intake air temperature (IAT) sensor connector.
