Installation Procedure

Remove the shop towel from the throttle body opening.

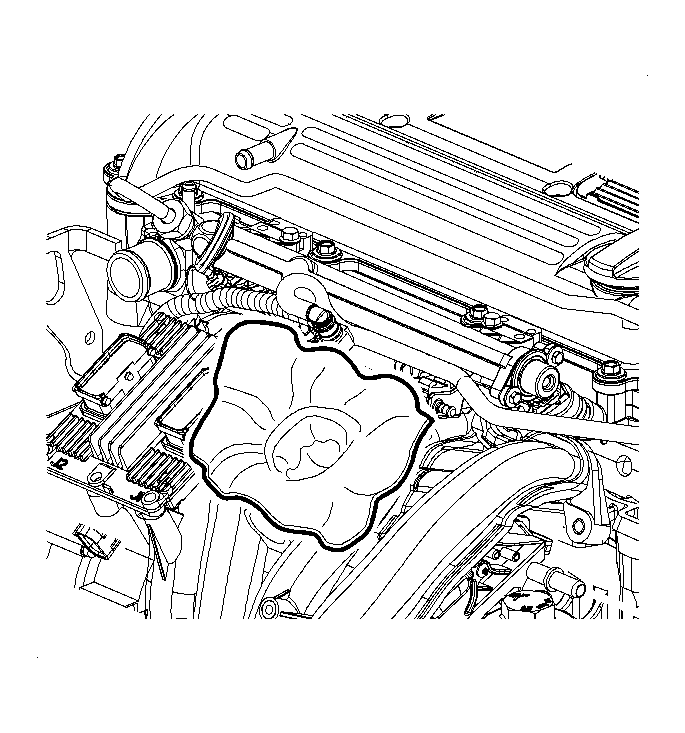

Fig 1: Removing Shop Towel From The Throttle Body Opening
Courtesy of GENERAL MOTORS CORP.
Install the throttle body gasket.

Fig 2: Removing/Installing Throttle Body Gasket
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the throttle body assembly and bolts.
Tighten: Tighten the throttle body-to-intake manifold bolts - L61 to 10 N.m (89 lb. in.).
Connect the throttle body electrical connector.

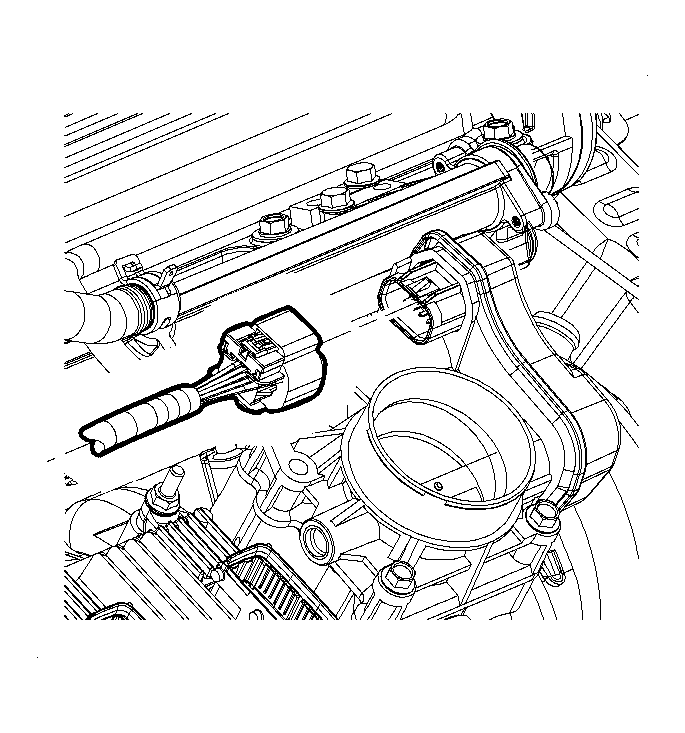

Fig 3: Disconnecting/Connecting Throttle Body Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Position the outlet resonator/duct assembly into position.

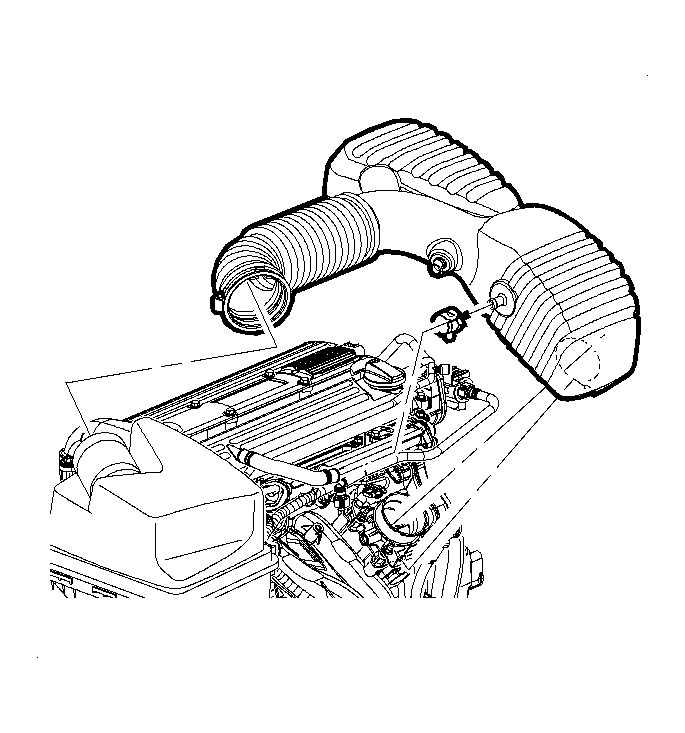

Fig 4: Identifying Outlet Resonator/Duct Assembly
Courtesy of GENERAL MOTORS CORP.
Connect PCV fresh air vent hose assembly.
Tighten the clamp at throttle body assembly.
Position the outlet resonator/duct assembly up with support bracket and install the push-pin.
Tighten the clamp at the air cleaner assembly.
Connect the intake air temperature (IAT) sensor connector.
Turn the ignition ON for one minute while the engine control module (ECM) automatically relearns throttle position.
