Installation Procedure

  1. Install the MAP sensor with port seal into the intake manifold.

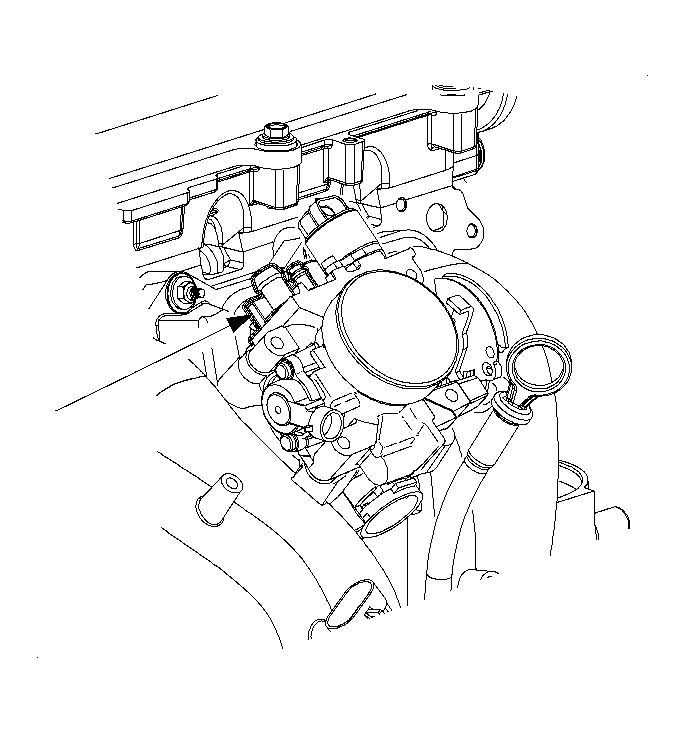

    Fig 1: View Of Manifold Absolute Pressure Sensor
    GM897253Courtesy of GENERAL MOTORS CORP.
  2. Connect the MAP sensor electrical connector. Push in the connector until a click is heard and pull back to confirm a positive engagement.
  3. Install the outlet resonator/duct assembly into position.
  4. Connect the PCV fresh air vent hose assembly.
    5. NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Tighten the clamp at the throttle body assembly.

    Tighten:  Tighten the clamp to 4 N.m (36 lb. in.).

  6. Position the outlet resonator/duct assembly up with the support bracket and install the push-pin.
  7. Tighten the clamp at the air cleaner assembly.

    Tighten:  Tighten the clamp to 4 N.m (36 lb. in.).

  8. Connect the IAT sensor connector.
