ABS Component Views

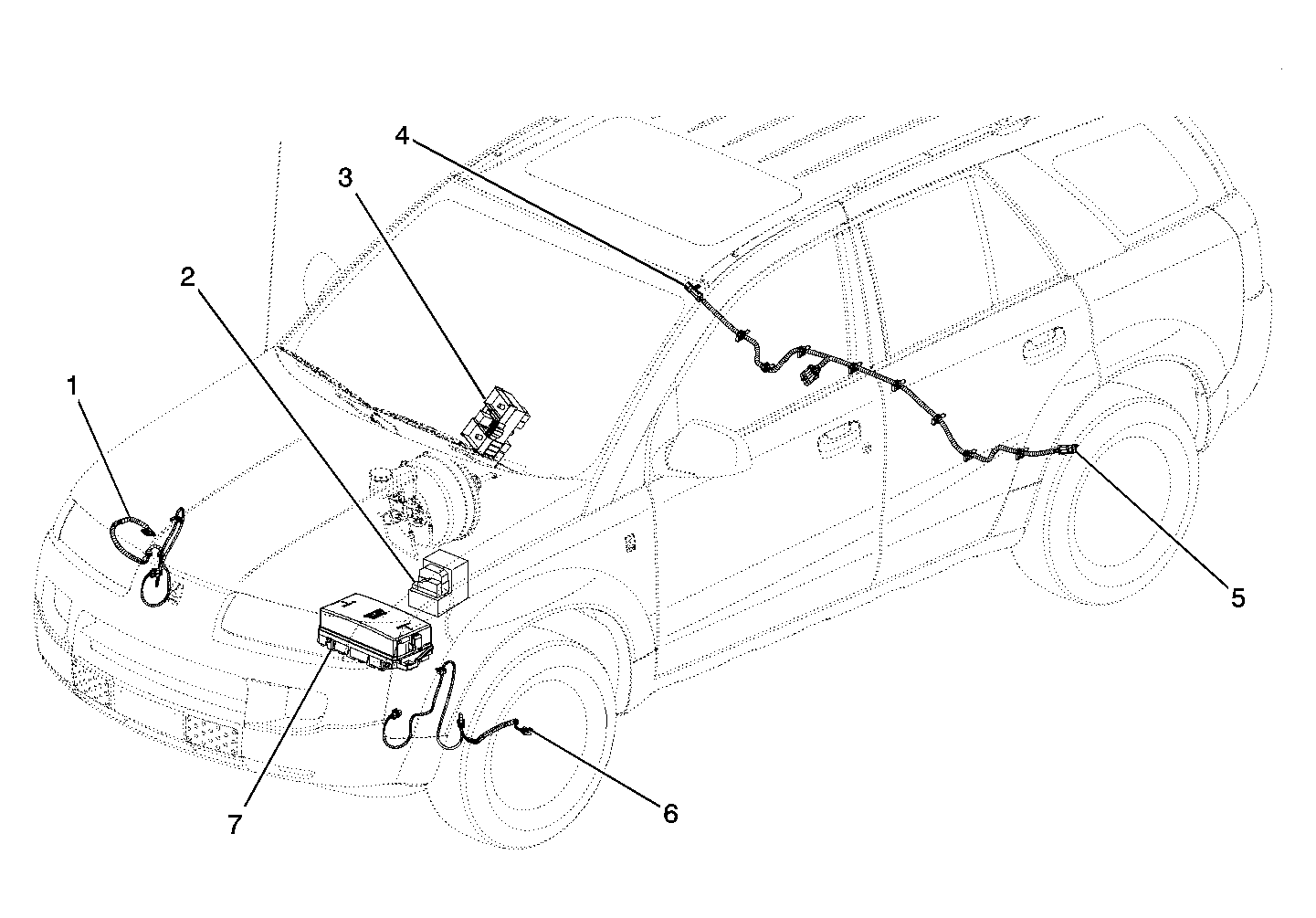

Fig 1: ABS Component Views
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Wheel Speed Sensor (WSS) - RF
2
Electronic Brake Control Module (EBCM)
3
Fuse Block - I/P
4
Wheel Speed Sensor (WSS) - RR
5
Wheel Speed Sensor (WSS) - LR
6
Wheel Speed Sensor (WSS) - LF
7
Fuse Block - Underhood
