Engine Electrical Component Views

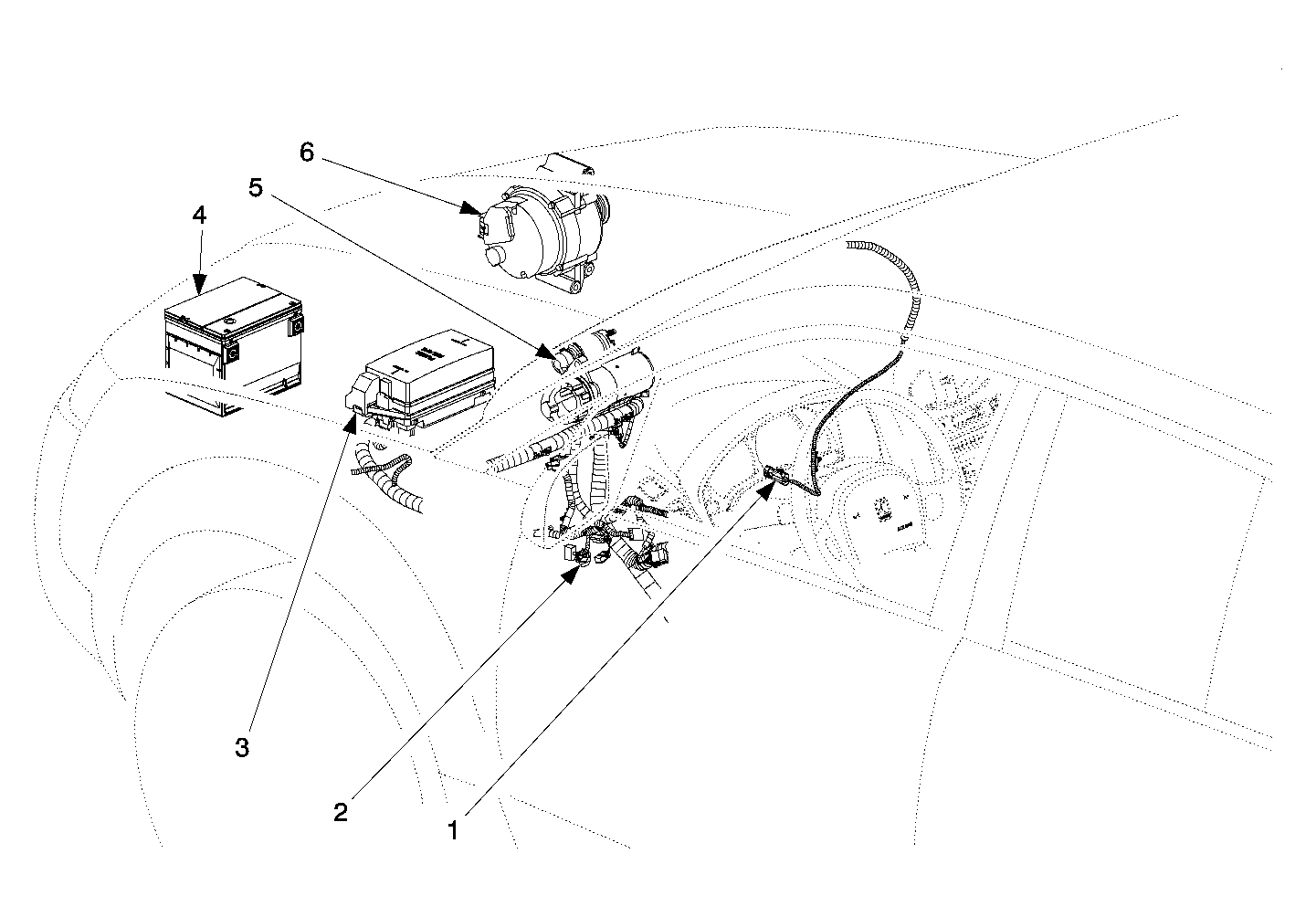

Fig 1: Starting and Charging Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Ignition Switch
2
Park/Neutral Position (PNP) Switch
3
Underhood Fuse Block
4
Battery
5
Starter
6
Generator
