Generator Control Module Bracket Reinforcement Replacement
WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

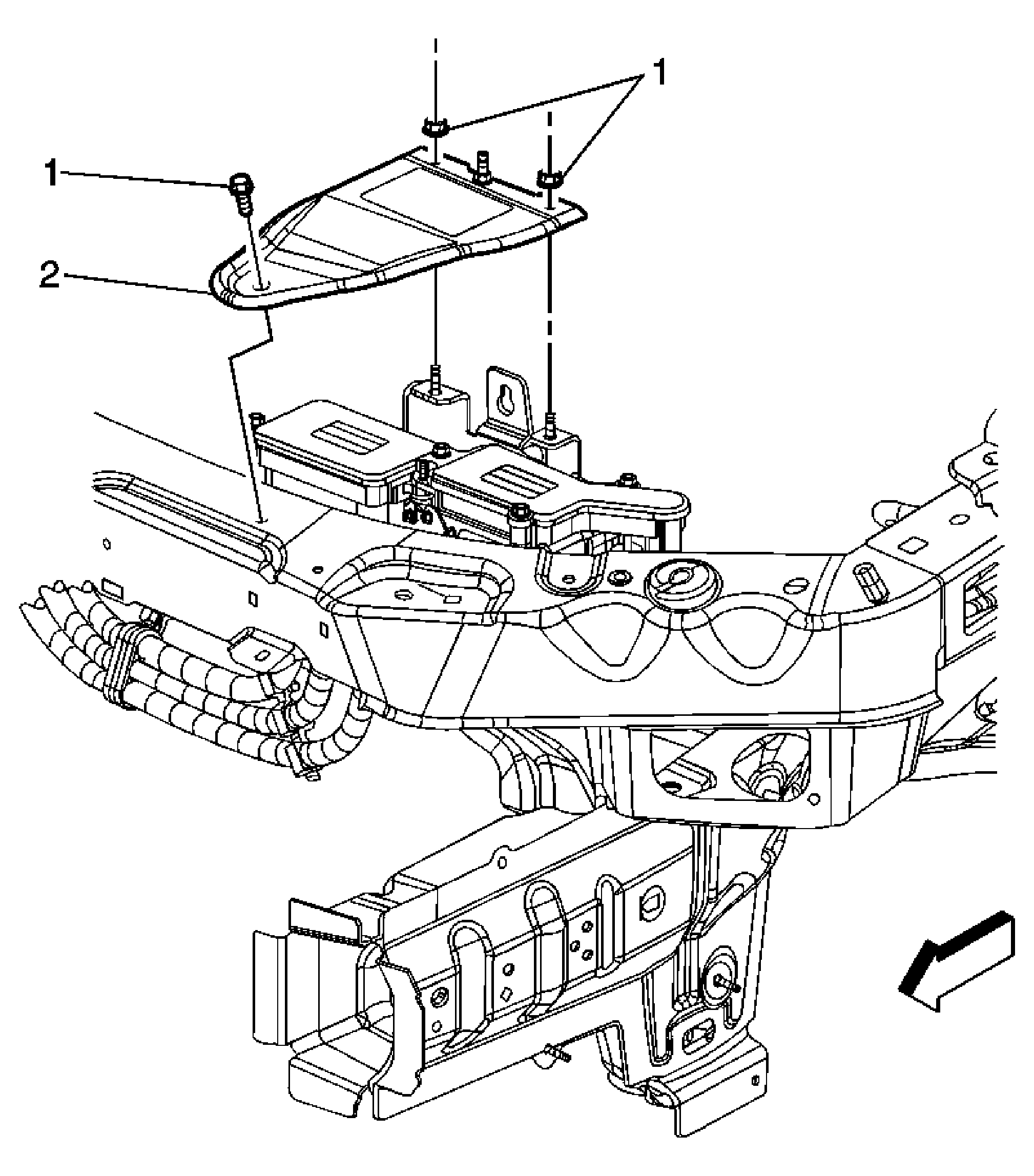

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the generator control module cover. Refer to Generator Control Module Cover Replacement |
|
| 1 | Generator Control Module Bracket Reinforcement Fasteners (Qty: 3)
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m(89 lb in). |
| 2 | Generator Control Module Bracket Reinforcement |
