Theft Deterrent Module Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

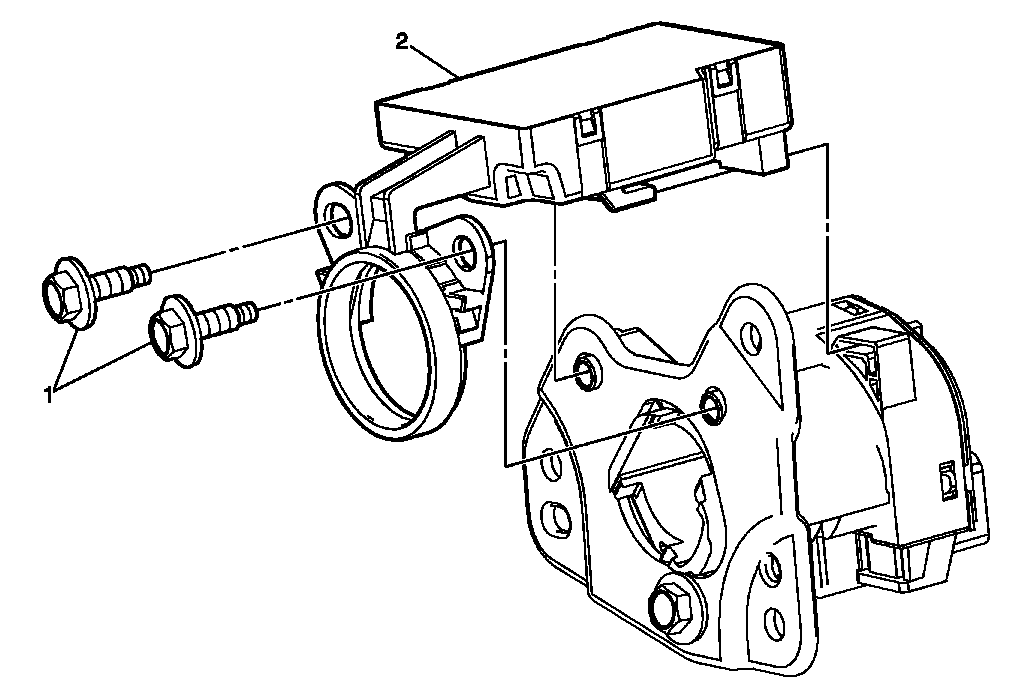

Fig 1: Identifying Theft Deterrent Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Prior To removing the ignition switch assembly, refer to Control Module References for programming and set up procedure. Remove the ignition switch. Refer to Ignition and Start Switch Replacement
1	Theft Deterrent Module Bolt/Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Theft Deterrent Module Procedure Program the theft deterrent module. Refer to Control Module References for programming and set up.

Callout

Component Name

Preliminary Procedure

Prior To removing the ignition switch assembly, refer to Control Module References for programming and set up procedure.
Remove the ignition switch. Refer to Ignition and Start Switch Replacement

Theft Deterrent Module Bolt/Screw (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
2 N.m (18 lb in)

Theft Deterrent Module
Procedure
Program the theft deterrent module. Refer to Control Module References for programming and set up.
