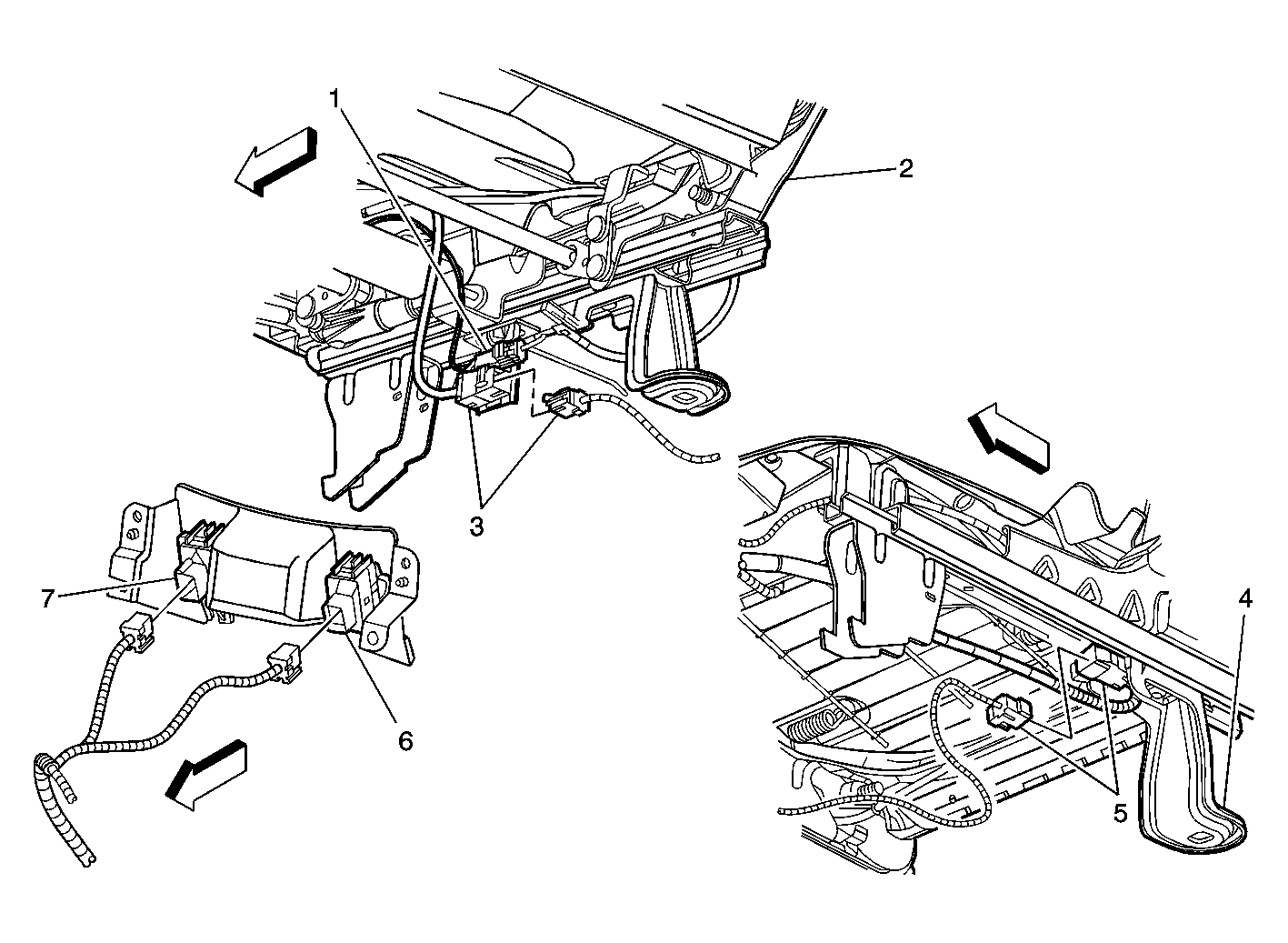

Power Seat System Component Views
| Callout | Component Name |
|---|---|
| 1 | Not Used - Early Production |
| 2 | Seat - Driver |
| 3 | C305 - To the Driver Power/Heated Seat (w/AG1,KA1) |
| 4 | Seat - Front Passenger |
| 5 | C306 - To the Front Passenger Heated Seat (w/KA1) |
| 6 | Driver Heated Seat Switch (w/KA1) (Mounted Near the Shifter Assembly) |
| 7 | Front Passenger Heated Seat Switch (w/KA1) (Mounted Near the Shifter Assembly) |
