Control Module, A/T

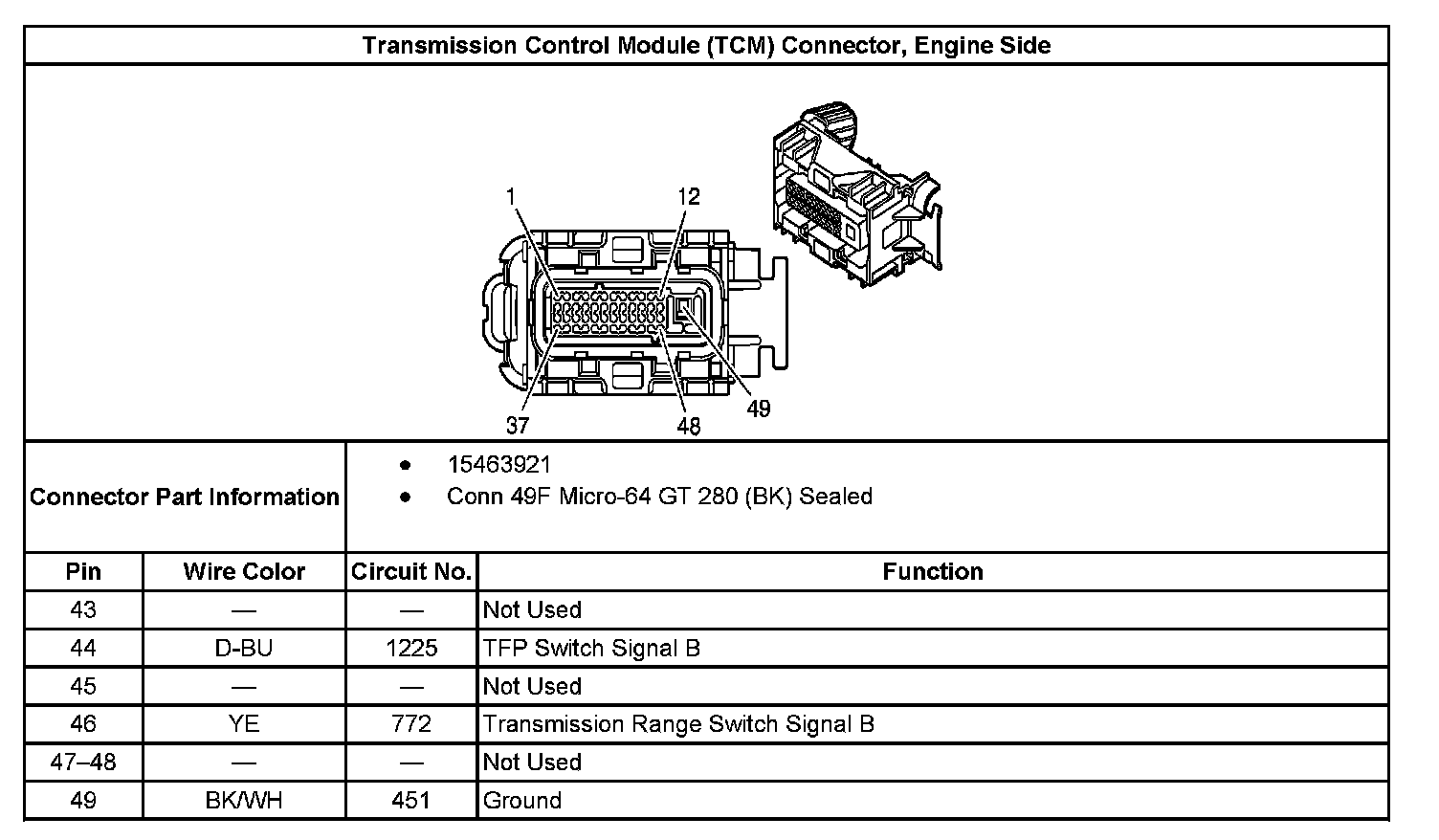

Transmission Control Module (TCM) Connector, Engine Side:

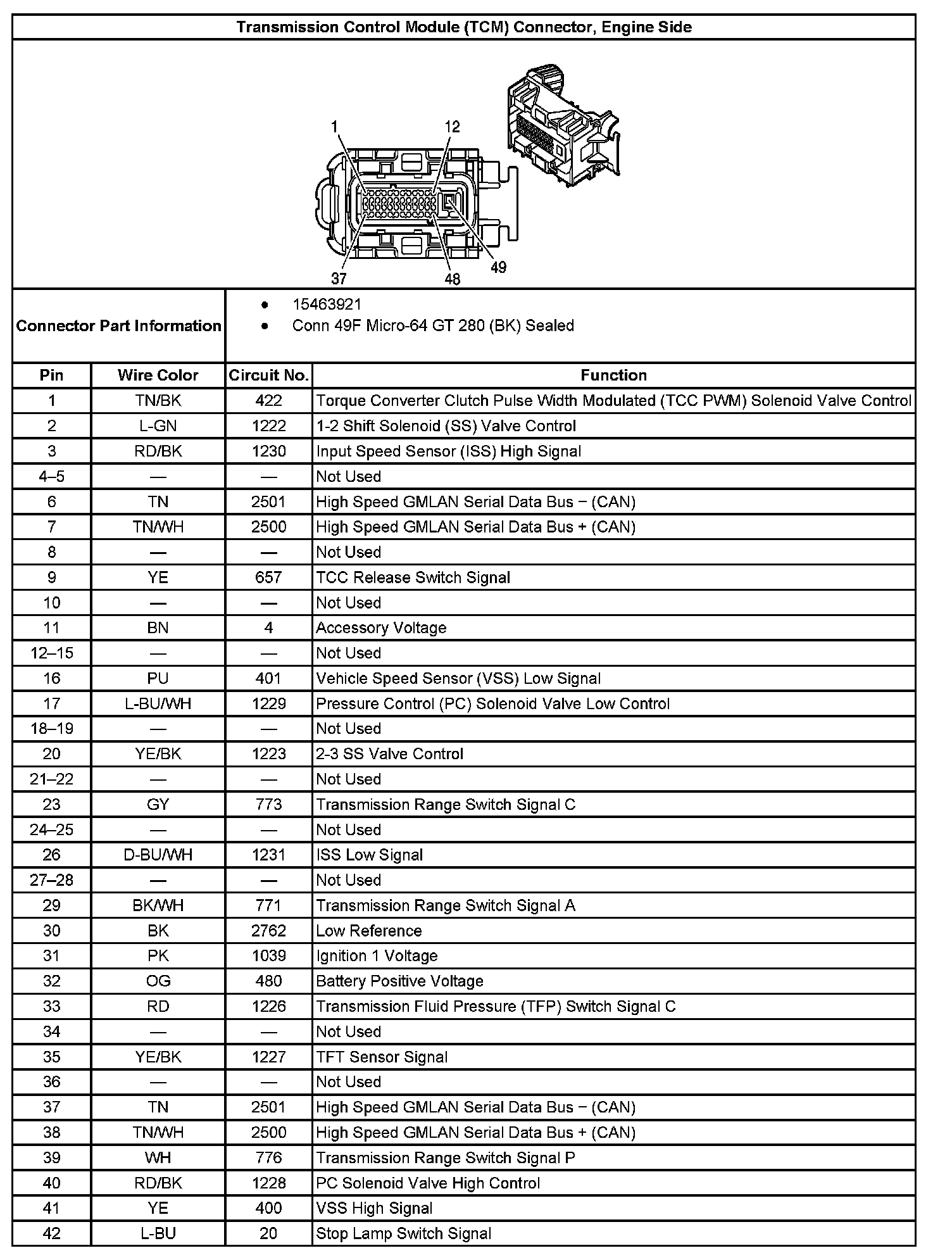

Transmission Control Module (TCM) Connector, Engine Side:
