Main Relay (Computer/Fuel System): Locations

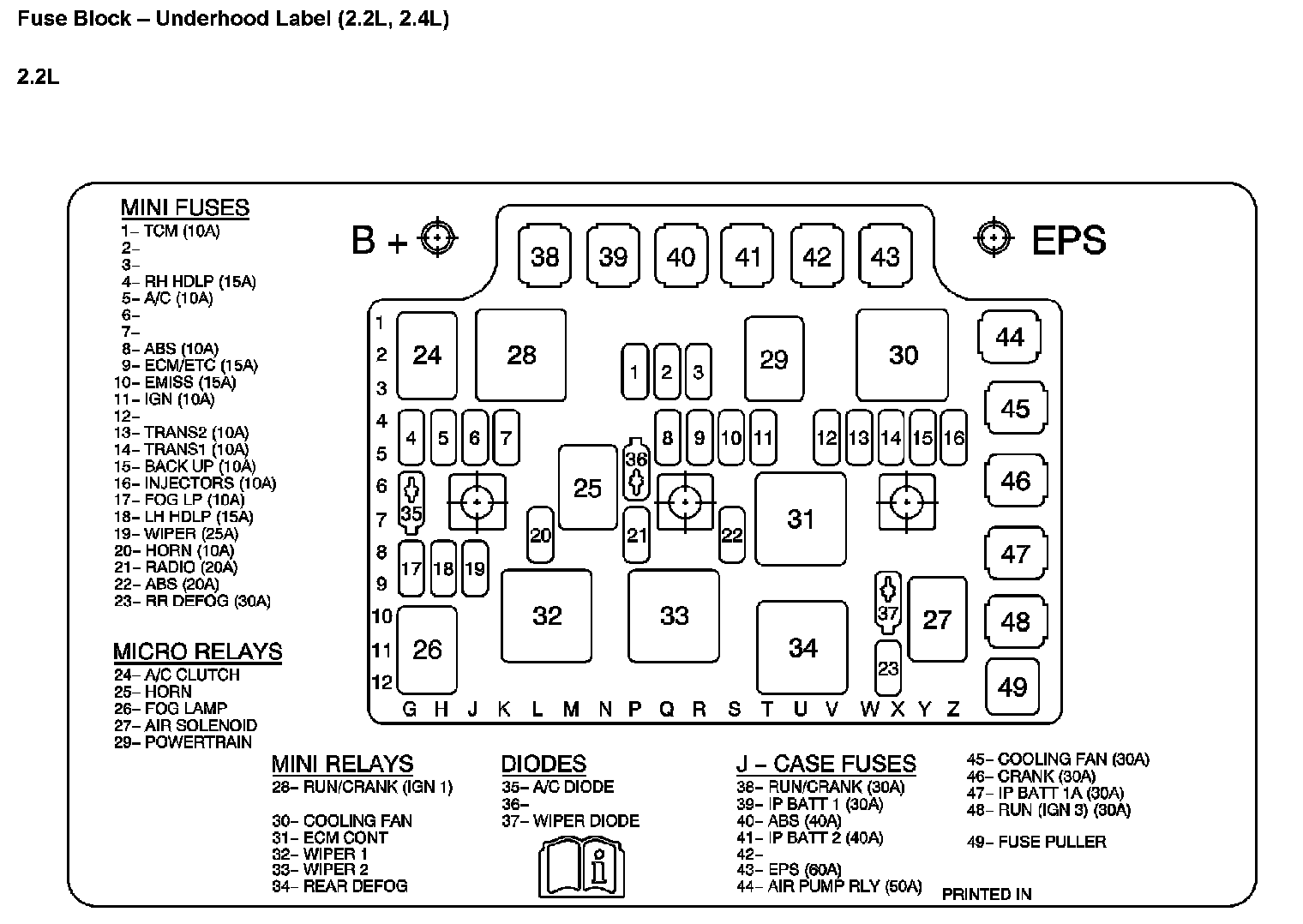

Location View:

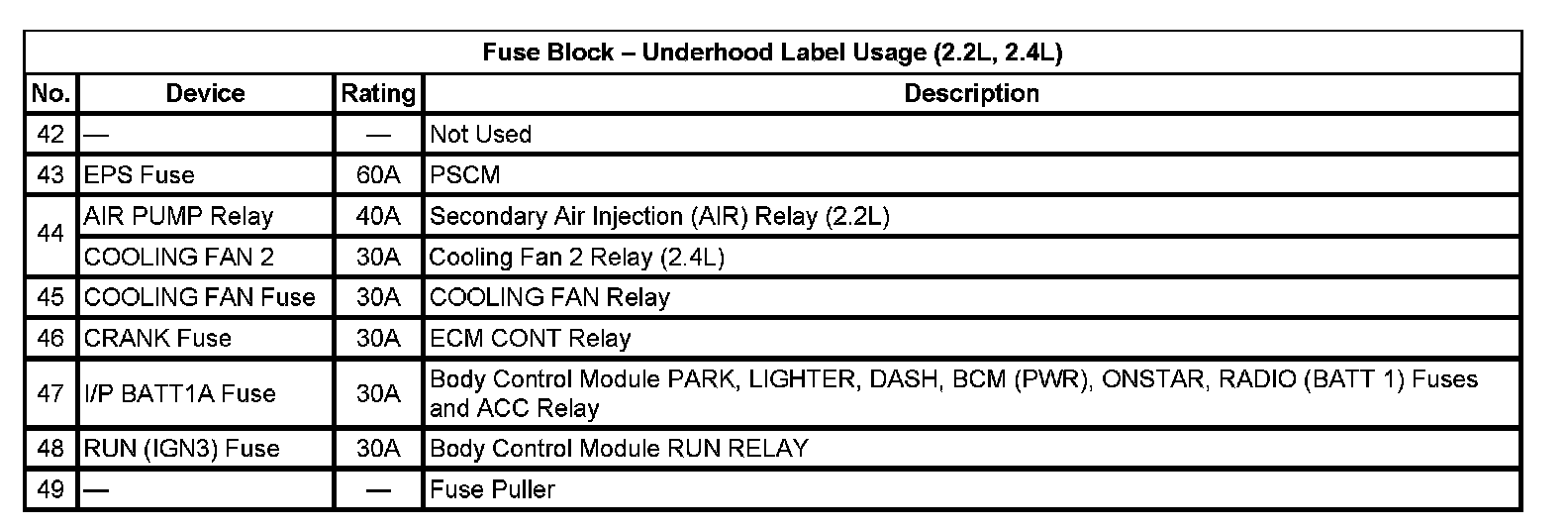

Application Table (Part 1):

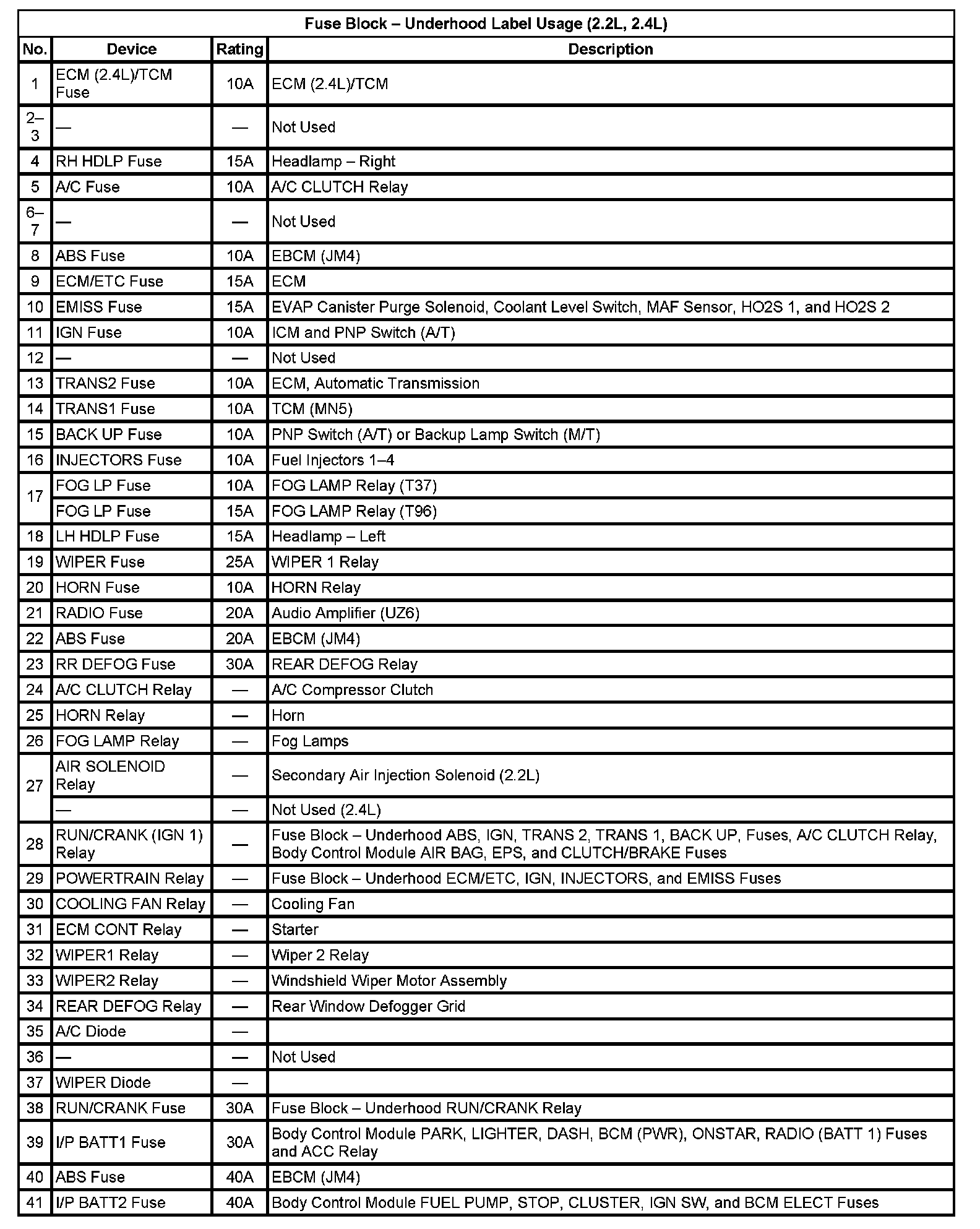

Application Table (Part 2):

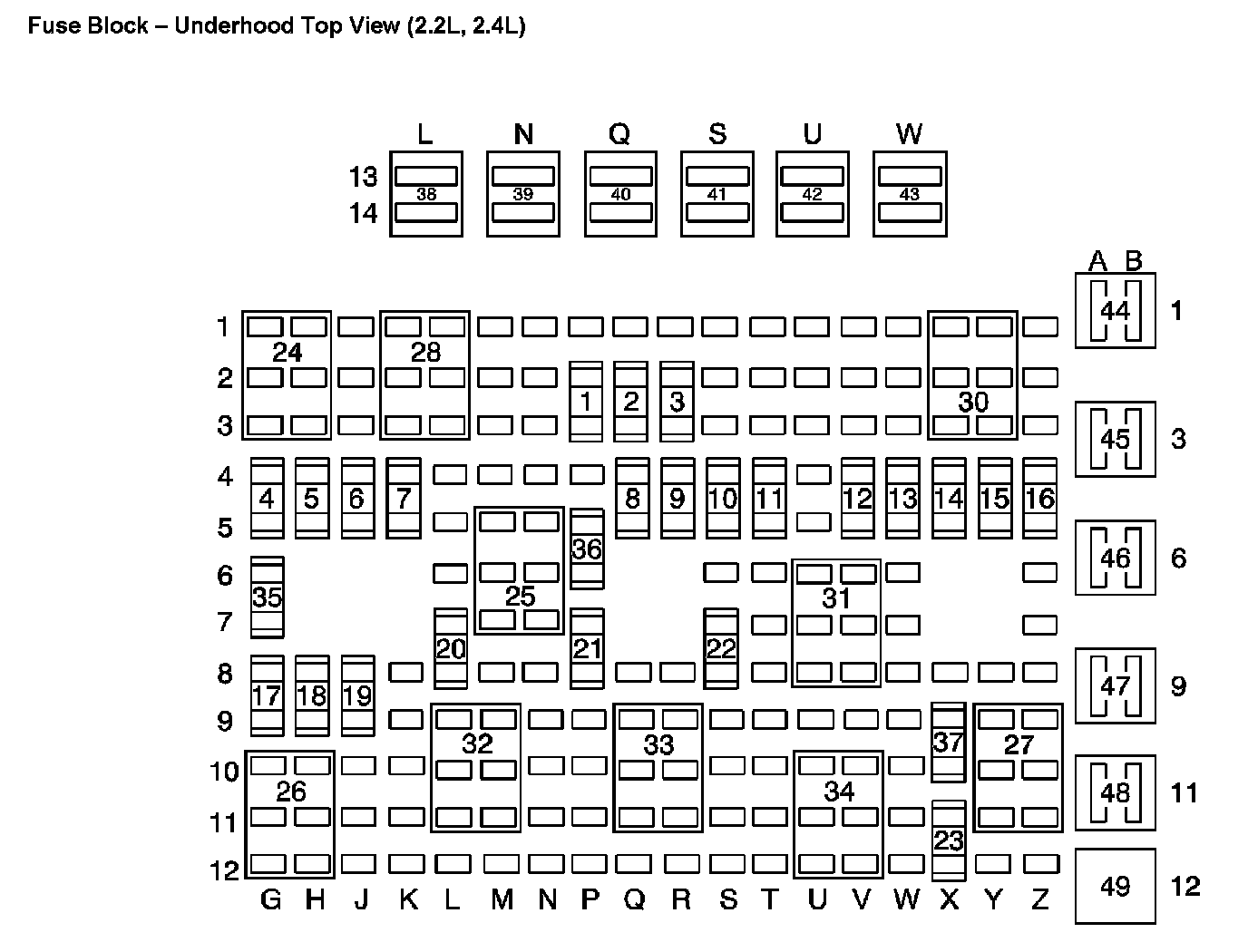

Location View:

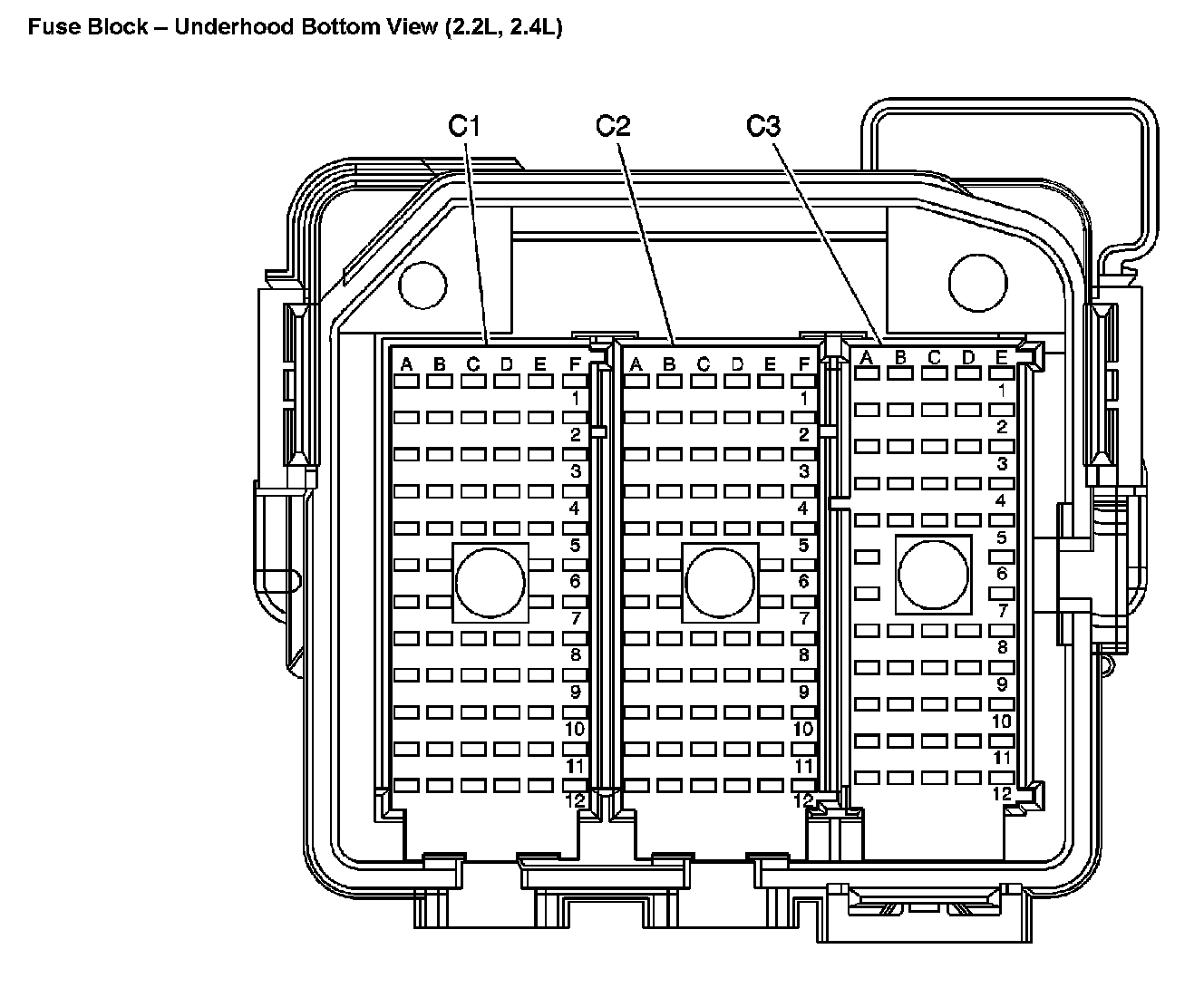

Fuse Block - Underhood Bottom View:
