Vehicle Speed Sensor (VSS) Replacement

Vehicle Speed Sensor (VSS) Replacement

Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Disconnect the electrical connector from the vehicle speed sensor (VSS).





3. Remove the VSS retaining bolt, and remove the VSS.

Installation Procedure

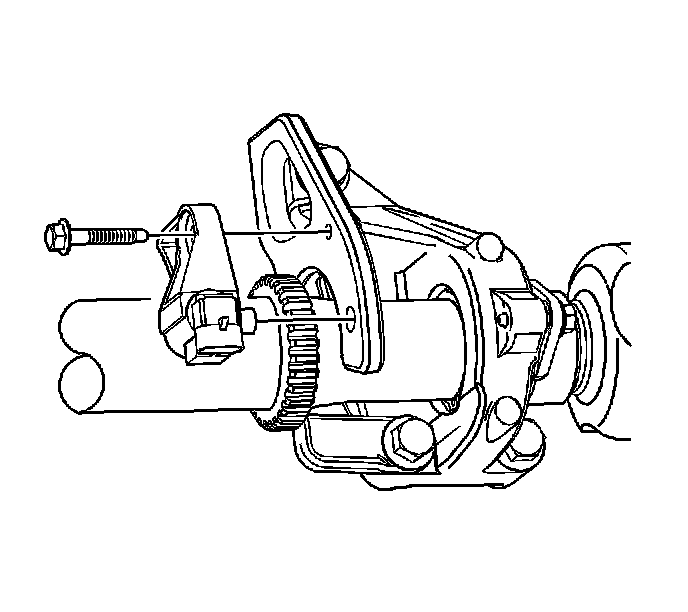

1. Position the VSS to the VSS bracket. Ensure that the VSS locating pin fits securely in the locating hole on the bracket.

2. Notice: Refer to Fastener Notice in Service Precautions.

Install the vehicle speed sensor retaining bolt.

Tighten the bolt to 10 Nm (89 inch lbs.).

3. Connect the electrical connector to the VSS.
4. Lower the vehicle.
