Part 1
Thread Repair Specifications

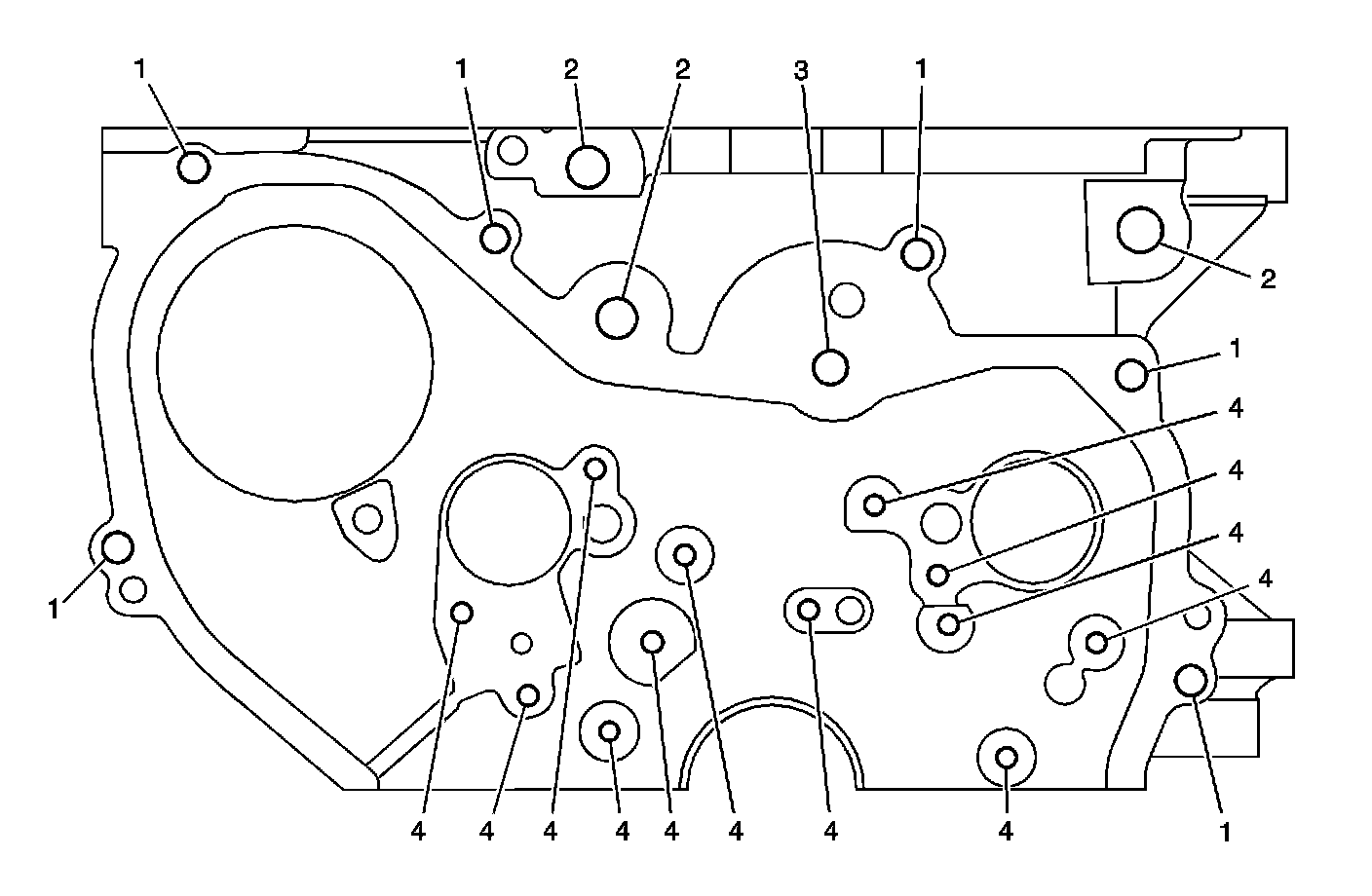

Engine Block - Front View:

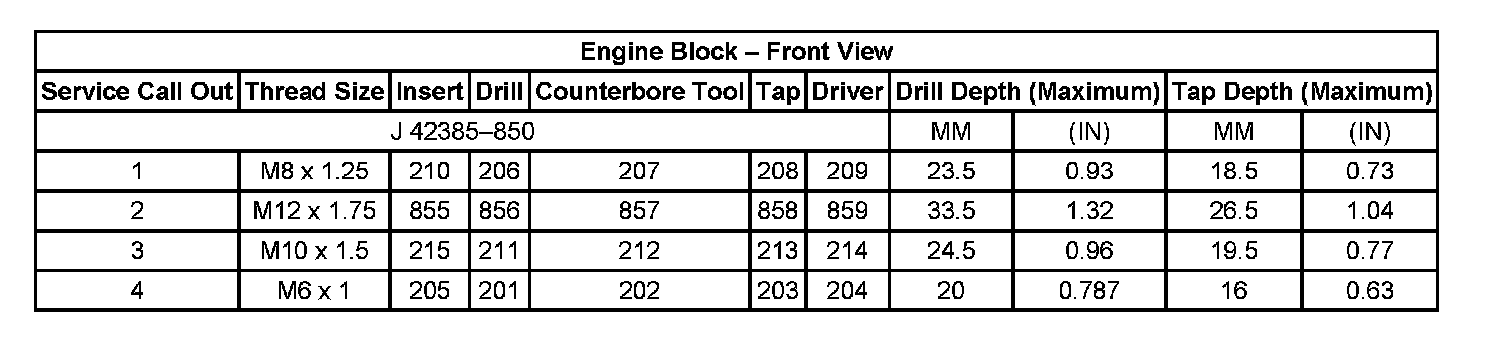

Engine Block - Front View:
Engine Block - Back View:

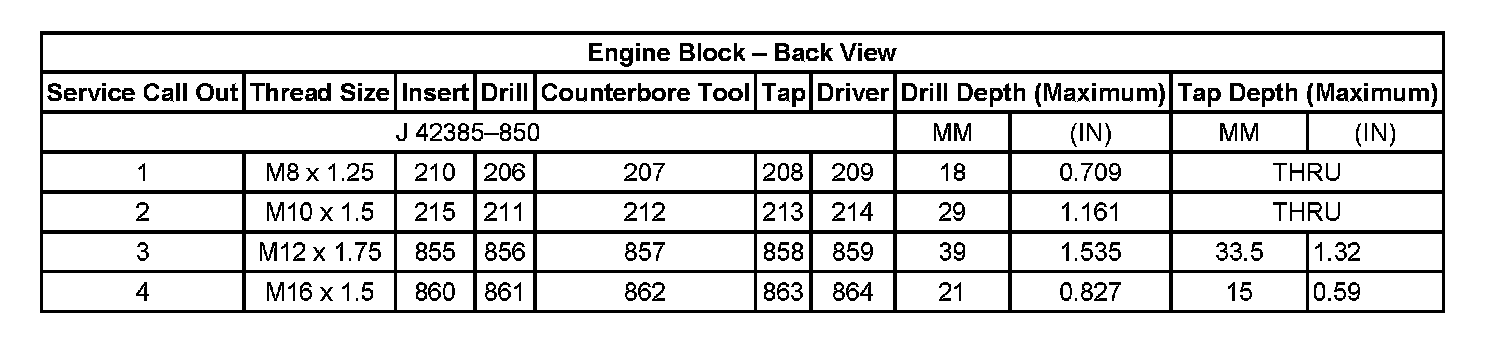

Engine Block - Back View:

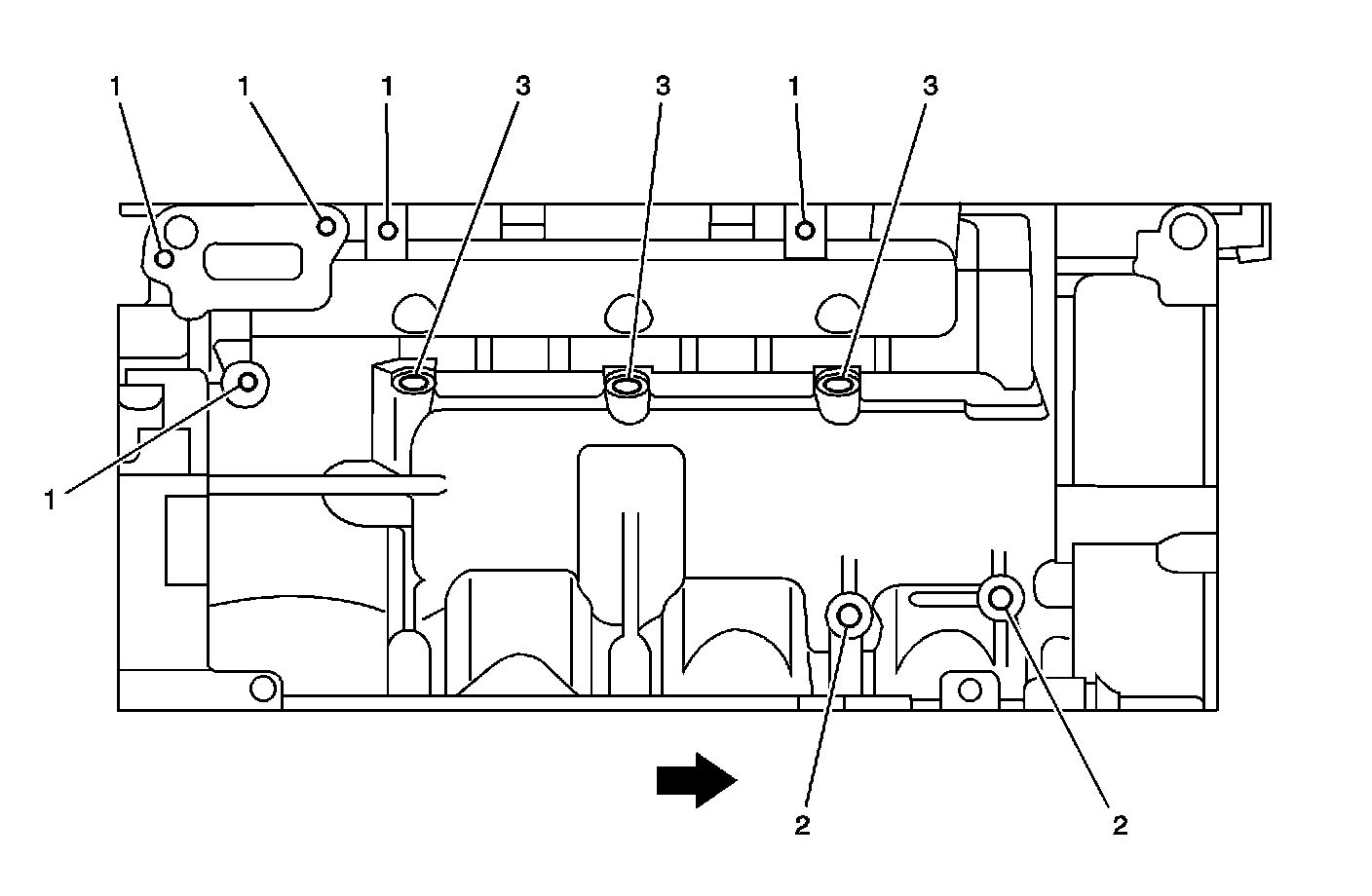

Engine Block - Left Side View:

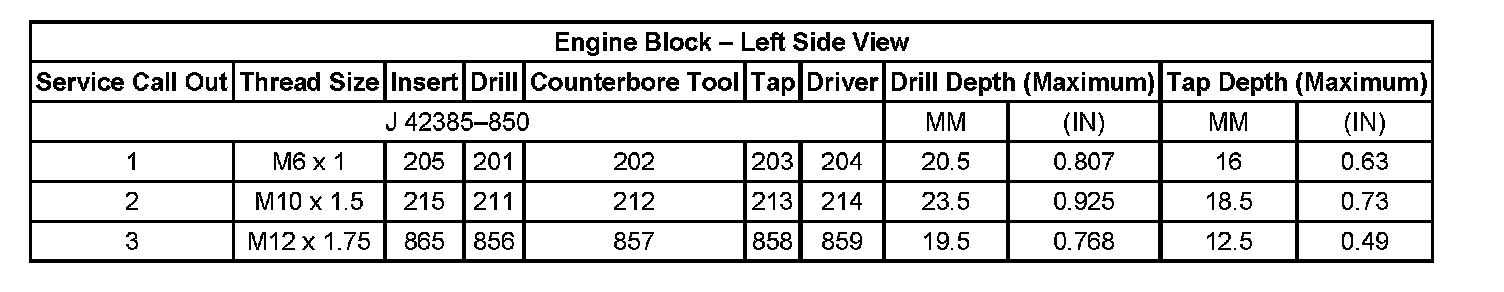

Engine Block - Left Side View:

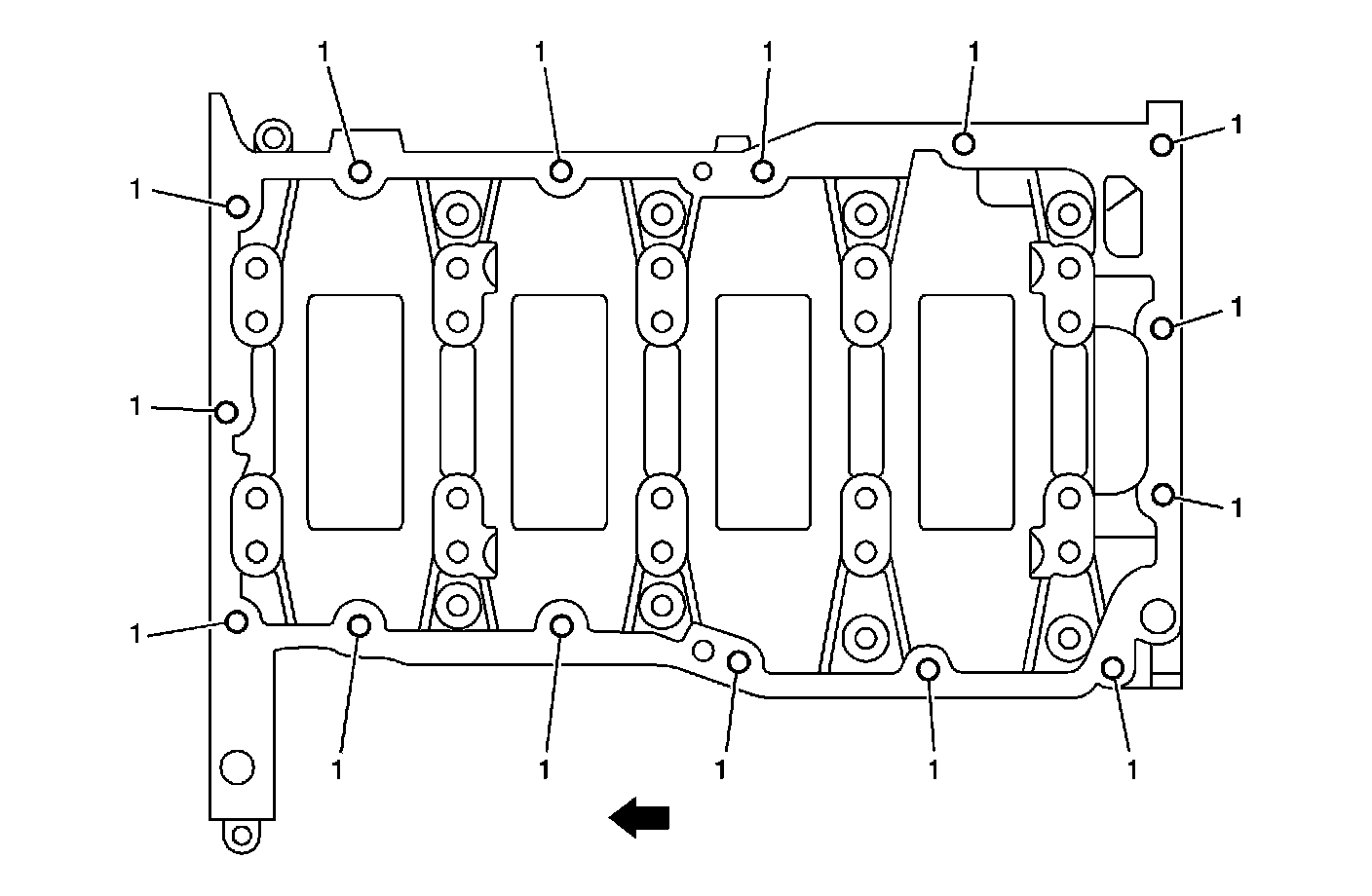

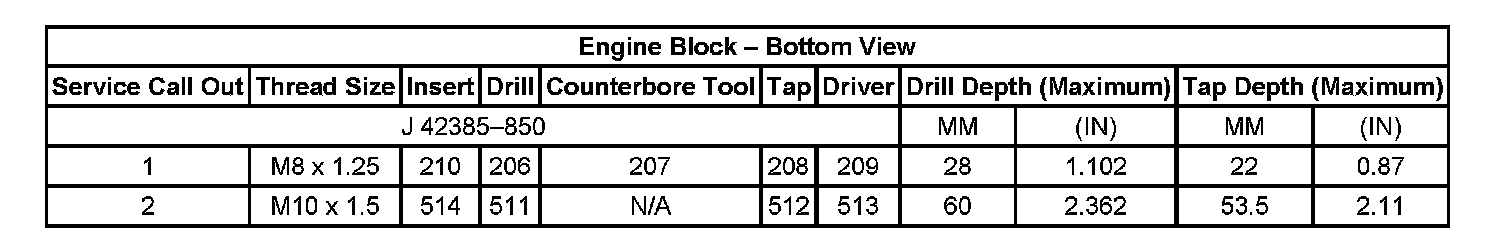

Engine Block - Bottom View:
Engine Block - Bottom View:

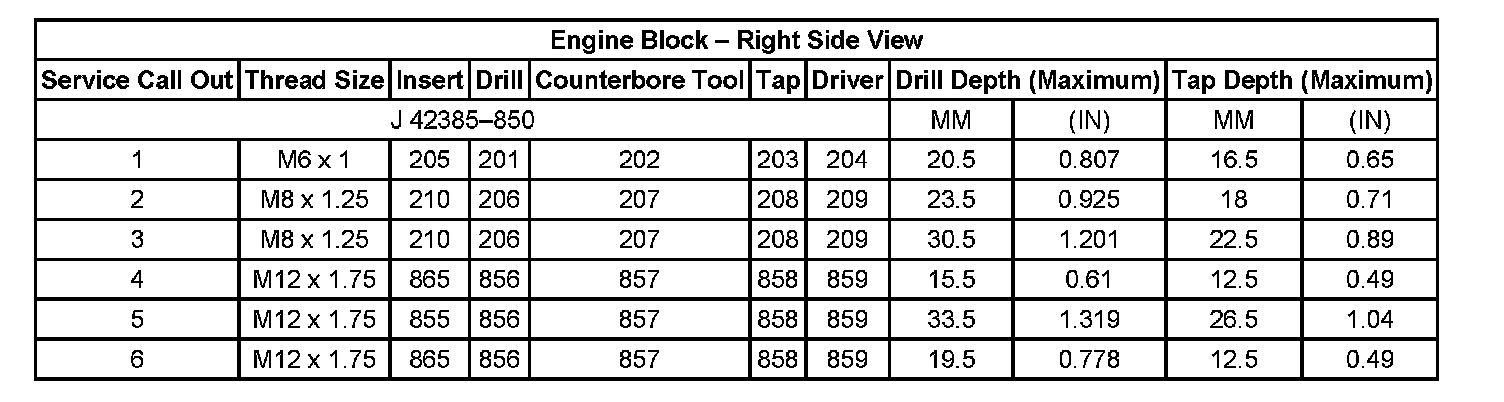

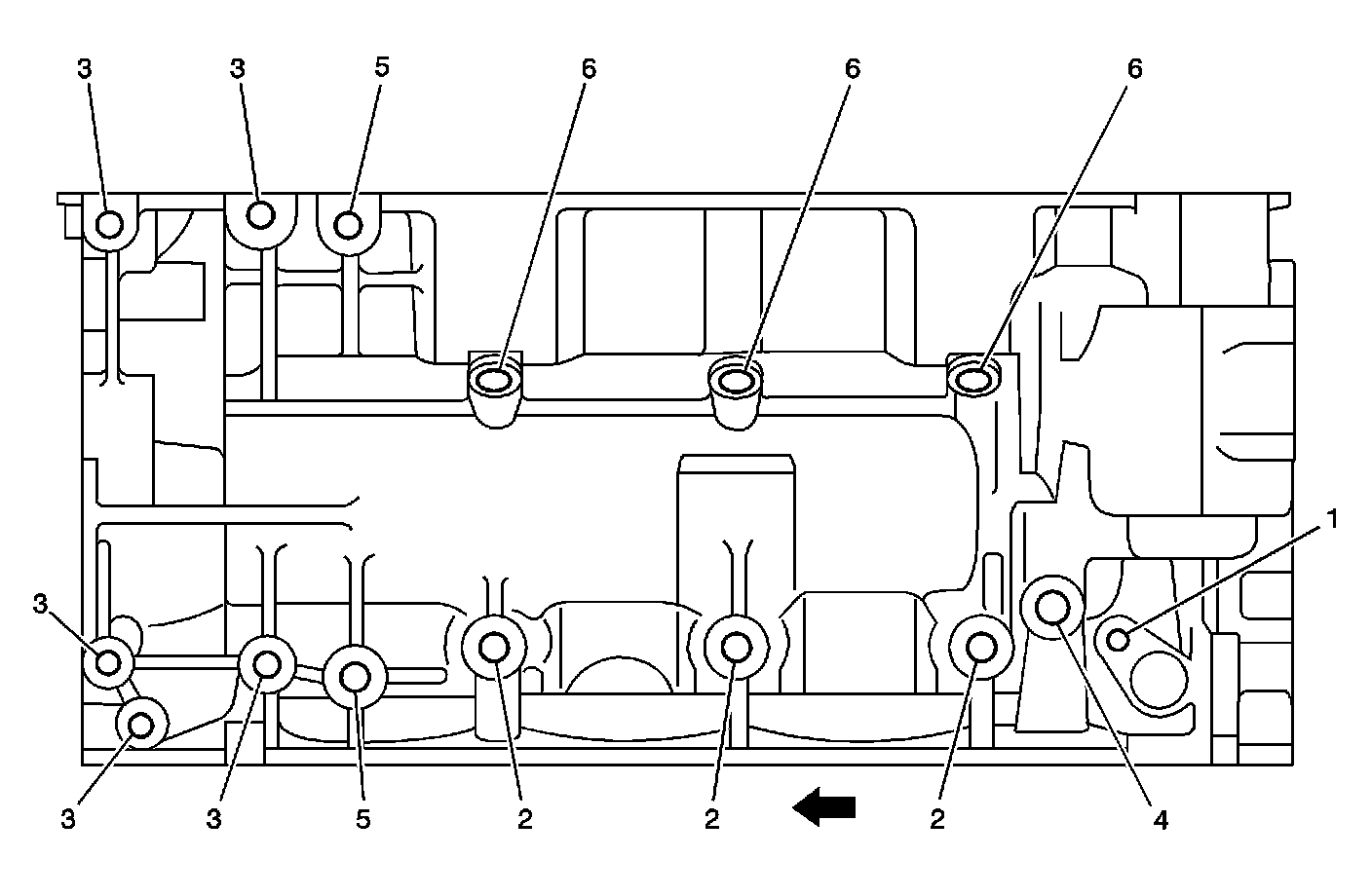

Engine Block - Right Side View:
Engine Block - Right Side View:

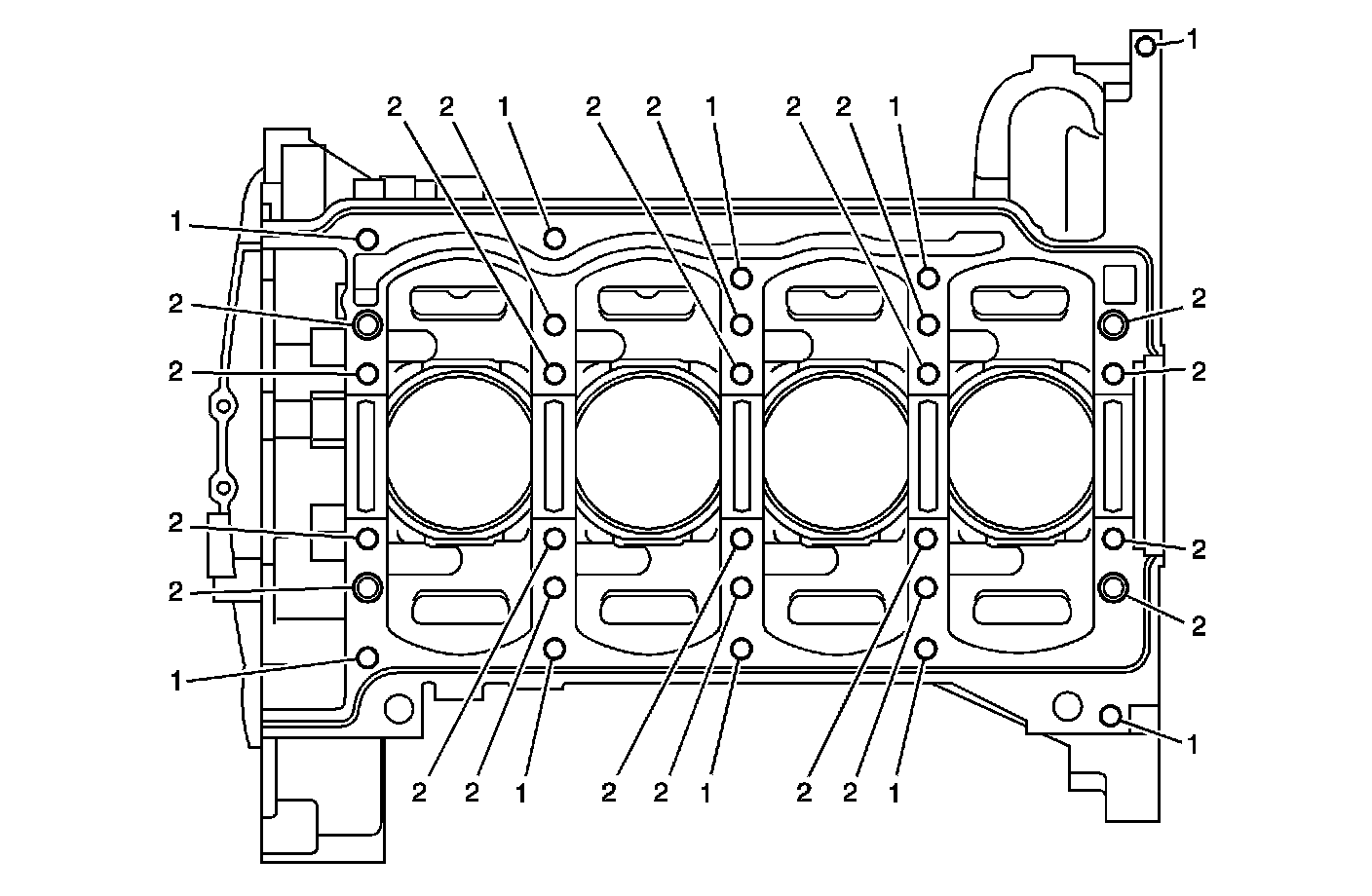

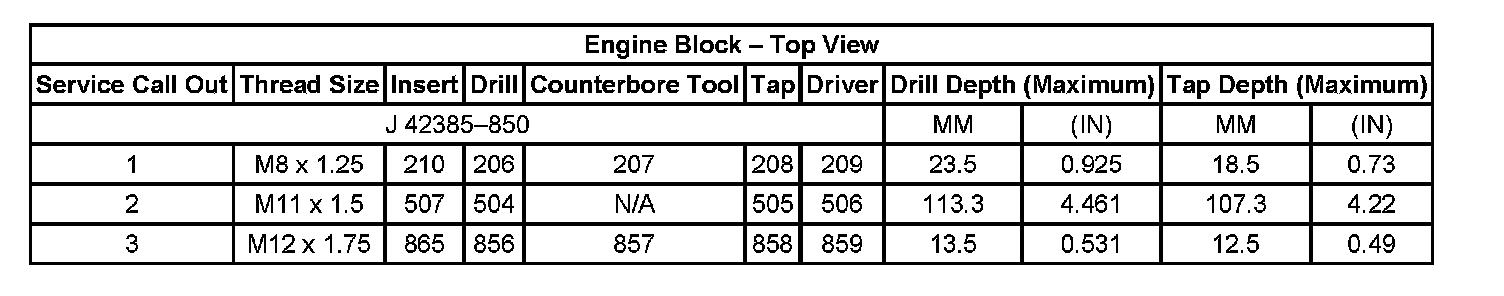

Engine Block - Top View:
Engine Block - Top View:

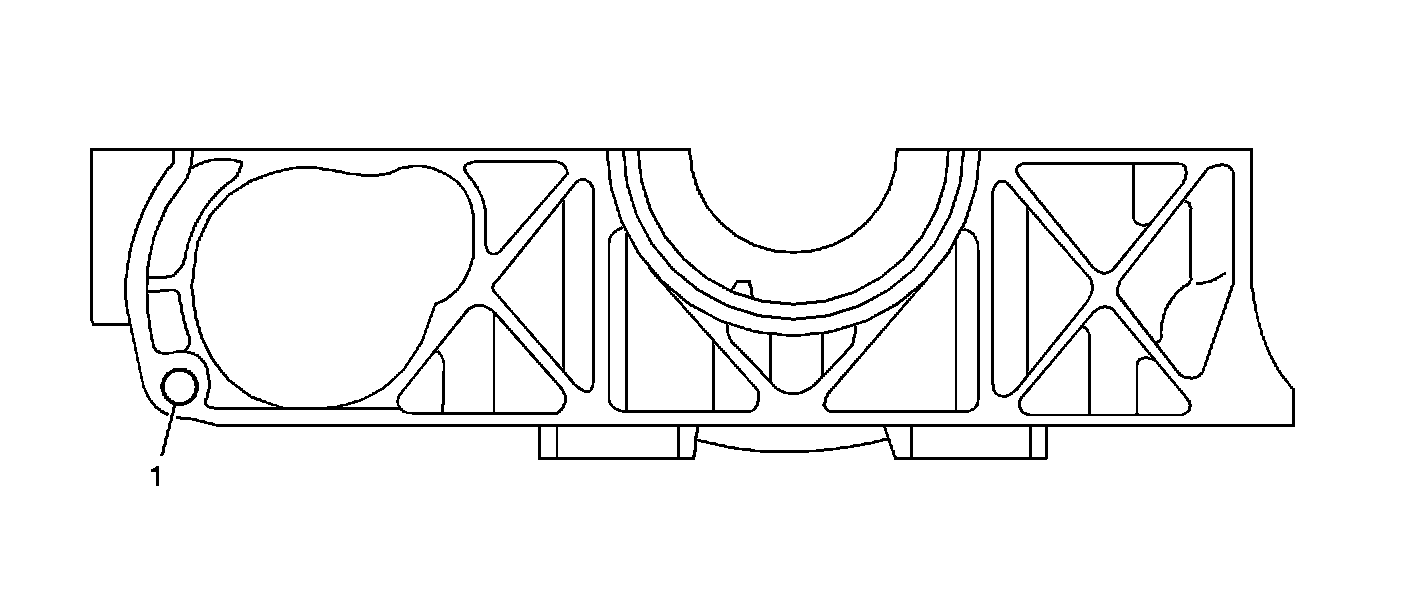

Lower Crankcase - Front View:

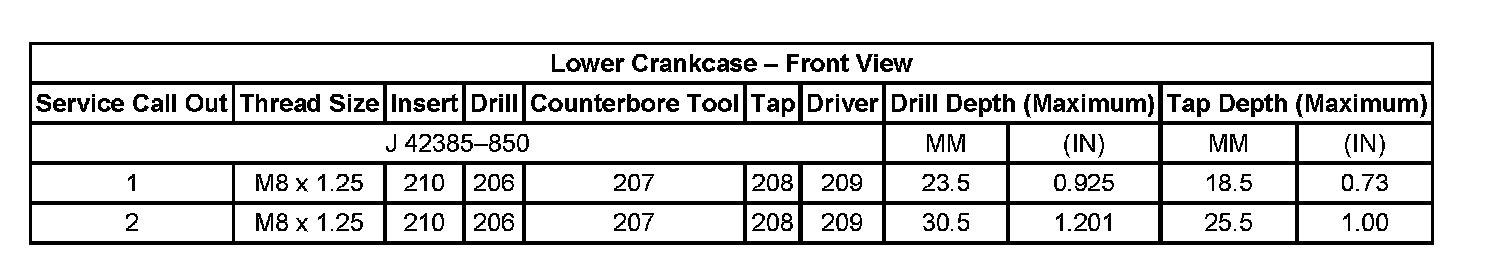

Lower Crankcase - Front View:

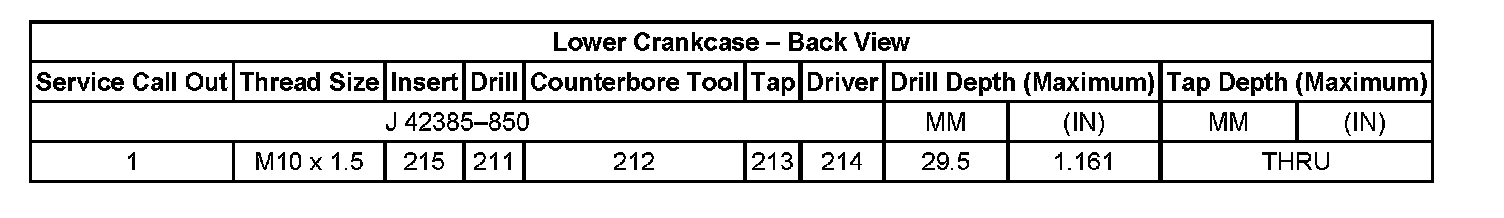

Lower Crankcase - Back View:
Lower Crankcase - Back View:

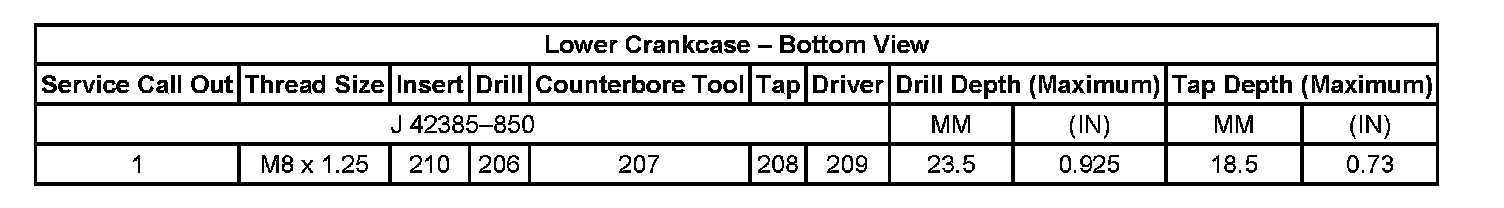

Lower Crankcase - Bottom View:
Lower Crankcase-Bottom View:
