Part 2
Thread Repair Specifications

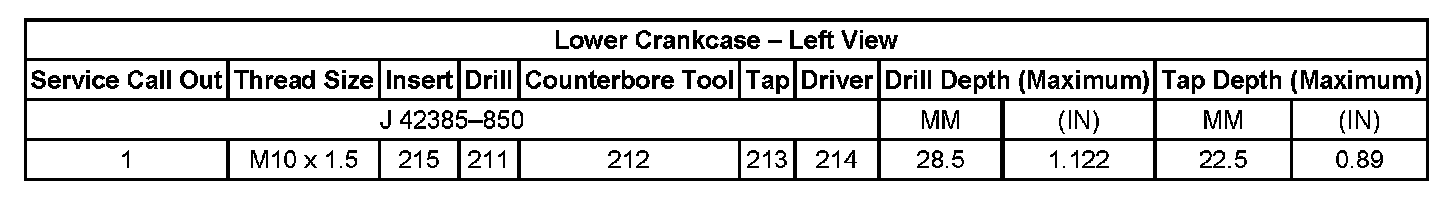

Lower Crankcase - Left View:
Lower Crankcase - Left View:

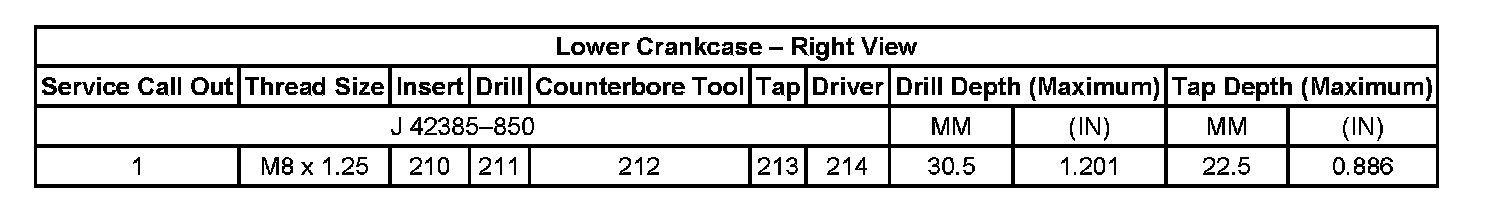

Lower Crankcase - Right View:
Lower Crankcase - Right View:

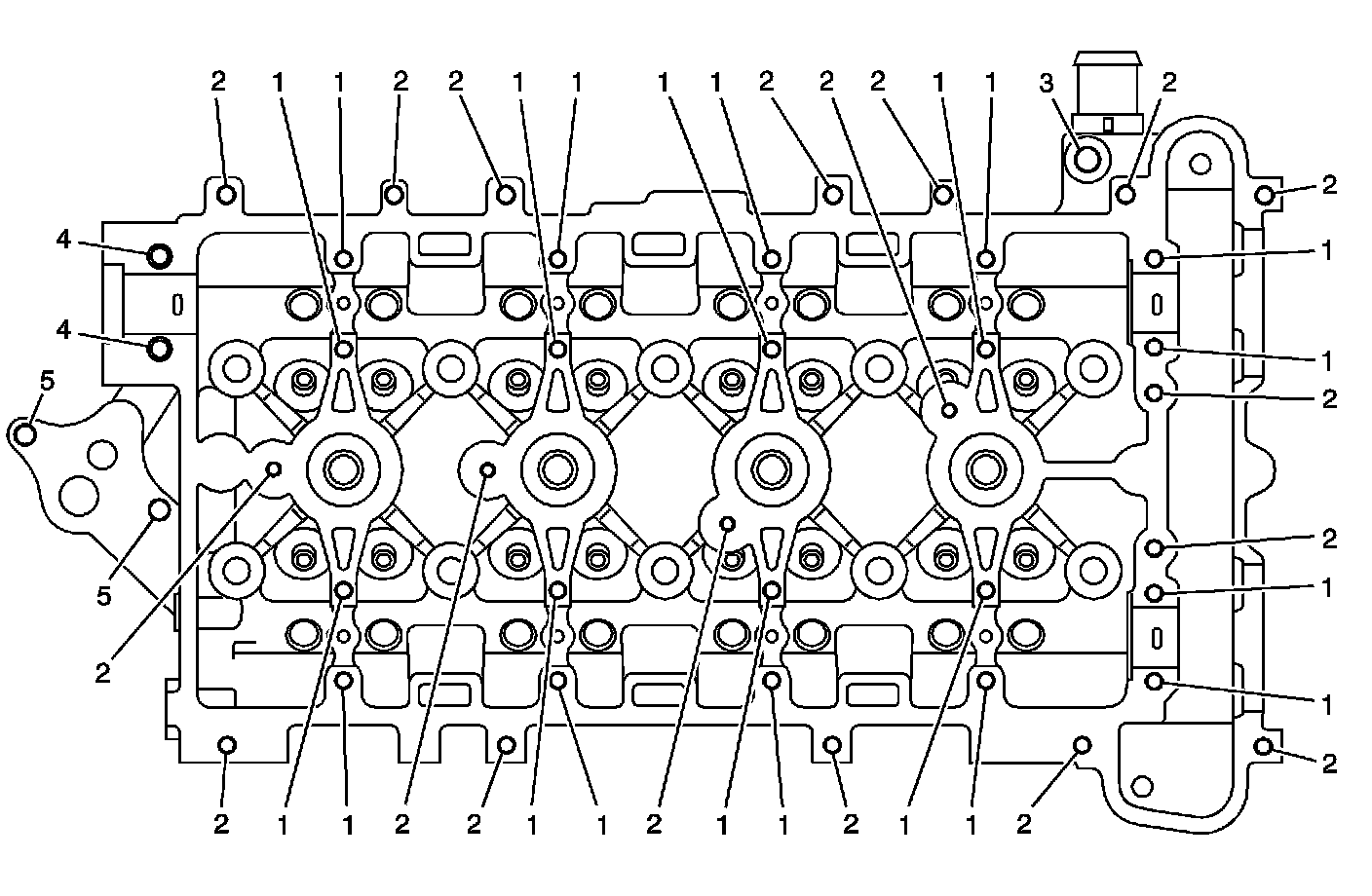

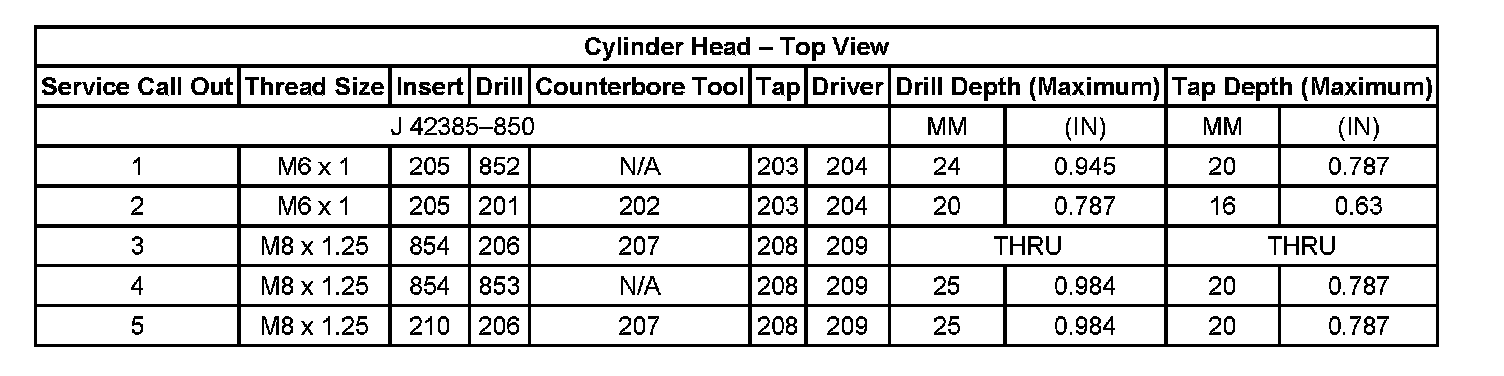

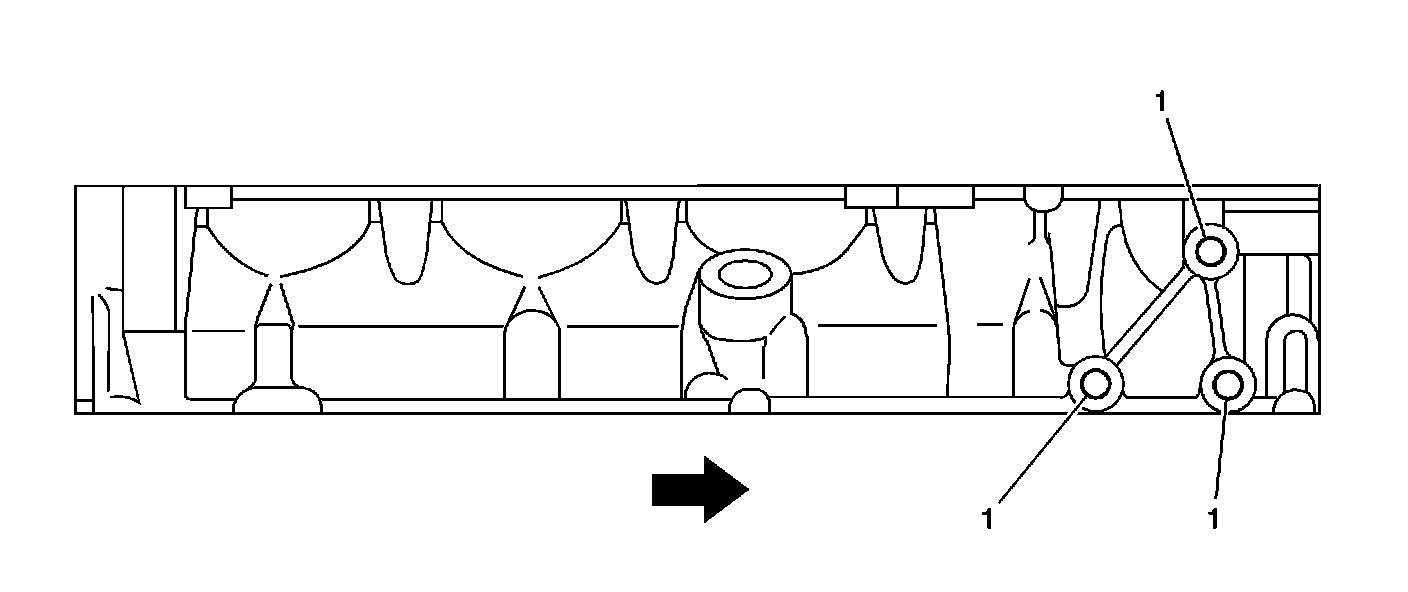

Cylinder Head - Top View:
Cylinder Head-Top View:

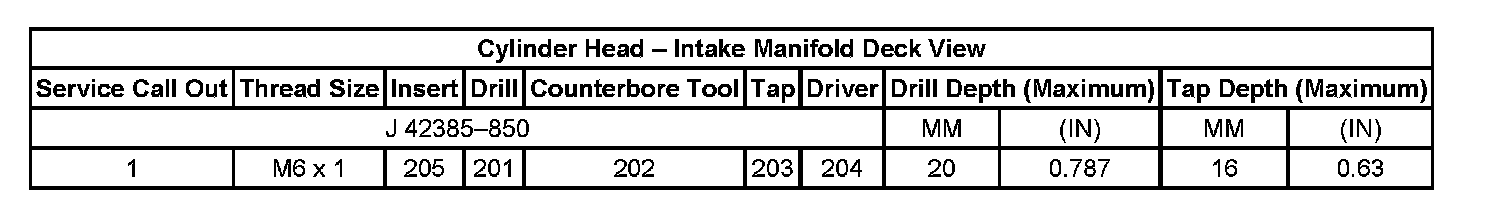

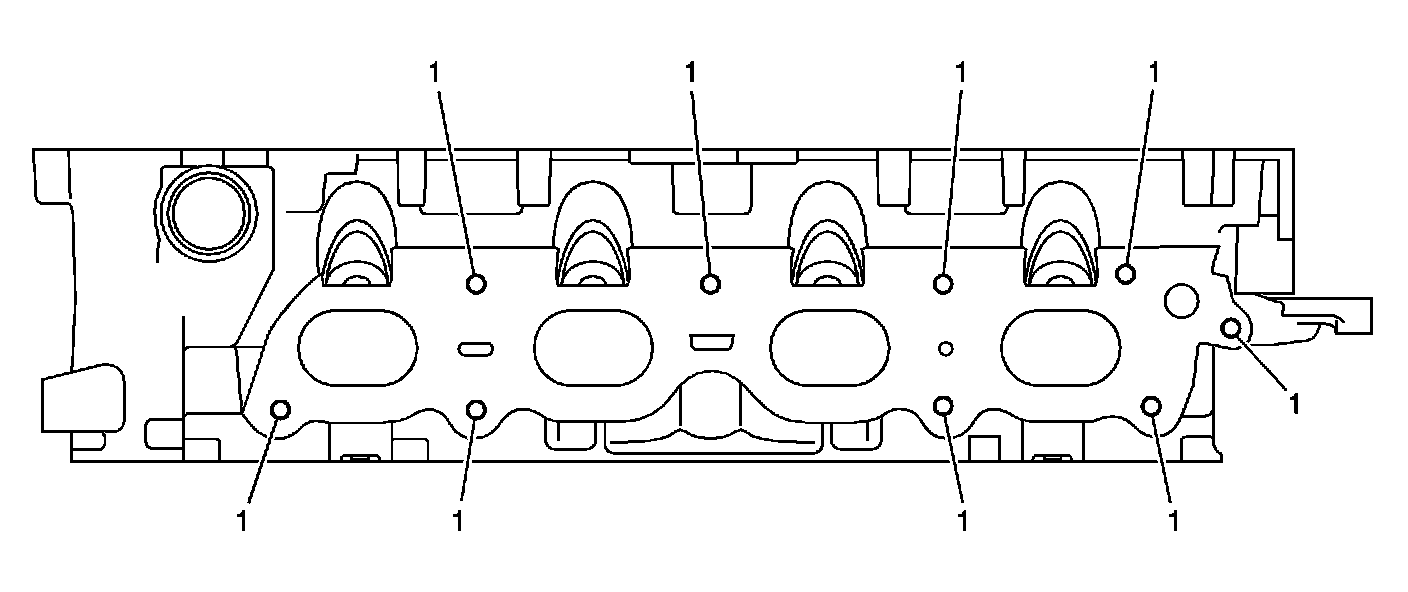

Cylinder Head - Intake Manifold Deck View:
Cylinder Head-Intake Manifold Deck View:

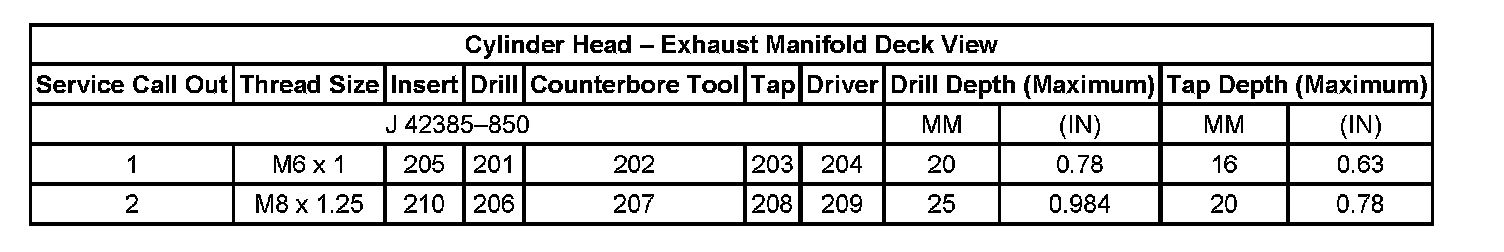

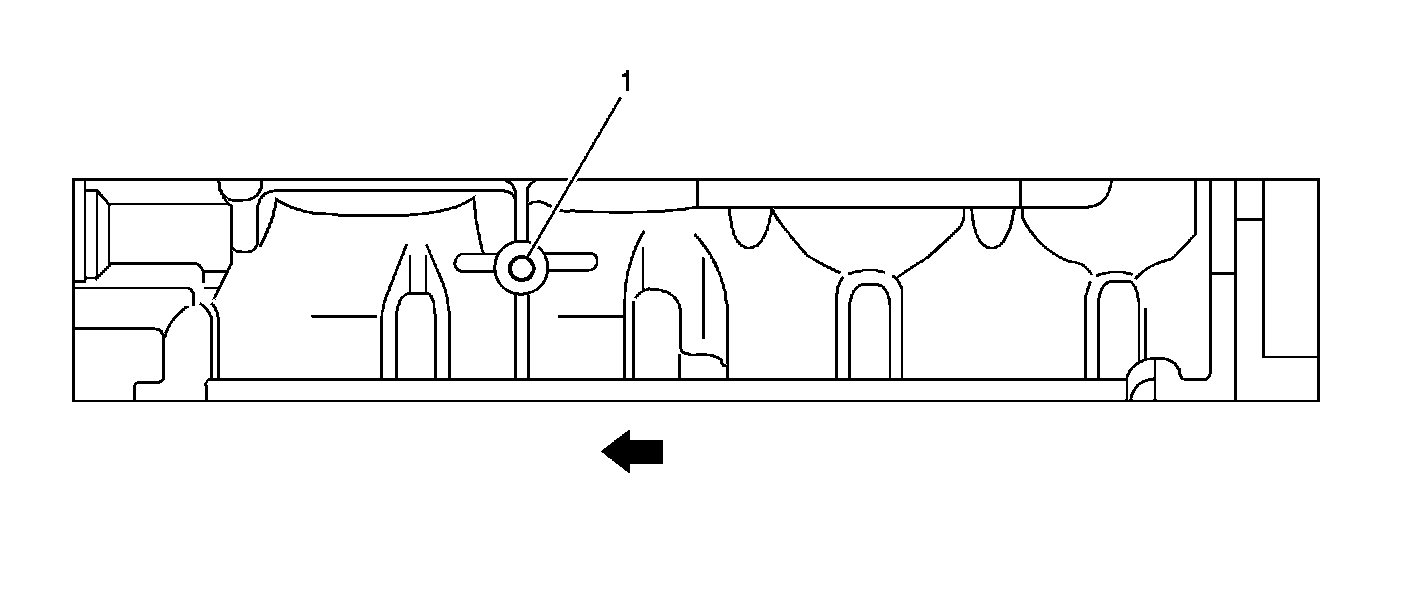

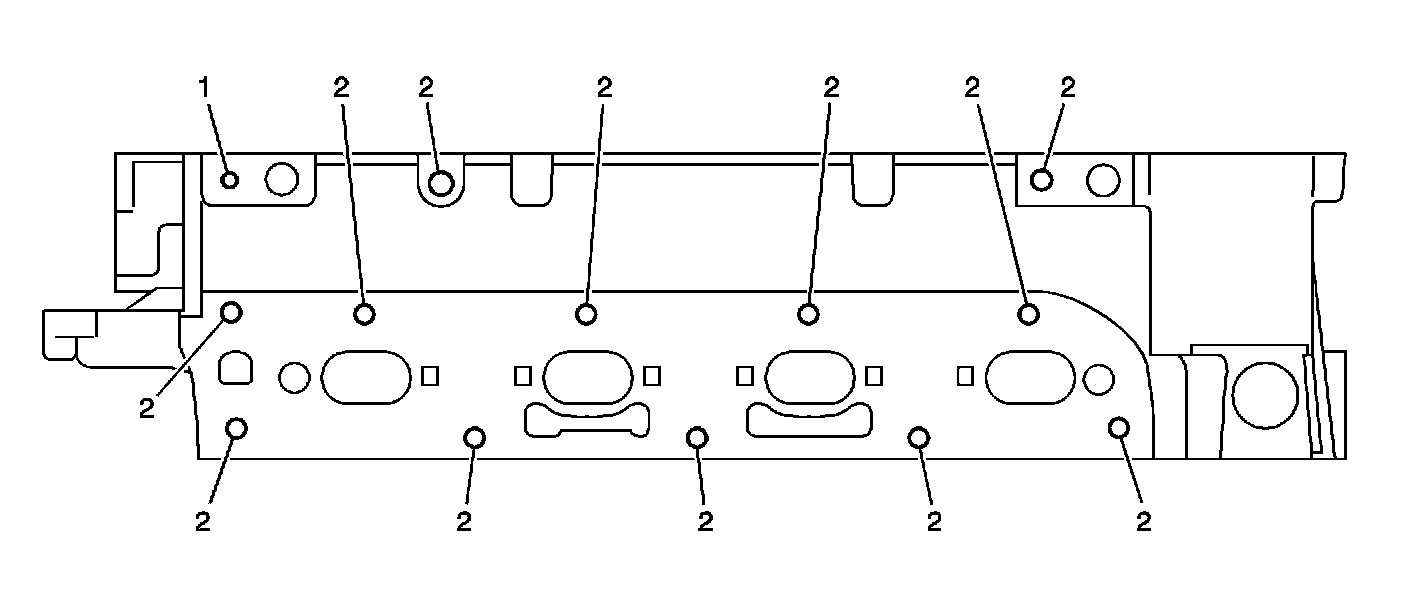

Cylinder Head - Exhaust Manifold Deck View:
Cylinder Head-Exhaust Manifold Deck View:

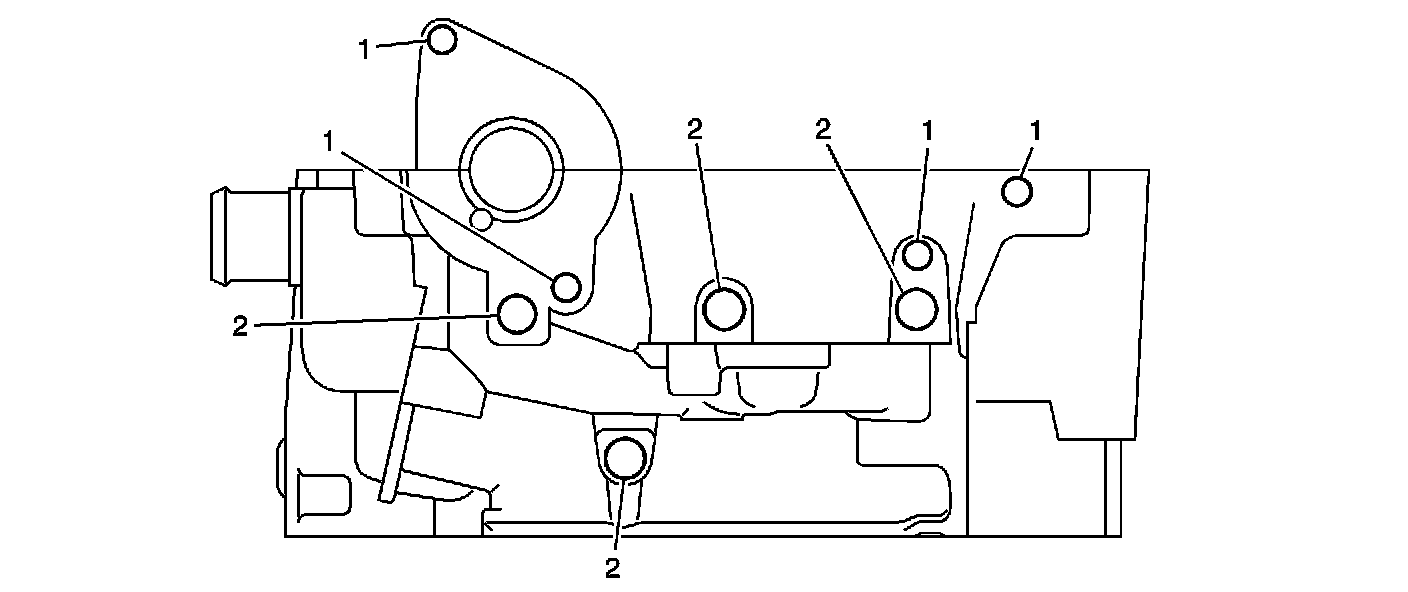

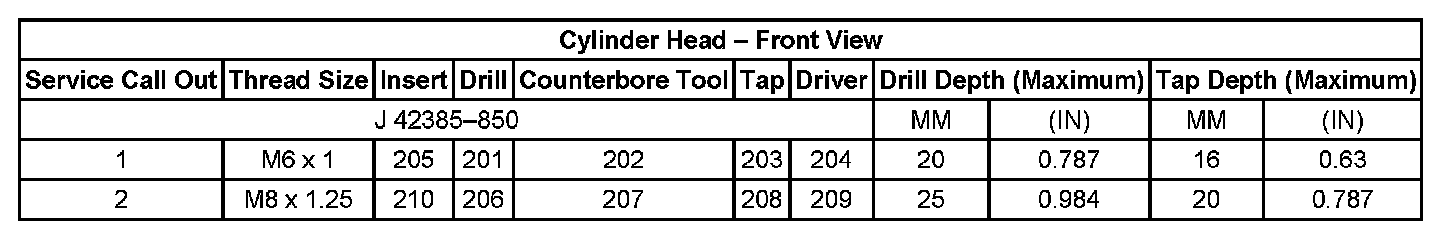

Cylinder Head - Front View:
Cylinder Head-Front View:

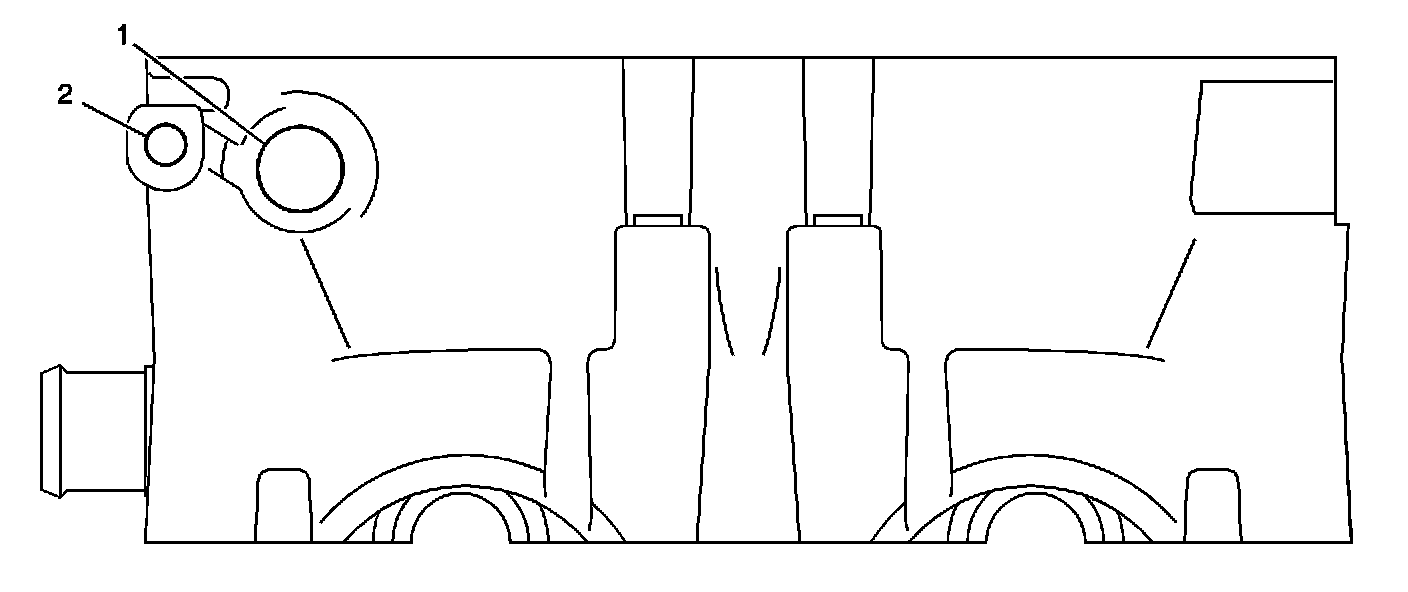

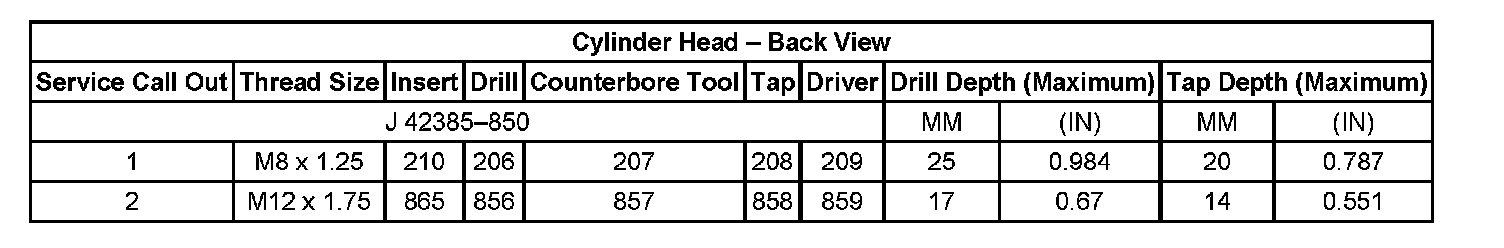

Cylinder Head - Back View:
Cylinder Head-Back View:

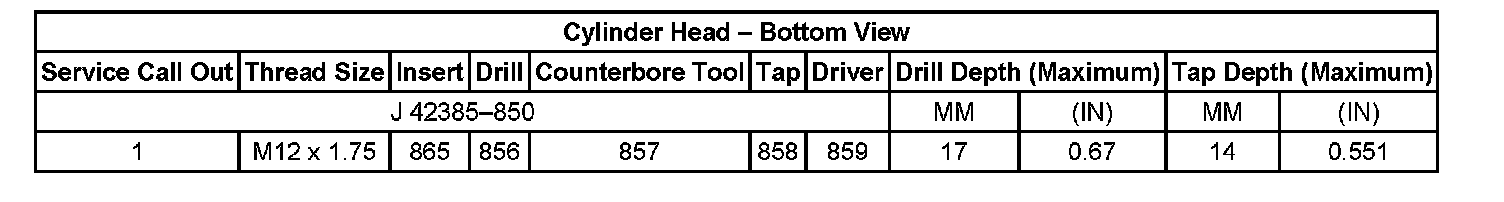

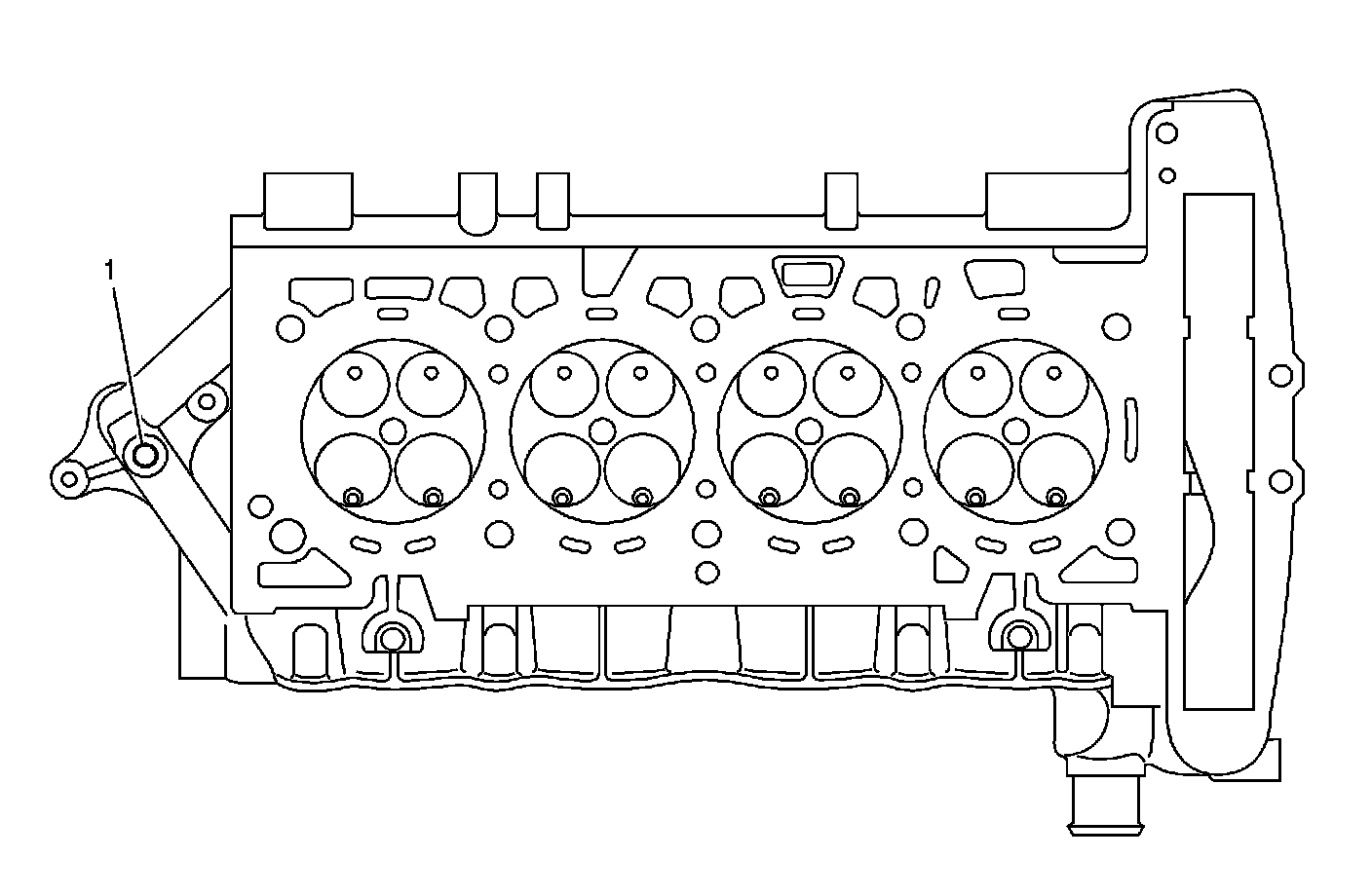

Cylinder Head - Bottom View:
Cylinder Head-Bottom View:
