Engine Controls Schematics

Fig 1: Power, Ground, MIL, and Serial Data Schematics

Courtesy of GENERAL MOTORS CORP.

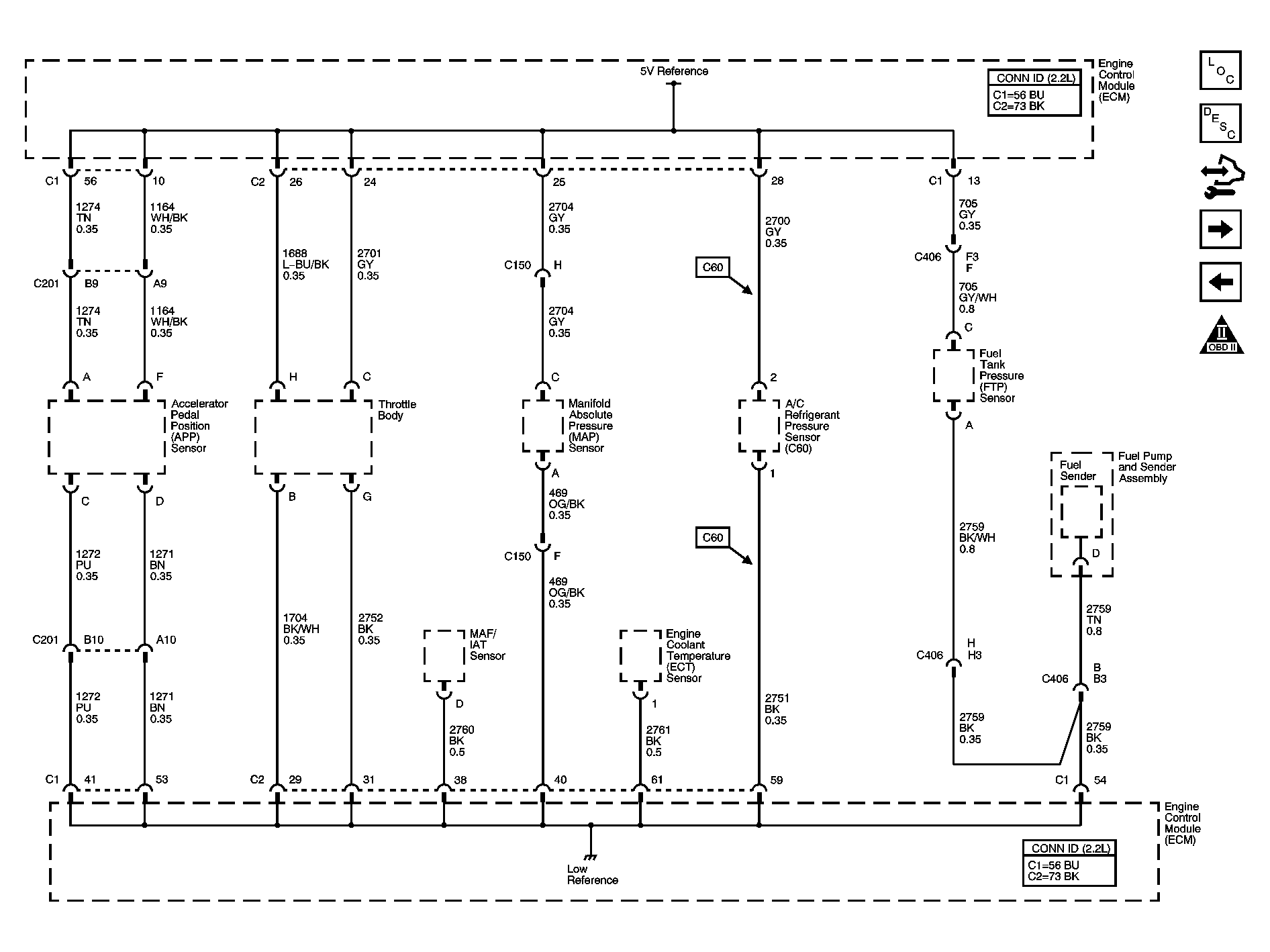

Fig 2: Engine Data Sensors - 5-Volt and Low Reference Bussing

Courtesy of GENERAL MOTORS CORP.

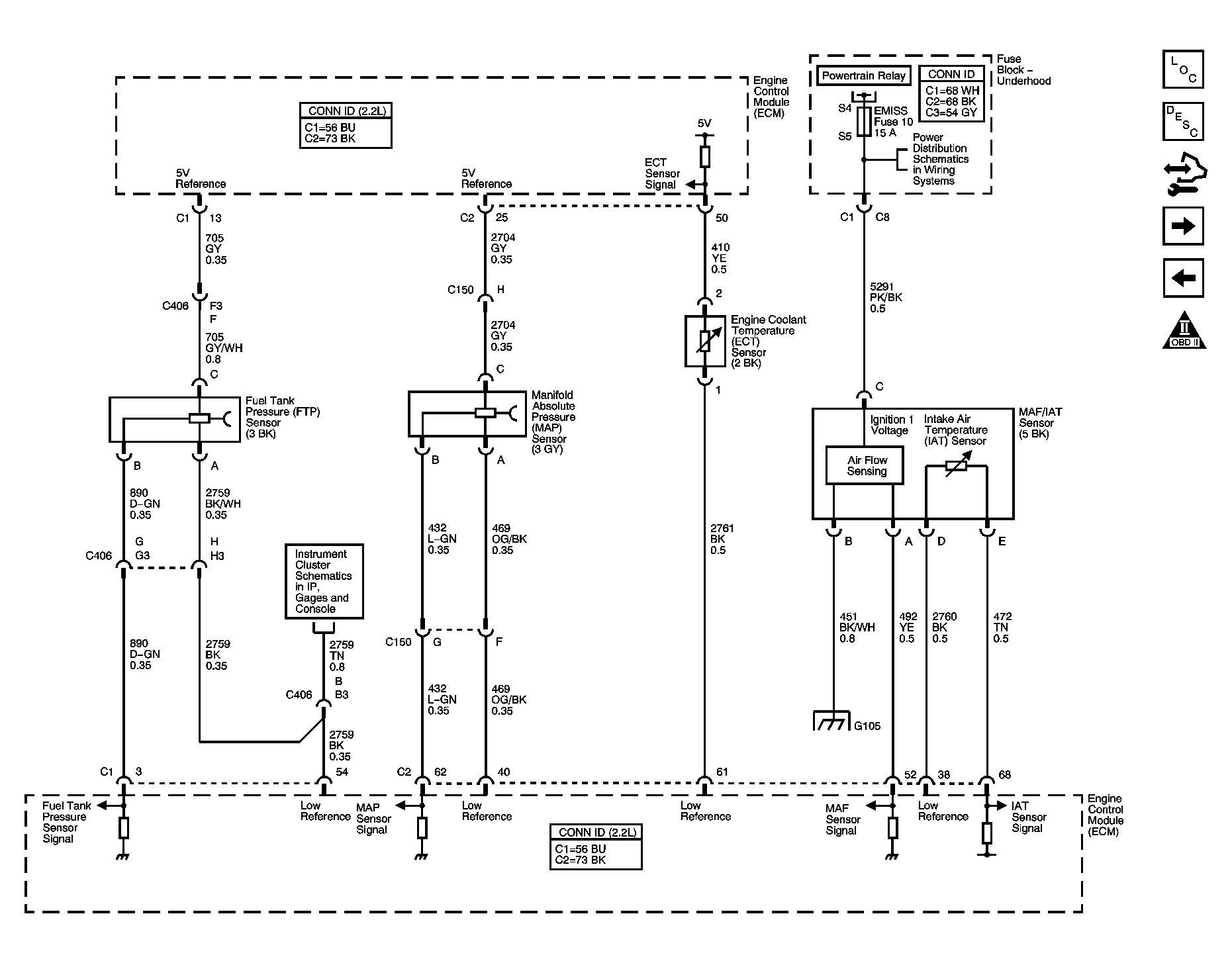

Fig 3: Engine Data Sensors - Pressure, Temperature, and MAF/IAT

Courtesy of GENERAL MOTORS CORP.

Fig 4: Engine Data Sensors - HO2S

Courtesy of GENERAL MOTORS CORP.

Fig 5: Engine Data Sensors - APP and TAC

Courtesy of GENERAL MOTORS CORP.

Fig 6: Ignition Controls

Courtesy of GENERAL MOTORS CORP.

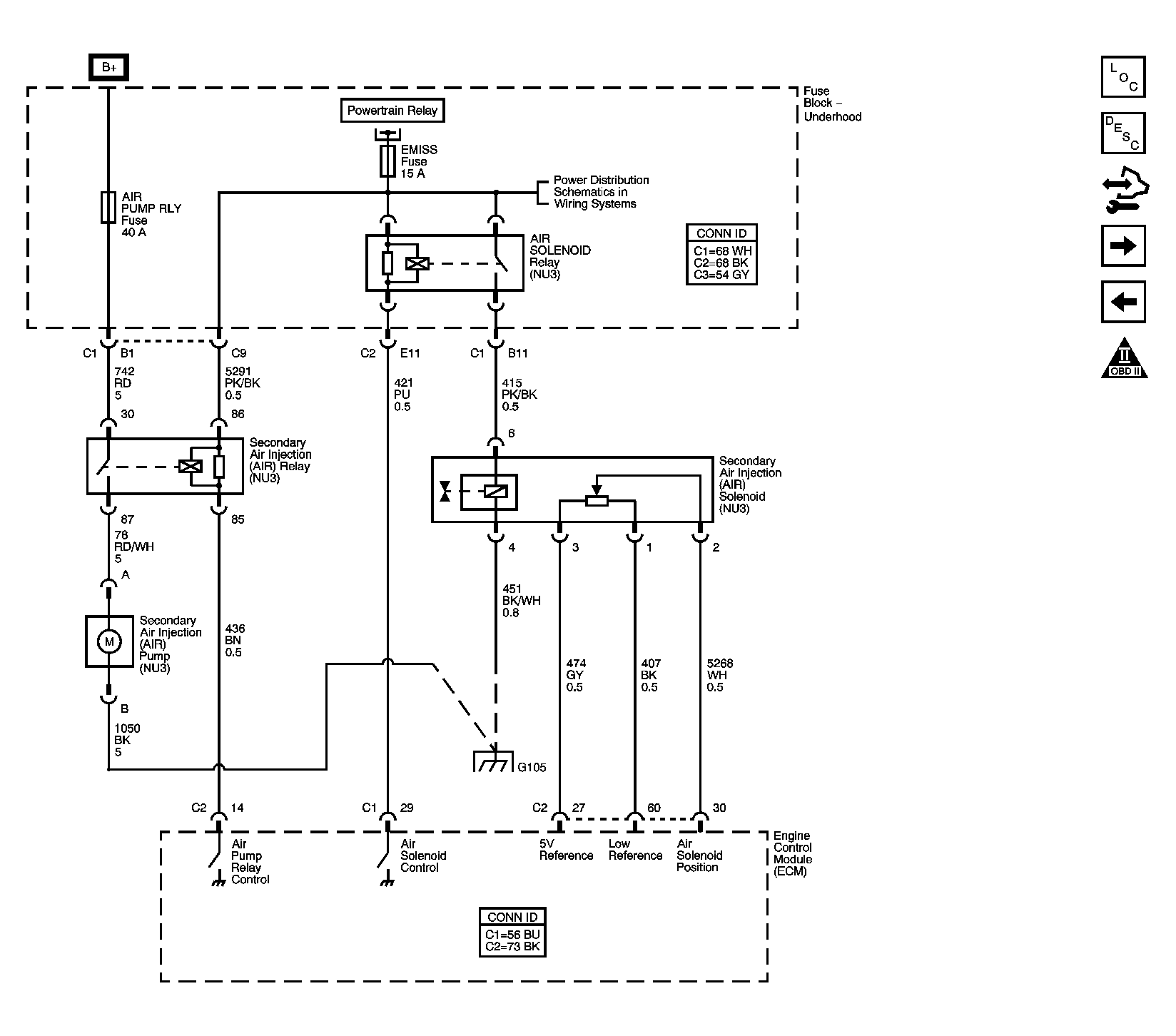

Fig 7: Secondary Air Injection System (NV3)

Courtesy of GENERAL MOTORS CORP.

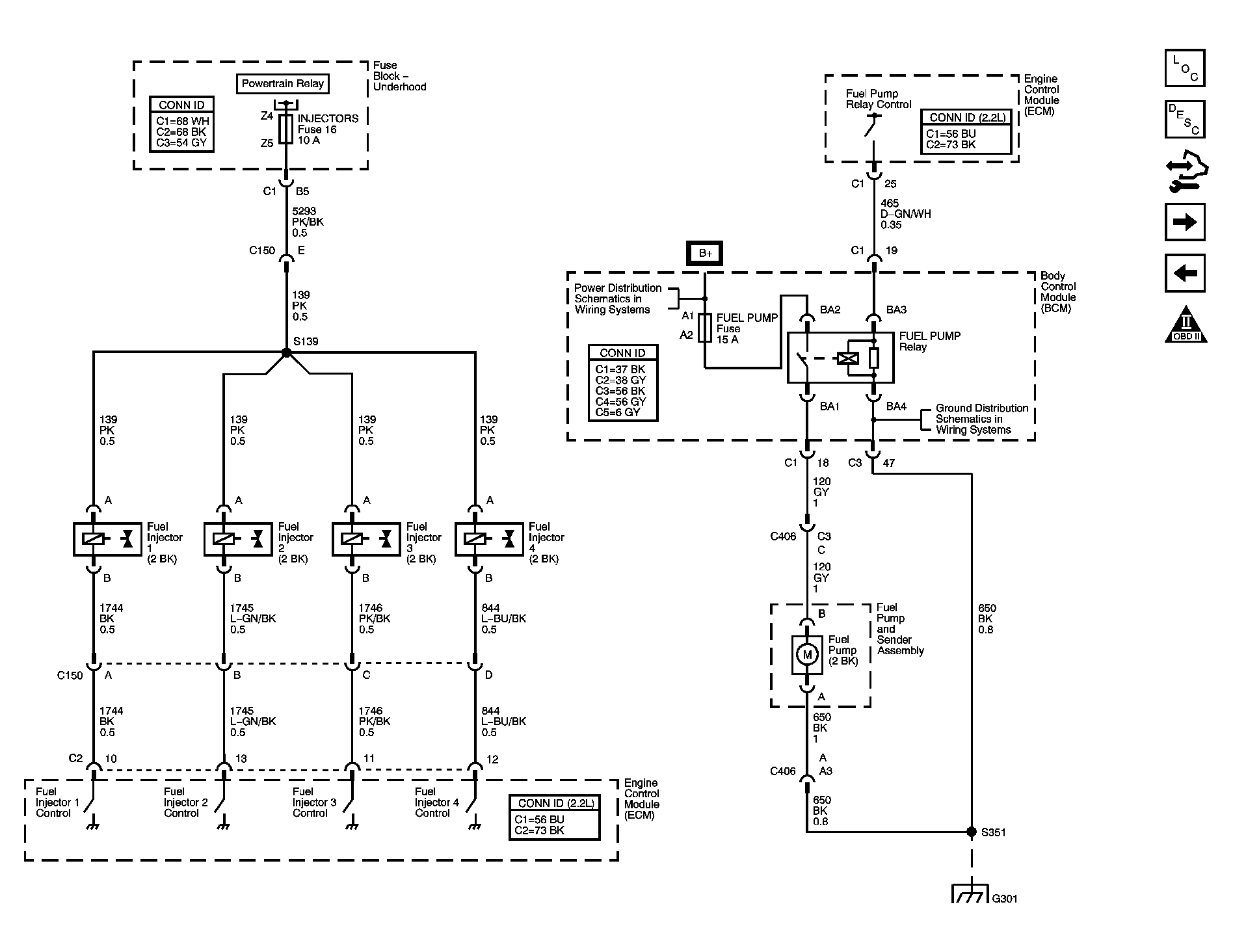

Fig 8: Fuel Controls

Courtesy of GENERAL MOTORS CORP.

Fig 9: EVAP Controls

Courtesy of GENERAL MOTORS CORP.

Fig 10: Controlled/Monitored Subsystem Reference

Courtesy of GENERAL MOTORS CORP.
