Cooling System Component Views

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Front Of Engine Compartment Component View (2.0L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan 1 Connector
2	Cooling Fan 1
3	Cooling Fan S/P Relay
4	Cooling Fan 2
5	Cooling Fan 2 Relay
6	Cooling Fan 2 Connector

Fig 2: Front of Engine Compartment View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor
2	A/C Refrigerant Pressure Sensor
3	Cooling Fan Resistor
4	Cooling Fan 2 Relay
5	Cooling Fan Connector
6	Engine Harness

Fig 3: LR Of Engine Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radiator Surge Tank
2	Coolant Level Switch Connector

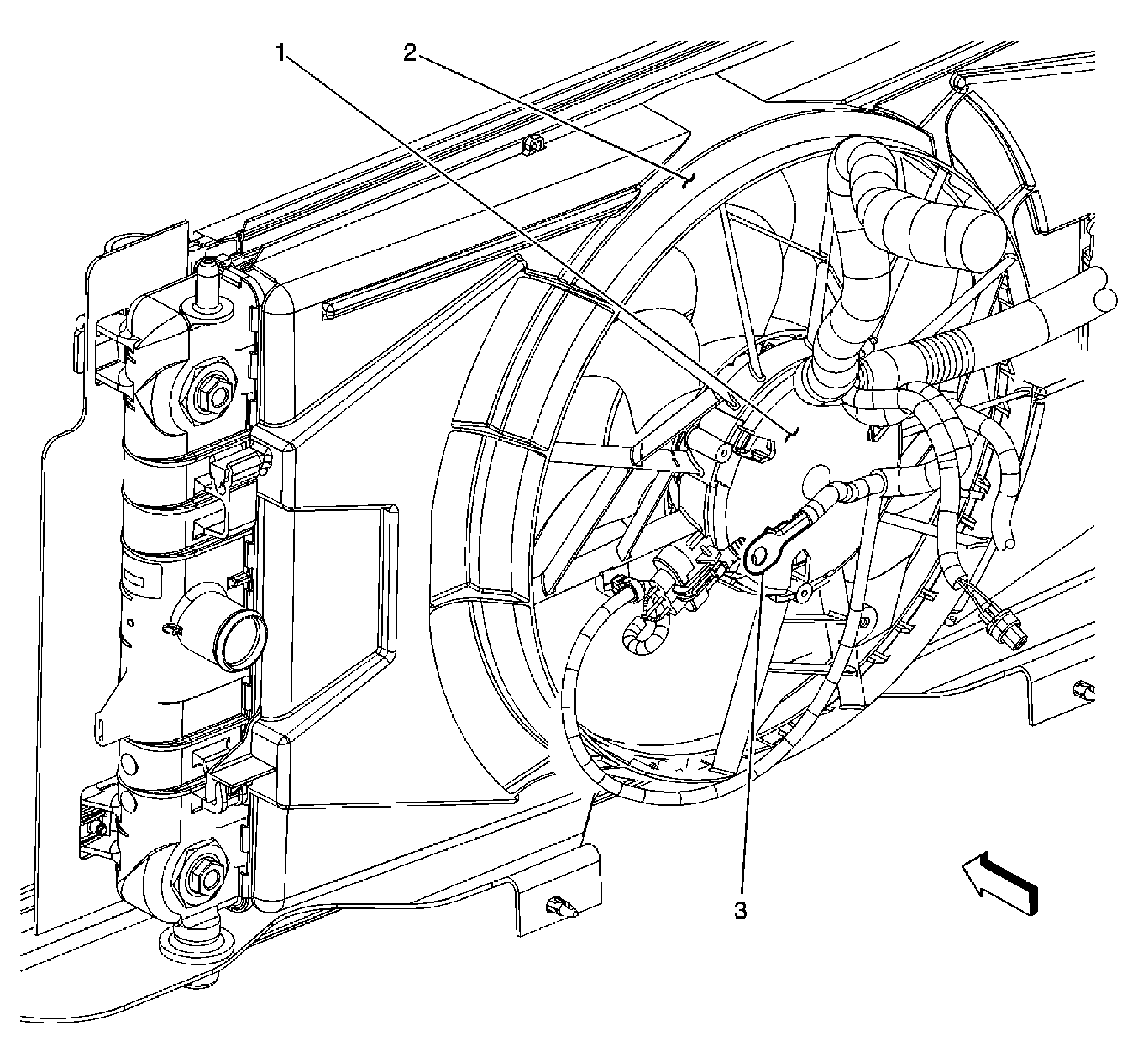

Fig 4: Cooling Fan Motor (L61/LE5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan Motor
2	Fan Shroud
3	G111 (LE5)
