Inline Harness Connector End Views

C100 Engine Harness to Transmission Harness (MN5)

GM684844Courtesy of GENERAL MOTORS CORP.
GM808696Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15472125
  • 14-Way F Micro-Pack 100W Series (GY)
 Connector Part Information
  • 12160782
  • 20-Way M Micro-Pack 100W Series (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A L-GN 1222 1-2 Shift Solenoid Valve Control A L-GN 1222 1-2 Shift Solenoid Valve Control
B YE/BK 1223 2-3 Shift Solenoid Valve Control B YE 1223 2-3 Shift Solenoid Valve Control
C RD/BK 1228 Pressure Control (PC) Solenoid Valve High Control C PU 1228 Pressure Control (PC) Solenoid Valve High Control
D L-BU/WH 1229 PC Solenoid Valve Low Control D L-BU 1229 PC Solenoid Valve Low Control
E YE 1139 Ignition 1 Voltage E RD 839 Ignition 1 Voltage
F-K - - Not Available F-K - - Not Used
L YE/BK 1227 Transmission Fluid Temperature (TFT) Sensor Signal L BN 1227 Transmission Fluid Temperature (TFT) Sensor Signal
M BK 2762 Low Reference M GY 452 Low Reference
N - - Not Used N - - Not Used
P RD 1226 TFP Switch Signal C P RD 1226 TFP Switch Signal C
R D-BU 1225 TFP Switch Signal B R D-BU 1225 TFP Switch Signal B
S RD/BK 1230 Input Speed Sensor (ISS) High Signal S BK 1230 Input Speed Sensor (ISS) High Signal
T TN/BK 422 Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve Control T TN 418 Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve Control
U YE 657 TCC Release Switch Signal U WH 1804 TCC Release Switch Signal
V D-BU/WH 1231 ISS Low Signal V GN 1231 ISS Low Signal
W - - Not Available W - - Not Used

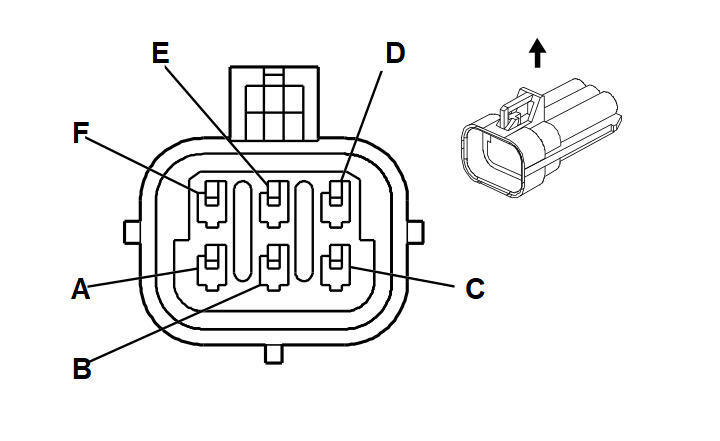

C110 Forward Lamp Harness to Right Headlamp (Sedan)

GM697039Courtesy of GENERAL MOTORS CORP.
GM333040Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052848
  • 6-Way F Metri-Pack 150 Series Sealed (BK)
 Connector Part Information
  • 12124107
  • 6-Way M Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 640 Battery Positive Voltage A OG 640 Battery Positive Voltage
B BN 9 Park Lamp Supply Voltage B BN 9 Park Lamp Supply Voltage
C D-BU 15 Right Turn Signal Lamps Supply Voltage C L-BU 15 Right Turn Signal Lamps Supply Voltage
D PK 1200 Headlamp High Beam Signal D PK 1200 Headlamp High Beam Signal
E D-BU 1201 Head Lamp Low Beam Signal E D-BU 1201 Head Lamp Low Beam Signal
F BK 150 Ground F BK 150 Ground
C111 Forward Lamp Harness to Left Headlamp (Sedan)

GM697039Courtesy of GENERAL MOTORS CORP.
GM333040Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052848
  • 6-Way F Metri-Pack 150 Series Sealed (BK)
 Connector Part Information
  • 12124107
  • 6-Way M Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 740 Battery Positive Voltage A OG 640 Battery Positive Voltage
B BN 9 Park Lamp Supply Voltage B BN 9 Park Lamp Supply Voltage
C L-BU 14 Left Turn Signal Lamps Supply Voltage C L-BU 15 Left Turn Signal Lamps Supply Voltage
D PK 1200 Headlamp High Beam Signal D PK 1200 Headlamp High Beam Signal
E D-BU 1201 Headlamp Low Beam Signal E D-BU 1201 Headlamp Low Beam Signal
F BK 150 Ground F BK 150 Ground
C121 Forward Lamp Harness (DF5) to Body Harness (2.2L/2.4L)

GM635009Courtesy of GENERAL MOTORS CORP.
GM333041Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052641
  • 2-Way F Metri-Pack 150 Series Sealed Self Lock (BK)
  • DF5
 Connector Part Information
  • 12162000
  • 2-Way M Metri-Pack 150 Series Sealed Self Lock (BK)
  • 2.2L
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A L-GN/BK 735 Ambient Air Temperature Sensor A L-GN/BK 735 Ambient Air Temperature Sensor Signal
B GY/BK 1798 Low Reference B L-GN/BK 1798 Low Reference
C150 Engine Harness to Fuel Injector Harness (2.0L)

GM647974Courtesy of GENERAL MOTORS CORP.
GM1334521Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326822
  • 5-Way F GT 150 Series Sealed 4.0 (BK)
 Connector Part Information
  • 15326827
  • 5-Way M GT 150 Series Sealed 4.0 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PK/BK 5293 Ignition 1 Voltage A PK/BK 5293 Ignition 1 Voltage
B BK 1744 Fuel Injector 1 Control B BK 1744 Fuel Injector 1 Control
C L-GN/BK 1745 Fuel Injector 2 Control C L-GN/BK 1745 Fuel Injector 2 Control
D PK/BK 1746 Fuel Injector 3 Control D PK/BK 1746 Fuel Injector 3 Control
E L-BU/BK 844 Fuel Injector 4 Control E L-BU/BK 844 Fuel Injector 4 Control

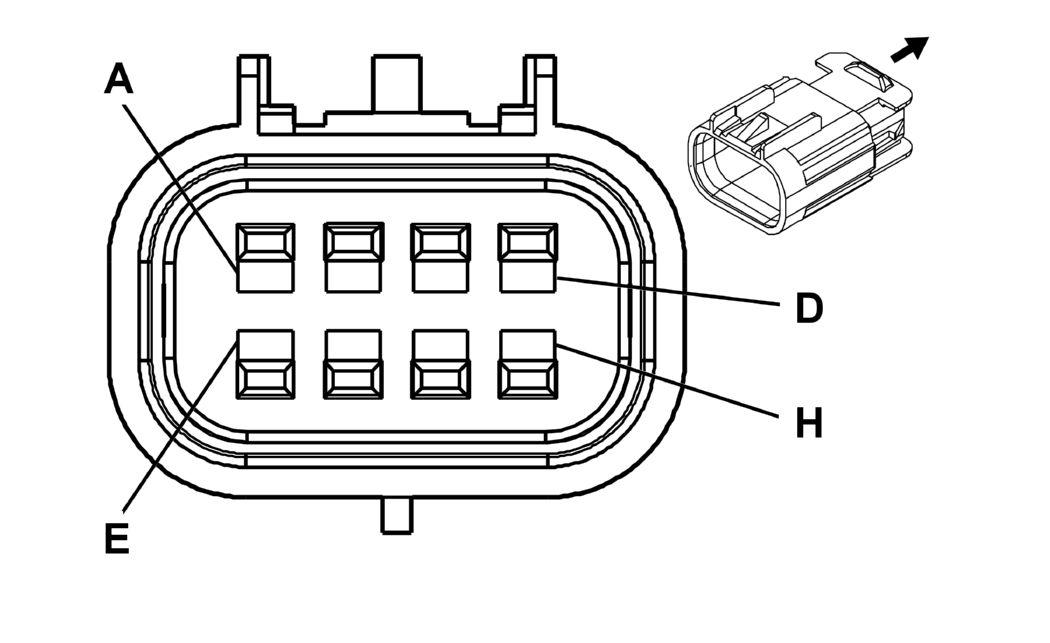

C150 Engine Harness to Fuel Injector Harness (2.2L/2.4L)

GM646400Courtesy of GENERAL MOTORS CORP.
GM684916Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326835
  • 8-Way F GT 150 Series Sealed 4.0 (BK)
 Connector Part Information
  • 15326840
  • 8-Way M GT 150 Series Sealed 4.0 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 1744 Fuel Injector 1 Control A BK 1744 Fuel Injector 1 Control
B L-GN/BK 1745 Fuel Injector 2 Control B L-GN/BK 1745 Fuel Injector 2 Control
C PK/BK 1746 Fuel Injector 3 Control C PK/BK 1746 Fuel Injector 3 Control
D L-BU/BK 844 Fuel Injector 4 Control D L-BU/BK 844 Fuel Injector 4 Control
E PK/BK 5293 Ignition 1 Voltage E PK 139 Ignition 1 Voltage
F OR/BK 469 Low Reference F OR/BK 469 Low Reference
G L-GN 432 MAP Sensor Signal G L-GN 432 MAP Sensor Signal
H GY 2704 5-Volt Reference H GY 2704 5-Volt Reference
C155 Engine Harness to Ignition Coil Harness (2.0L)

GM646400Courtesy of GENERAL MOTORS CORP.
GM684916Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326835
  • 8-Way F GT 150 Series Sealed 4.0 (BK)
 Connector Part Information
  • 15326840
  • 8-Way M GT 150 Series Sealed 4.0 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PK/BK 5292 Ignition 1 Voltage A PK/BK 5292 Ignition 1 Voltage
B PU 6413 Low Reference B VT 6413 Low Reference
C BN/WH 6405 IC 1 Control C TN/WH 6405 IC 1 Control
D D-BU/WH 6406 IC 3 Control D D-BU/WH 6406 IC 3 Control
E D-GN/WH 6407 IC 4 Control E D-GN/WH 6407 IC 4 Control
F L-BU/WH 6408 IC 2 Control F L-BU/WH 6408 IC 2 Control
G BK/WH 451 Ground G BK/WH 451 Ground
H - - Not Used H - - Not Used
C160 Body Harness to RF ABS Harness (JM4/JL9)

GM635009Courtesy of GENERAL MOTORS CORP.
GM333041Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052641
  • 2-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • 12162000
  • 2-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A D-GN 872 Right Front Wheel Speed Sensor Signal A L-BU 872 Right Front Wheel Speed Sensor Signal
B TN 833 Right Front Wheel Speed Sensor Low Reference B YE 833 Right Front Wheel Speed Sensor Low Reference
C161 Body Harness to LF ABS Harness (JM4/JL9)

GM635009Courtesy of GENERAL MOTORS CORP.
GM333041Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052641
  • 2-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • 12162000
  • 2-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A L-BU 830 Left Front Wheel Speed Sensor Signal A L-BU 872 Left Front Wheel Speed Sensor Signal
B YE 873 Left Front Wheel Speed Sensor Low Reference B YE 833 Left Front Wheel Speed Sensor Low Reference
C171 Engine Harness to Body Harness (2.0L)

GM646400Courtesy of GENERAL MOTORS CORP.
GM684916Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326835
  • 8-Way F GT 150 Series Sealed 4.0 (BK)
 Connector Part Information
  • 15326840
  • 8-Way M GT 150 Series Sealed 4.0 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 891 Boost Gage Signal (UXE) A BK 891 Boost Gage Signal (UXE)
B L-BU 6118 IAT 2 Sensor Signal B L-BU 6118 IAT 2 Sensor Signal
C D-GN 335 Low Speed Cooling Fan Relay Control C D-GN 335 Low Speed Cooling Fan Relay Control
D D-BU 473 High Speed Cooling Fan Relay Control D D-BU 473 High Speed Cooling Fan Relay Control
E GY 2700 5-Volt Reference E GY 2700 5-Volt Reference
F RD/BK 380 A/C Refrigerant Pressure Sensor Signal F RD/BK 380 A/C Refrigerant Pressure Sensor Signal
G BK 2751 Low Reference G BK 2751 Low Reference
H PK/BK 5290 Ignition 1 Voltage H PK/BK 5290 Ignition 1 Voltage
C171 Engine Harness to Body Harness (2.2L)

GM646415Courtesy of GENERAL MOTORS CORP.
GM632353Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326808
  • 3-Way F GT 150 Series Sealed (BK)
 Connector Part Information
  • 15326813
  • 3-Way M GT 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A TN/WH 2500 High Speed GMLAN Serial Data Bus+ A TN/WH 2500 High Speed GMLAN Serial Data Bus+
B TN 2501 High Speed GMLAN Serial Data Bus- B TN 2501 High Speed GMLAN Serial Data Bus-
C BN 4 Accessory Voltage (A/T) C BN 4 Accessory Voltage
C171 Engine Harness to Body Harness (2.4L)

GM647974Courtesy of GENERAL MOTORS CORP.
GM1334521Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326822
  • 5-Way F GT 150 Series Sealed (BK)
 Connector Part Information
  • 15326827
  • 5-Way M GT 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A TN/WH 2500 High Speed GMLAN Serial Data Bus+ A TN/WH 2500 High Speed GMLAN Serial Data Bus+
B TN 2501 High Speed GMLAN Serial Data Bus- B TN 2501 High Speed GMLAN Serial Data Bus-
C BN 4 Accessory Voltage (A/T) C BN 4 Accessory Voltage
D D-BU 473 High Speed Cooling Fan Relay Control D D-BU 473 High Speed Cooling Fan Relay Control
E D-GN 1433 PNP/Clutch Start Switch Signal E D-GN 1433 PNP/Clutch Start Switch Signal

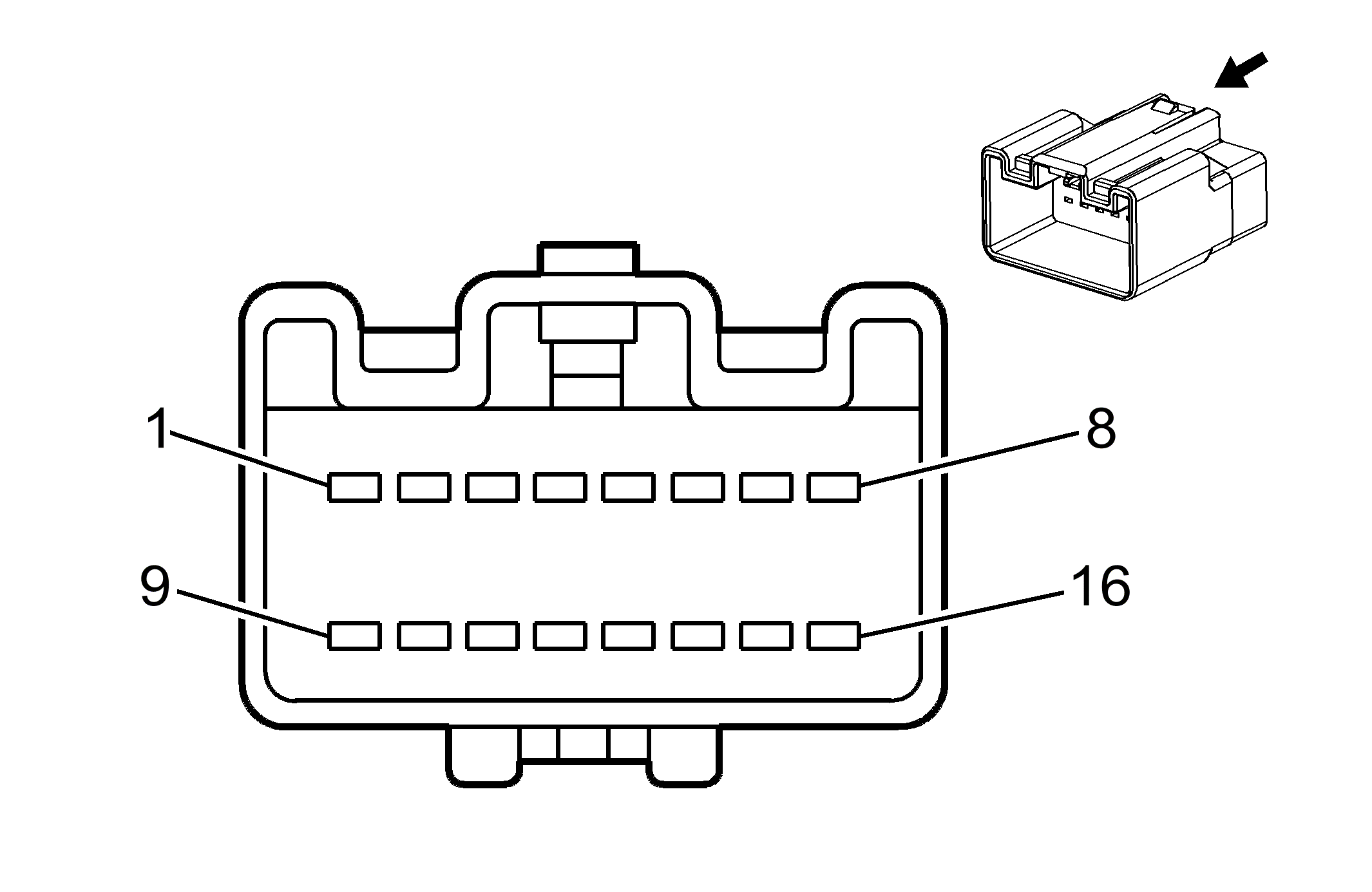

C200 I/P Harness to Body Harness - Right

GM888604Courtesy of GENERAL MOTORS CORP.
GM823294Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7283-5534-60
  • 16-Way F 1.5 Series Weather Pack (GN)
 Connector Part Information
  • 7282-5534-60
  • 16-Way M 1.5 Series Weather Pack (GN)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 L-BU 115 Right Rear Speaker Output (-) 1 L-BU 115 Right Rear Speaker Output (-)
2 D-BU 46 Right Rear Speaker Output (+) 2 D-BU 46 Right Rear Speaker Output (+)
3 YE 116 Left Rear Speaker Output (-) 3 YE 116 Left Rear Speaker Output (-)
4 BN 199 Left Rear Speaker Output (+) 4 BN 199 Left Rear Speaker Door Output (+)
5 D-GN 117 Right Front Speaker Output (-) 5 D-GN 117 Right Front Speaker Door Output (-)
6 L-GN 200 Right Front Speaker Output (+) 6 L-GN 200 Right Front Speaker Door Output (+)
7 GY 118 Left Front Speaker Output (-) 7 GY 118 Left Front Speaker Door Output (-)
8 TN 201 Left Front Speaker Output (+) 8 TN 201 Left Front Speaker Door Output (+)
9 PK 314 Radio On Signal 9 PK 314 Radio On Signal (UZ6)
10 L-BU 1957 Left Front Midrange Speaker Output (-) 10 GY 118 Left Front Speaker Output (-) (UZ6)
10 L-BU 1957 Left Front Midrange Speaker Output (-) (U79/UX7)
11 D-BU 1857 Left Front Midrange Speaker Output (+) 11 TN 201 Left Front Speaker Output (+) (UZ6)
11 D-BU 1857 Left Front Midrange Speaker Output (+) (U79/UX7)
12 TN 2133 Side Impact Sensing Module - Right - Voltage 12 TN 2133 Side Impact Sensing Module - Right - Voltage
13 D-GN 2134 Side Impact Sensing Module - Right - Voltage 13 D-GN 2134 Side Impact Sensing Module - Right - Voltage
14 L-GN 2116 Seat Belt Pretensioner - Right - High Control 14 L-GN 2116 Seat Belt Pretensioner - Right - High Control
15 OG 2117 Seat Belt Pretensioner - Right - Low Control 15 OG 2117 Seat Belt Pretensioner - Right - Low Control
16 L-GN 1011 Amplifier Mute Signal (UZ6) 16 L-GN 1011 Amplifier Mute Signal (UZ6)

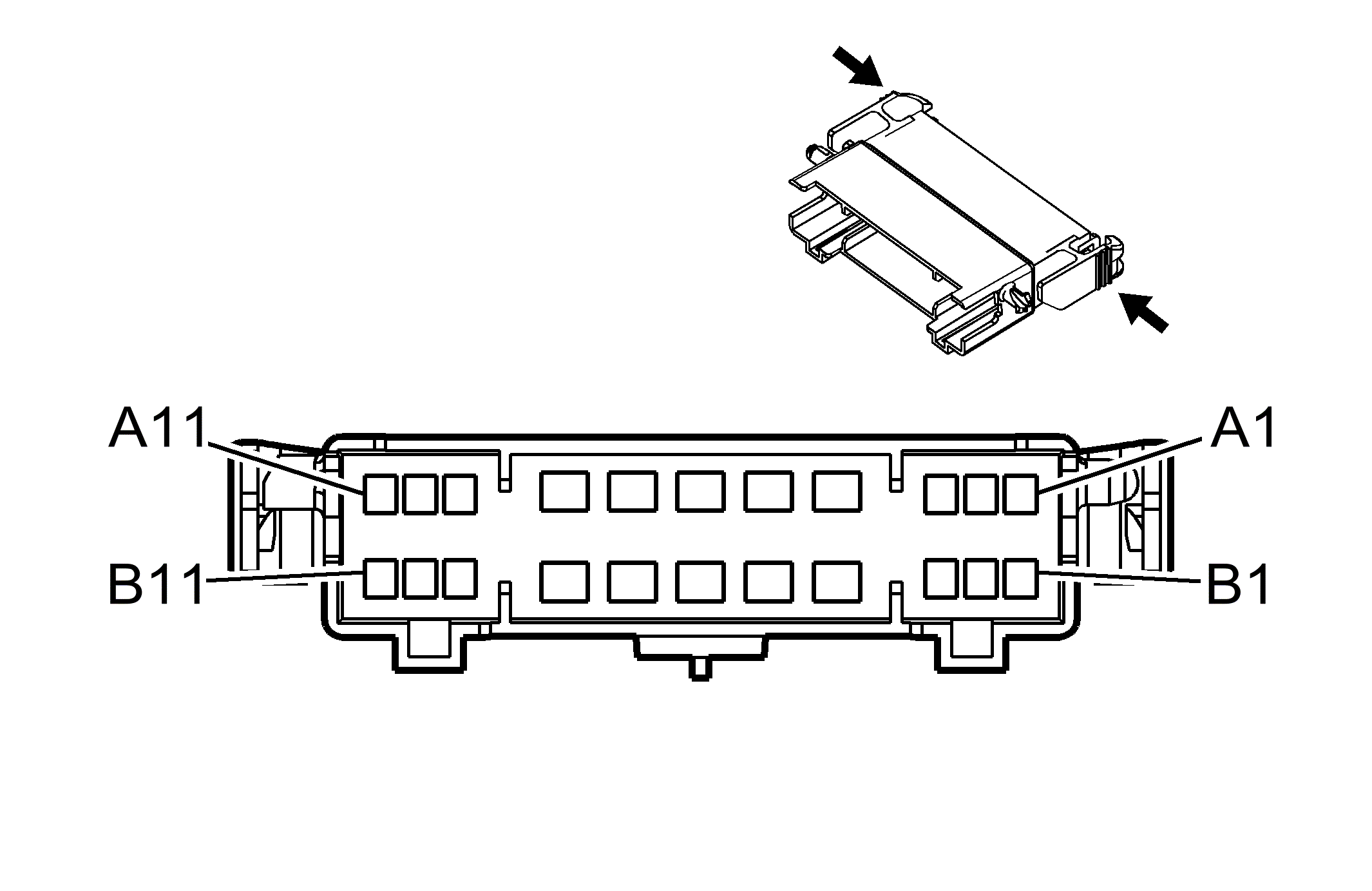

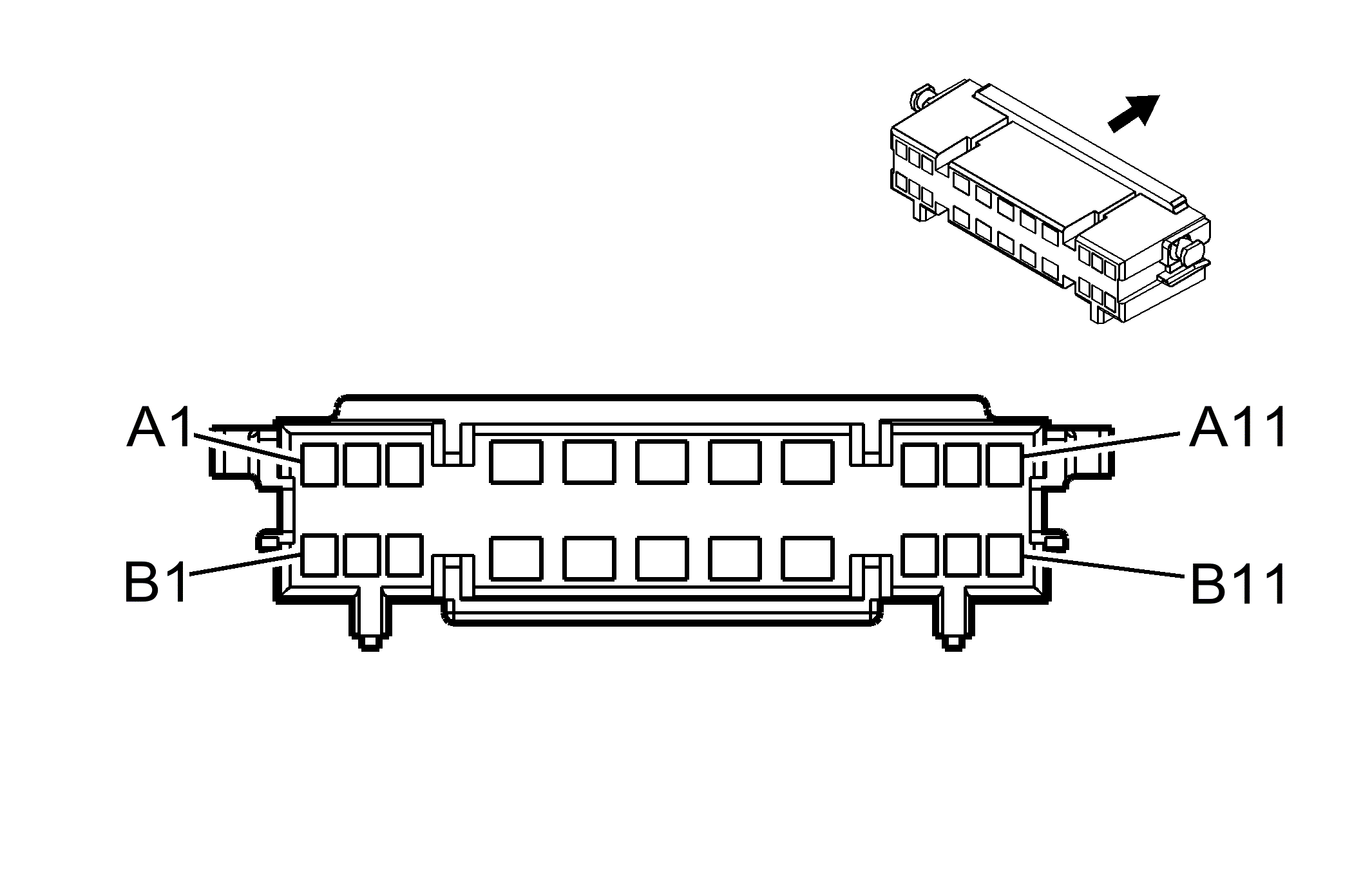

C201 I/P Harness to Body Harness - Left

GM655774Courtesy of GENERAL MOTORS CORP.
GM655773Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15317325
  • 22-Way F GT 150 280 Series (L-GY)
 Connector Part Information
  • 15317322
  • 22-Way M GT 150 280 Series (L-GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 PU 420 Stop Lamp Switch Signal A1 PU 420 Stop Lamp Switch Signal
A2 BN/WH 419 MIL Control A2 BN/WH 419 MIL Control
A3 BK/WH 56 Rear Compartment Lid Release Switch A3 BK/WH 56 Rear Compartment Lid Release Switch
A4 TN/WH 2500 High Speed GM LAN Serial Data Bus+ (2.2L, 2.4L) A4 TN/WH 2500 High Speed GM LAN Serial Data Bus+ (2.2L, 2.4L)
BK 891 Boost Gage Signal (2.0L) BK 891 Boost Gage Signal (2.0L)
A5 TN 2501 High Speed GM LAN Serial Data Bus- (2.2L, 2.4L) A5 TN 2501 High Speed GM LAN Serial Data Bus- (2.2L, 2.4L
WH 121 Engine Speed Signal (2.0L) WH 121 Engine Speed Signal (2.0L)
A6 - - Not Used A6 - - Not Used
A7 BK/WH 2118 Seat Belt Pretensioner - Left - High Control A7 BK/WH 2118 Seat Belt Pretensioner - Left - High Control
A8 OG/BK 2119 Seat Belt Pretensioner - Left - Low Control A8 OG/BK 2119 Seat Belt Pretensioner - Left - Front
A9 WH/BK 1164 5-Volt Reference A9 WH/BK 1164 5-Volt Reference
A10 BN 1271 Low Reference A10 BN 1271 Low Reference
A11 D-BU 1161 APP Sensor 1 Signal A11 D-BU 1161 APP Sensor 1 Signal
B1 BN/WH 379 CPP Switch Signal (M/T) B1 BN/WH 379 CPP Switch Signal
B2 L-GN 1715 Windshield Wiper Switch High Signal B2 L-GN 1715 Windshield Wiper Switch High Signal
B3 YE 575 Starter Control (M/T) B3 YE 575 Starter Control
B4 YE 2131 Side Impact Sensing Module - Left - Voltage B4 YE 2131 Side Impact Sensing Module - Left - Voltage
B5 WH 2132 Side Impact Sensing Module - Left - Signal B5 WH 2132 Side Impact Sensing Module - Left - Signal
B6 L-BU 1957 Left Front Midrange Speaker Output (-) B6 L-BU 1957 Left Front Midrange Speaker Output (-)
B7 D-BU 1857 Left Front Midrange Speaker Output (+) B7 D-BU 1857 Left Front Midrange Speaker Output (+)
B8 GY 1884 Cruise Control Set/Coast and Resume/Accelerate Switch Signal B8 GY 1884 Cruise Control Set/Coast and Resume/Accelerate Switch Signal
B9 TN 1274 5-Volt Reference B9 TN 1274 5-Volt Reference
B10 PU 1272 Low Reference B10 PU 1272 Low Reference
B11 L-BU 1162 APP Sensor 2 Signal B11 L-BU 1162 APP Sensor 2 Signal
C215 Inflatable Restraint Steering Wheel Module Disconnect

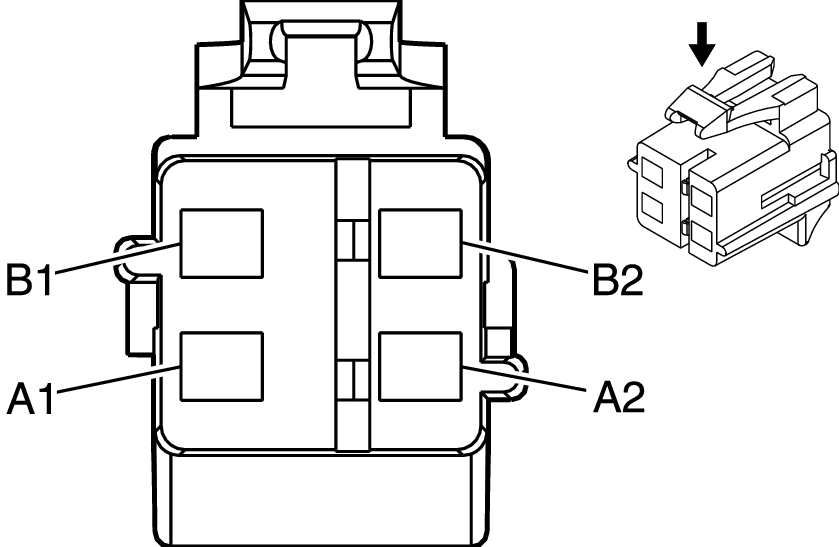

GM594473Courtesy of GENERAL MOTORS CORP.
GM594476Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336479
  • 4-Way F Metri-Pack 280 Series (YE)
 Connector Part Information
  • 15336477
  • 4-Way M Metri-Pack 280 Series (YE)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 BN 3020 Steering Wheel Module - Stage 1 - Low Control A1 BN 3020 Steering Wheel Module - Stage 1 - Low Control
A2 TN 3021 Steering Wheel Module - Stage 1 - High Control A2 TN 3021 Steering Wheel Module - Stage 1 - High Control
B1 PK 3022 Steering Wheel Module - Stage 2 - Low Control B1 PK 3022 Steering Wheel Module - Stage 2 - Low Control
B2 WH 3023 Steering Wheel Module - Stage 2 - High Control B2 WH 3023 Steering Wheel Module - Stage 2 - High Control
C216 I/P Harness to Inflatable Restraint I/P Module Harness Disconnect

GM594473Courtesy of GENERAL MOTORS CORP.
GM684931Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336479
  • 4-Way F Metri-Pack 280 Series (YE)
 Connector Part Information
  • 15336476
  • 4-Way M Metri-Pack 280 Series (YE)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 L-GN/RD 3024 I/P Module - Stage 1 - High Control A1 OG 3024 I/P Module - Stage 1 - High Control
A2 RD/WH 3025 I/P Module - Stage 1 - Low Control A2 YE 3025 I/P Module - Stage 1 - Low Control
B1 PK/BK 3026 I/P Module - Stage 2 - Low Control B1 PU 3026 I/P Module - Stage 2 - Low Control
B2 L-BU/OG 3027 I/P Module - Stage 2 - High Control B2 GY 3027 I/P Module - Stage 2 - High Control
C218 I/P Harness to Inflatable Restraint Roof Rail Harness (ASF)

GM594473Courtesy of GENERAL MOTORS CORP.
GM684931Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336479
  • 4-Way F Metri-Pack 280 Series (YE)
 Connector Part Information
  • 15336476
  • 4-Way M Metri-Pack 280 Series (YE)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 PU/WH 5019 Roof Rail Module - Left - High Control A1 PU/WH 5019 Roof Rail Module - Left - High Control
A2 PK 5020 Roof Rail Module - Left - Low Control A2 PK 5020 Roof Rail Module - Left - Low Control
B1 YE/BK 5021 Roof Rail Module - Right - High Control B1 YE/BK 5021 Roof Rail Module - Right - High Control
B2 WH/BK 5022 Roof Rail Module - Right - Low Control B2 WH/BK 5022 Roof Rail Module - Right - Low Control
C220 I/P Harness to ETC Jumper Harness (2.0L)

GM886053Courtesy of GENERAL MOTORS CORP.
GM646396Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326830
  • 6-Way F GT 150 Series Sealed (BK)
 Connector Part Information
  • 15326833
  • 6-Way M GT 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A TN 1274 5-Volt Reference A TN 1274 5-Volt Reference
B L-BU 1162 APP Sensor 2 Signal B L-BU 1162 APP Sensor 2 Signal
C PU 1272 Low Reference C PU 1272 Low Reference
D BN 1271 Low Reference D BN 1271 Low Reference
E D-BU 1161 APP Sensor 1 Signal E D-BU 1161 APP Sensor 1 Signal
F WH/BK 1164 5-Volt Reference F WH/BK 1164 5-Volt Reference
C225 Brake Switch Jumper Harness to I/P Harness

GM130637Courtesy of GENERAL MOTORS CORP.
GM40399Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064760
  • 4-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • 12064761
  • 4-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 140 Battery Positive Voltage A OG 140 Battery Positive Voltage
B L-BU 20 Stop Lamp Switch Signal B L-BU 20 Stop Lamp Switch Signal
C PK 339 Ignition 1 Voltage C PK 339 Ignition 1 Voltage
D PU 420 Stop Lamp Switch Signal D PU 420 Stop Lamp Switch Signal
C300 Passenger Occupant Protection System Jumper Harness to I/P Harness

GM646384Courtesy of GENERAL MOTORS CORP.
GM646388Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15332153
  • 10-Way F Global Terminal 150 Series Sealed (BK)
 Connector Part Information
  • 15332158
  • 10-Way M Global Terminal 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 1440 Battery Positive Voltage A OG 2540 Battery Positive Voltage
B YE 1139 Ignition 1 Voltage B PK 539 Ignition 1 Voltage
C D-BU 2307 Passenger Air Bag ON Indicator Control C D-BU 2307 Passenger Air Bag ON Indicator Control
D D-GN 2308 Passenger Air Bag OFF Indicator Control D D-GN 2308 Passenger Air Bag OFF Indicator Control
E PK 2306 Passenger Presence System Signal E PK 2306 Passenger Presence System Signal
F BK/WH 151 Ground F BK/WH 651 Ground
G-H - - Not Used G-H - - Not Used
J RD 1362 Seat Belt Switch Signal Right J OG 1362 Seat Belt Switch Signal Right
K BK/WH 151 Ground K BK/WH 151 Ground
C302 Headliner Harness To The Sun Roof Motor

GM130635Courtesy of GENERAL MOTORS CORP.
GM795620Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12045813
  • 4-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • 12092162
  • 4-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 750 Ground A WH 750 Ground
B L-BU 131 Sunroof Limit Switch B YE 131 Sunroof Limit Switch
C L-GN 129 Sunroof Motor Close Control C BK 129 Sunroof Motor Close Control
D D-GN 127 Sunroof Motor Open Control D D-GN 127 Sunroof Motor Open Control
D D-GN 127 Sunroof Motor Open Control D D-GN 127 Sunroof Motor Open Control
C340 OnStar I/P Harness to OnStar Body Harness (UE1/U2K)

GM646384Courtesy of GENERAL MOTORS CORP.
GM646388Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15332153
  • 10-Way F Delphi Packard GT 150 Series (BK)
 Connector Part Information
  • 15332158
  • 10-Way M Delphi Packard GT 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A - - Not Used A - - Not Used
B - - Not Used B - - Not Used
C YE/BK 693 Cellular Telephone Mute Signal (UE1) C YE/BK 693 Cellular Telephone Mute Signal (UE1)
D BARE 814 Drain Wire (UE1) D BARE 814 Drain Wire (UE1)
E BN/WH 367 Remote Radio Left Audio Signal (U2K) E BN/WH 367 Remote Radio Left Audio Signal (U2K)
F BK/WH 372 Remote Radio Audio Output (-) (U2K) F BK/WH 372 Remote Radio Audio Output (-) (U2K)
G D-GN/WH 368 Remote Radio Right Audio Signal (U2K) G D-GN/WH 368 Remote Radio Right Audio Signal (U2K)
H OG/BK 2061 Cellular Telephone Voice Low Reference (UE1) H OG/BK 2061 Cellular Telephone Voice Low Reference (UE1)
J PK/BK 2062 Cellular Telephone Voice Signal (UE1) J PK/BK 2062 Cellular Telephone Voice Signal (UE1)
K D-GN 5060 Low Speed GMLAN Serial Data (U2K) K D-GN 5060 Low Speed GMLAN Serial Data (U2K)
C351 I/P Harness to Auto Shifter Harness (MN5)

GM39660Courtesy of GENERAL MOTORS CORP.
GM39661Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047785
  • 4-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • 12047786
  • 4-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A GY 8 Instrument Panel Lamp Supply Voltage - 1 A GY 8 Instrument Panel Lamp Supply Voltage - 1
B BN 323 Shift Lock Solenoid Supply Voltage B BN 323 Shift Lock Solenoid Supply Voltage
C D-GN/WH 1932 Transmission Shift Select Switch (Park) Signal C D-GN/WH 1932 Transmission Shift Select Switch (Park) Signal
D BK 550 Ground D BK 550 Ground
C375 Headliner Harness to Body Harness (Sedan)

GM556473Courtesy of GENERAL MOTORS CORP.
GM542307Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326924
  • 8-Way F GT 280 Series (BK)
 Connector Part Information
  • 15326928
  • 8-Way M GT 280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YE 243 Accessory Voltage A YE 243 Accessory Voltage
B L-GN 24 Backup Lamp Supply Voltage B L-GN 24 Backup Lamp Supply Voltage
C BK 750 Ground C BK 750 Ground
D GY/BK 1798 Low Reference (DF5) D L-GN/BK 1798 Low Reference
E L-GN/BK 735 Ambient Air Temperature Sensor Signal (DF5) E L-GN/BK 735 Ambient Air Temperature Sensor Signal
F OG 1732 Inadvertent Power Supply Voltage F OG 1732 Inadvertent Power Supply Voltage
OG 1732 Inadvertent Power Supply Voltage (C74) OG 1732 Inadvertent Power Supply Voltage
G WH 156 Courtesy Lamp Low Control G WH 156 Courtesy Lamp Low Control
WH 156 Courtesy Lamp Low Control
H L-BU 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal H L-BU 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal
C375 Body Harness to Headliner Harness (Coupe)

GM556473Courtesy of GENERAL MOTORS CORP.
GM542307Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326924
  • 8-Way F GT 280 Series (BK)
 Connector Part Information
  • 15326928
  • 8-Way M GT 280 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YE 243 Accessory Voltage A YE 243 Accessory Voltage
B L-GN 24 Backup Lamp Supply Voltage B L-GN 24 Backup Lamp Supply Voltage
C BK 750 Ground C BK 750 Ground
D GY/BK 1798 Low Reference (2.2L,2.4L) D L-GN/BK 1798 Low Reference (DF5)
E L-GN/BK 735 Ambient Air Temperature Sensor Signal (2.2L,2.4L) E L-GN/BK 735 Ambient Air Temperature Sensor Signal (DF5)
F OG 1732 Inadvertent Power Supply Voltage F OG 1732 Inadvertent Power Supply Voltage
OG 1732 Inadvertent Power Supply Voltage OG 1732 Inadvertent Power Supply Voltage (C74)
G WH 156 Courtesy Lamp Low Control G WH 156 Courtesy Lamp Low Control
WH 156 Courtesy Lamp Low Control
H L-BU 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal H L-BU 20 Stop Lamp Supply Voltage/Stop Lamp Switch Signal
C380 OnStar Body Harness to Headliner Harness

GM40422Courtesy of GENERAL MOTORS CORP.
GM40425Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064762
  • 6-Way F Metri-Pack 150 Series (GY)
 Connector Part Information
  • 12064763
  • 6-Way M Metri-Pack 150 Series (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BN/WH 2517 Keypad Red LED Signal A BN/WH 2517 Keypad Red LED Signal
B YE/BK 2516 Keypad Green LED Signal B YE/BK 2516 Keypad Green LED Signal
C D-GN/WH 2514 Keypad Signal C D-GN/WH 2514 Keypad Signal
D L-GN/BK 2515 Keypad Supply Voltage D L-GN/BK 2515 Keypad Supply Voltage
E BARE 654 Cellular Telephone Microphone Low Reference E BARE 654 Cellular Telephone Microphone Low Reference
F GY 655 Cellular Microphone Signal F GY 655 Cellular Microphone Signal
C401 Deck Lid Harness to Body Harness

GM130637Courtesy of GENERAL MOTORS CORP.
GM40399Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064760
  • 4-Way F Metri-Pack 150 Series (BK)
 Connector Part Information
  • 12064761
  • 4-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 850 Ground A BK 850 Ground
B D-GN 146 Trunk Ajar Indicator Control (AU0) B OG/BK 737 Rear Compartment Lamp Control (w/o AU0)
D-GN 146 Trunk Ajar Indicator Control (AU0)
C BN 9 Park Lamp Supply Voltage C BN 9 Park Lamp Supply Voltage
D BK/WH 56 Trunk Release Motor Control D BK/WH 56 Trunk Release Motor Control
C406 EVAP Canister Vent Solenoid Jumper to Body Harness

GM646171Courtesy of GENERAL MOTORS CORP.
GM904053Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12146439
  • 4-Way F Metri-Pack 150 Series Sealed (WH)
 Connector Part Information
  • 15326715 (JM4/JL9)
  • 15326714 (w/o JM4/JL9)
  • 16-Way M Metri-Pack 150, 280 Series (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 840 Battery Positive Voltage A1 OG 840 Battery Positive Voltage
B WH 1310 EVAP Canister Vent Solenoid Control B1 WH 1310 EVAP Canister Vent Solenoid Control
C-D - - Not Used C1-D1 - - Not Used
C406 Fuel Controls Harness to Body Harness

GM795624Courtesy of GENERAL MOTORS CORP.
GM904053Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15317611
  • 7-Way F Metri-Pack 280 Series Sealed (GY)
 Connector Part Information
  • 15326715 (JM4/JL9)
  • 15326714 (w/o JM4/JL9)
  • 16-Way M Metri-Pack 150, 280 Series (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BK 650 Ground A3 BK 650 Ground
B TN 2759 Low Reference B3 BK 2759 Low Reference
BK 2759 Low Reference
C GY 120 Fuel Pump Supply Voltage C3 GY 120 Fuel Pump Supply Voltage
D PU 1589 Fuel Level Sensor Signal D3 PU 1589 Fuel Level Sensor Signal
E - - Not Available E3 - - Not Used
F GY/WH 705 5-Volt Reference F3 GY 705 5-Volt Reference
G D-GN 890 Fuel Tank Pressure Sensor Signal G3 D-GN 890 Fuel Tank Pressure Sensor Signal
H BK/WH 2759 Low Reference H3 BK 2759 Low Reference
C406 Rear WSS Harness to Body Harness (JM4/JL9)

GM684854Courtesy of GENERAL MOTORS CORP.
GM904053Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162144
  • 4-Way F Metri-Pack 150 Series Sealed (BK)
 Connector Part Information
  • 15326715
  • 16-Way M Metri-Pack 150, 280 Series (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WH 883 Right Rear Wheel Speed Sensor Low Reference A2 WH 883 Right Rear Wheel Speed Sensor Low Reference
B BN 882 Right Rear Wheel Speed Sensor Signal B2 BN 882 Right Rear Wheel Speed Sensor Signal
C RD 885 Left Rear Wheel Speed Sensor Low Reference C2 RD 885 Left Rear Wheel Speed Sensor Low Reference
D BK 884 Left Rear Wheel Speed Sensor Signal D2 BK 884 Left Rear Wheel Speed Sensor Signal
C410 Body Harness to Battery Cable (2.2L/2.4L)

GM646416Courtesy of GENERAL MOTORS CORP.
GM95780Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059884
  • 1-Way F Metri-Pack 480 Series Sealed (BK)
 Connector Part Information
  • 12059885
  • 1-Way M Metri-Pack 480 Series Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 480 Battery Positive Voltage A OG 480 Battery Positive Voltage
C490 Body Harness to Right Tail Lamp Harness

GM697039Courtesy of GENERAL MOTORS CORP.
GM333040Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052848
  • 6-Way F Metri-Pack 150 Series Sealed (BK)
 Connector Part Information
  • 12124107
  • 6-Way M Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A D-GN 19 Right Rear Stop/Turn Lamp Supply Voltage A YE 19 Right Rear Stop/Turn Lamp Supply Voltage
B L-BU 20 Stop Lamp Switch Signal B L-BU 20 Stop Lamp Switch Signal
C BN 9 Park Lamp Supply Voltage C BN 9 Park Lamp Supply Voltage
D L-GN 24 Backup Lamp Supply Voltage D L-GN 24 Backup Lamp Supply Voltage
E BK 850 Ground E BK 850 Ground
F - - Not Used F - - Not Used
C491 Body Harness to Left Tail Lamp Harness

GM697039Courtesy of GENERAL MOTORS CORP.
GM333040Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052848
  • 6-Way F Metri-Pack 150 Series Sealed (BK)
 Connector Part Information
  • 12124107
  • 6-Way M Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YE 18 Left Rear Stop/Turn Lamp Supply Voltage A YE 18 Left Rear Stop/Turn Lamp Supply Voltage
B L-BU 20 Stop Lamp Switch Signal B L-BU 20 Stop Lamp Switch Signal
C BN 9 Park Lamp Supply Voltage C BN 9 Park Lamp Supply Voltage
D L-GN 24 Backup Lamp Supply Voltage D L-GN 24 Backup Lamp Supply Voltage
E BK 750 Ground E BK 750 Ground
F - - Not Used F - - Not Used
C501 Body Harness to Driver Door Harness

GM632344Courtesy of GENERAL MOTORS CORP.
GM632342Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326842
  • 10-Way F GT 150 Series Sealed 4.0 (BK)
 Connector Part Information
  • 15326847
  • 10-Way M GT 150 Series Sealed 4.0 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A D-BU 1857 Left Front Speaker Output (-) A D-BU 1857 Left Front Speaker Output (-)
B L-BU 1957 Left Front Speaker Output (+) B L-BU 1957 Left Front Speaker Output (+)
C WH 682 Door Lock/Unlock Signal C WH 682 Door Lock/Unlock Signal
D BK 650 Ground (Coupe w/D35) D BK 650 Ground (Coupe w/D35)
PU/WH 889 Passenger Mirror Motor Down Control (Sedan w/DG7) PU/WH 889 Passenger Mirror Motor Down Control (Sedan w/DG7)
E TN 694 Driver Door Lock Actuator Unlock Control E TN 694 Driver Door Lock Actuator Unlock Control
F GY 295 Door Lock Actuator Unlock Control F GY 295 Door Lock Actuator Lock Control
G RD/WH 881 Passenger Mirror Motor Right Control (Sedan w/DG7) G RD/WH 881 Passenger Mirror Motor Right Control (Sedan w/DG7)
WH 2132 Side Impact Sensing Module - Left - Signal (Coupe w/ASF) WH 2132 Side Impact Sensing Module - Left - Signal (Coupe w/ASF)
H GY 90 Passenger Mirror Motor Up/Right (Sedan w/DG7) H GY 90 Passenger Mirror Motor Up/Right (Sedan w/DG7)
YE 2131 Side Impact Sensing Module - Left - Voltage (Coupe w/ASF) YE 2131 Side Impact Sensing Module - Left - Voltage (Coupe w/ASF)
J-K - - Not Used J-K - - Not Used
C503 Body Harness to Driver Door Harness (Coupe w/A31 and DG7)

GM646372Courtesy of GENERAL MOTORS CORP.

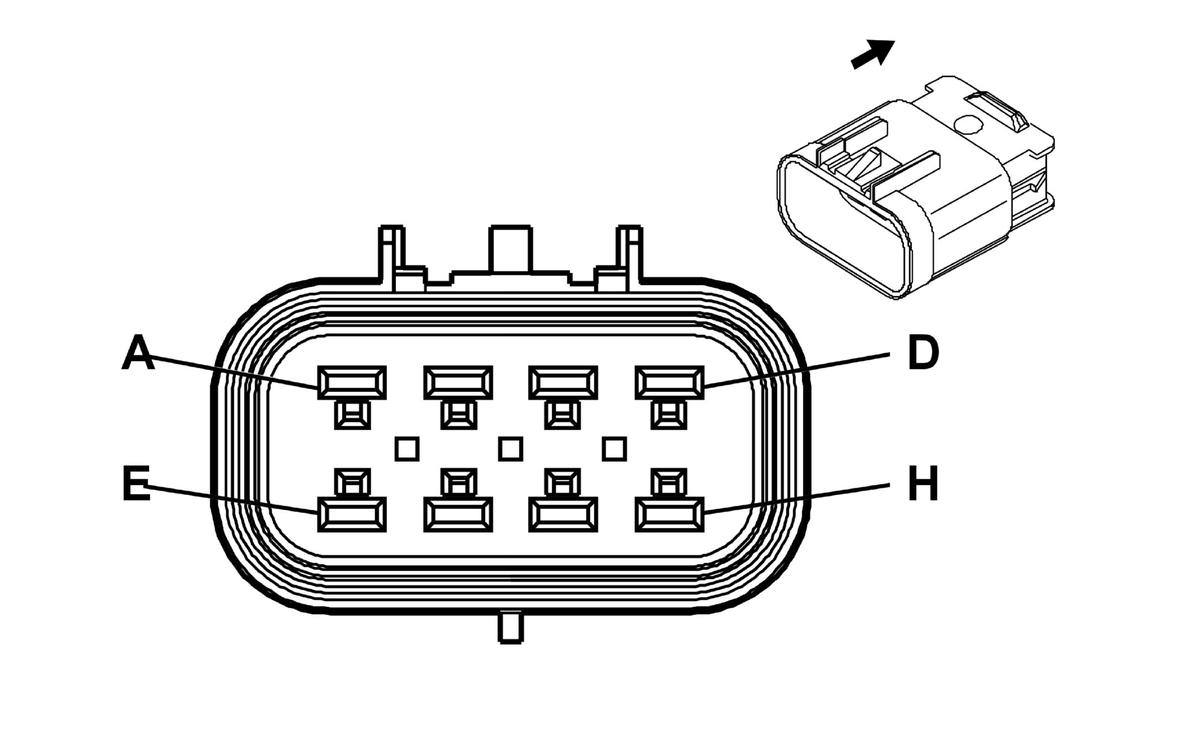

GM847234Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326654
  • 8-Way F GT 280 Series Sealed 5.8 (BK)
 Connector Part Information
  • 15326655
  • 8-Way M GT 280 Series Sealed 5.8 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 1732 Courtesy Lamps Supply Voltage (DG7) A OG 1732 Courtesy Lamps Supply Voltage (DG7)
B RD/WH 881 Passenger Mirror Motor Right Control (DG7) B RD/WH 881 Passenger Mirror Motor Right Control (DG7)
C PU/WH 889 Passenger Mirror Motor Down Control (DG7) C PU/WH 889 Passenger Mirror Motor Down Control (DG7)
D GY 90 Passenger Mirror Motor Left Control (DG7) D GY 90 Passenger Mirror Motor Left Control (DG7)
E BN 441 Ignition 3 Voltage (A31) E BN 441 Ignition 3 Voltage (A31)
F L-BU 166 Power Window Master Switch Right Front Up Signal (A31) F L-BU 166 Power Window Master Switch Right Front Up Signal (A31)
G TN 167 Power Window Master Switch Right Front Down Signal (A31) G TN 167 Power Window Master Switch Right Front Down Signal (A31)
H BK 650 Ground H BK 650 Ground
C503 Body Harness to Driver Door Harness (Sedan w/A31 and DG7)

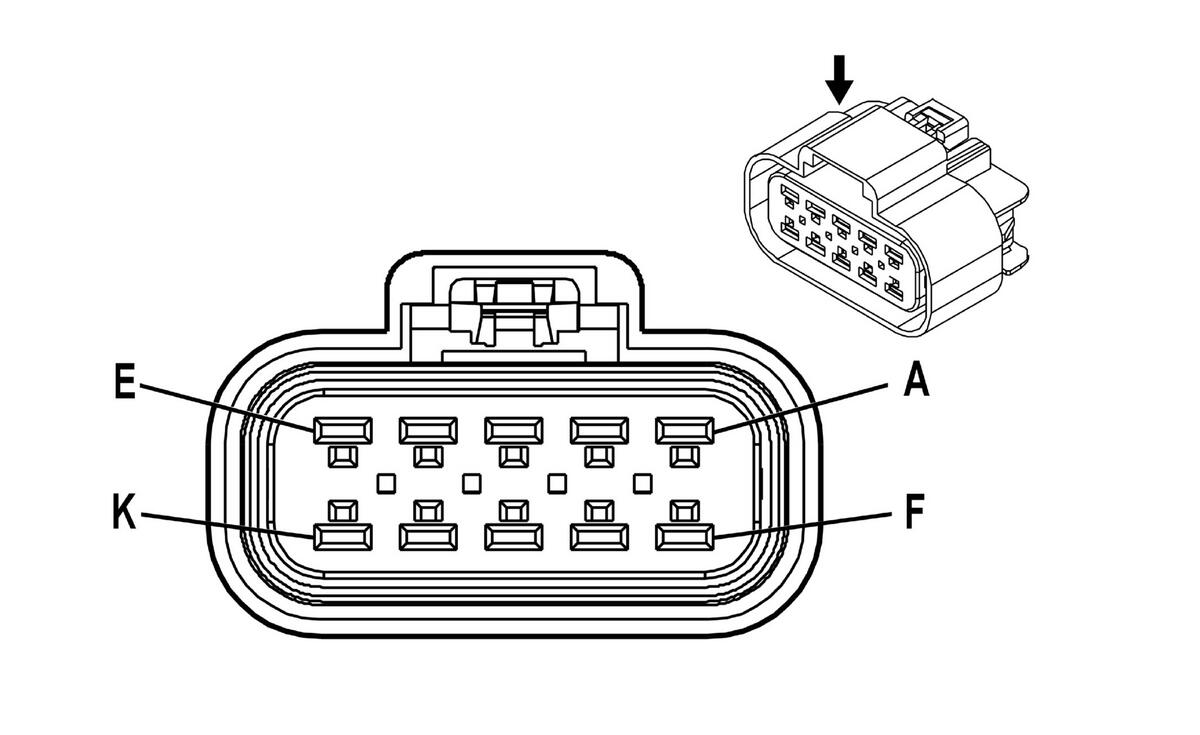

GM655815Courtesy of GENERAL MOTORS CORP.

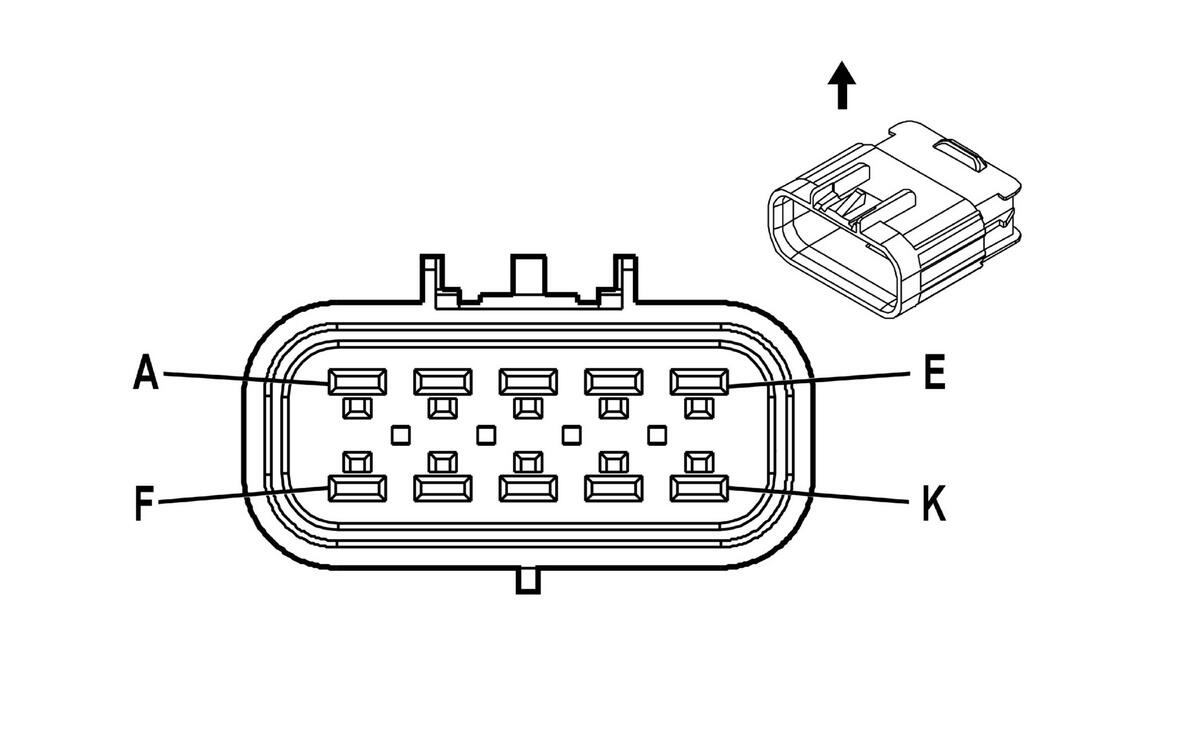

GM655819Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326660
  • 10-Way F GT 280 Series Sealed 5.8 (BK)
 Connector Part Information
  • 15326661
  • 10-Way M GT 280 Series Sealed 5.8 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BN 441 Ignition 3 Voltage (A31) A BN 441 Ignition 3 Voltage (A31)
B L-BU 166 Power Window Master Switch Right Front Up Signal (A31) B L-BU 166 Power Window Master Switch Right Front Up Signal (A31)
C TN 167 Power Window Master Switch Right Front Down Signal (A31) C TN 167 Power Window Master Switch Right Front Down Signal (A31)
D D-GN 168 Power Window Master Switch Left Rear Up Signal (A31) D D-GN 168 Power Window Master Switch Left Rear Up Signal (A31)
E PU 169 Power Window Master Switch Left Rear Down Signal (A31) E PU 169 Power Window Master Switch Left Rear Down Signal (A31)
F L-GN 170 Power Window Master Switch Right Rear Up Signal (A31) F L-GN 170 Power Window Master Switch Right Rear Up Signal (A31)
G PU 171 Power Window Master Switch Right Rear Down Signal (A31) G PU 171 Power Window Master Switch Right Rear Down Signal (A31)
H BK 650 Ground H BK 650 Ground
J OG 1732 Inadvertent Power Supply Voltage (DG7) J OG 1732 Inadvertent Power Supply Voltage (DG7)
K D-BU 1307 Power Window Master Switch Lockout Signal (A31) K D-BU 1307 Power Window Master Switch Lockout Signal (A31)
C602 Body to Front Passenger Door Harness

GM646400Courtesy of GENERAL MOTORS CORP.
GM684916Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326835
  • 8-Way F GT 150 Series Sealed 4.0 (BK)
 Connector Part Information
  • 15326840
  • 8-Way M GT 150 Series Sealed 4.0 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A D-GN 117 Right Front Speaker Output (-) (U79/UX7) A D-GN 117 Right Front Speaker Output (-) (U79/UX7)
OR 1853 Right Front Speaker Output (-) (UZ6) OR 1853 Right Front Speaker Output (-) (UZ6)
B L-GN 200 Right Front Speaker Output (+) (U79/UX7) B L-GN 200 Right Front Speaker Output (+) (U79/UX7)
D-GN 1953 Right Front Speaker Output (+) (UZ6) D-GN 1953 Right Front Midrange Speaker Output (+) (UZ6)
C WH 682 Door Lock/Unlock Signal C WH 682 Door Lock/Unlock Signal
D BK 650 Ground D BK 650 Ground
E TN 294 Door Lock Actuator Unlock Control E TN 294 Door Lock Actuator Unlock Control
F GY 295 Door Lock Actuator Lock Control F GY 295 Door Lock Actuator Lock Control
G D-GN 2134 Side Impact Sensing Module - Right - Signal G D-GN 2134 Side Impact Sensing Module - Right - Signal
H TN 2133 Side Impact Sensing Module - Right - Voltage H TN 2133 Side Impact Sensing Module - Right - Voltage
C604 Body Harness to Front Passenger Door Harness (A31)

GM646372Courtesy of GENERAL MOTORS CORP.
GM847234Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326654
  • 8-Way F GT 280 Series Sealed 5.8 (BK)
 Connector Part Information
  • 15326655
  • 8-Way M GT 280 Series Sealed 5.8 (BK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A - - Not Used A - - Not Used
B RD/WH 881 Passenger Mirror Motor Right Control B RD/WH 881 Passenger Mirror Motor Right Control
C PU/WH 889 Passenger Mirror Motor Down Control C PU/WH 889 Passenger Mirror Motor Down Control
D GY 90 Passenger Mirror Motor Left Control D GY 90 Passenger Mirror Motor Left Control
E BN 441 Ignition 3 Voltage E BN 441 Ignition 3 Voltage
F L-BU 166 Power Window Master Switch Right Front Up Signal F L-BU 166 Power Window Master Switch Right Front Up Signal
G TN 167 Power Window Master Switch Right Front Down Signal G TN 167 Power Window Master Switch Right Front Down Signal
H - - Not Used H - - Not Used
C759 Body Harness to Left Rear Door Harness (Sedan w/AUO)

GM537107Courtesy of GENERAL MOTORS CORP.
GM605500Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2-Way F Metri-Pack 150 Series Sealed (GY)
 Connector Part Information
  • 12162343
  • 2-Way M Metri-Pack 150 Series (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A GY 295 Door Lock Actuator Lock Control A GY 295 Door Lock Actuator Lock Control
B TN 294 Door Lock Actuator Unlock Control B TN 294 Door Lock Actuator Unlock Control
C860 Body Harness to Right Rear Door Harness (Sedan w/AUO)

GM537107Courtesy of GENERAL MOTORS CORP.
GM605500Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2-Way F Metri-Pack 150 Series Sealed (GY)
 Connector Part Information
  • 12162343
  • 2-Way M Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A GY 295 Door Lock Actuator Lock Control A GY 295 Door Lock Actuator Lock Control
B TN 294 Door Lock Actuator Unlock Control B TN 294 Door Lock Actuator Unlock Control
scientia non olet · About LEMON Manuals
