Power Sliding Door Module: Locations

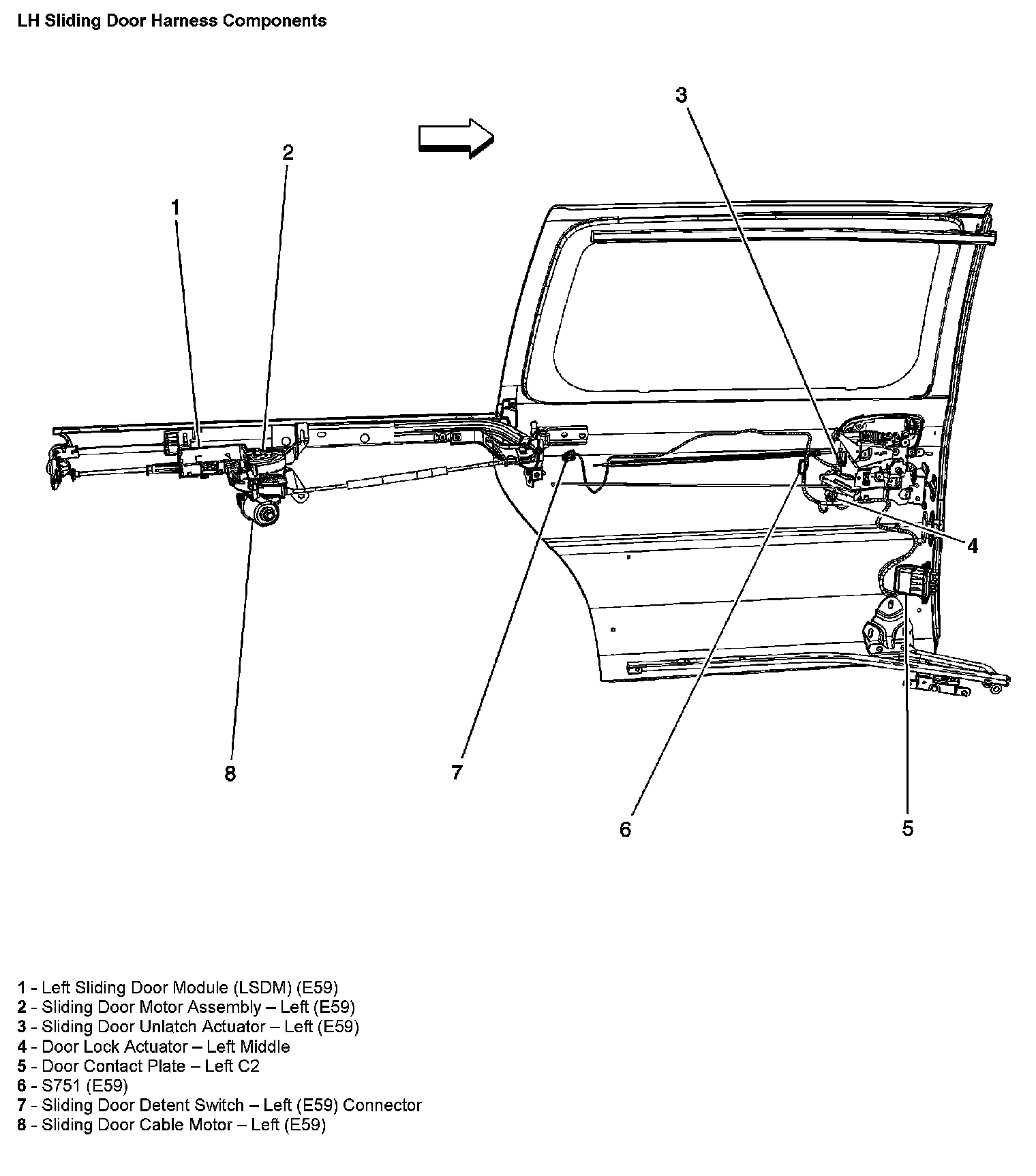

LH Sliding Door Harness Components:

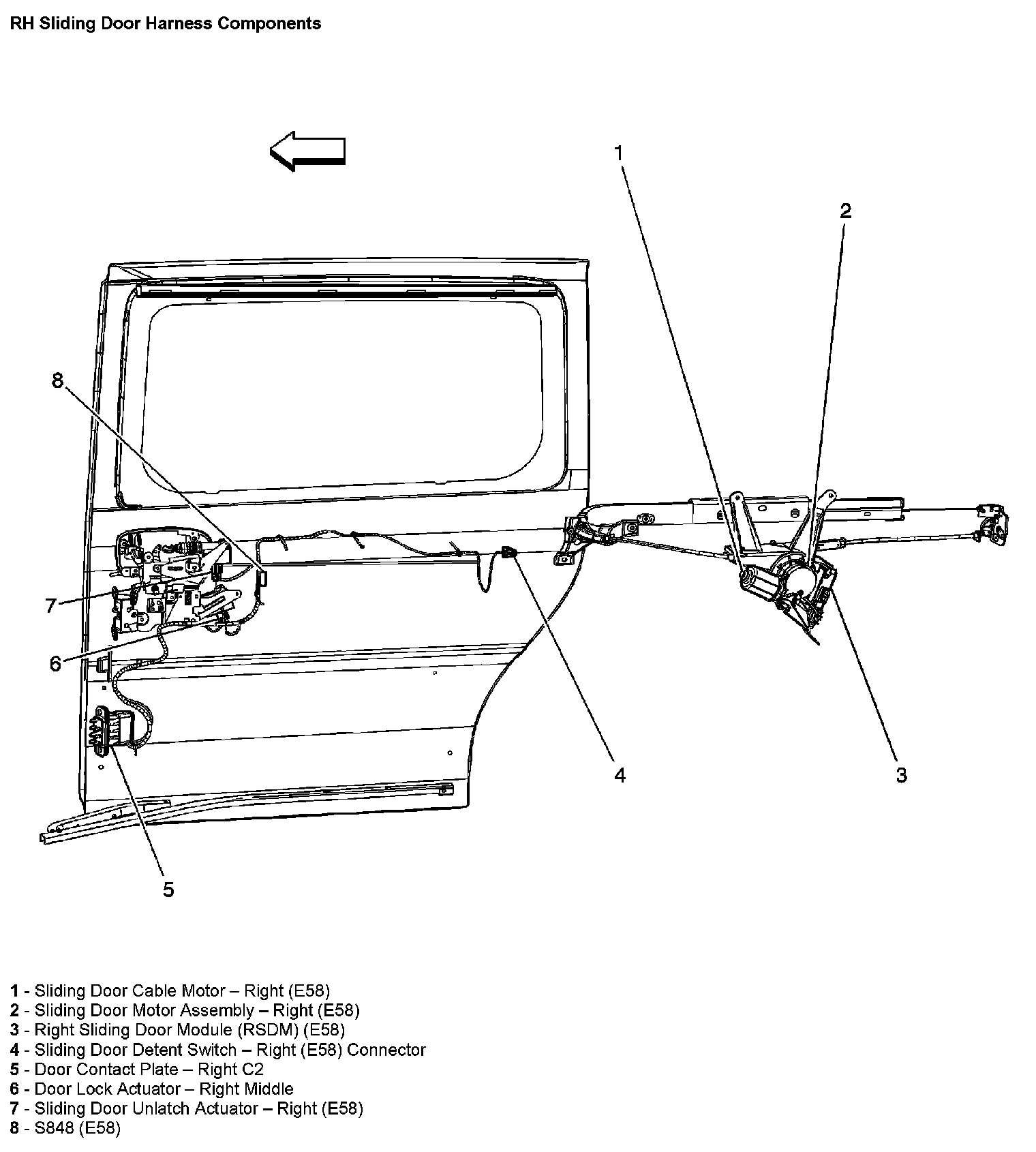

RH Sliding Door Harness Components:
