Engine Controls Schematics

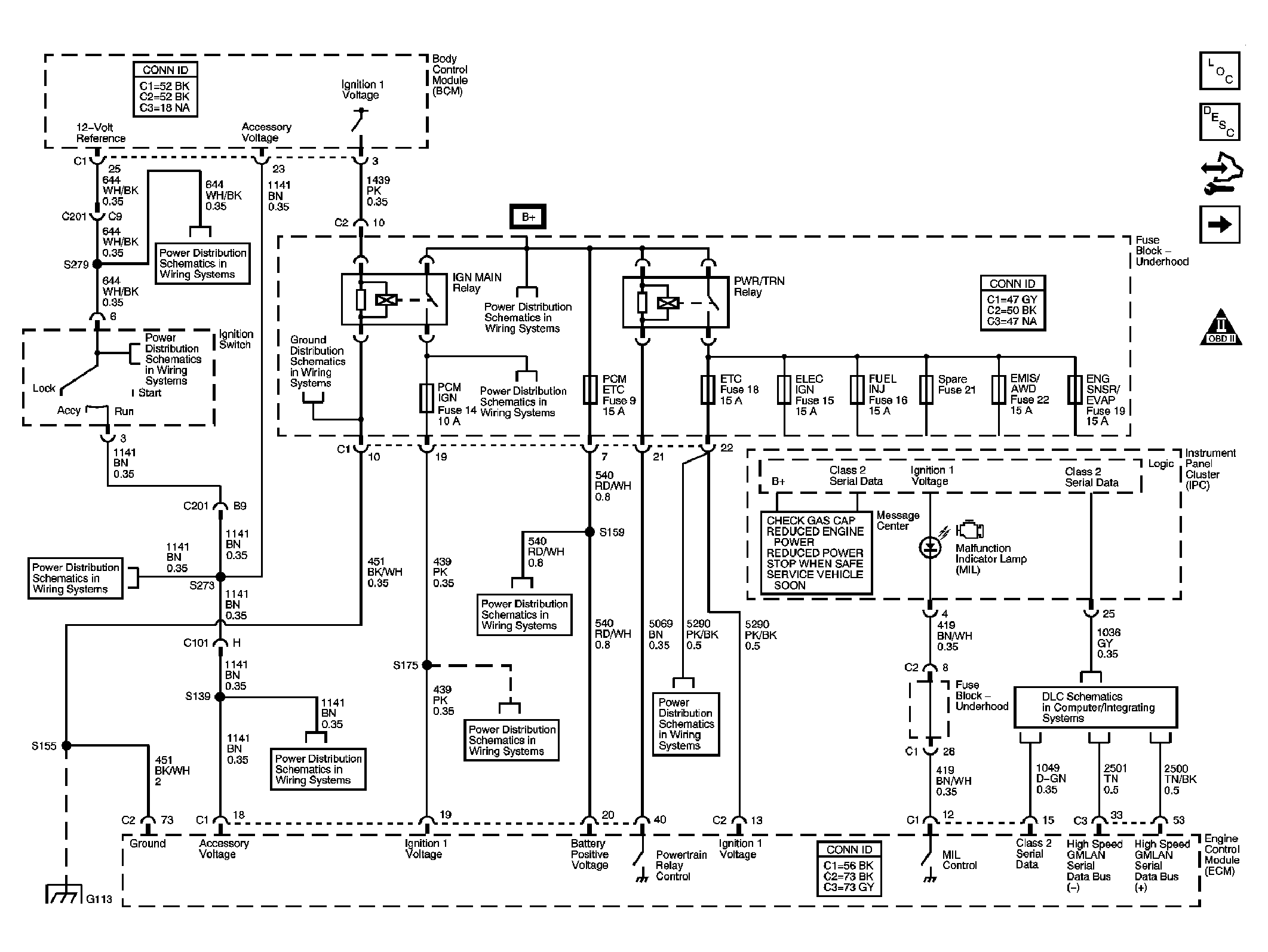

Fig 1: Module Power, Ground, Serial Data & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

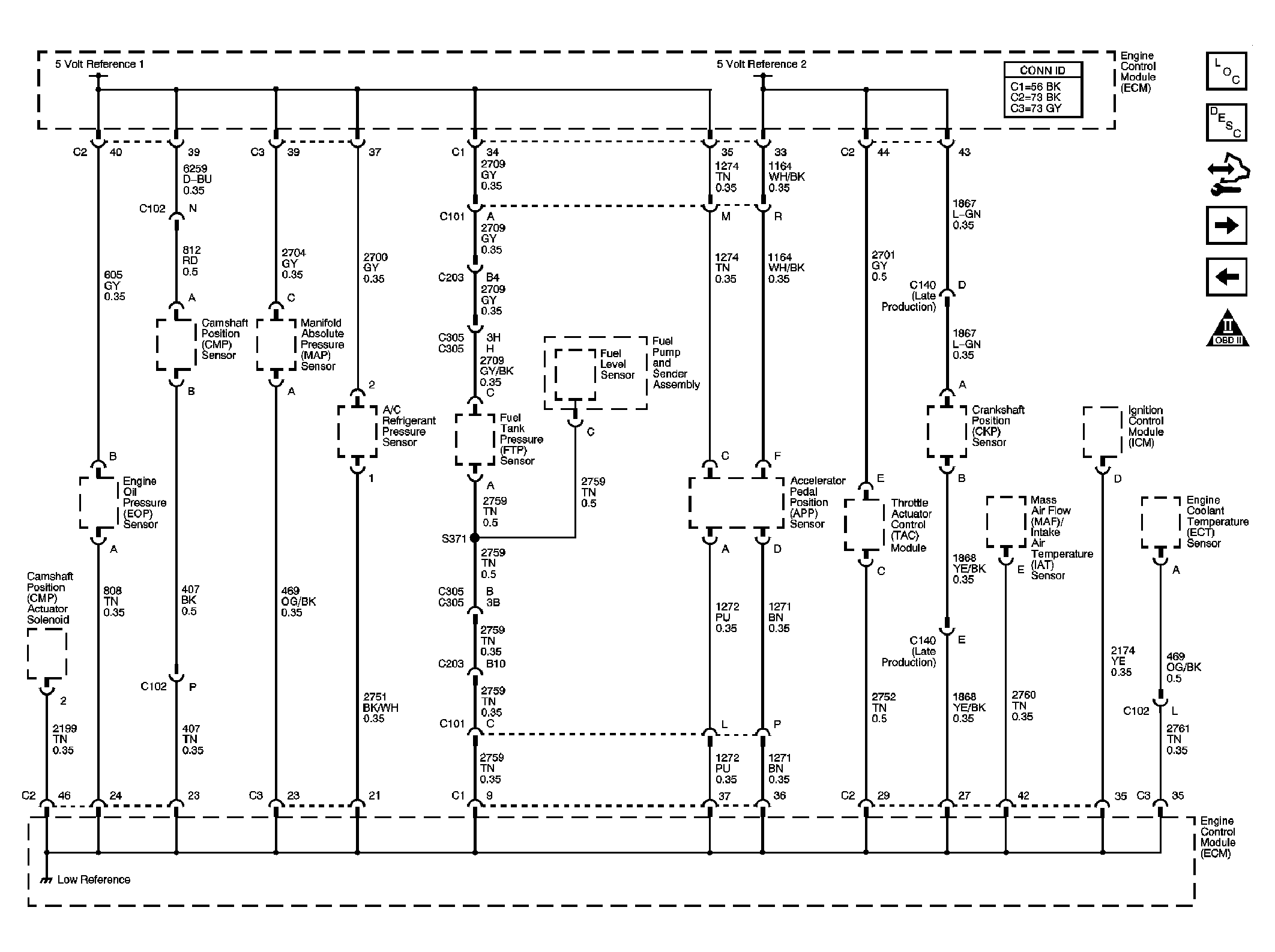

Fig 2: Engine Data Sensors Schematic - 5-Volt and Low Reference

Courtesy of GENERAL MOTORS CORP.

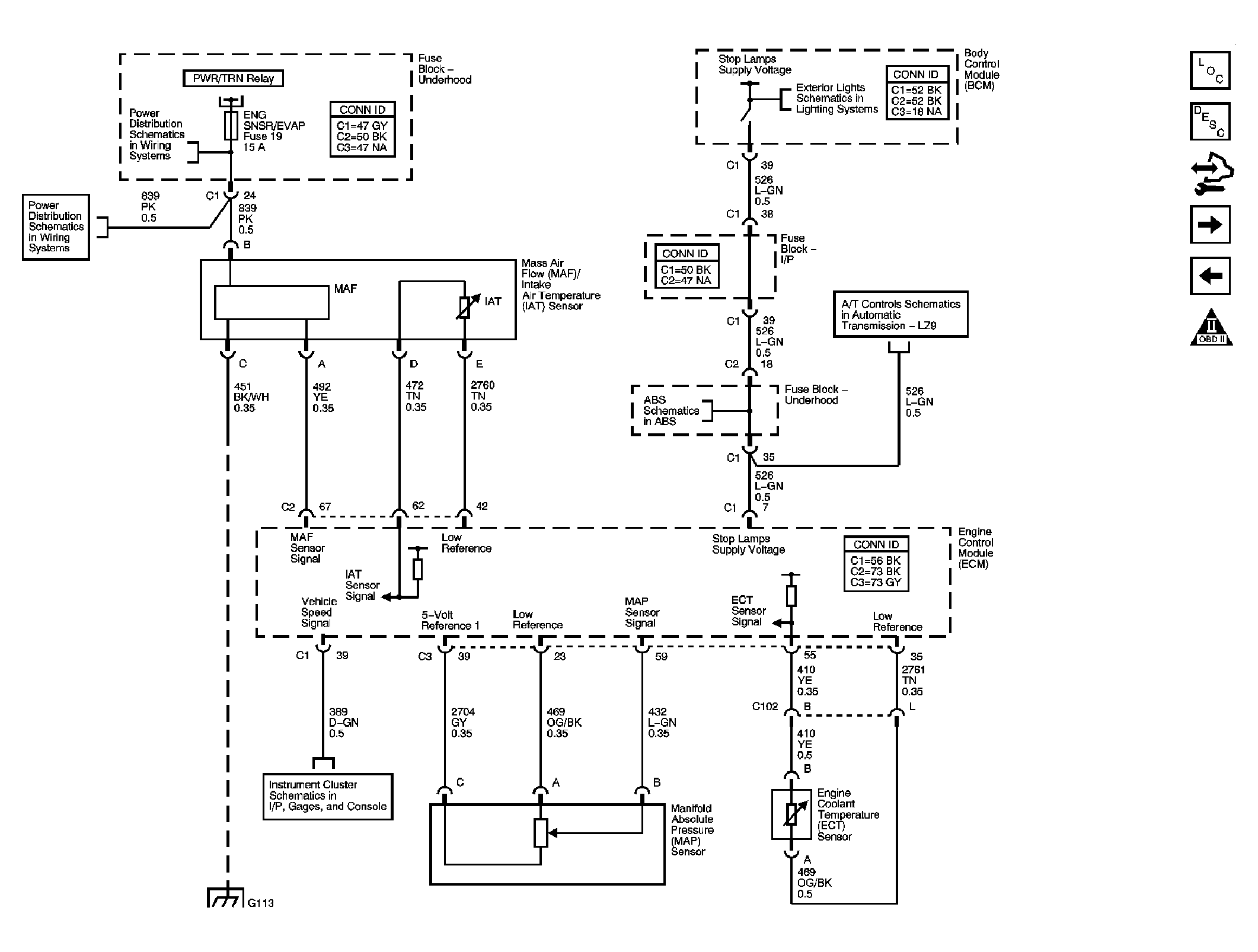

Fig 3: Engine Data Sensors Schematic - Pressure, Temperature, Extended Brake Travel & VSS

Courtesy of GENERAL MOTORS CORP.

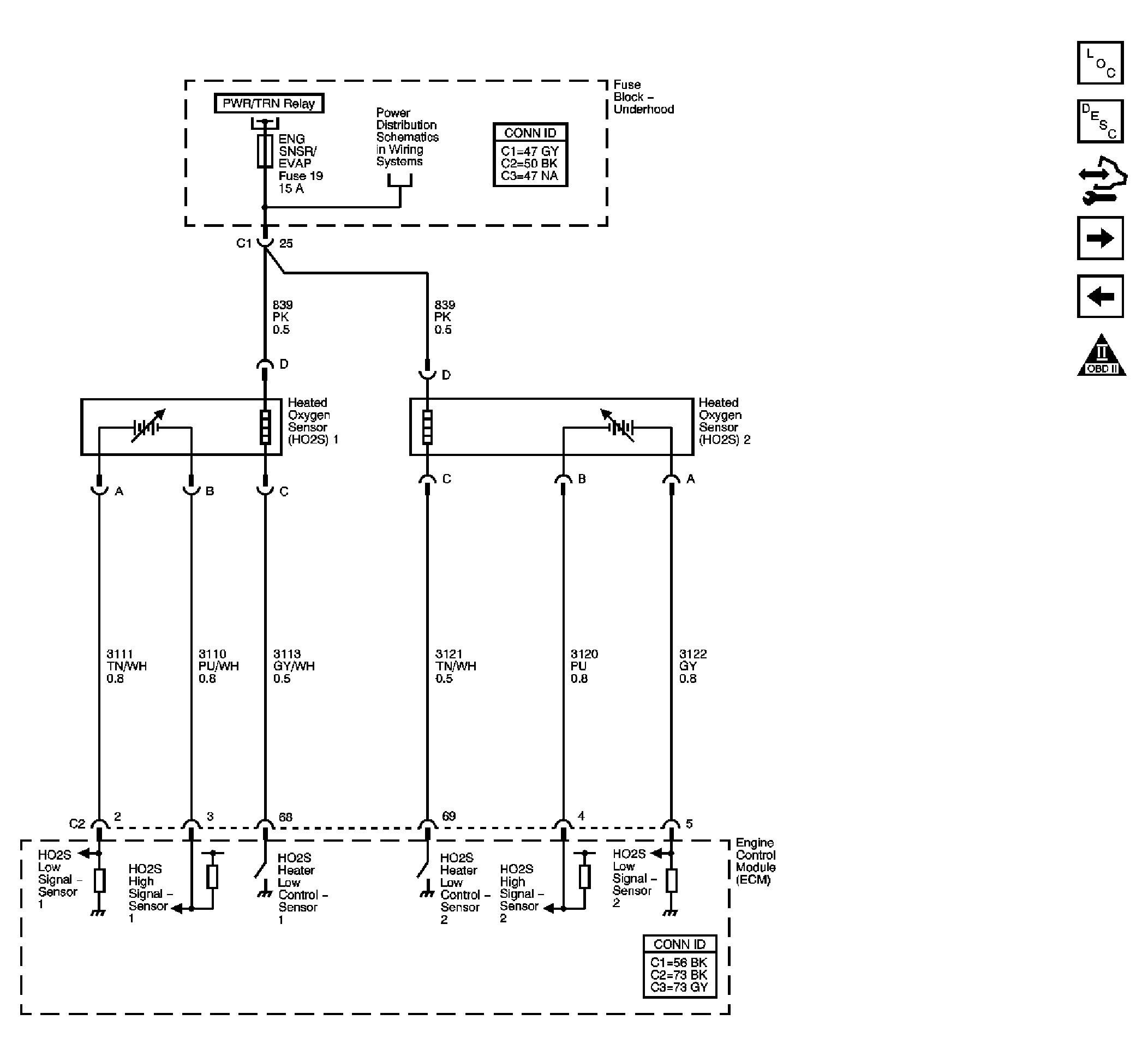

Fig 4: Engine Data Sensors Schematic - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

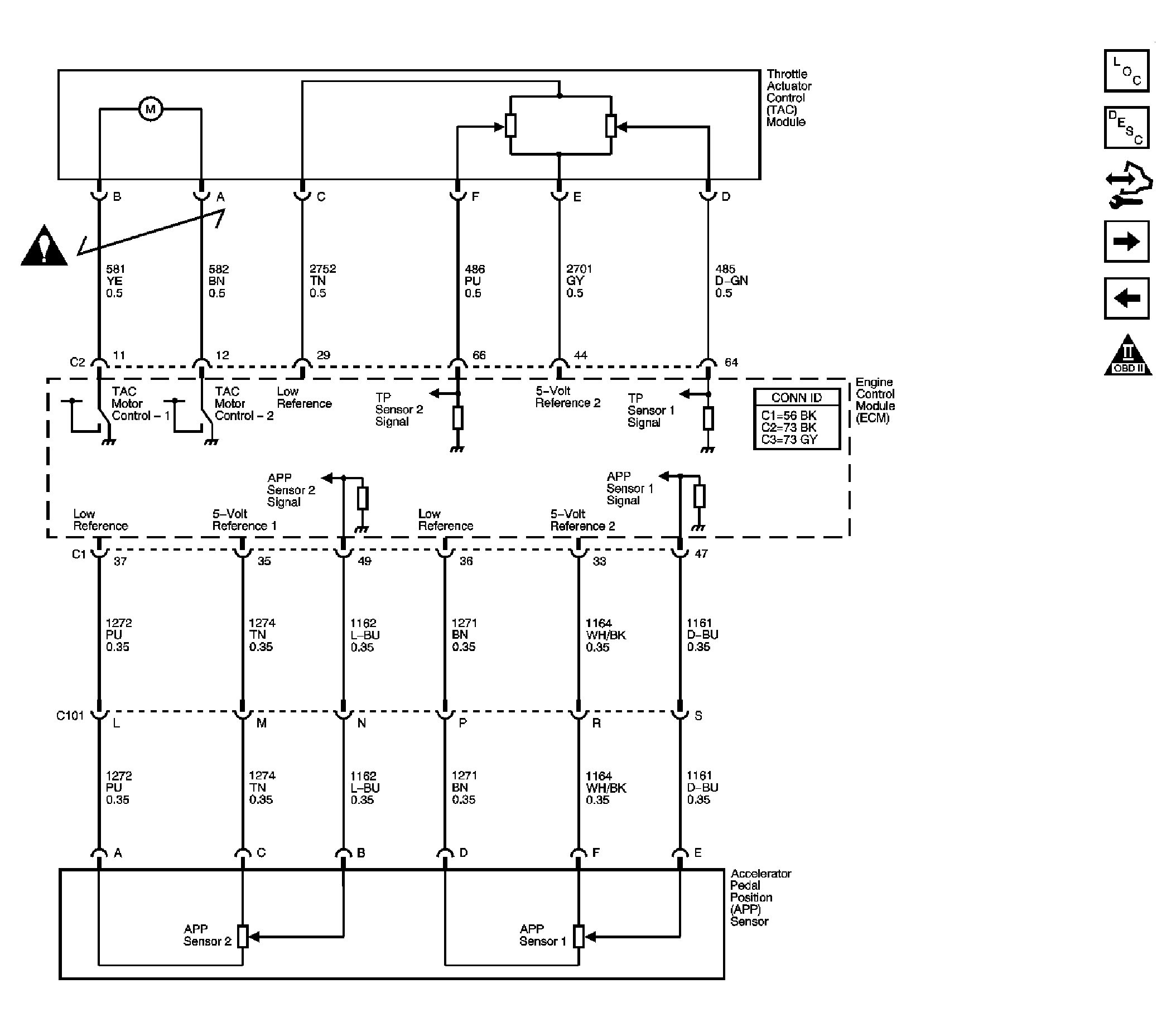

Fig 5: Engine Data Sensors Schematic - Throttle Actuator Controls

Courtesy of GENERAL MOTORS CORP.

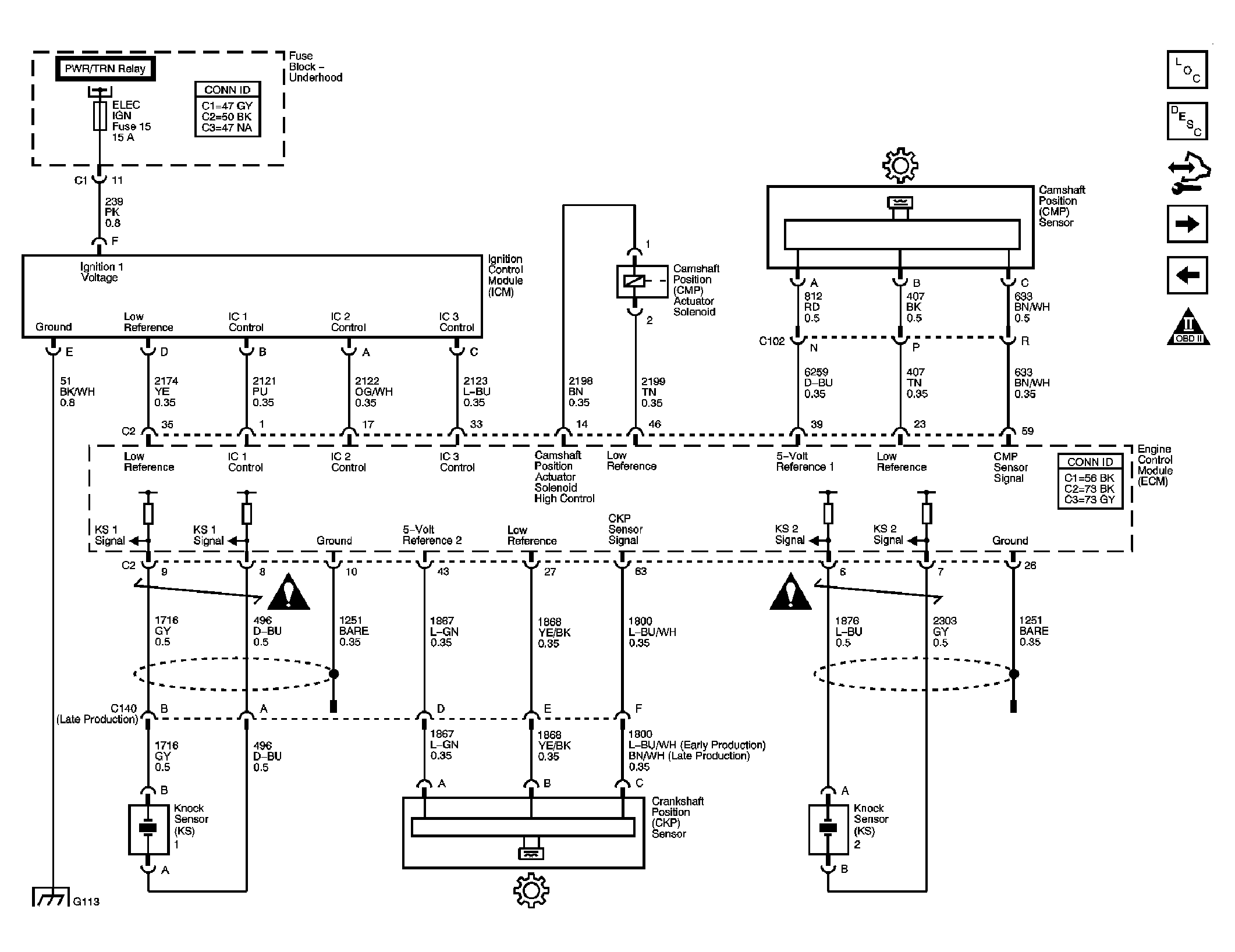

Fig 6: Ignition Controls & Camshaft Control Schematic

Courtesy of GENERAL MOTORS CORP.

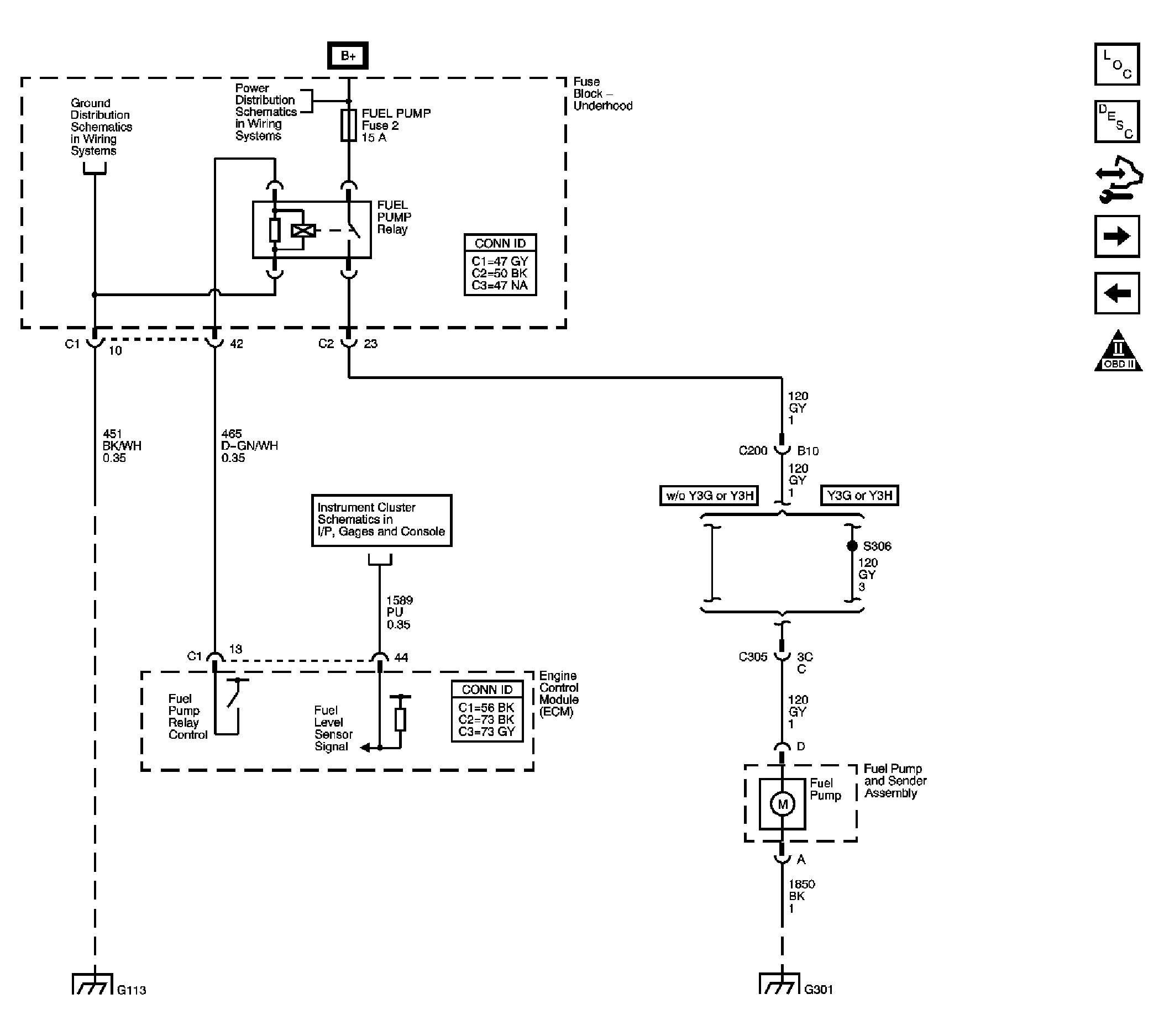

Fig 7: Fuel Controls Schematic - Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

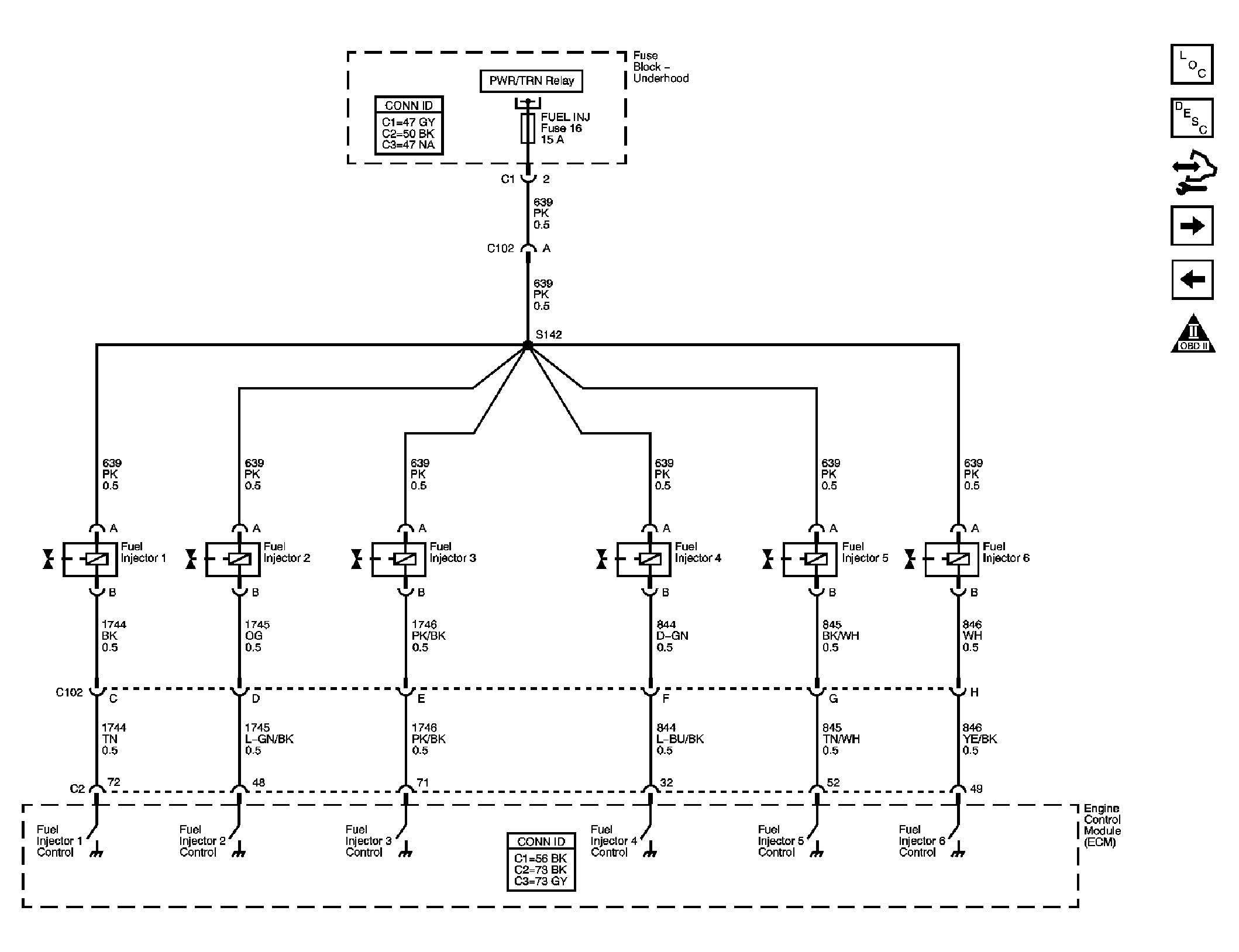

Fig 8: Fuel Controls Schematic - Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

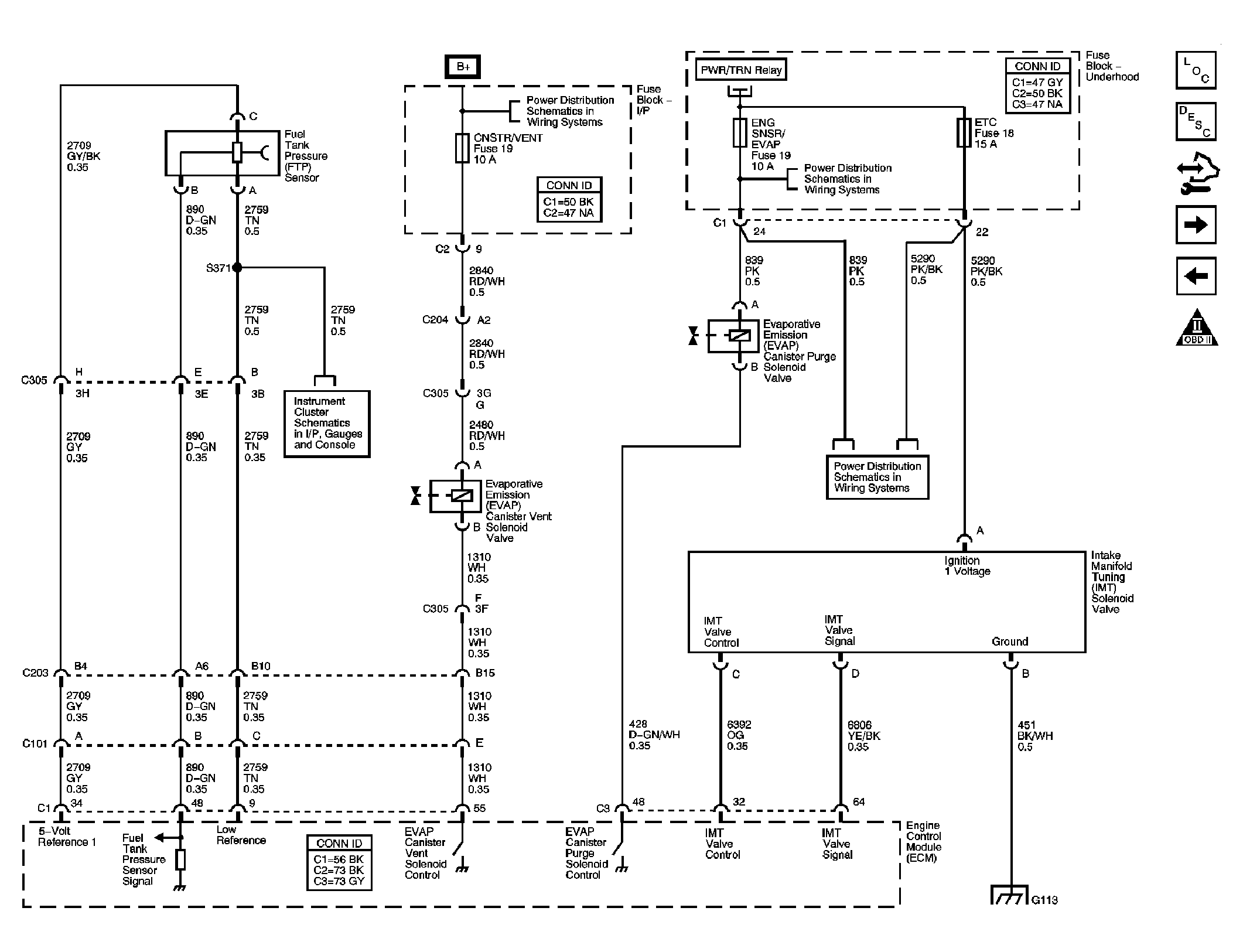

Fig 9: EVAP Controls & Manifold Tuning Schematic

Courtesy of GENERAL MOTORS CORP.

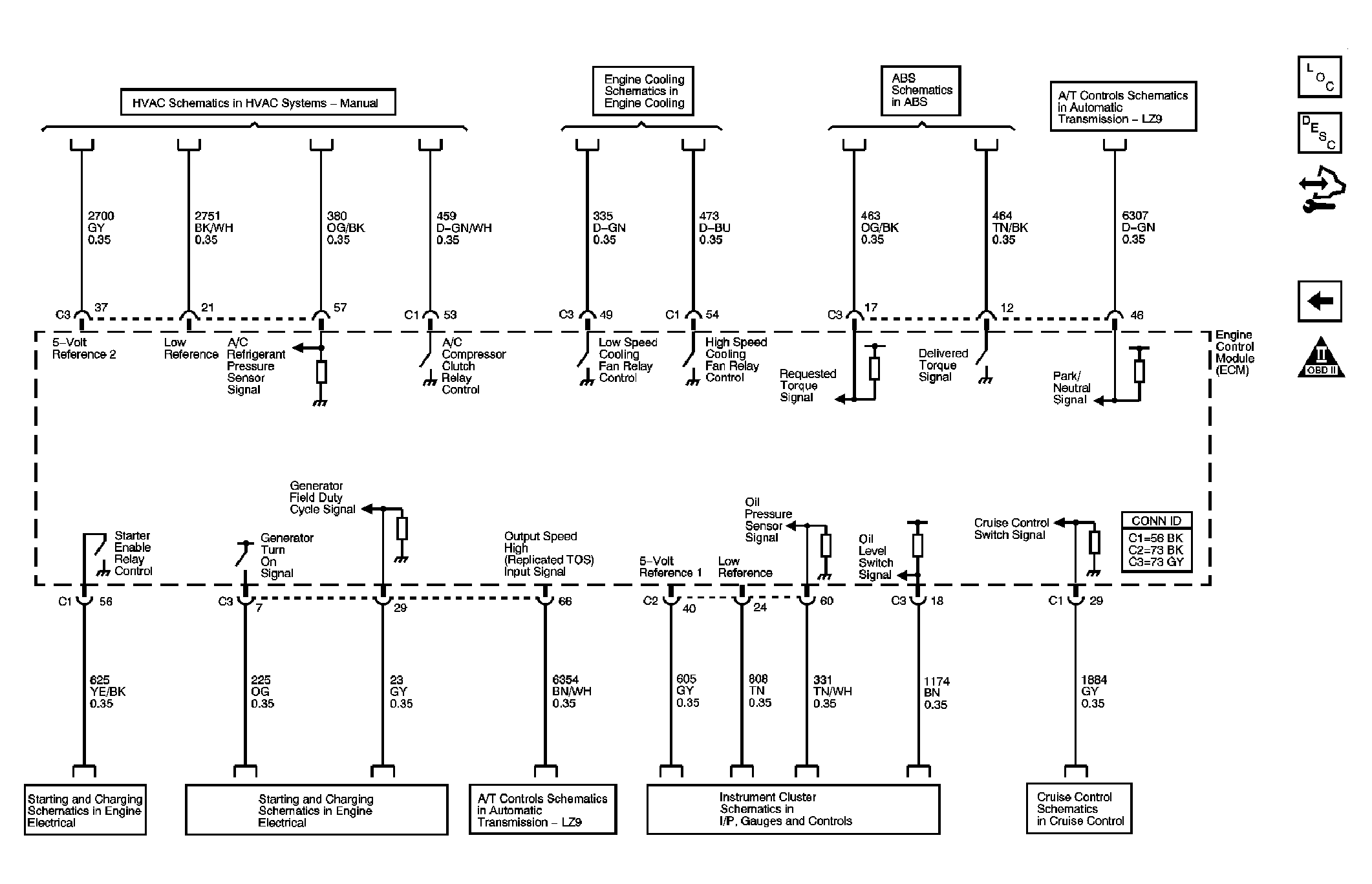

Fig 10: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
