Electrical Diagrams

BODY CONTROL SYSTEM SCHEMATICS

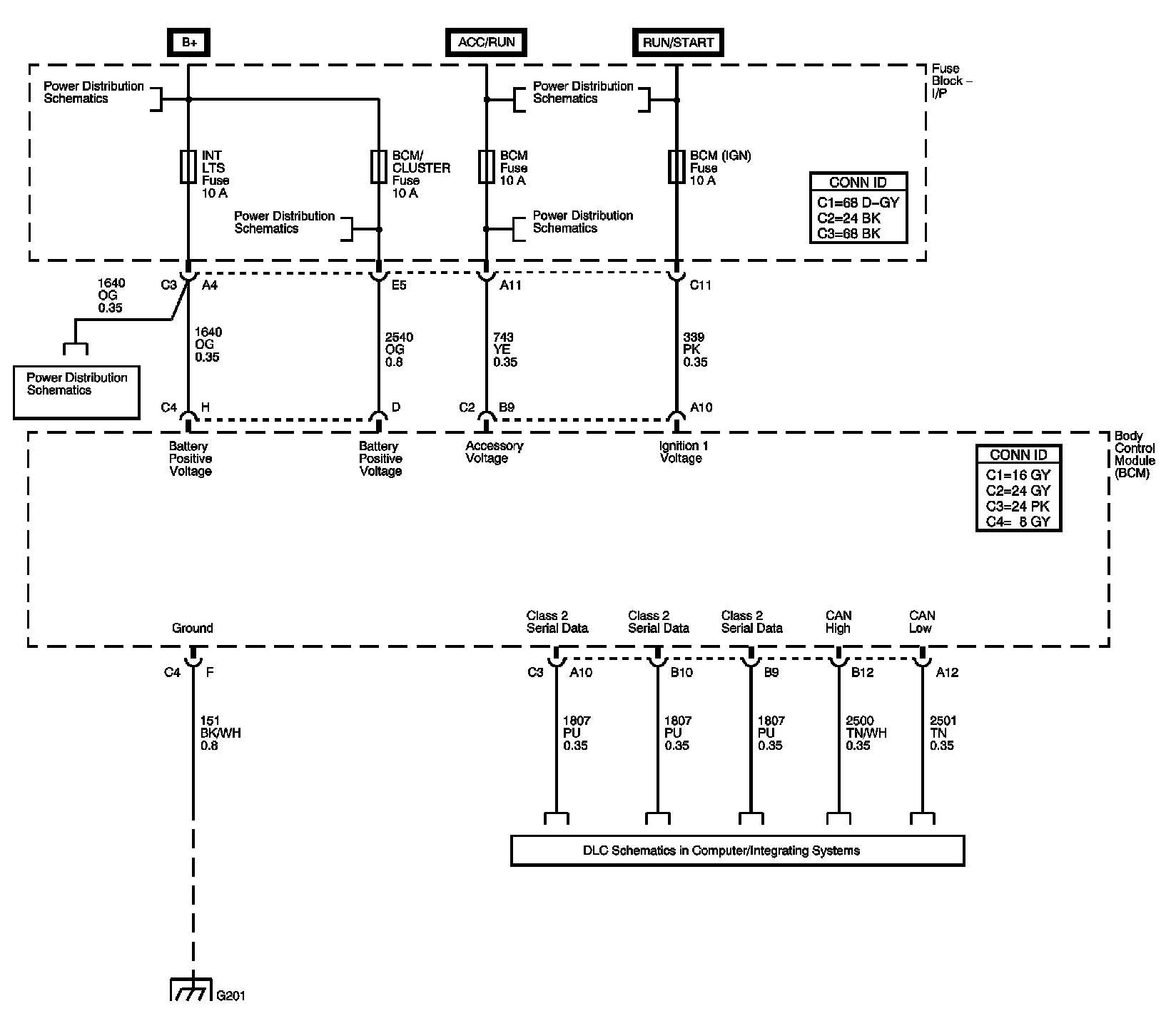

Body Control System (Part 1):

Power, Ground and Serial Data

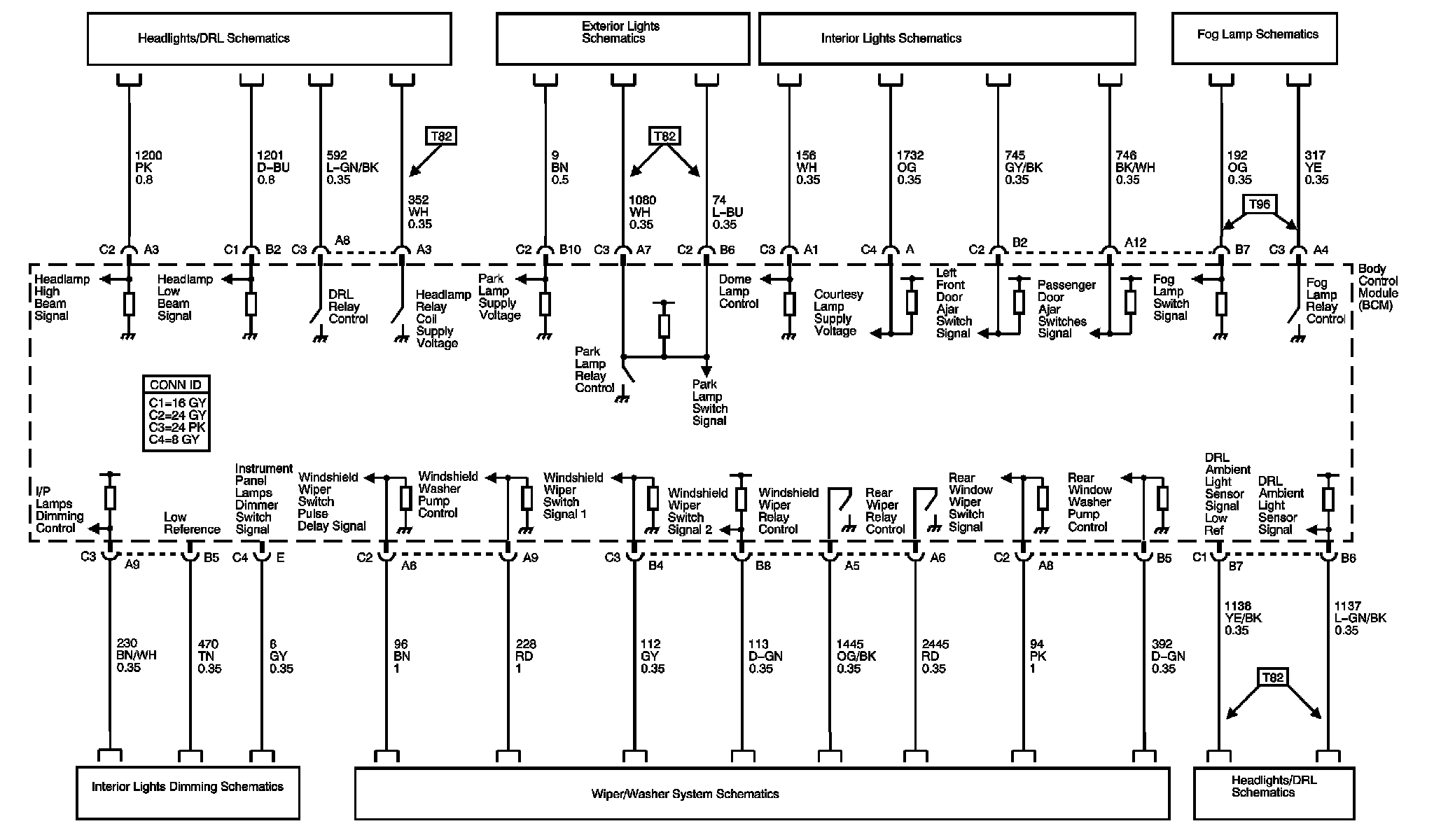

Body Control System (Part 2):

Lighting and Wiper/Washer System References

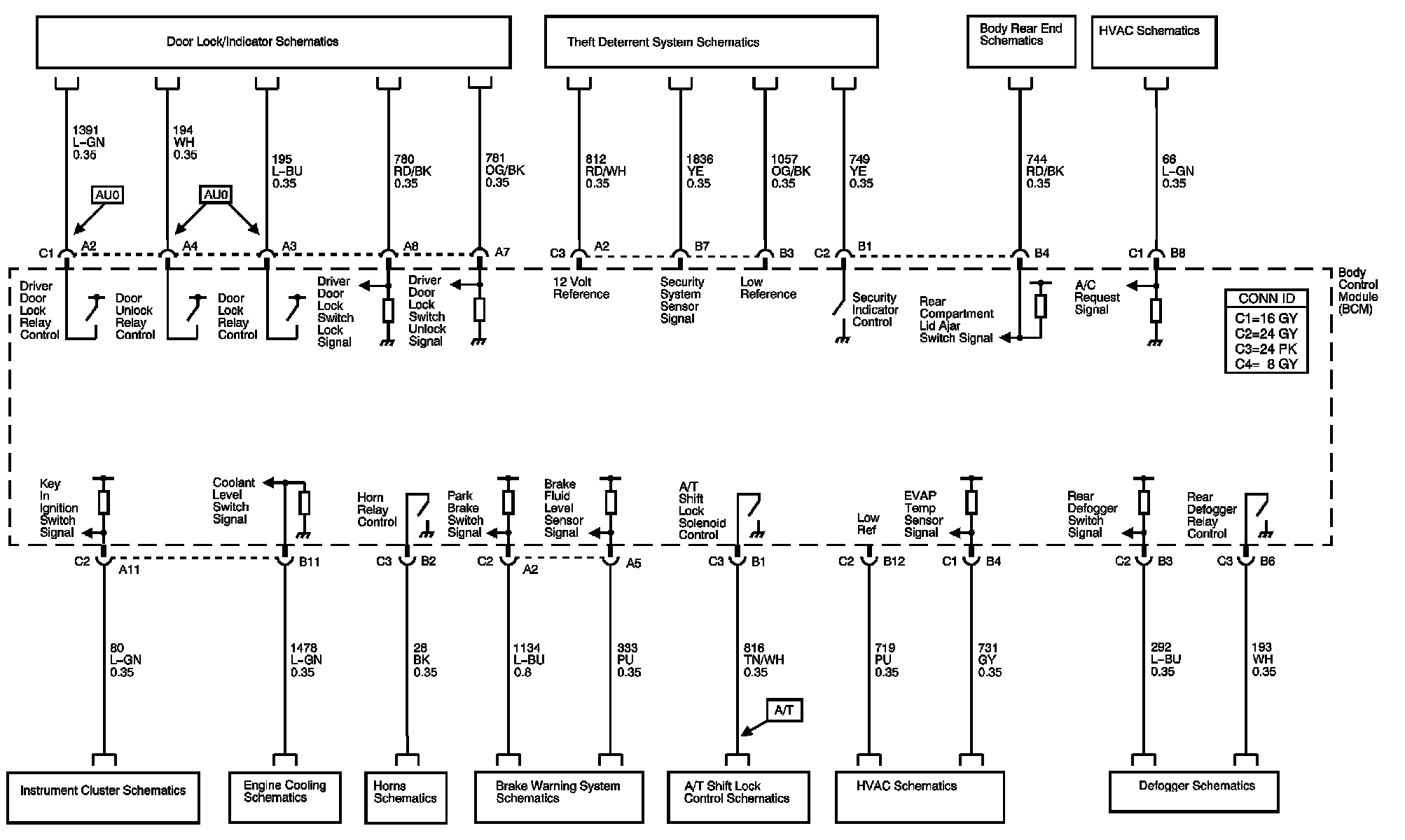

Body Control System (Part 3):

Controlled/Monitored Subsystem References



Location: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their at Vehicle Locations. Locations
