Procedures

HEATED SEAT CONTROL MODULE REPLACEMENT - FRONT

REMOVAL PROCEDURE




1. Remove the heated seat module retainer.

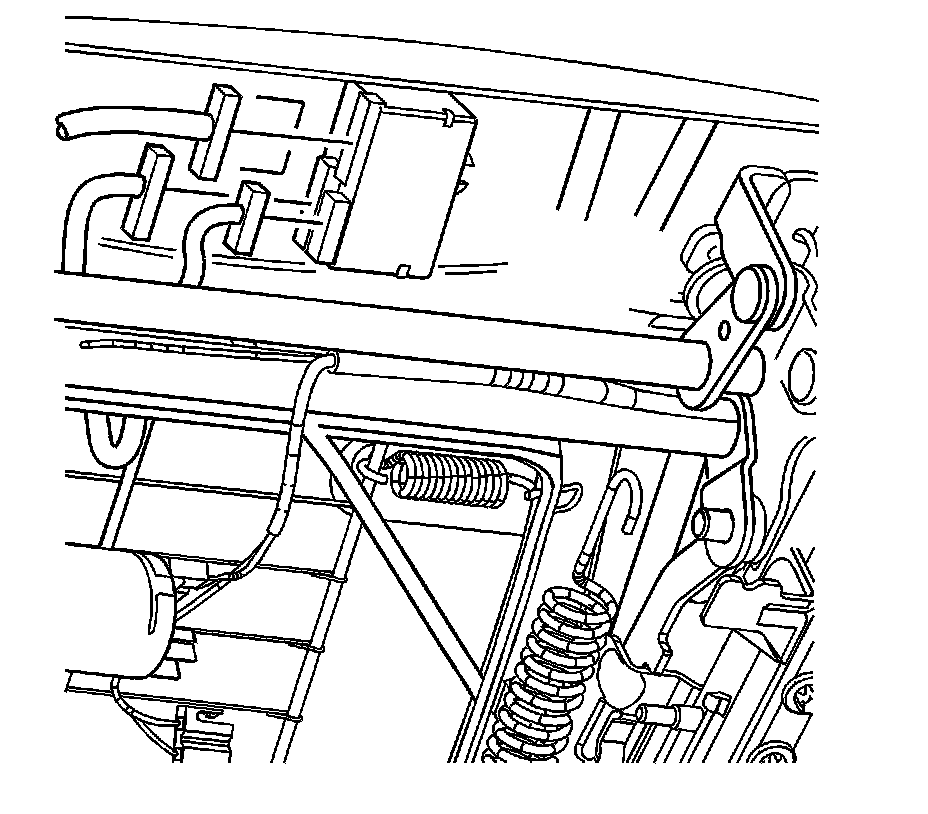

2. Disconnect the electrical connectors from the heated seat module.

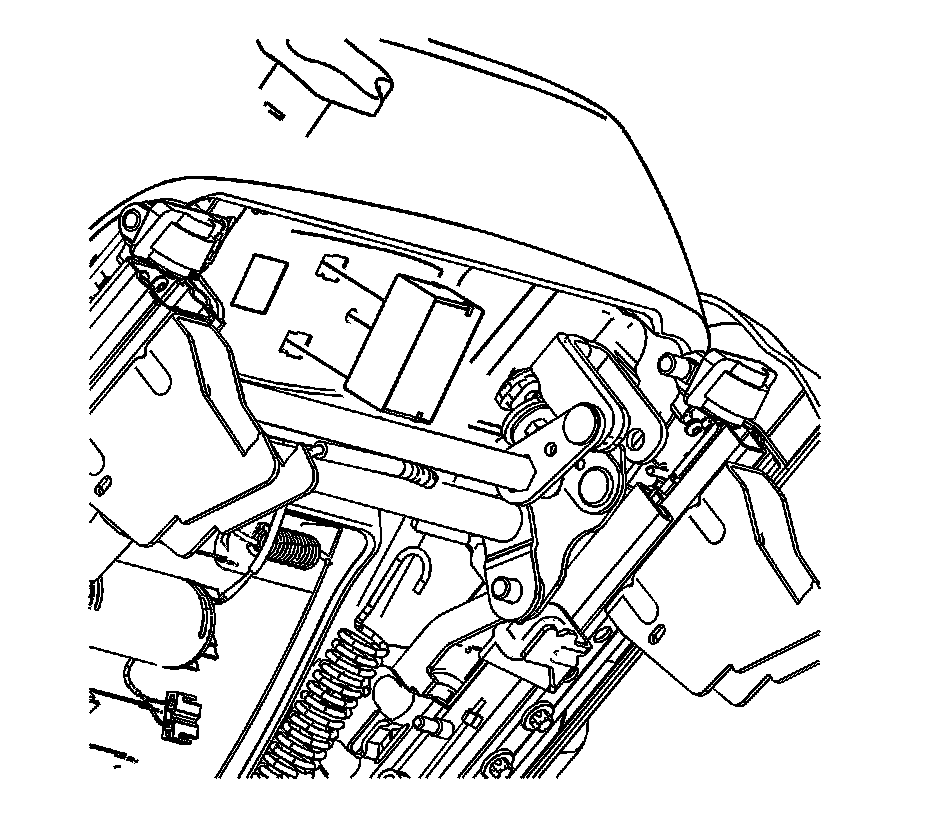

3. Remove the module.

INSTALLATION PROCEDURE
1. Connect the electrical connector to the heated seat module.




2. Install the module with the retainer to the seat pan.
3. Test for proper operation of the seat heater.
