Underhood Fuse Block Bottom View: Notes

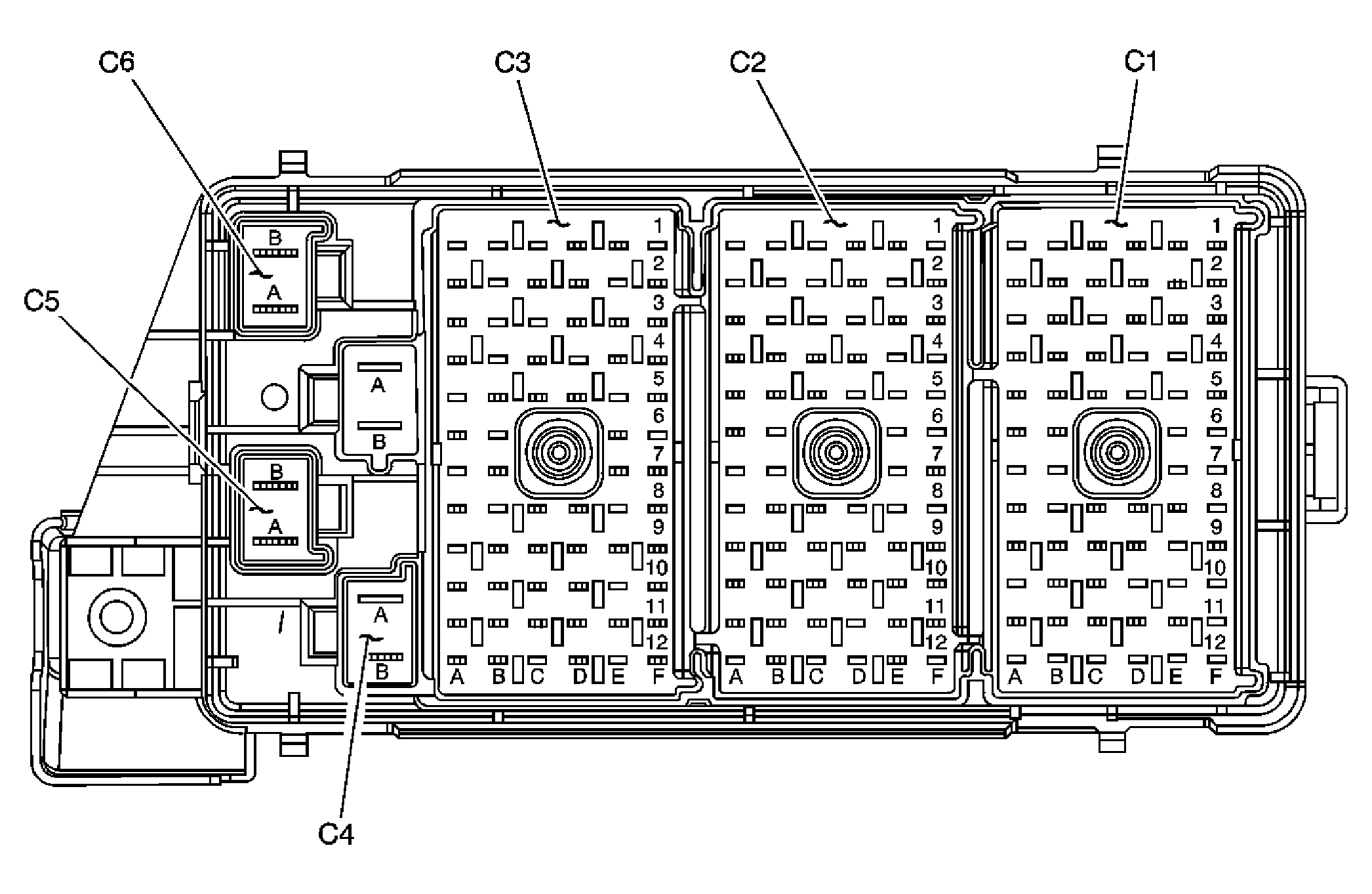

Fig 1: View Of Underhood Fuse Block Bottom View
GM1341552Courtesy of GENERAL MOTORS CORP.
Fuse Block - Underhood C1

GM928509Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15328983
  • 68-Way F Metri-Pack 280 Series Flexlock (L-GY)
  • Forward Lamp Harness Connection
  • Connector Wire Cover (NA)
Pin Wire Color Circuit No. Function
A1 - - Not Used
A2 L-BU 409 Cooling Fan Motor Supply Voltage
A3 - - Not Used
A4 PK 1200 Headlamp High Beam Signal
A5 L-BU 14 Left Turn Signal Lamps Supply Voltage (L66)
- - Not Used (L61)
A6 BK 150 Ground
A7 - - Not Used
A8 RD 228 Windshield Washer Pump Control
A9 BN 9 Park Lamp Supply Voltage
A10 - - Not Used (L66)
A10 GY 532 Cooling Fan Motor Supply Voltage (L61)
A11 GY 532 Cooling Fan Motor Supply Voltage (L66)
- - Not Used (L61)
A12 - - Not Used
B1-B2 - - Not Used
B3 D-GN 29 Horn Control
B4 PK 1200 Headlamp High Beam Signal
B5 OG 740 Battery Positive Voltage
B6 D-BU 15 Right Turn Signal Lamps Supply Voltage
B7-B8 - - Not Used
B9 BN 9 Park Lamp Supply Voltage
B10 - - Not Used
B11 GY 532 Cooling Fan Motor Supply Voltage (L66)
- - Not Used (L61)
B12 - - Not Used
C1 D-GN 392 Rear Window Washer Switch Signal
C2 - - Not Used (L66)
L-BU 409 Cooling Fan Motor Supply Voltage (L61)
C3 - - Not Used (L66)
L-BU 14 Left Turn Signal Lamps Supply Voltage (L61)
C4 D-BU 1201 Headlamp Low Beam Signal (L66)
- - Not Used (L61)
C5 OG 740 Battery Positive Voltage
C8 - - Not Used
C9 BN 9 Park Lamp Supply Voltage
C10 OG 3040 Battery Positive Voltage (L66)
- - Not Used (L61)
C11-C12 - - Not Used
D1-D2 - - Not Used
D3 D-BU 1201 Headlamp Low Beam Signal
D4-D5 - - Not Used
D8 - - Not Used
D9 BN 9 Park Lamp Supply Voltage
D10-D12 - - Not Used
E1 - - Not Used
E2 PU 34 Fog Lamps Supply Voltage (T96)
E3 - - Not Used (L66)
D-BU 1201 Headlamp Low Beam Signal (L61)
E4-E7 - - Not Used
E8 OG 640 Battery Positive Voltage
E9-E12 - - Not Used
F1 - - Not Used
F2 PU 34 Fog Lamps Supply Voltage (T96)
F3 - - Not Used
F4 GY 589 DRL Resistor Supply Voltage
F5-F8 - - Not Used
F9 OG 640 Battery Positive Voltage
F10-F12 - - Not Used
Fuse Block - Underhood C2 (L61)

GM1282883Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • Assembly - 15328985
  • Connector - 15328977
  • 68-Way F Metri-Pack 280 Series Flexlock (GY)
  • Engine Harness Connection
  • Connector Wire Cover (GY)
Pin Wire Color Circuit No. Function
A1 BN/WH 2960 Keyword Serial Data
BN/WH 2960 Keyword Serial Data
A2 - - Not Used
A3 BN 5069 Main Relay Control
A4 PU 6 Starter Solenoid Crank Voltage (M/T)
YE 5 Crank Voltage (A/T)
A5 L-BU 20 Stop Lamp Switch Signal
L-BU 20 Stop Lamp Switch Signal
A6 BK 150 Ground
A7 - - Not Used
A8 WH 5290 Ignition 1 Voltage
A9 PK 639 Ignition 1 Voltage
A10 D-GN/WH 465 Fuel Pump Relay
A11 GY 397 Cruise Control On Switch Signal
A12 L-GN 24 Backup Lamp Supply Voltage
B1-B3 - - Not Used
B4 D-BU 84 Cruise Control Set/Coast Switch Signal
B5 PU 1589 Fuel Level Sensor Signal
B6 PU 420 Brake Switch Signal
B7 GY/BK 87 Cruise Resume/Accel Switch Signal
B8 WH 5290 Ignition 1 Voltage
B9 PK 639 Ignition 1 Voltage
PK 639 Ignition 1 Voltage
B10 PK 239 Ignition 1 Voltage
B11 WH 1310 EVAP Canister Vent Solenoid Control
B12 - - Not Used
C1 - - Not Used
C2 BK 2759 Low Reference
C3 - - Not Used
C4 WH 5291 Ignition 1 Voltage
C5-C12 - - Not Used
D1 OG 1440 Battery Positive Voltage
D2 D-GN 335 Low Speed Cooling Fan Relay Control
D3 - - Not Used
D4 WH 5291 Ignition 1 Voltage
D5-D8 - - Not Used
D9 PK 39 Ignition 1 Voltage
D10 PK 239 Ignition 1 Voltage
D11-D12 - - Not Used
E1 OG 1440 Battery Positive Voltage
E2 - - Not Used
E3 WH 5291 Ignition 1 Voltage
E4-E8 - - Not Used
E9 PK 39 Ignition 1 Voltage
E10 D-GN/WH 459 A/C Compressor Clutch Relay Control
E11 D-GN 59 A/C Compressor Clutch Supply Voltage
E12 - - Not Used
F1-F8 - - Not Used
F9 PK 239 Ignition 1 Voltage (M/T)
F10-F11 - - Not Used
F12 D-BU 473 High Speed Cooling Fan Relay Control
Fuse Block - Underhood C2 (L66)

GM1332463Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 13008012
  • 68-Way F Metri-Pack 280 Series Flexlock (GY)
  • Engine Harness Connection
  • Connector Wire Cover (GY)
Pin Wire Color Circuit No. Function
A1-A3 - - Not Used
A4 YE/L-GN 24 Backup Lamps Supply Voltage
A5 YE 5 Crank Voltage
A6 BK 150 Ground
A7-A8 - - Not Used
A9 RD 39 Ignition 1 Voltage
A10 - - Not Used
A11 D-BU/WH 2182 Reverse Lamp Relay Control
A12 - - Not Used
B1-B4 - - Not Used
B5 YE 5 Crank Voltage
B6-B7 - - Not Used
B8 WH 5292 Ignition 1 Voltage
B9-B10 - - Not Used
B11 YE/L-GN 24 Backup Lamps Supply Voltage
B12 - - Not Used
C1-C3 - - Not Used
C4 WH 5291 Ignition 1 Voltage
C5 - - Not Used
C8-C10 - - Not Used
C11 GN/WH 459 A/C Clutch Relay Control
C12 - - Not Used
D1 BN 1440 Battery Positive Voltage
D2-D3 - - Not Used
D4 WH 5291 Ignition 1 Voltage
D5 - - Not Used
D8 - - Not Used
D9 WH 5290 Ignition 1 Voltage
D10-D12 - - Not Used
E1-E8 - - Not Used
E9 WH/GN 5290 Ignition 1 Voltage
E10 - - Not Used
E11 D-GN 59 A/C Compressor Clutch Supply Voltage
E12 - - Not Used
F1-F9 - - Not Used
F10 RD 639 Ignition 1 Voltage
F11-F12 - - Not Used
Fuse Block - Underhood C3 (L61)

GM1282882Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • Assembly - 15328984
  • Connector - 15328976
  • 68-Way F Metri-Pack 280 Flexlock Series (BK)
  • Body Harness Connection
  • Connector Wire Cover (GN)
Pin Wire Color Circuit No. Function
A1 L-GN 24 Backup Lamp Supply Voltage
A2 PU 293 Rear Defogger Element Supply Voltage
A3 WH 193 Rear Defogger Relay Control
A4 PK 1200 Right Headlamp High Beam Signal
A5 L-GN 24 Backup Lamp Supply Voltage
L-GN 24 Backup Lamp Supply Voltage
A6 OG/BK 1445 Front Wiper Relay Control
A7 - - Not Used
A8 OG 540 Battery Positive Voltage
A9 - - Not Used
A10 YE 143 Accessory Voltage
A11-A12 - - Not Used
B1 BK 28 Horn Switch Signal
B2 - - Not Used
B3 YE 196 Windshield Wiper Motor Park Switch Signal
B4 D-BU 84 Cruise Control Set/Coast Switch Signal
B5 - - Not Used
B6 PU 420 Brake Switch Signal
B7 OG 840 Battery Positive Voltage
B8 - - Not Used
B9 OG 1540 Battery Positive Voltage (HCO)
B10 L-BU 97 Windshield Wiper Switch Mist/Off/Low Signal
B11 WH 1310 EVAP Canister Vent Solenoid Control
B12 OG 140 Battery Positive Voltage (JM4)
C1 D-GN 392 Rear Window Washer Switch Signal
C2-C3 - - Not Used
C4 RD 228 Windshield Washer Switch Signal
C5 - - Not Used
C8 YE 343 Rear Wiper Switch Signal
C9 BN 9 Park Lamp Supply Voltage
C10 RD 2445 Rear Wiper Signal
C11 WH 393 Rear Wiper Switch Signal
C12 - - Not Used
D1 YE 18 Left Rear Stop/Turn Lamp Supply Voltage
D2 BK 2759 Low Reference
BK 2759 Low Reference
D3 WH 5291 Ignition 1 Voltage
D4 PU 1589 Fuel Level Sensor Signal
D5 PK 1039 Ignition 1 Voltage (JM4)
D8 OG 580 Accessory Voltage
D9 PK 239 Ignition 1 Voltage
D10-D11 - - Not Used
D12 OG 2340 Battery Positive Voltage (WBM)
E1 YE 317 Fog Lamp Relay Coil Supply Voltage
E2-E3 - - Not Used
E4 D-GN 19 Right Rear Stop/Turn Lamp Supply Voltage
D-GN 19 Right Rear Stop/Turn Lamp Supply Voltage
E5 - - Not Used
E6 GY/BK 87 Cruise Control Resume/Accel Switch Signal
E7 PU 638 Power Window Motor Driver Down Control
E8-E10 - - Not Used
E11 GY 397 Cruise Control On Switch Signal
E12 - - Not Used
F1 BN/WH 2960 Keyword Serial Data
F2 D-BU 1201 Left Headlamp Low Beam Signal
F3 L-GN/BK 592 DRL Relay Control
F4 YE 5 Crank Voltage
F5 L-BU 20 Stop Lamp Switch Signal
F6 - - Not Used
F7 YE 743 Accessory Voltage
F8 YE 343 Accessory Voltage
F9 PK 3 Ignition 1 Voltage
F10 - - Not Used
F11 GY 120 Fuel Pump Supply Voltage
F12 OG 340 Battery Positive Voltage
Fuse Block - Underhood C3 (L66)

GM1282882Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • Assembly - 15328984
  • Connector - 15328976
  • 68-Way F Metri-Pack 280 Flexlock Series (BK)
  • Body Harness Connection
  • Connector Wire Cover (GN)
Pin Wire Color Circuit No. Function
A1 - - Not Used
A2 PU 293 Rear Defogger Element Supply Voltage
A3 WH 193 Rear Defogger Relay Control
A4 YE 196 Windshield Wiper Motor Park Switch Signal
A5 - - Not Used
A6 WH 5291 Ignition 1 Voltage
A7 - - Not Used
A8 OG 540 Battery Positive Voltage
A9 - - Not Used
A10 YE 143 Accessory Voltage
A11 - - Not Used
A12 D-BU 473 High Speed Cooling Fan Relay Control
D-BU 473 High Speed Cooling Fan Relay Control
B1-B4 - - Not Used
B5 PK 1200 Right Headlamp High Beam
Signal
B6 - - Not Used
B7 OG 840 Battery Positive Voltage
B8 - - Not Used
B9 OG 1540 Battery Positive Voltage (HCO)
OG 1540 Battery Positive Voltage (HCO)
B10 L-BU 97 Windshield Wiper Switch Mist/Off/Low Signal
B11 OG/BK 1445 Front Wiper Relay Control
B12 OG 140 Battery Positive Voltage
C1-C3 - - Not Used
C4 D-GN 19 Right Rear Stop/Turn Lamp Supply Voltage
D-GN 19 Right Rear Stop/Turn Lamp Supply Voltage
C5 - - Not Used
C8 YE 343 Accessory Voltage
C9 RD 228 Windshield Washer Pump Control
C10 RD 2445 Rear Wiper Switch Signal
C11 WH 393 Rear Window Wiper Motor Control
C12 - - Not Used
D1 BK 28 Horn Relay Control
D2 YE 317 Fog Lamp Relay Coil Supply Voltage
D3 D-BU 1201 Headlamp Low Beam Signal
D4 - - Not Used
D5 PK 1039 Ignition 1 Voltage
D8 OG 580 Accessory Voltage
D9 PK 239 Ignition 1 Voltage
D10 GY 120 Fuel Pump Supply Voltage
D11 D-GN/WH 465 Fuel Pump Relay Control - Primary
D12 OG 2340 Battery Positive Voltage (WBM)
E1 D-GN 392 Rear Washer Switch Signal
E2 - - Not Used
E3 BN 5069 Main Relay Control
E4 L-GN 24 Backup Lamp Supply Voltage
L-GN 24 Backup Lamp Supply Voltage
E5 - - Not Used
E6 YE 18 Left Rear Stop/Turn Lamp Supply Voltage
E7 PU 638 Power Window Motor Driver Down Control
E8-E10 - - Not Used
E11 BN 9 Park Lamp Supply Voltage
E12 - - Not Used
F1 - - Not Used
F2 D-GN 335 Low Speed Cooling Fan Relay Control
F3 L-GN/BK 592 DRL Relay Control
F4 L-GN 24 Backup Lamp Supply Voltage
F5 YE 5 Crank Voltage
F6 - - Not Used
F7 YE 743 Accessory Voltage
F8 YE 343 Ignition 3 Voltage
F9 PK 3 Ignition 1 Voltage
F10-F11 - - Not Used
F12 OG 340 Battery Positive Voltage
Fuse Block - Underhood C4

GM1326572Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319800
  • 2-Way F Maxi-Fuse (BN)
  • Body Harness Connection
Pin Wire Color Circuit No. Function
A - - Not Used
B OG 1240 Battery Positive Voltage
Fuse Block - Underhood C5

GM1282880Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319799
  • 2-Way F Maxi-Fuse (L-GN)
  • Body Harness Connection
Pin Wire Color Circuit No. Function
A OG 40 Battery Positive Voltage
OG 40 Battery Positive Voltage
B OG 1140 Battery Positive Voltage (Early Production)
RD 1140 Battery Positive Voltage (Late Production)
Fuse Block - Underhood C6

GM1282879Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15319797
  • 2-Way F Maxi-Fuse (L-GY)
  • Body Harness Connection
Pin Wire Color Circuit No. Function
A RD 702 Battery Positive Voltage
B RD 9940 Battery Positive Voltage
RD 9940 Battery Positive Voltage
scientia non olet · About LEMON Manuals
