Engine Controls - 3.5L (L66) - DTC U0107
>>
DTC U0107
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC U0107: Notes

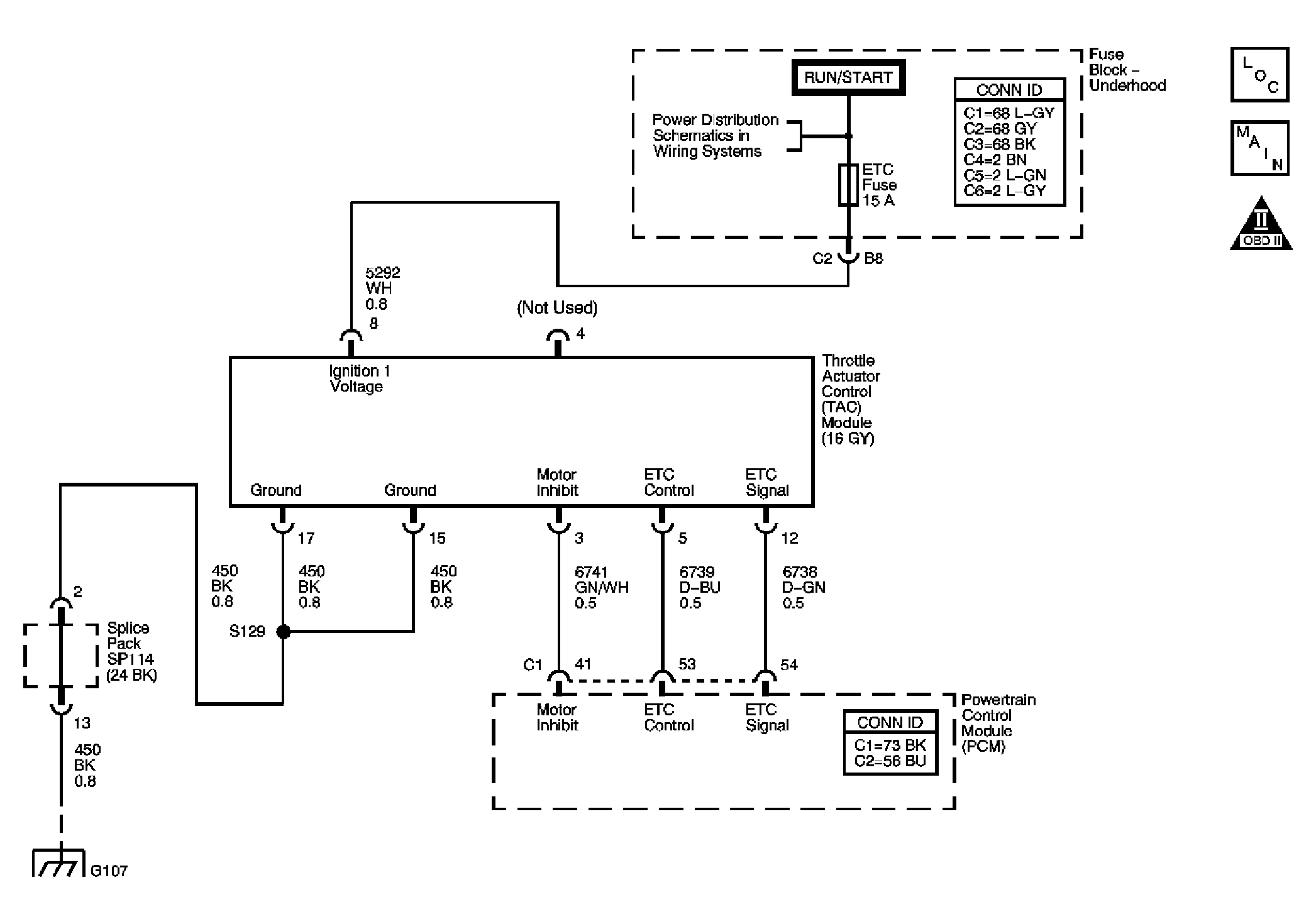

Fig 1: Throttle Actuator Control (TAC) Module Circuit
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
