Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

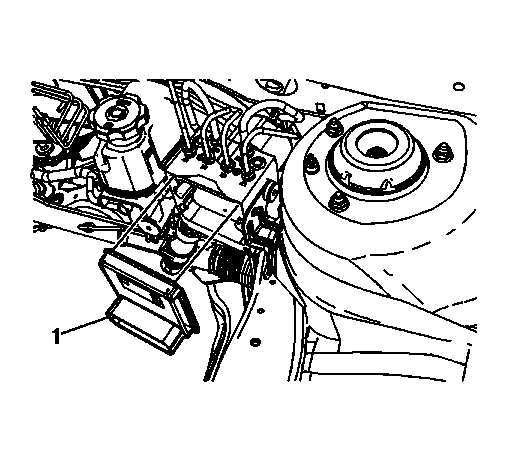

Fig 1: View Of EBCM & BPMV

Courtesy of GENERAL MOTORS CORP.

Clean the sealing surface of the BPMV with denatured alcohol and a clean shop cloth.
Carefully install the EBCM (1) to the BPMV.

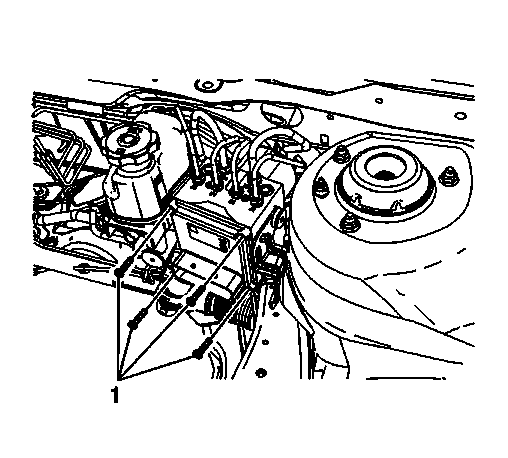

Fig 2: Identifying Electronic Brake Control Module

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the 4 EBCM bolts (1). Tighten the bolts in a cross pattern to 3 N.m (27 lb in).

NOTE: Ensure the electrical connector is correctly inserted into the EBCM prior to placing the locking lever into position. Failure to make a proper connection may cause communication problems with the module.

Connect the electrical connector to the EBCM.
If installing a new EBCM, it is necessary to program the EBCM. Refer to Control Module References .
