Radio Rear Speaker Replacement
WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Radio Rear Speaker Replacement

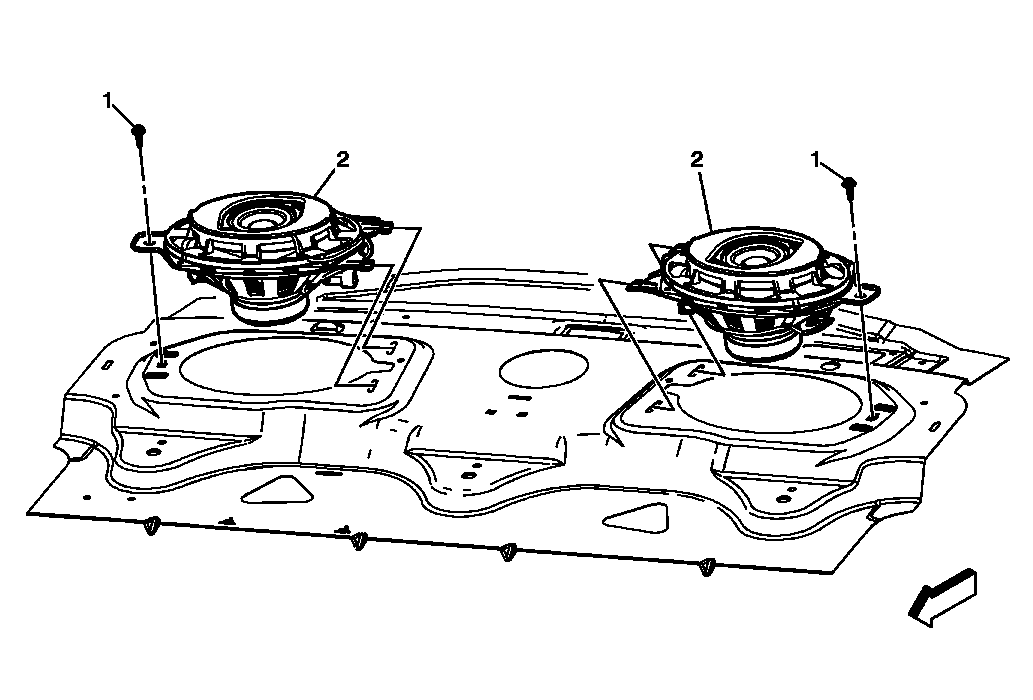

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement . |
|
| 1 | Radio Rear Speaker Screw (Qty: 1)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Radio Rear Speaker Assembly (Qty: 2) Procedure Disconnect electrical connectors. |
