Inflatable Restraint Instrument Panel Module Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

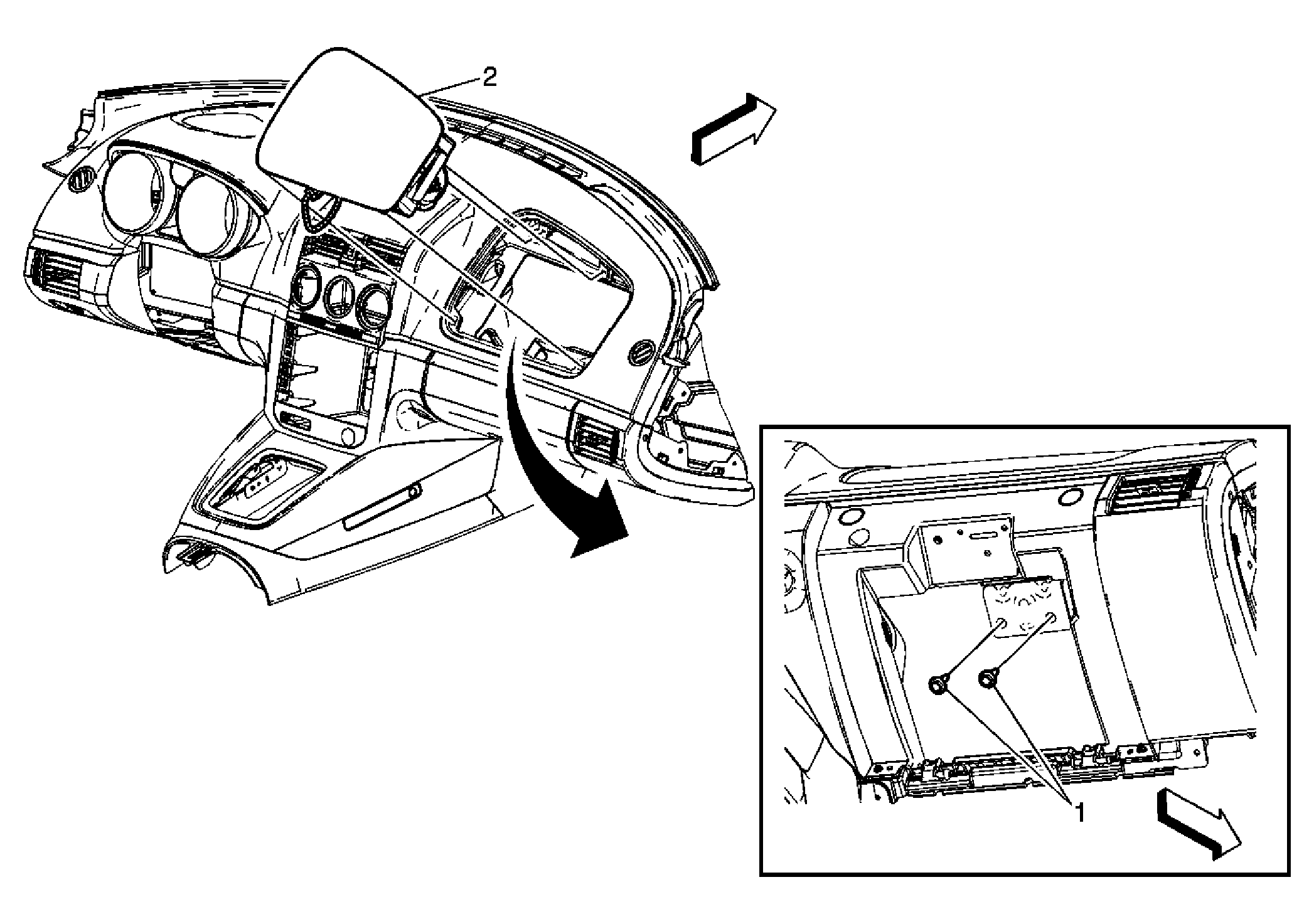

Fig 1: Instrument Panel Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
1	Inflatable Restraint Instrument Panel (I/P) Module Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in) Procedure: Open the I/P storage compartment to access bolts.
2	Inflatable Restraint Instrument Panel (I/P) Module Assembly CAUTION: Refer to SIR Caution . CAUTION: Refer to SIR Inflator Module Handling and Storage Caution . Procedures Disconnect the electrical connector. After replacing the module, deploy the old module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping .

Callout

Component Name

Preliminary Procedure:
Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .

Inflatable Restraint Instrument Panel (I/P) Module Bolt (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 10 N.m (89 lb in)

Procedure:
Open the I/P storage compartment to access bolts.

Inflatable Restraint Instrument Panel (I/P) Module Assembly

CAUTION: Refer to SIR Caution .

CAUTION: Refer to SIR Inflator Module Handling and Storage Caution .

Procedures

Disconnect the electrical connector.
After replacing the module, deploy the old module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping .
