Mirror Component Views

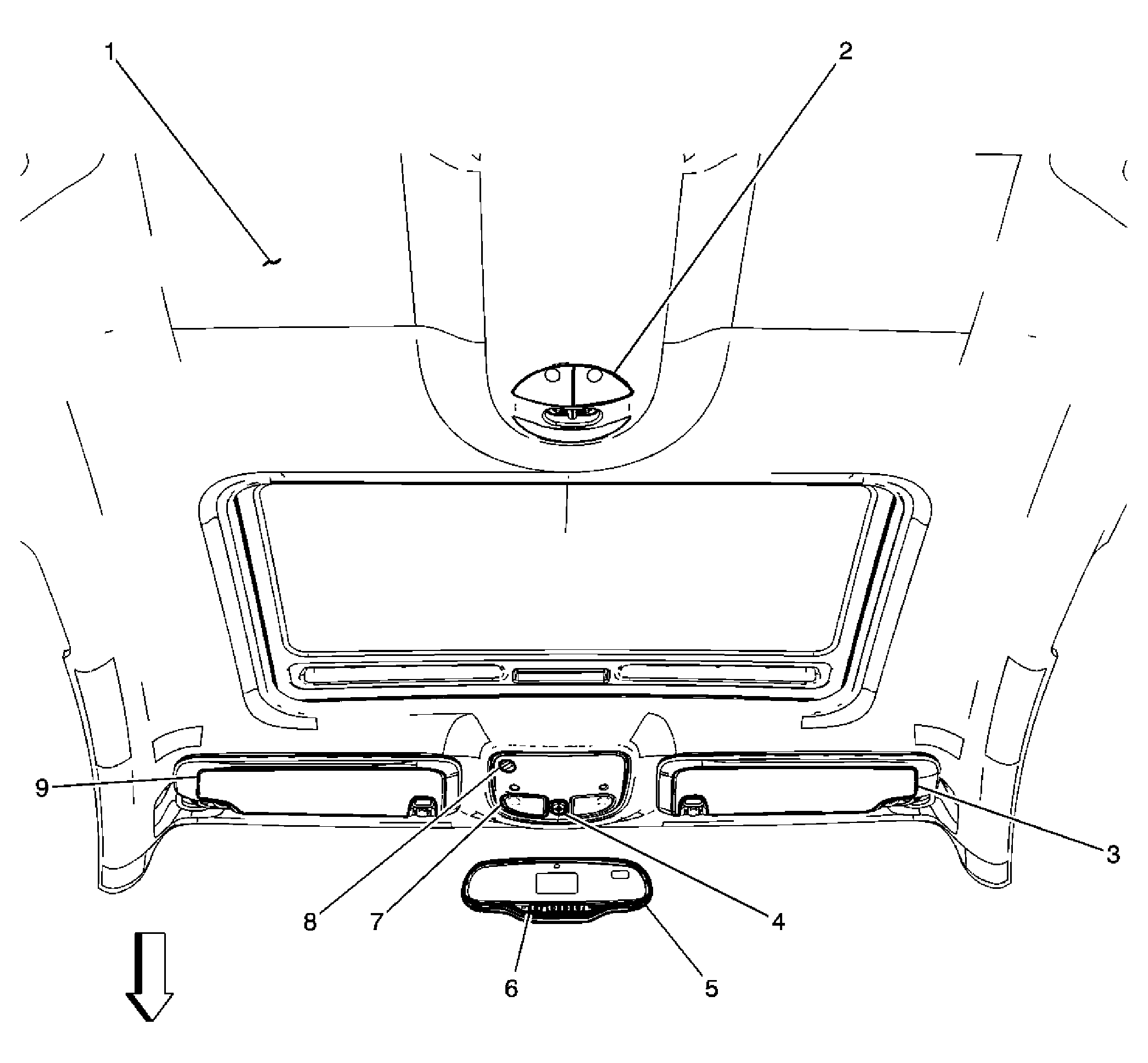

| Callout | Component Name |
|---|---|
| 1 | Headliner |
| 2 | Dome/Reading Lamp |
| 3 | Vanity Mirror Lamp - Right (DH6) |
| 4 | Sunroof Switch (CF5)/Sunroof Shade Switch (C3Y) |
| 5 | Inside Rearview Mirror |
| 6 | OnStar Button Assembly (UE1) |
| 7 | Courtesy/Reading Lamps - Front (C95) |
| 8 | Cellular Telephone Microphone (UE1) |
| 9 | Vanity Mirror Lamp - Left (DH6) |

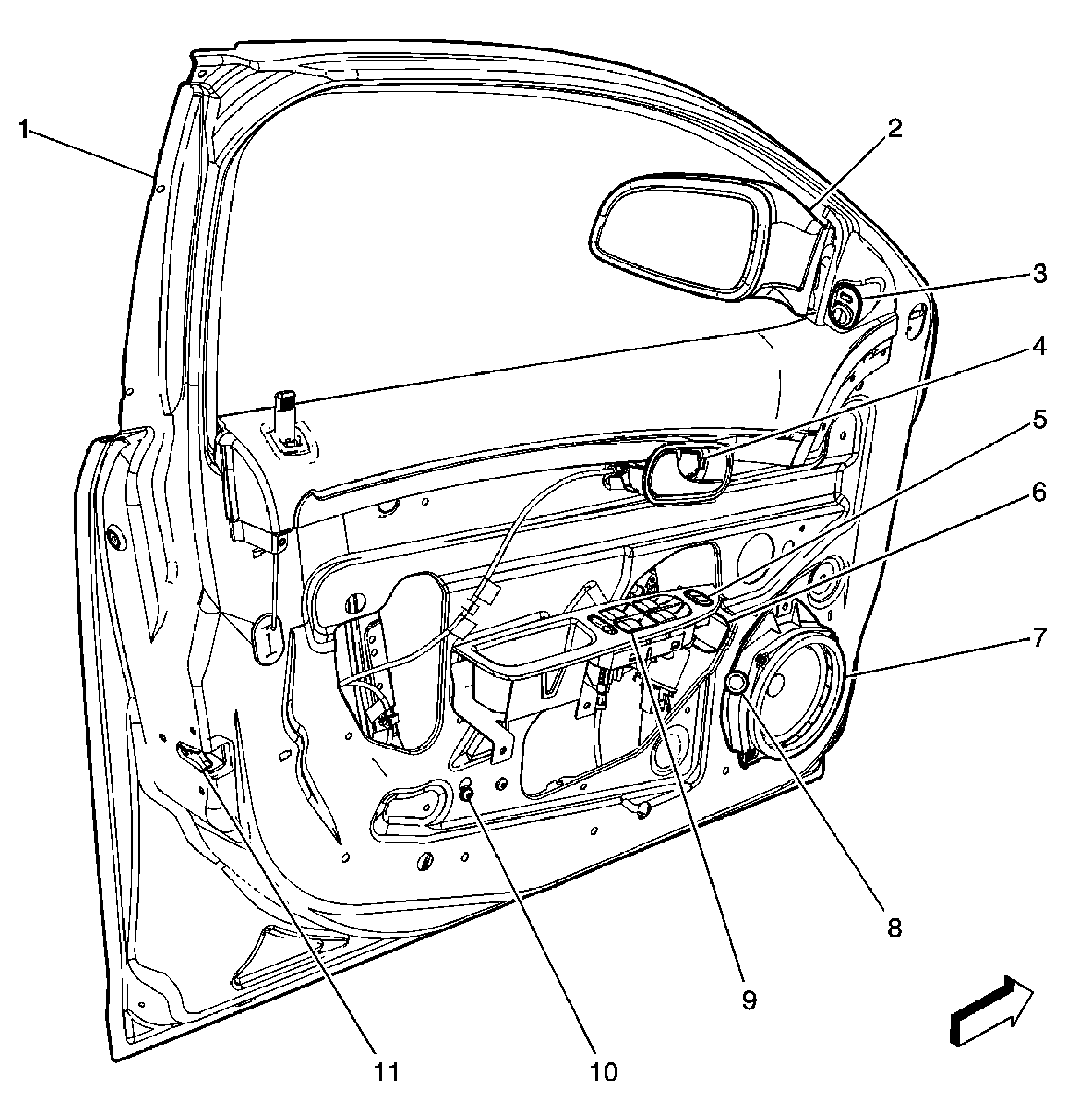

| Callout | Component Name |
|---|---|
| 1 | Door Frame |
| 2 | Outside Rearview Mirror - Driver |
| 3 | Outside Rearview Mirror Switch |
| 4 | Courtesy Lamp - Left Front Door |
| 5 | Door Lock Switch - Driver |
| 6 | Window Motor - Driver |
| 7 | Speaker - LF Door |
| 8 | Rear Compartment Lid Release Switch |
| 9 | Window Switch - Driver |
| 10 | Inflatable Restraint Side Impact Sensor - Left |
| 11 | Door Latch Assembly - Driver |

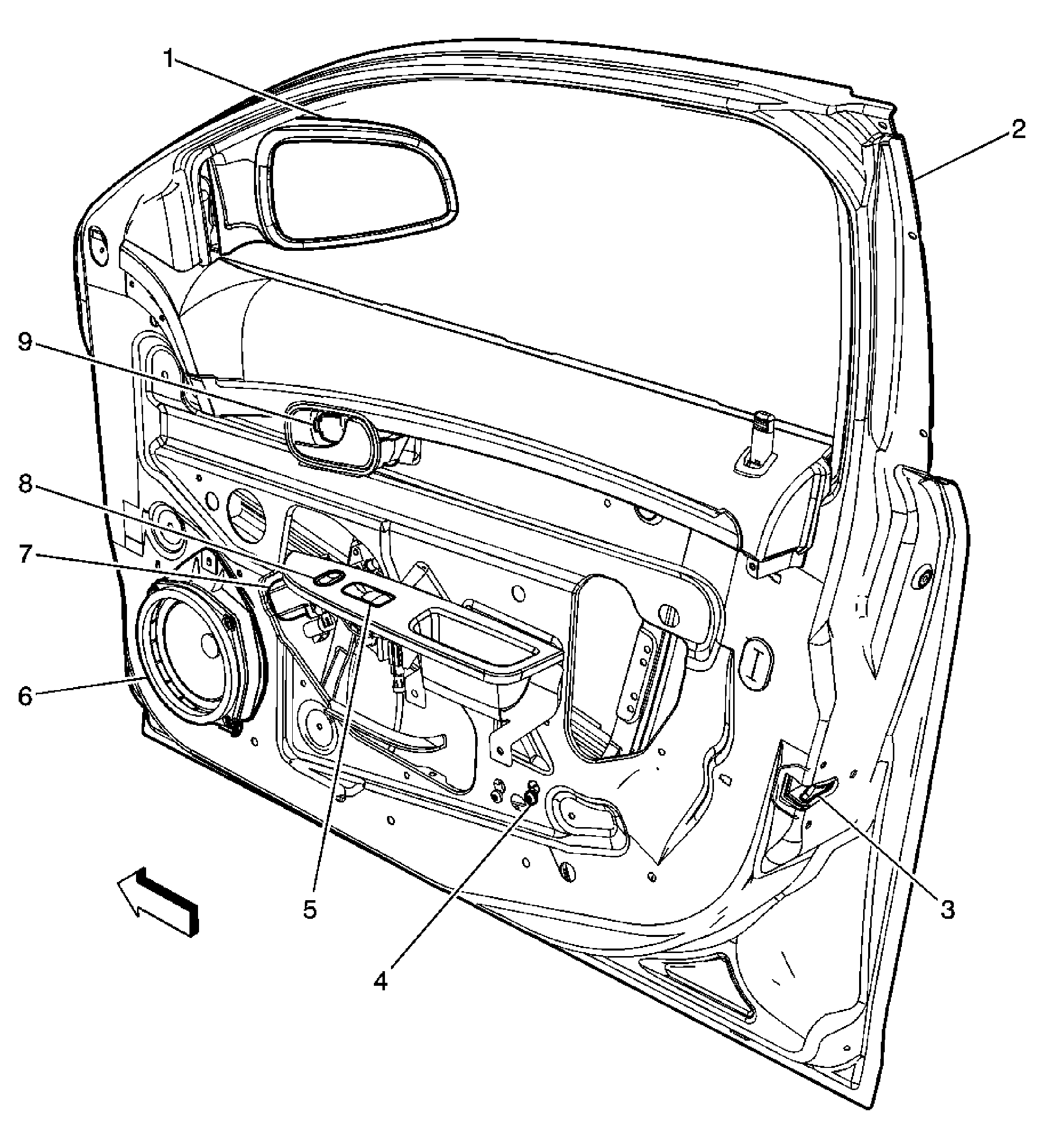

| Callout | Component Name |
|---|---|
| 1 | Outside Rearview Mirror - Passenger |
| 2 | Door Frame |
| 3 | Door Latch Assembly - Passenger |
| 4 | Inflatable Restraint Side Impact Sensor - Right |
| 5 | Window Switch - Passenger |
| 6 | Speaker - RF Door |
| 7 | Window Motor - Passenger |
| 8 | Door Lock Switch - Passenger |
| 9 | Courtesy Lamp - Right Front Door |
