Body Control Module: Diagrams
Data Communication Connector End Views

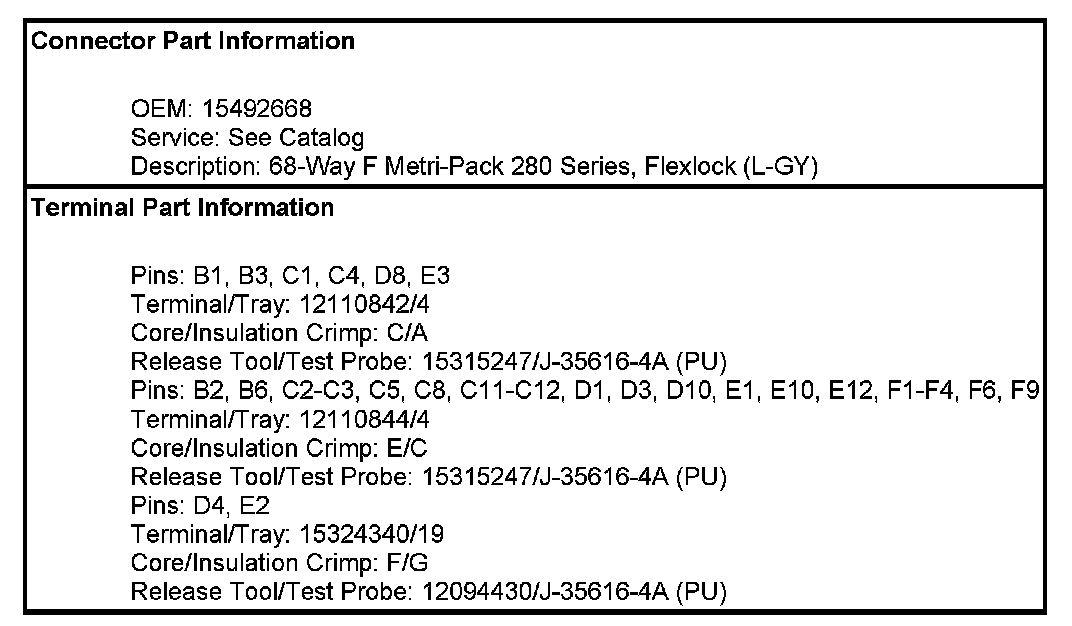

Body Control Module (BCM) C1

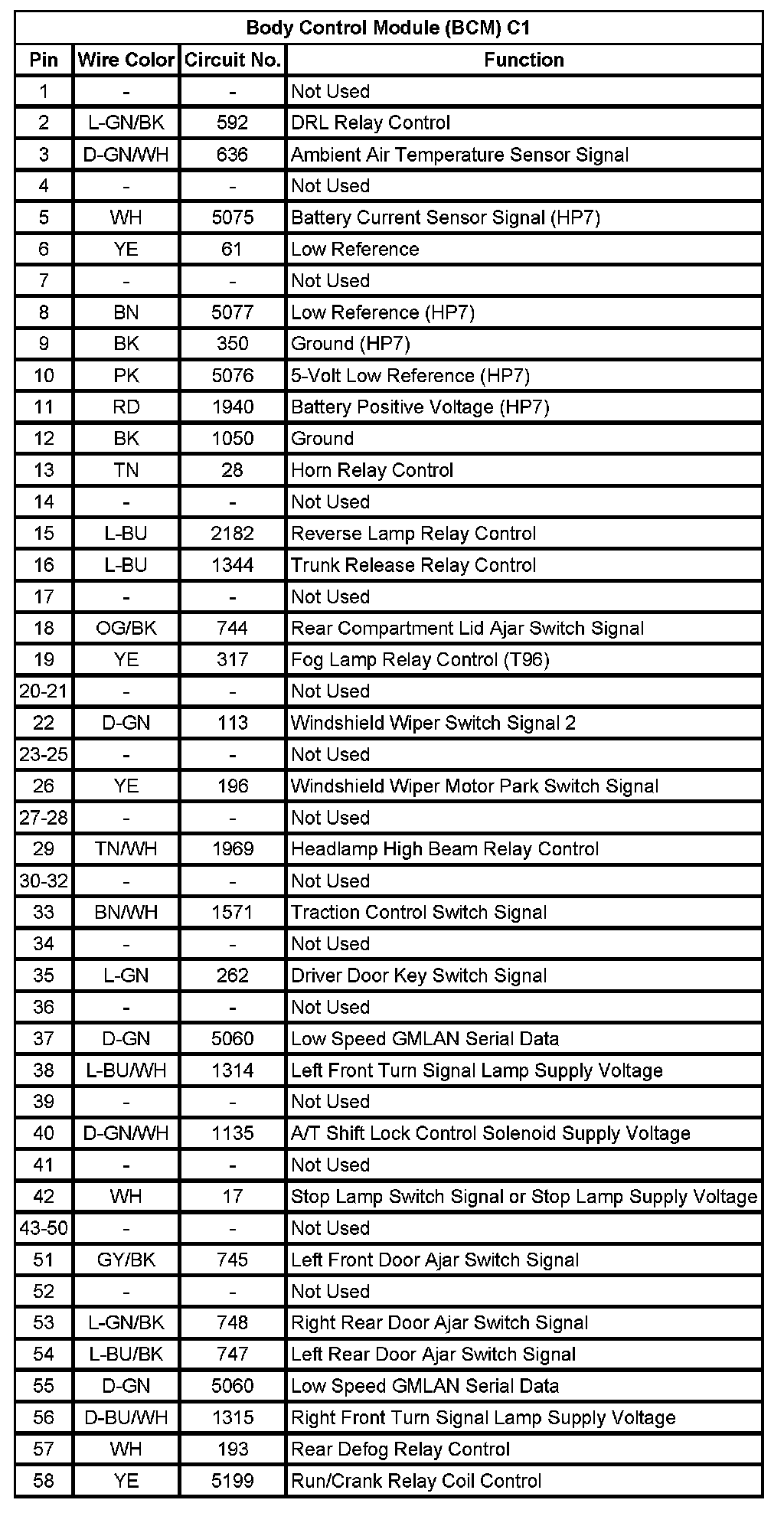

Body Control Module (BCM) C1 (Pin 1 To 58):

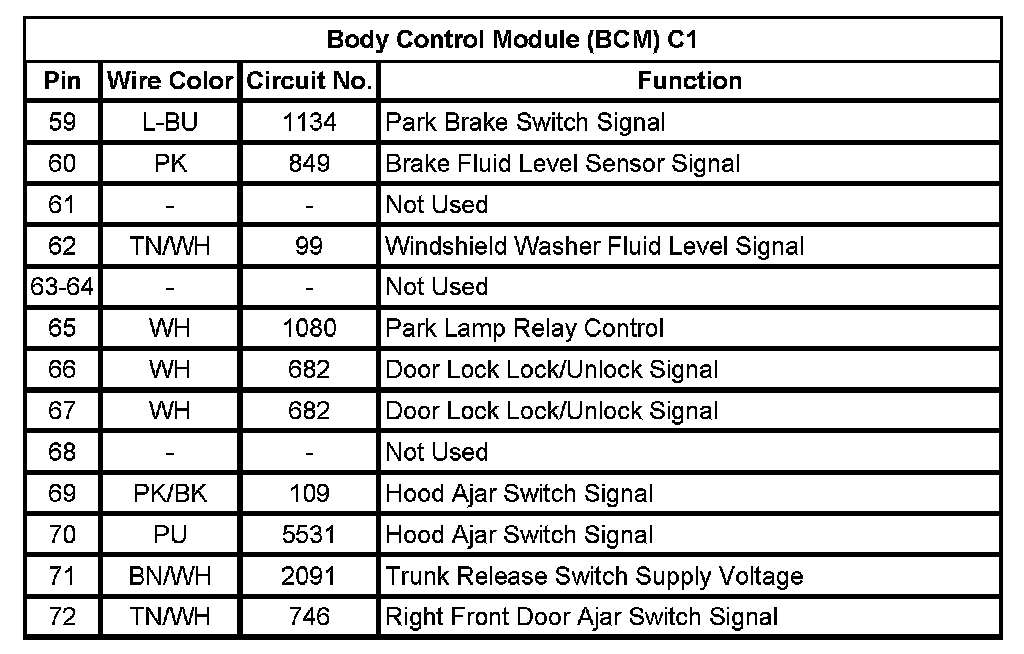

Body Control Module (BCM) C1 (Pin 59 To 72):

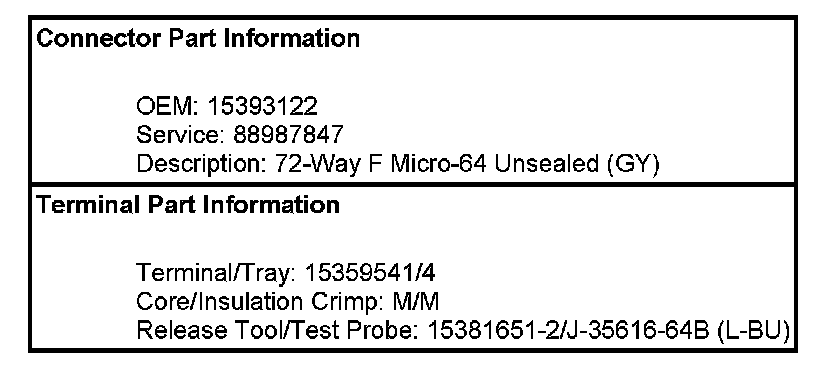

Body Control Module (BCM) C2

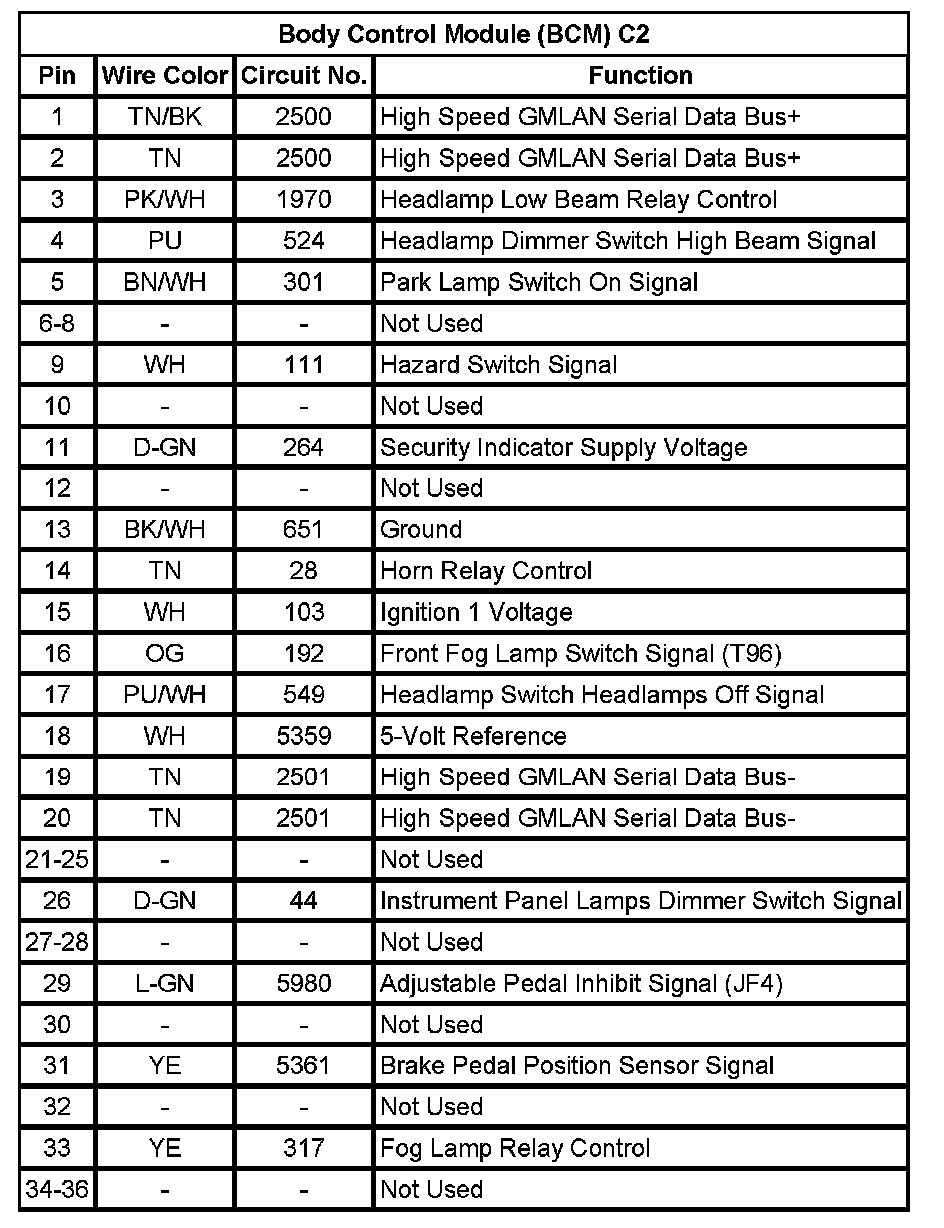

Body Control Module (BCM) C2 (Pin 1 To 36):

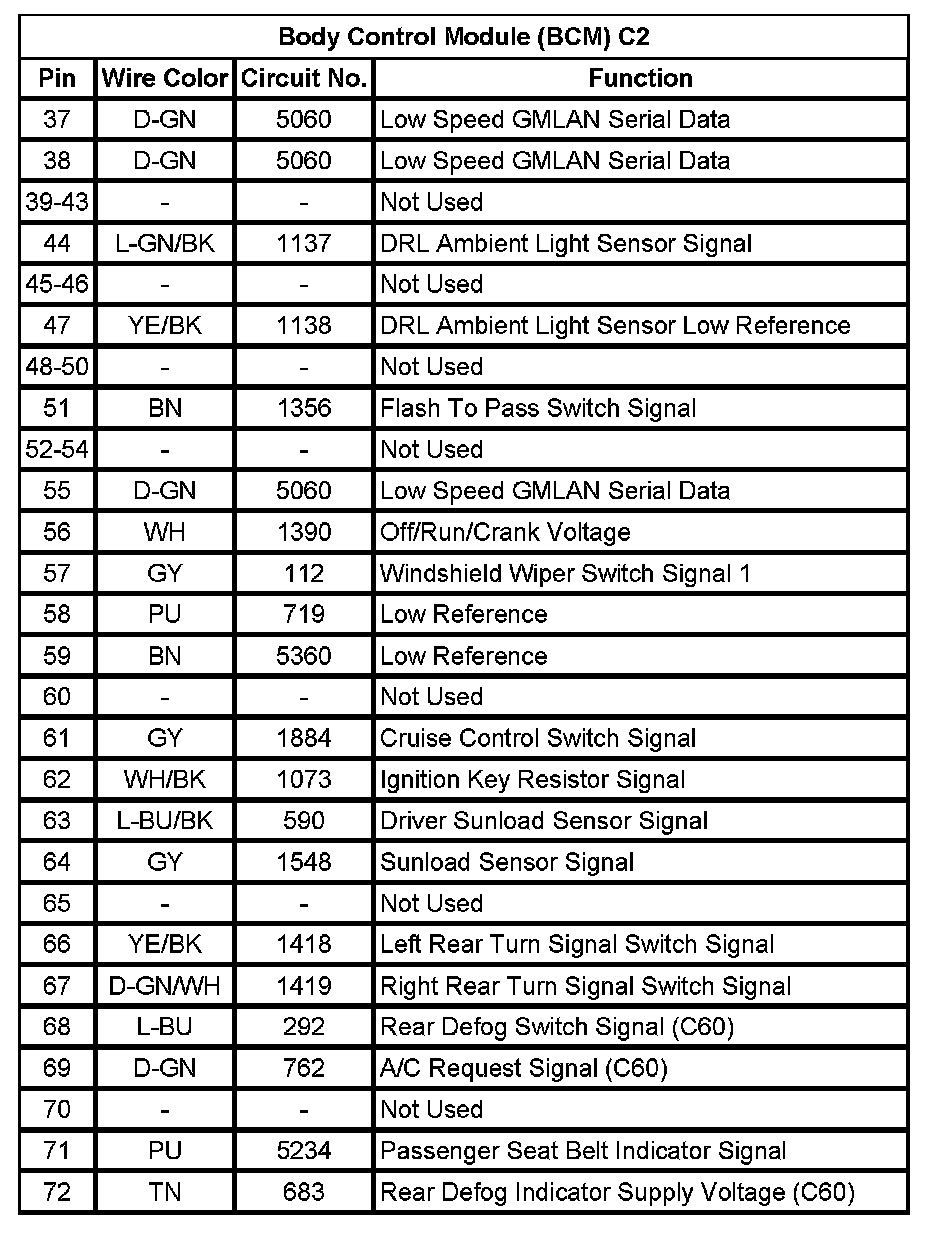

Body Control Module (BCM) C2 (Pin 37 To 72):

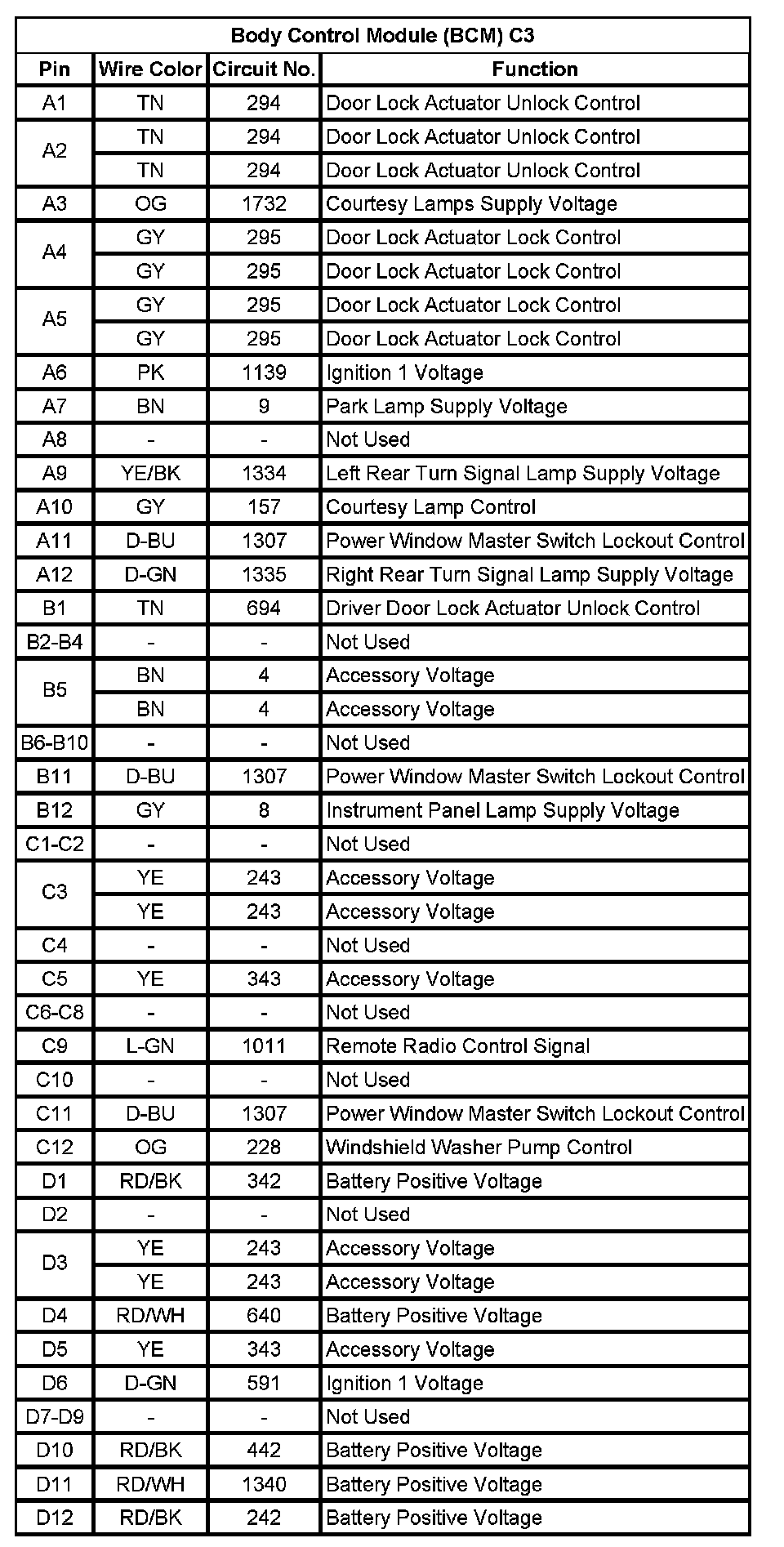

Body Control Module (BCM) C3
Body Control Module (BCM) C4

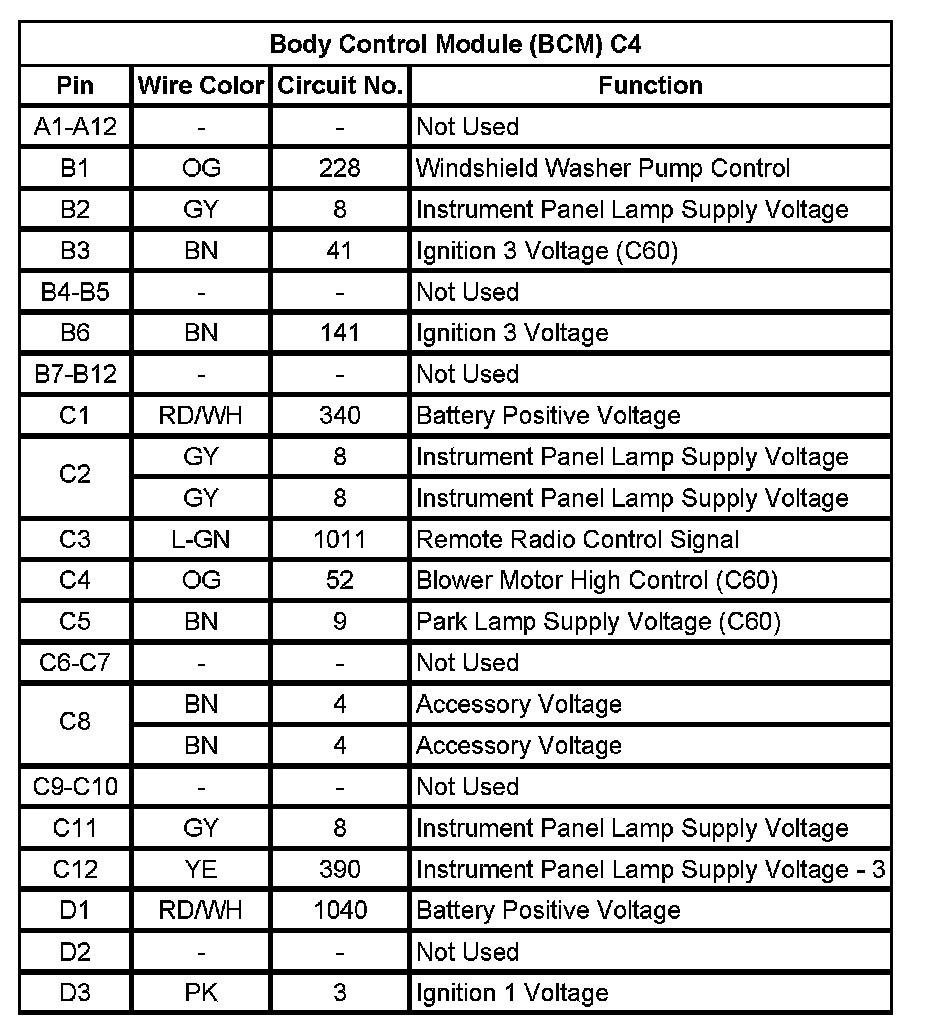

Body Control Module (BCM) C4 (Pin A1 To D3):

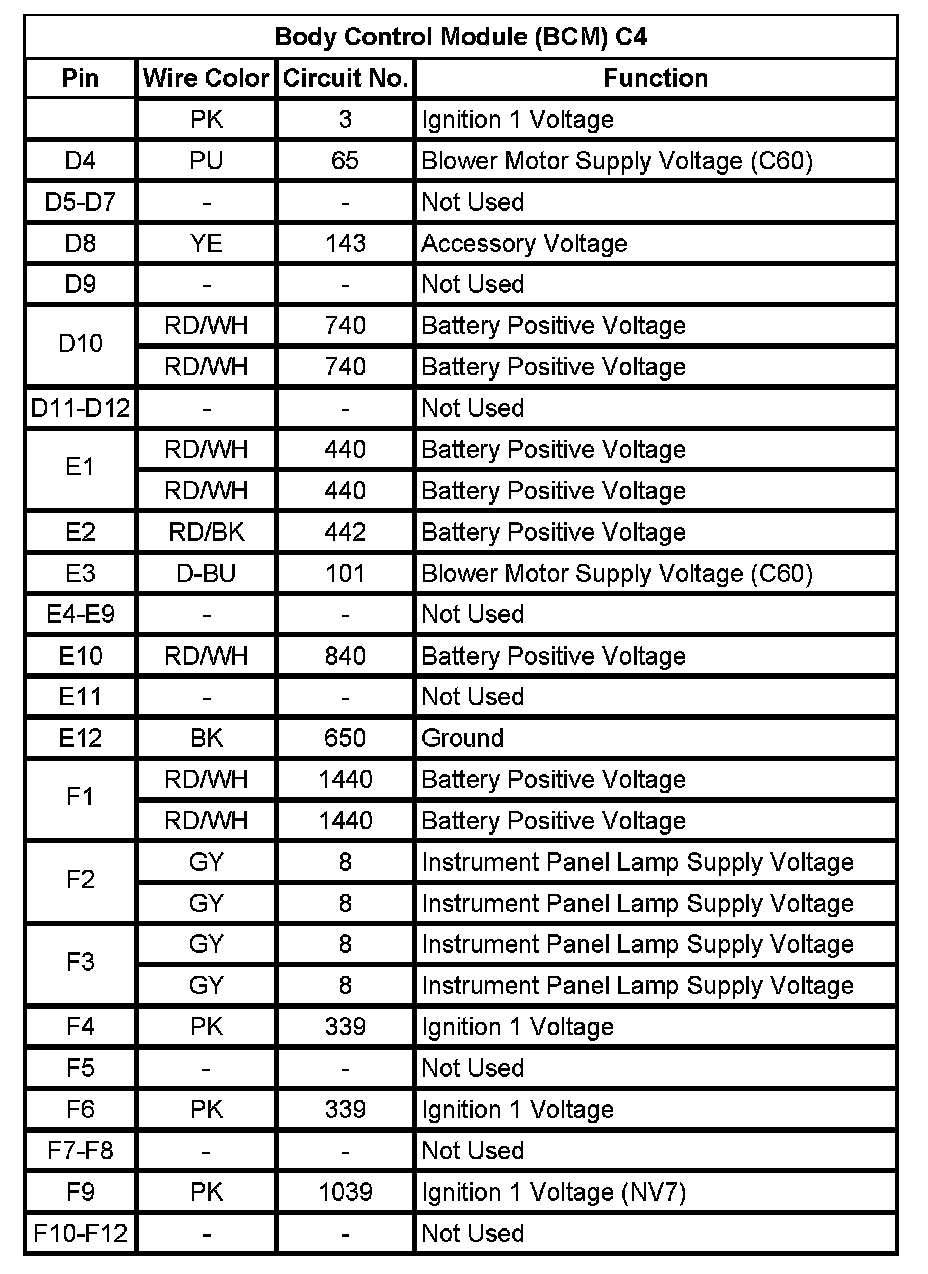

Body Control Module (BCM) C4 (Pin D4 To F12):
