Electronic Throttle Control Module: Locations

Engine Controls Component Views

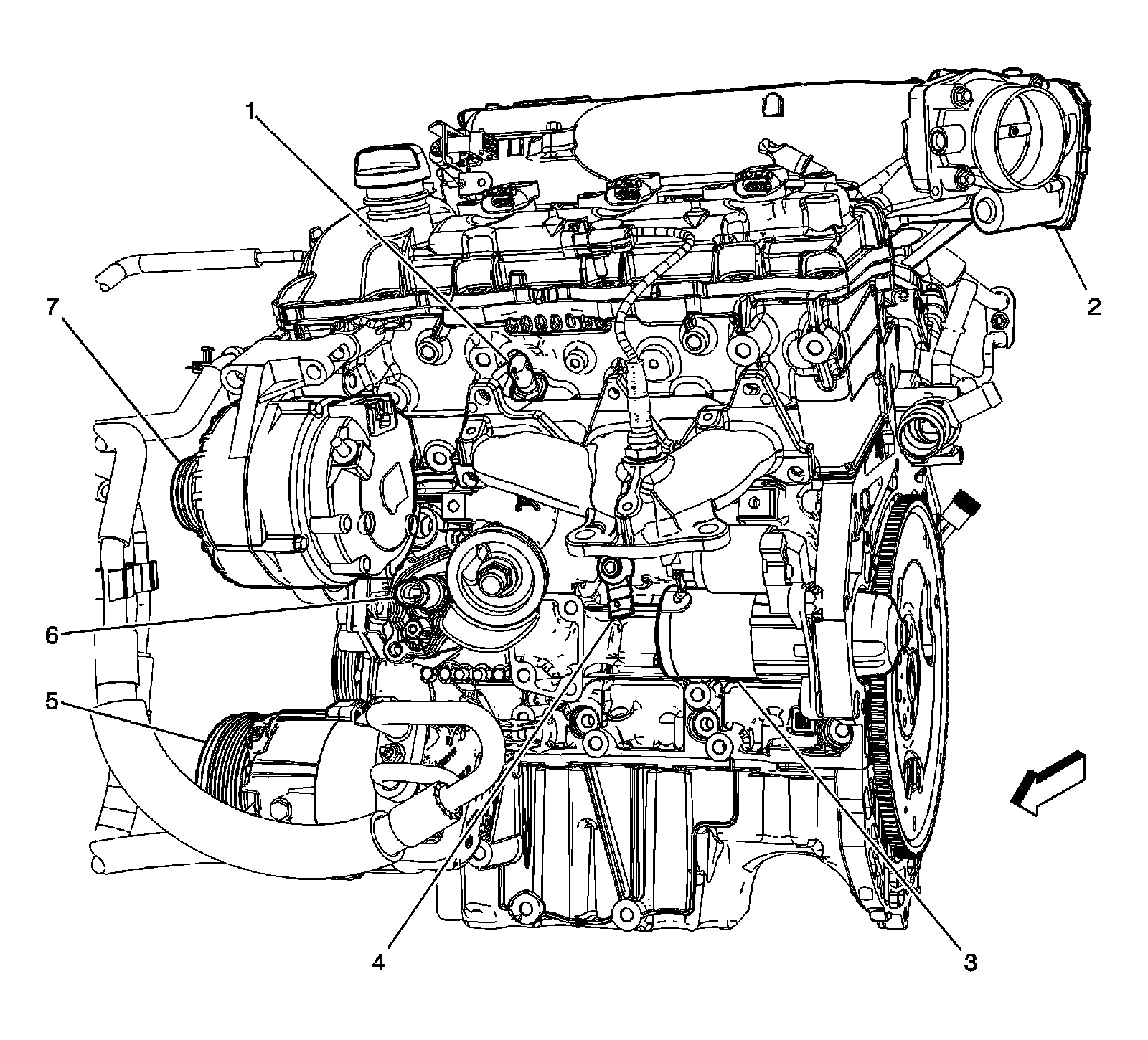

Front of the Engine - LY7




1 - Engine Coolant Temperature (ECT) Sensor
2 - Throttle Actuator Control (TAC) Module
3 - Starter Motor
4 - Knock Sensor (KS) 2
5 - A/C Compressor Clutch
6 - Engine Oil Pressure (EOP) Switch
7 - Generator
