Immobilizer Component Views

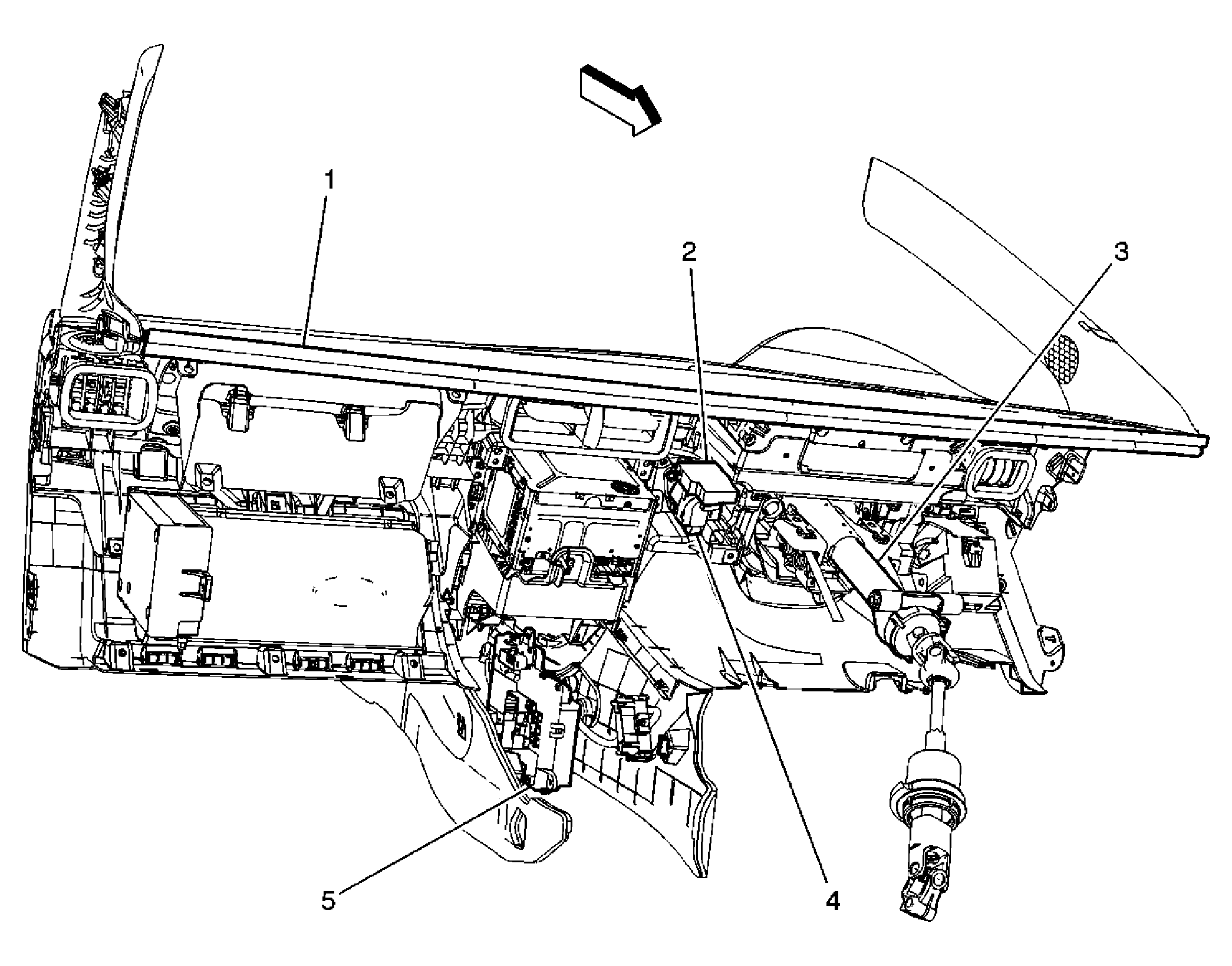

Fig 1: View Behind I/P Trim
GM1832301Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Trim
2 Theft Deterrent Control Module
3 Steering Column
4 Ignition Switch
5 Body Control Module (BCM)
