Windshield Moulding / Trim: Service and Repair

Windshield Frame Applique Replacement

Removal Procedure

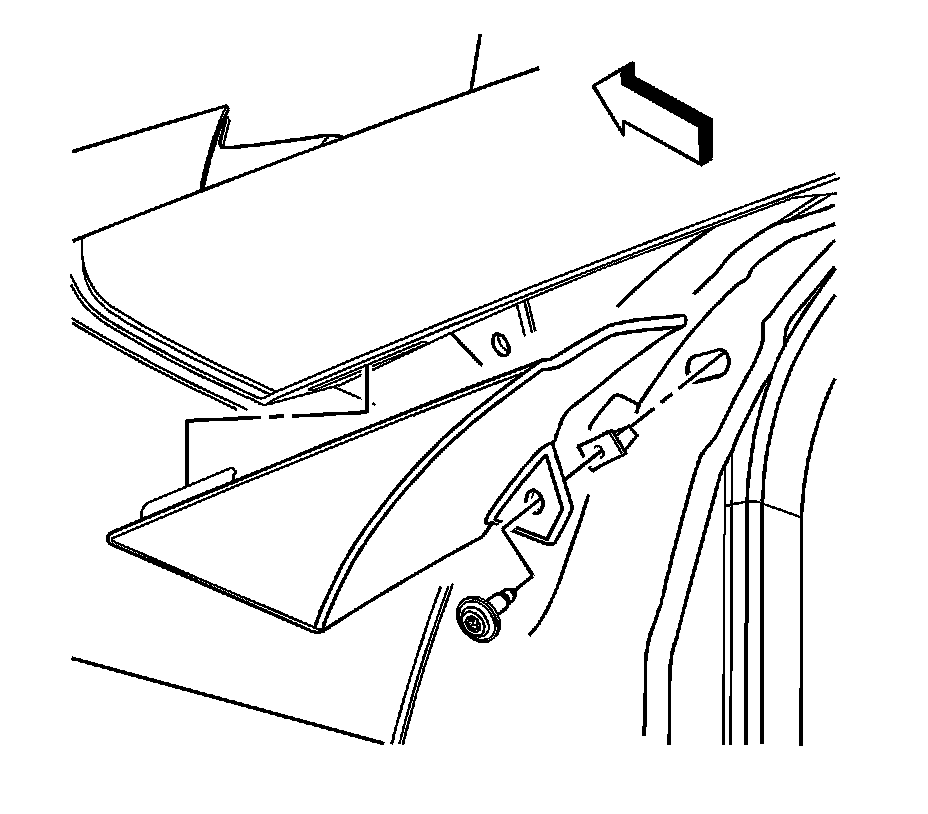

1. Remove the retaining screw from the mirror applique.
2. Remove the mirror applique from the roof applique by sliding the mirror applique downward.

Installation Procedure




1. Install the mirror applique tab into the slot in the roof applique.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the mirror applique retaining screw.

Tighten the mirror applique retaining screw to 2 N.m (18 lb in).
