Radio/Navigation System Schematics

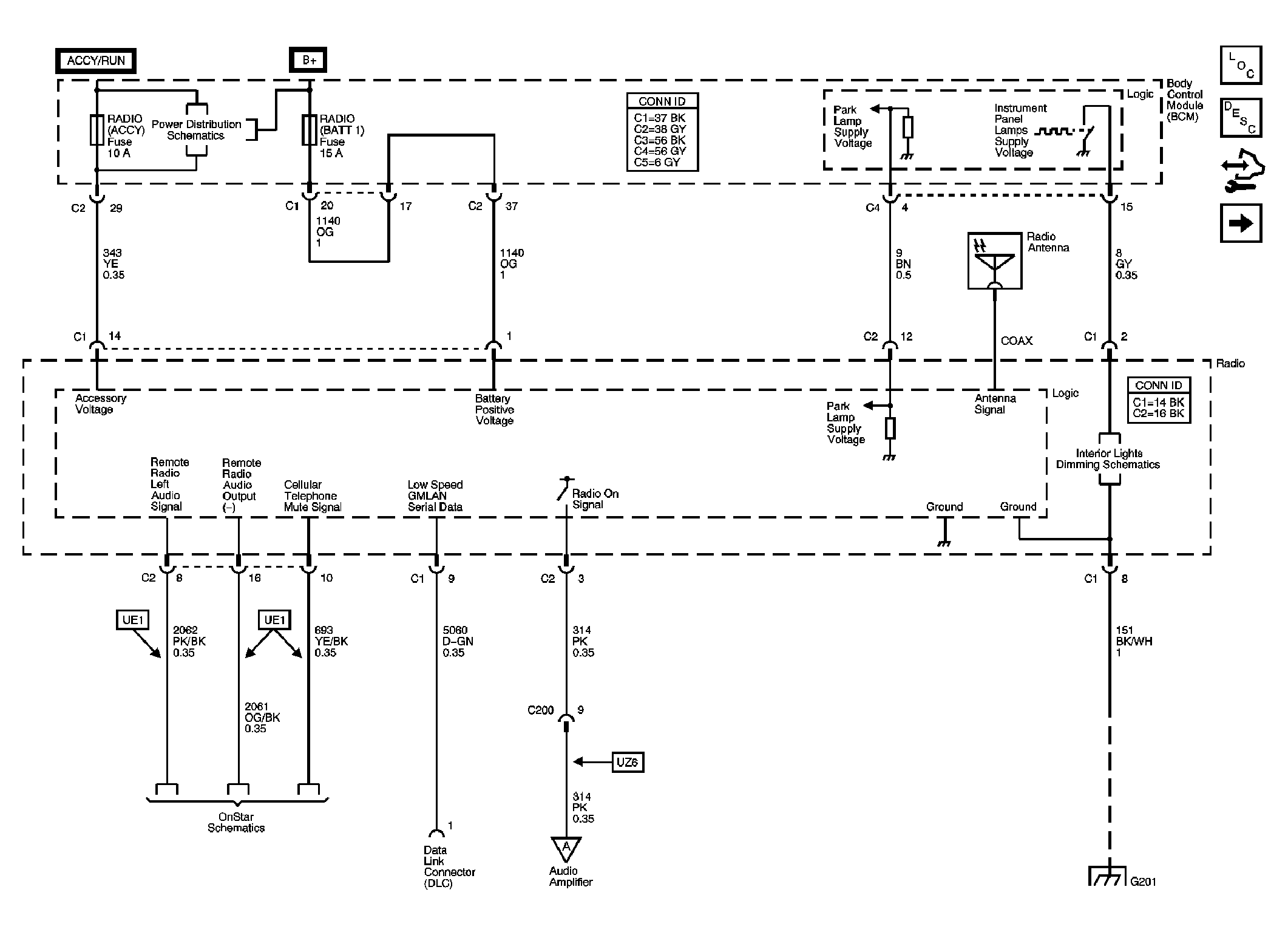

Fig 1: Ground/Powers, Signals, and References
GM1769232Courtesy of GENERAL MOTORS CORP.

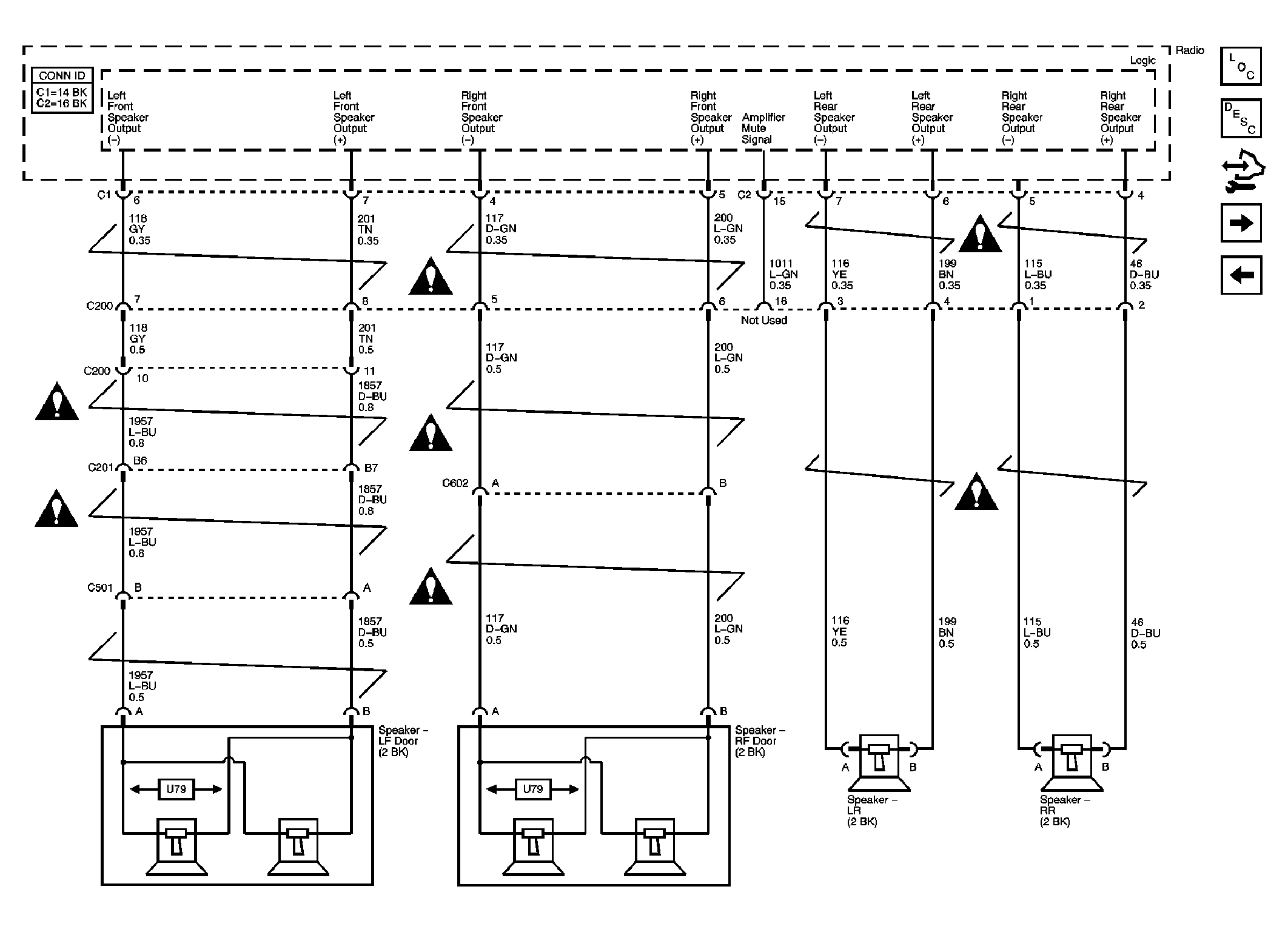

Fig 2: Speakers - U79 or UX7
GM1769237Courtesy of GENERAL MOTORS CORP.

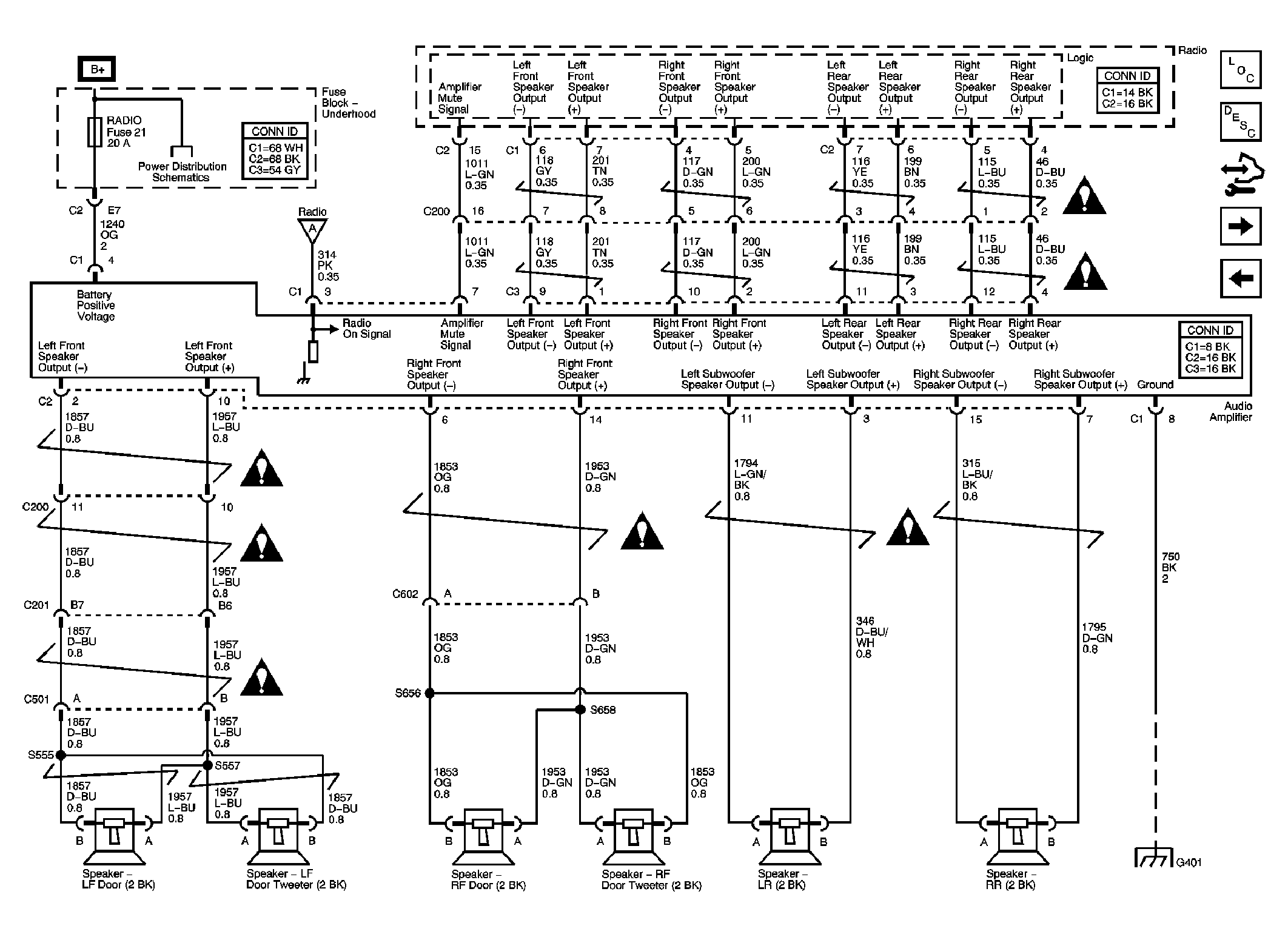

Fig 3: Radio to Amplifier to Speakers - UZ6
GM1769240Courtesy of GENERAL MOTORS CORP.

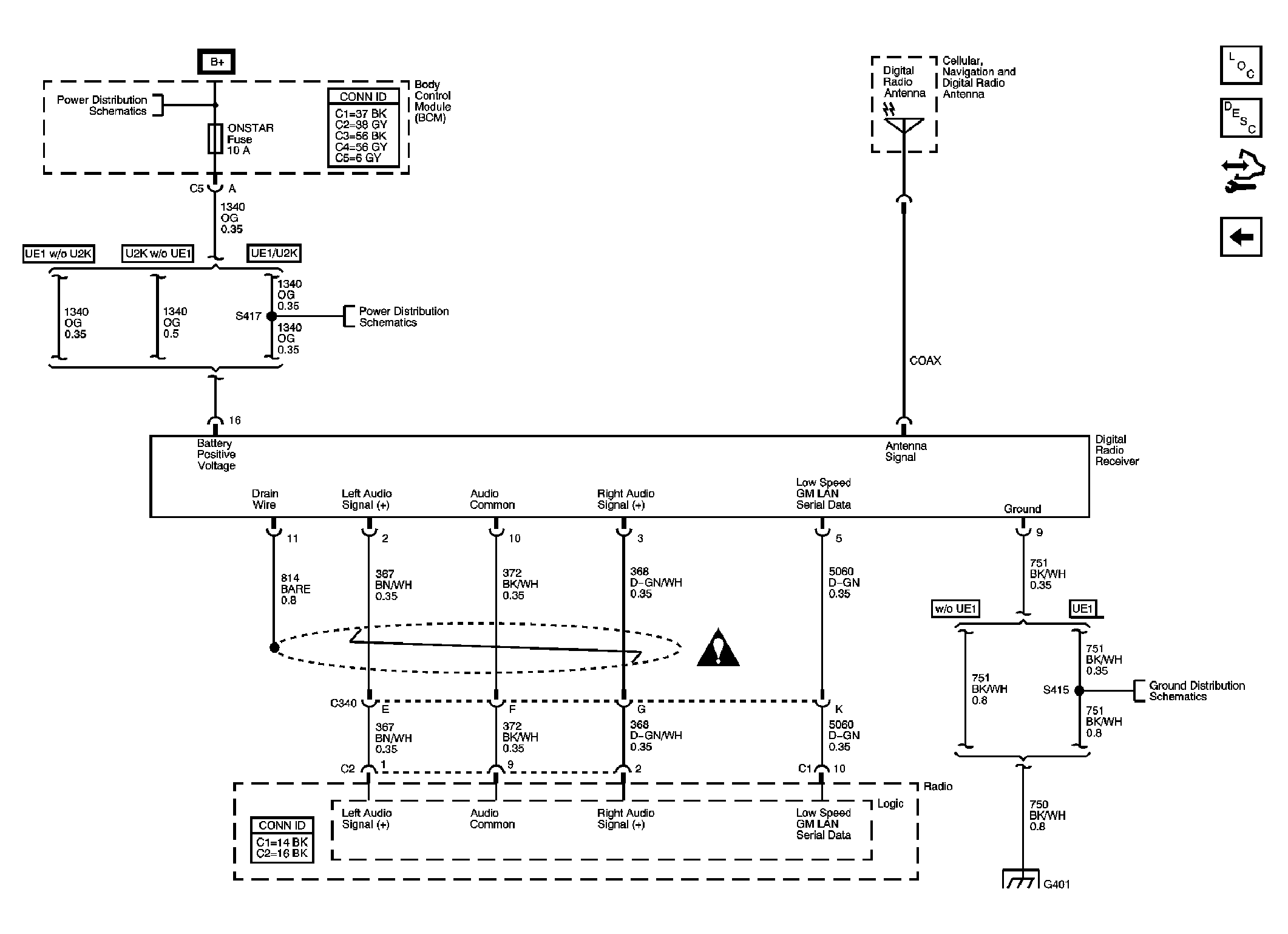

Fig 4: Digital Radio
GM1769243Courtesy of GENERAL MOTORS CORP.
