Power Moding Schematics

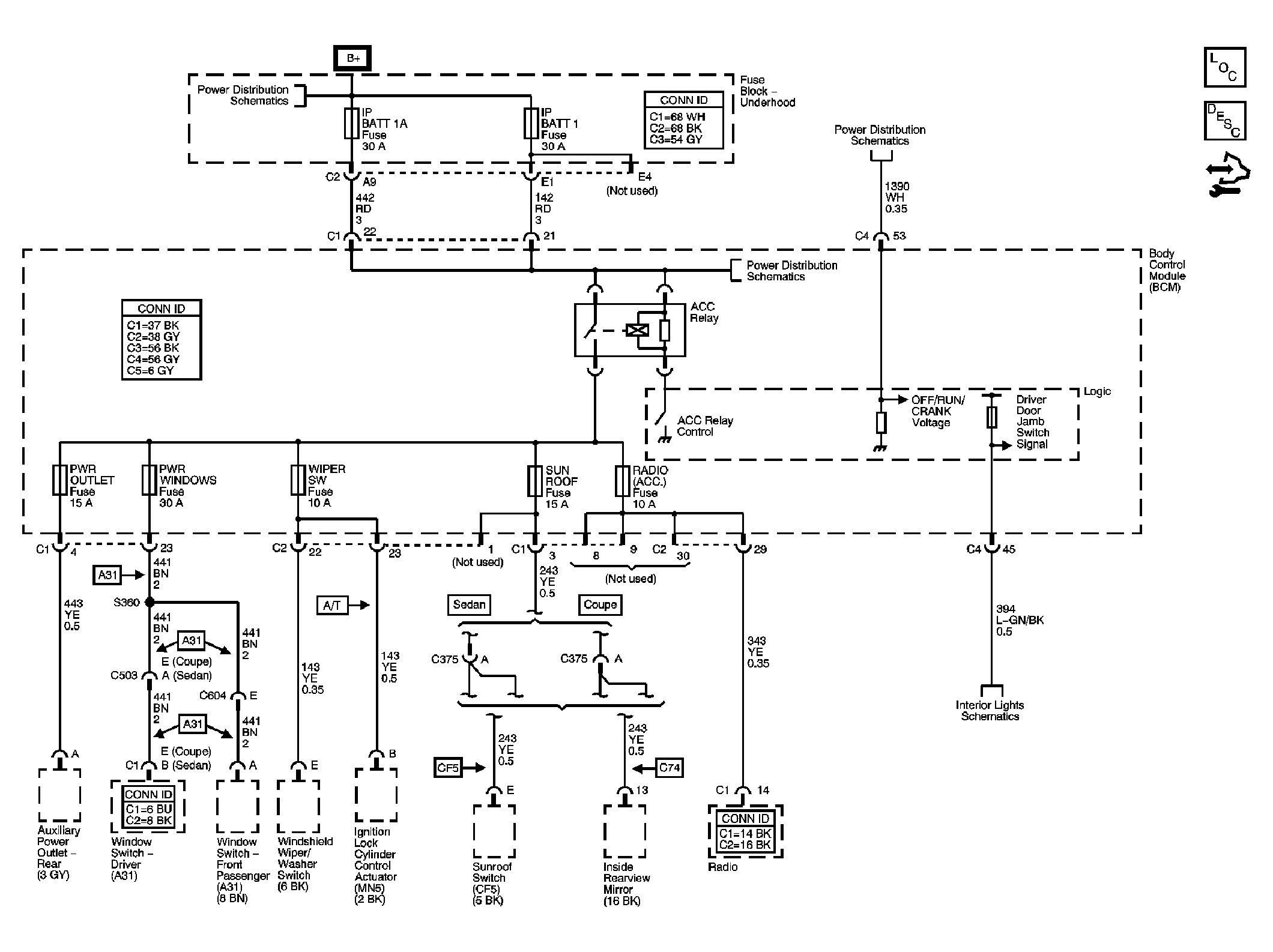

Fig 1: Retained Accessory Power (RAP)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
