Inflatable Restraint I/P Module Connector End View C2

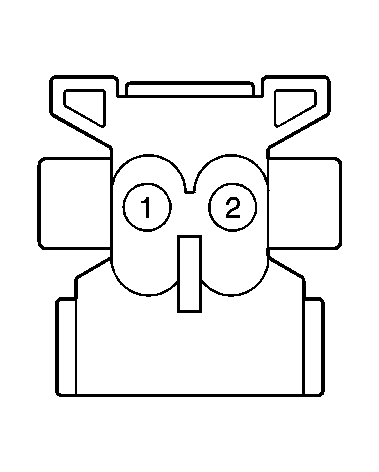

Fig 1: Inflatable Restraint I/P Module C2 Connector End View

Courtesy of GENERAL MOTORS CORP.

Inflatable Restraint I/P Module C2 Connector & Terminal Parts Information

Connector Part Information

Terminal Part Information

Inflatable Restraint I/P Module C2 Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	PK/BK	3026	I/P Module - Stage 2 - Low Control
2	L-BU/OG	3027	I/P Module - Stage 2 - High Control
