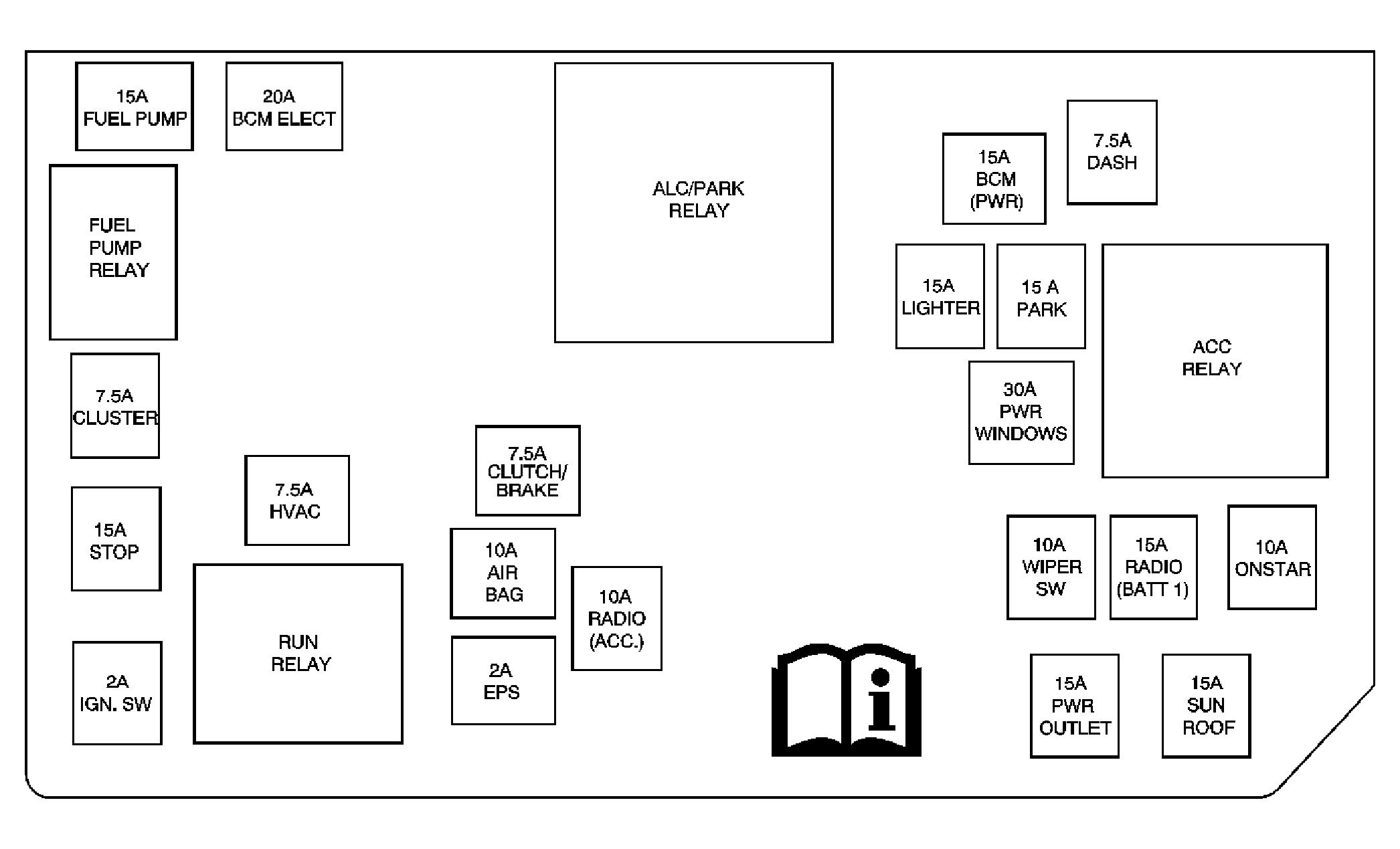

Body Control Module (BCM) Label
Body Control Module (BCM) Label Connector & Terminal Parts Information
| Device | Rating | Description |
|---|---|---|
| AIR BAG Fuse | 10A | SDM |
| ALC/PARK Relay | - | Marker/Park Lamps |
| ACC Relay | - | Body Control Module PWR OUTLET, PWR WINDOWS, WIPER SW, SUN ROOF, and RADIO (ACC.) Fuses |
| BCM ELECT Fuse | 20A | BCM |
| BCM (PWR) Fuse | 15A | BCM and Rear Compartment Lid Release Switch |
| CLUSTER Fuse | 7.5A | IPC |
| CLUTCH/BRAKE Fuse | 7.5A | Clutch Start Switch (M/T), Clutch Pedal Position (CPP) Switch (M/T), Stop Lamp Switch - Lower |
| DASH Fuse | 7.5A | BCM |
| EPS Fuse | 2A | EPS Assembly and Steering Wheel Controls - Left (K34) |
| FUEL PUMP Fuse | 15A | Body Control Module FUEL PUMP Relay |
| FUEL PUMP Relay | - | Fuel Pump |
| HVAC Fuse | 7.5A | HVAC Control Assembly |
| IGN SW Fuse | 2A | Ignition Switch |
| LIGHTER Fuse | 15A | Auxiliary Power Outlet - Front, and DLC |
| ONSTAR Fuse | 10A | VCIM (UE1), Digital Radio Receiver (UK2) |
| PARK Fuse | 15A | ALC/PARK Relay and Turn Signal/Multifunction Switch |
| PWR OUTLET Fuse | 15A | Auxiliary Power Outlet - Rear |
| PWR WINDOWS Fuse | 30A | Window Switch - Driver (A31) and Window Switch - Front Passenger (A31) |
| RADIO (ACC.) Fuse | 10A | Radio |
| RADIO (BATT 1) | 10A | Radio |
| RUN Relay | - | HVAC Control Assembly and Body Control Module HVAC Fuse |
| STOP Fuse | 15A | Stop Lamp Switch - Upper |
| SUN ROOF Fuse | 15A | Inside Rearview Mirror (DF5) and Sunroof Switch (CF5) |
| WIPER SW Fuse | 10A | Windshield Wiper/Washer Switch and Ignition Lock Cylinder Control Solenoid (A/T) |
