Installation Procedure

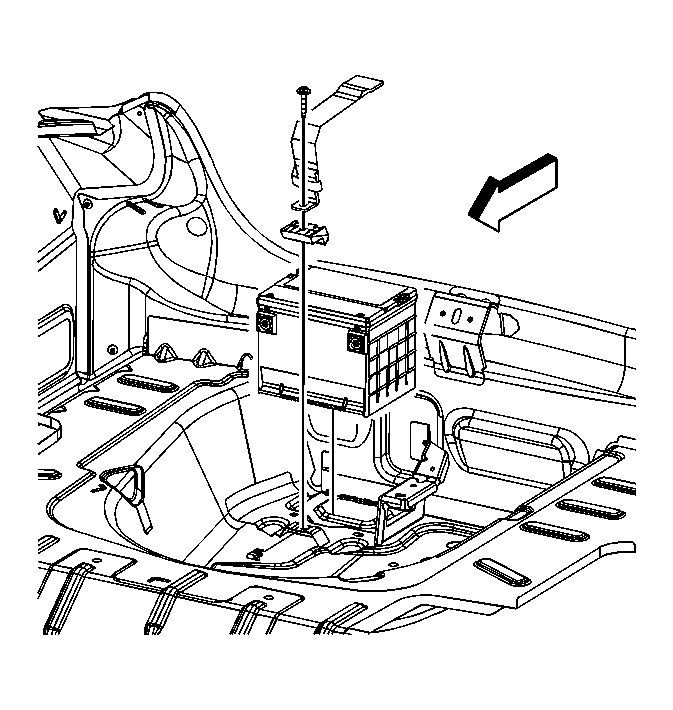

    Fig 1: Locating Battery
    GM1650317Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not tip the battery more than 40 degrees during battery installation.
  1. Install the battery.
  2. Install the battery strap and retainer.
    3. NOTE: Refer to Fastener Notice .
  3. Install the battery retainer bolt.

    Tighten:  Tighten the bolt to 18 N.m (13 lb ft).

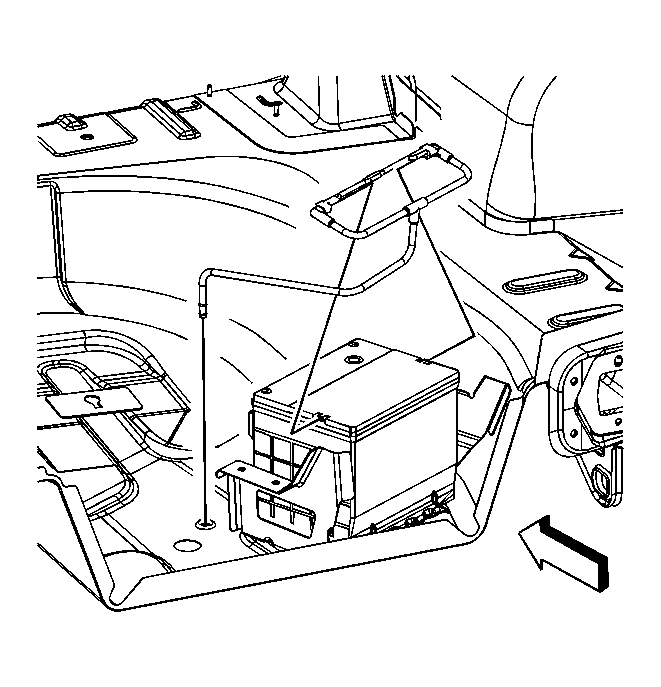

    4. Fig 2: View Of Battery Vent Tube
    GM1650318Courtesy of GENERAL MOTORS CORP.
  4. Install the battery vent tube to the battery and grommet.

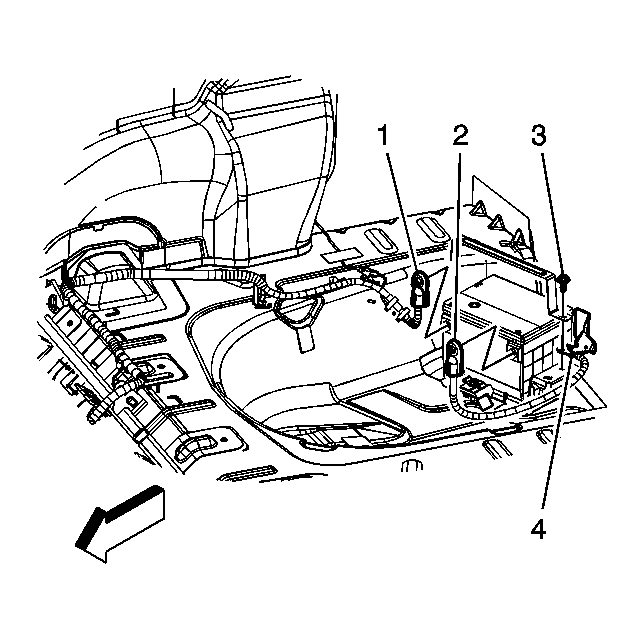

    5. Fig 3: Identifying Negative/Positive Battery Cable
    GM1650324Courtesy of GENERAL MOTORS CORP.
  5. Position the positive battery cable (1) to the battery.
  6. Tighten the positive battery cable bolt.

    Tighten:  Tighten the bolt to 17 N.m (13 lb ft).

  7. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
