ABS Component Views

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Left Side Of Engine Compartment Component View
GM897622Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C121 (DF5)
2 G101/SP101
3 Electronic Brake Control Module (EBCM) (JM4/JL9)
4 Engine Control Module (ECM)
Fig 2: Front Left Side Of Vehicle (JM4/JL9) Component View
GM898049Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Wheel Speed Sensor - LF, RF Similar
Fig 3: RR Frame & Underbody (JM4/JL9) Component View
GM1539165Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C406
2 Wheel Speed Sensor (WSS) - RR, LR Similar

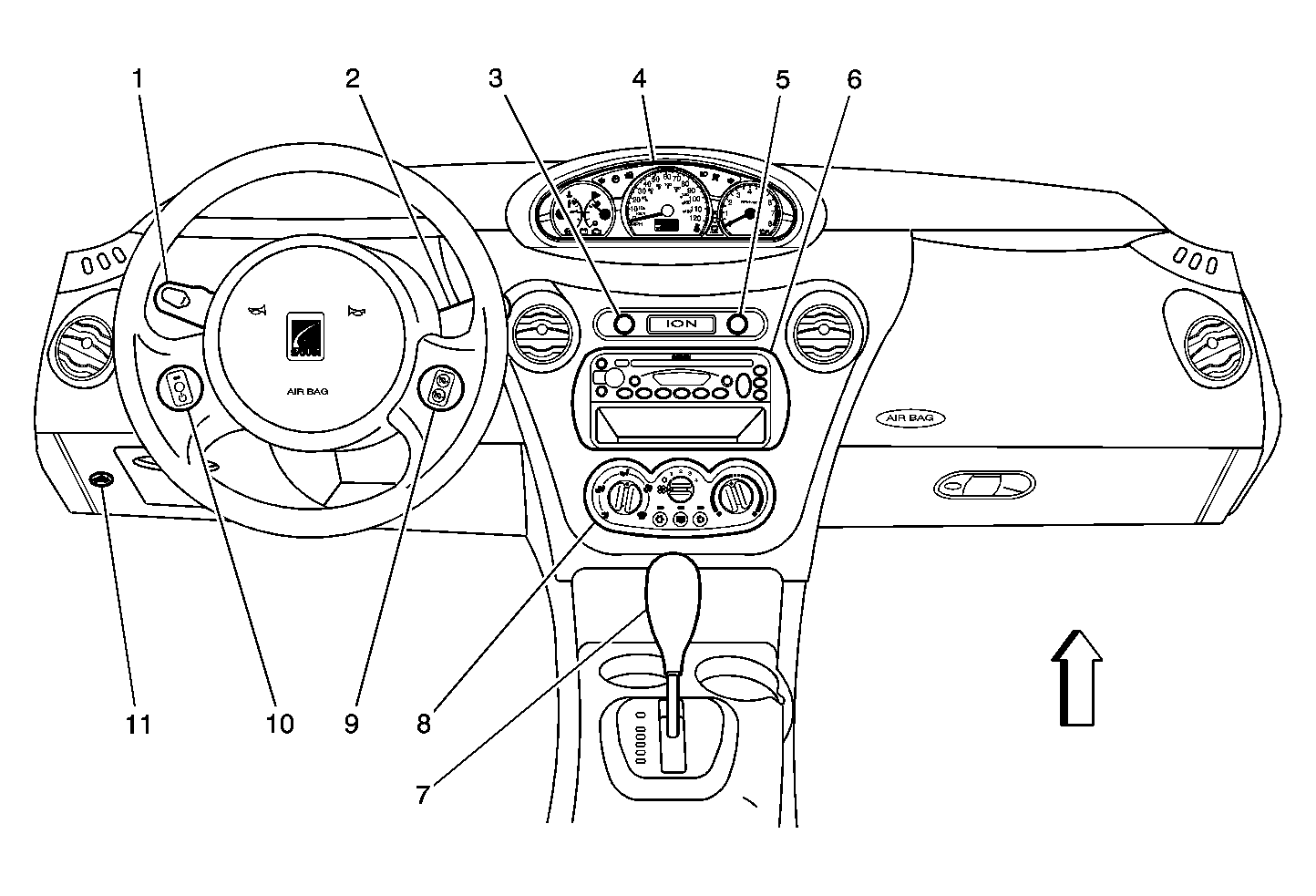

Fig 4: Instrument Panel Component View
GM1538302Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal/Multifunction Switch
2 Windshield Wiper/Washer Switch
3 Hazard Switch
4 Instrument Panel Cluster (IPC)
5 Traction Control Switch (NW7)
6 Radio
7 A/T Shifter (M75/M43)
8 HVAC Control Assembly
9 Steering Wheel Controls - Right (K34)
10 Steering Wheel Controls - Left (K34)
11 Rear Compartment Lid Release Switch
