SIR Component Views

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.

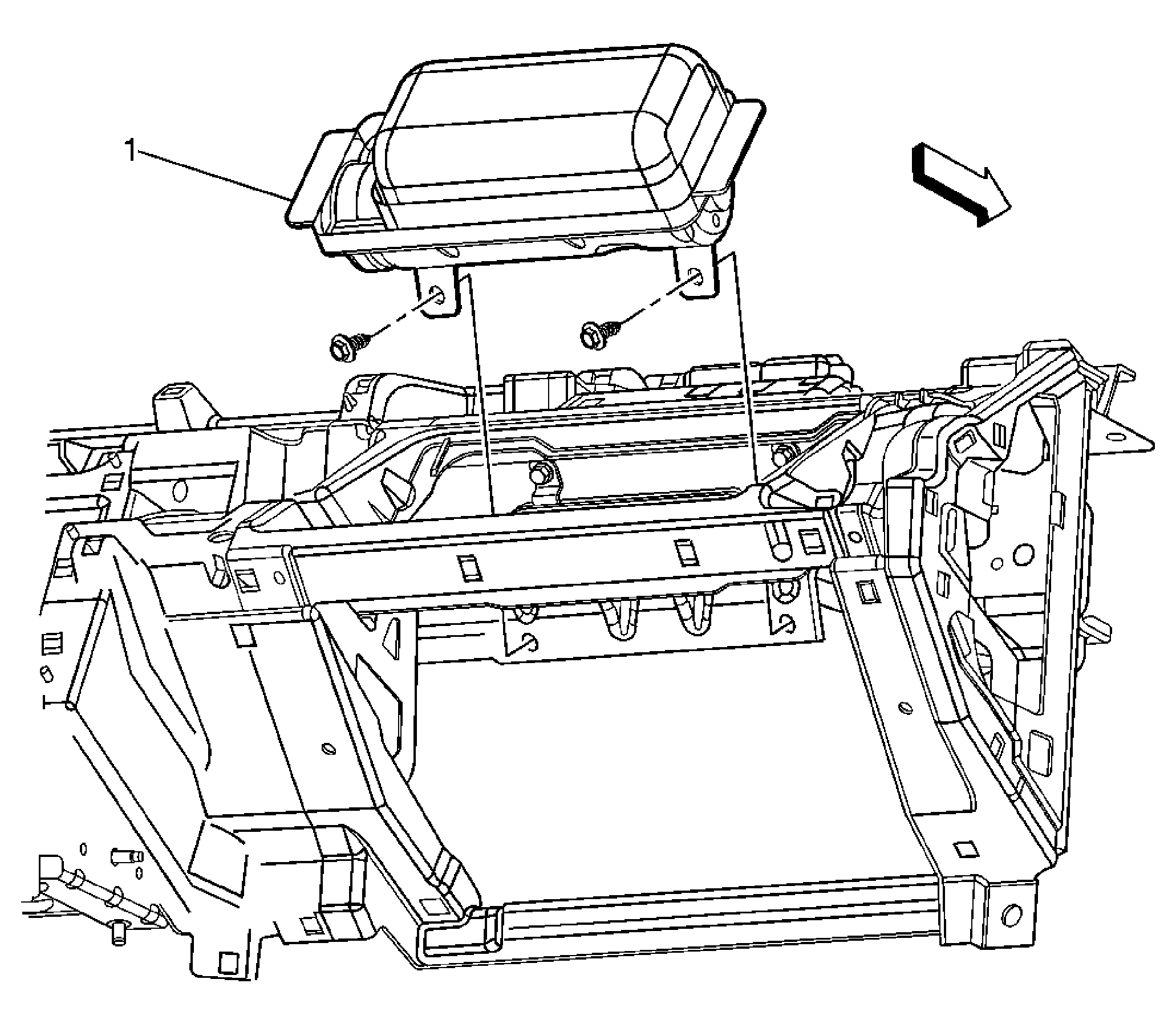

Fig 1: Right Side Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint I/P Module

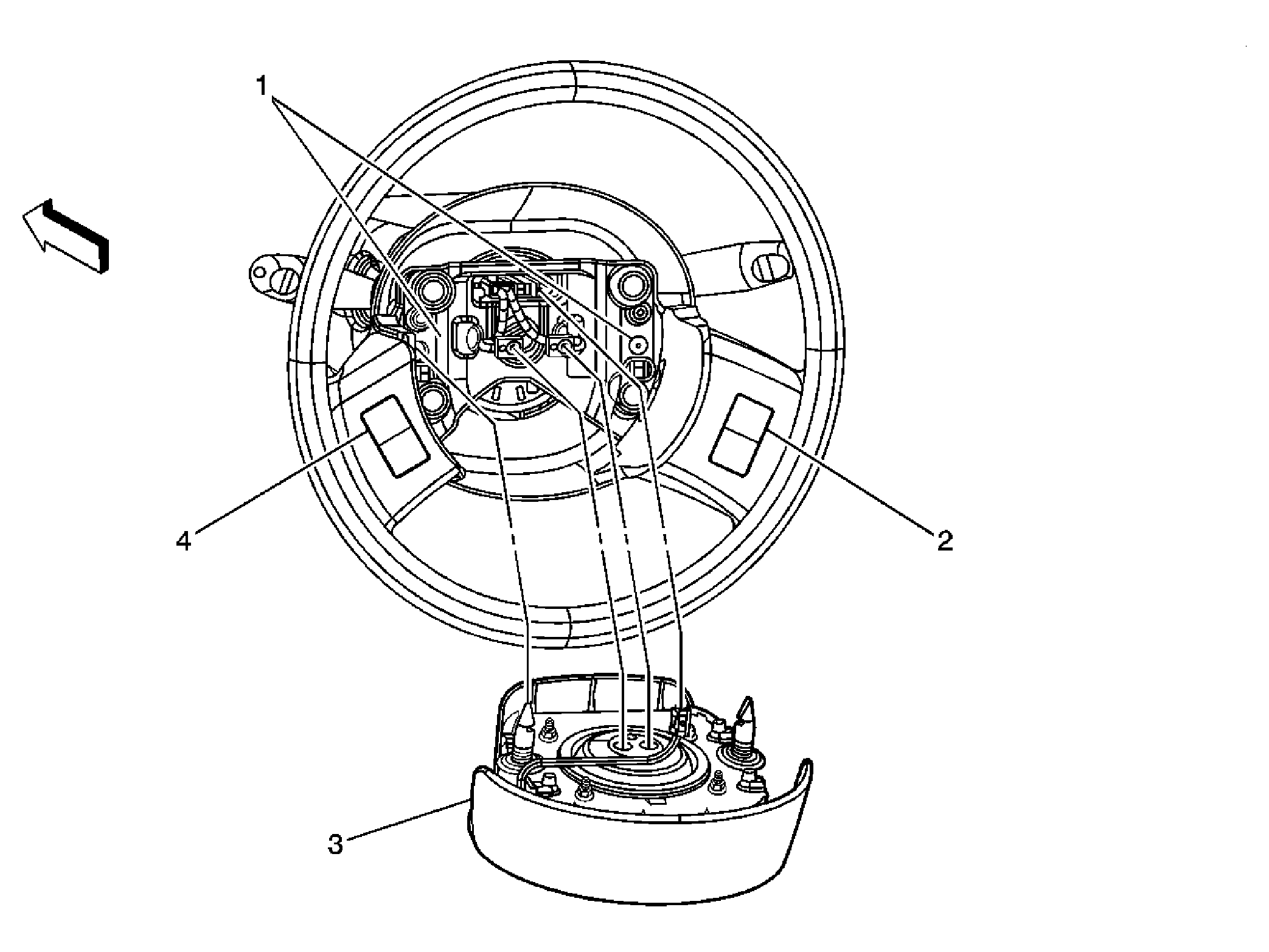

Fig 2: Steering Wheel Assembly Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Switch
2	Steering Wheel Controls - Right (K34)
3	Inflatable Restraint Steering Wheel Module
4	Steering Wheel Controls - Left (K34)

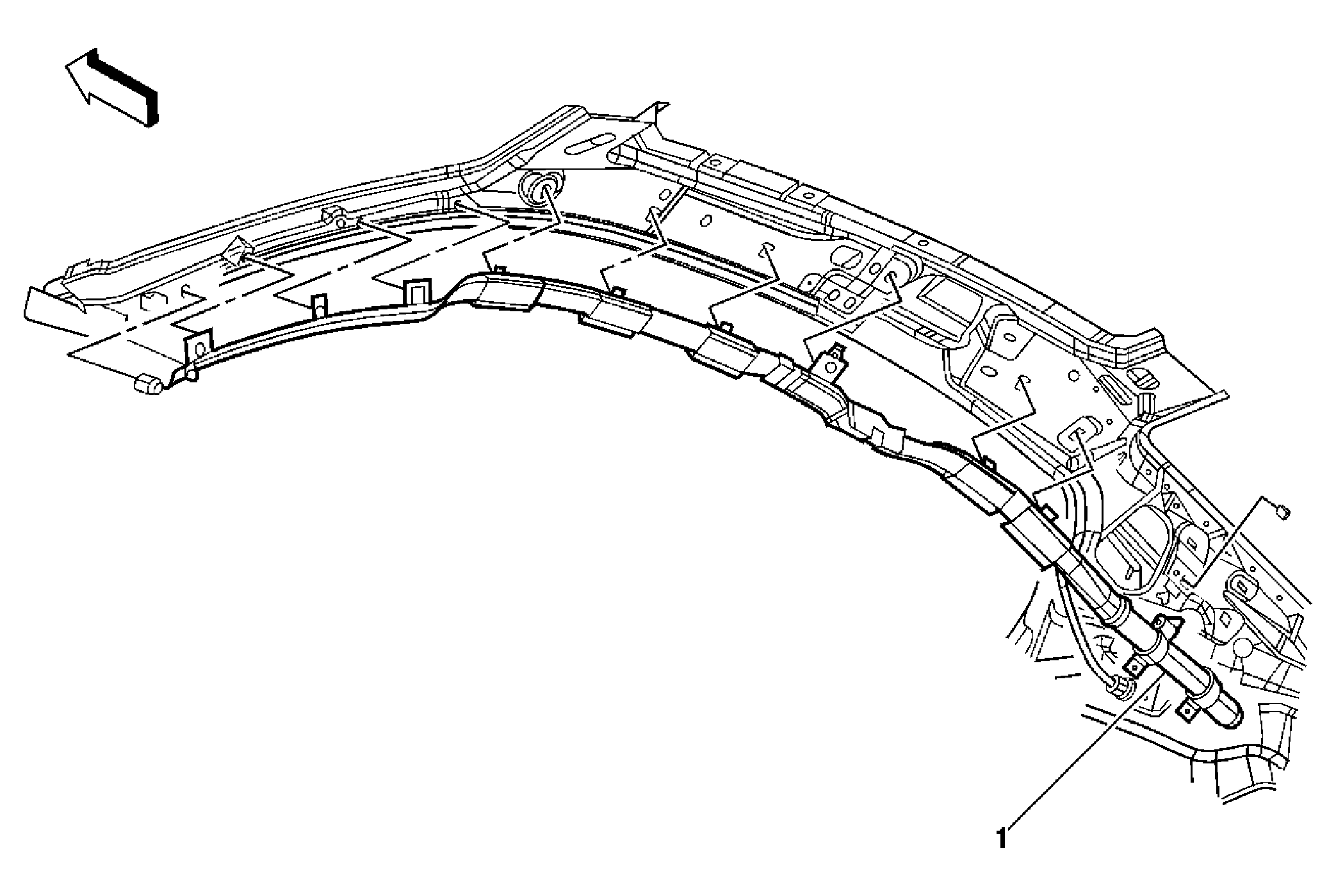

Fig 3: Right Front Of Roof Rail (ASF) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Right (Left Similar)

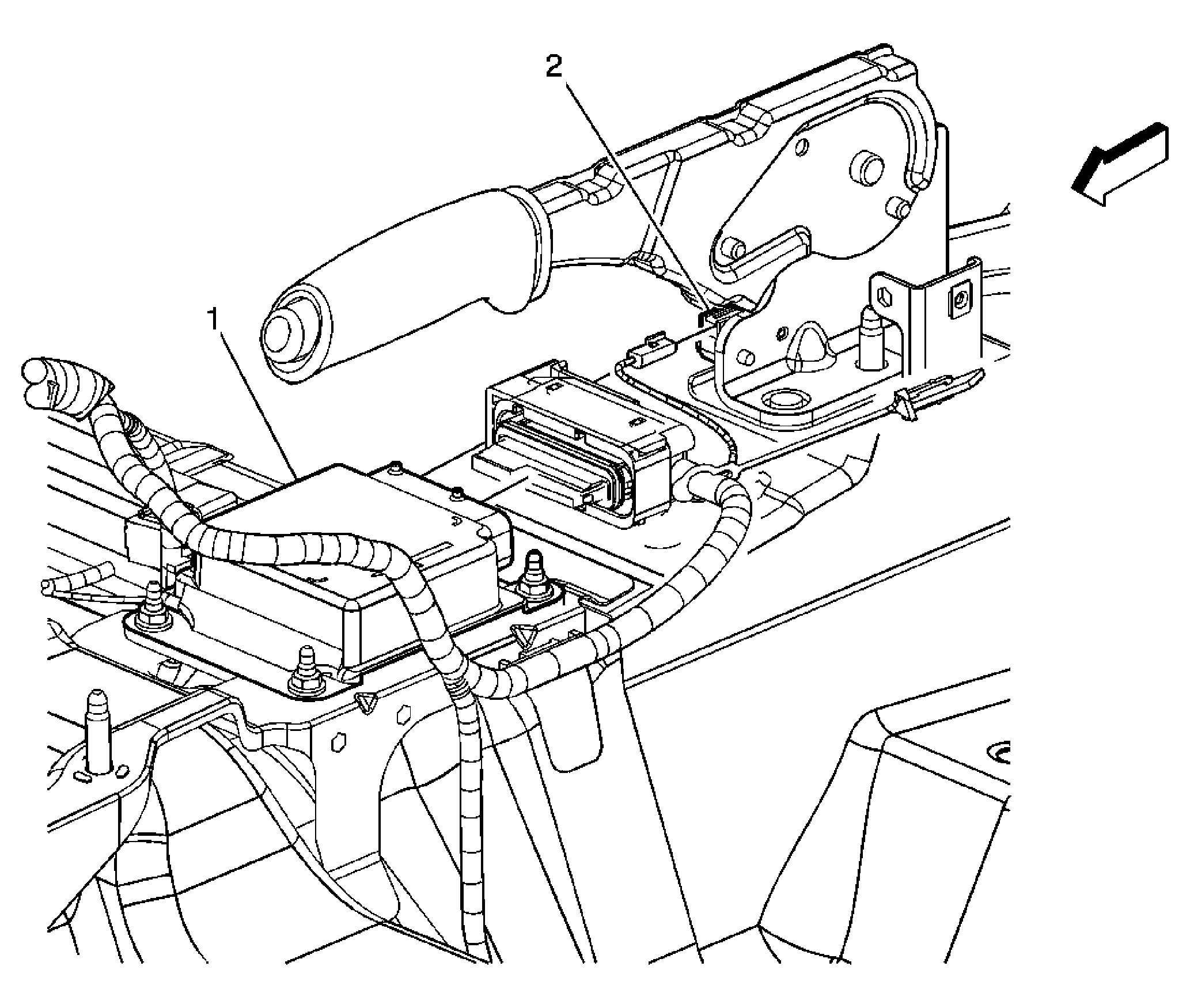

Fig 4: Center Console Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Sensing and Diagnostic Module (SDM)
2	Park Brake Switch

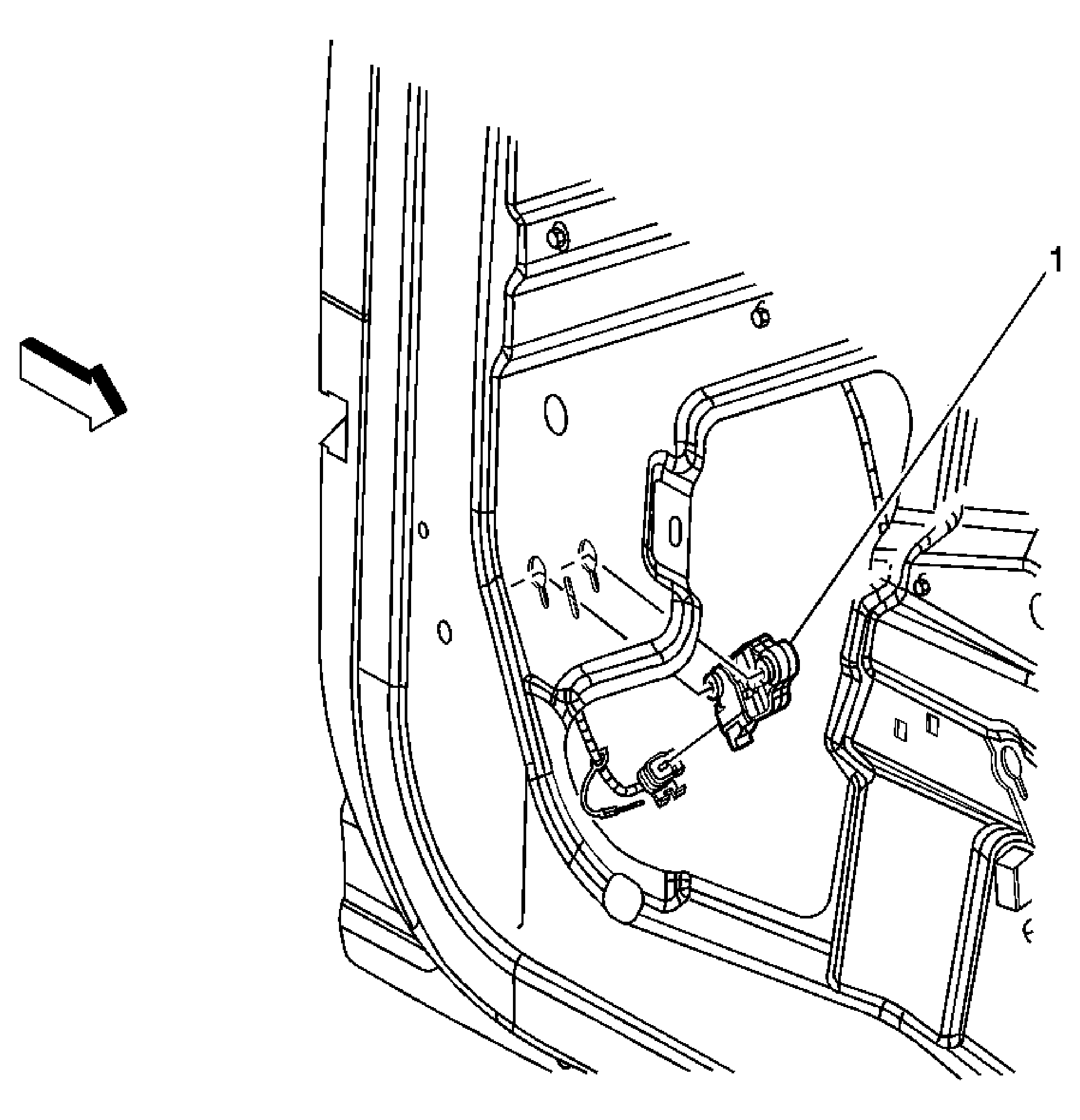

Fig 5: Left Front Door Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Sensor (SIS) - Left (Right Similar)

Fig 6: Under Left Side Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
2	Ignition Lock Cylinder Control Actuator (MN5)
3	Power Steering Control Module (PSCM)
4	Ignition Switch

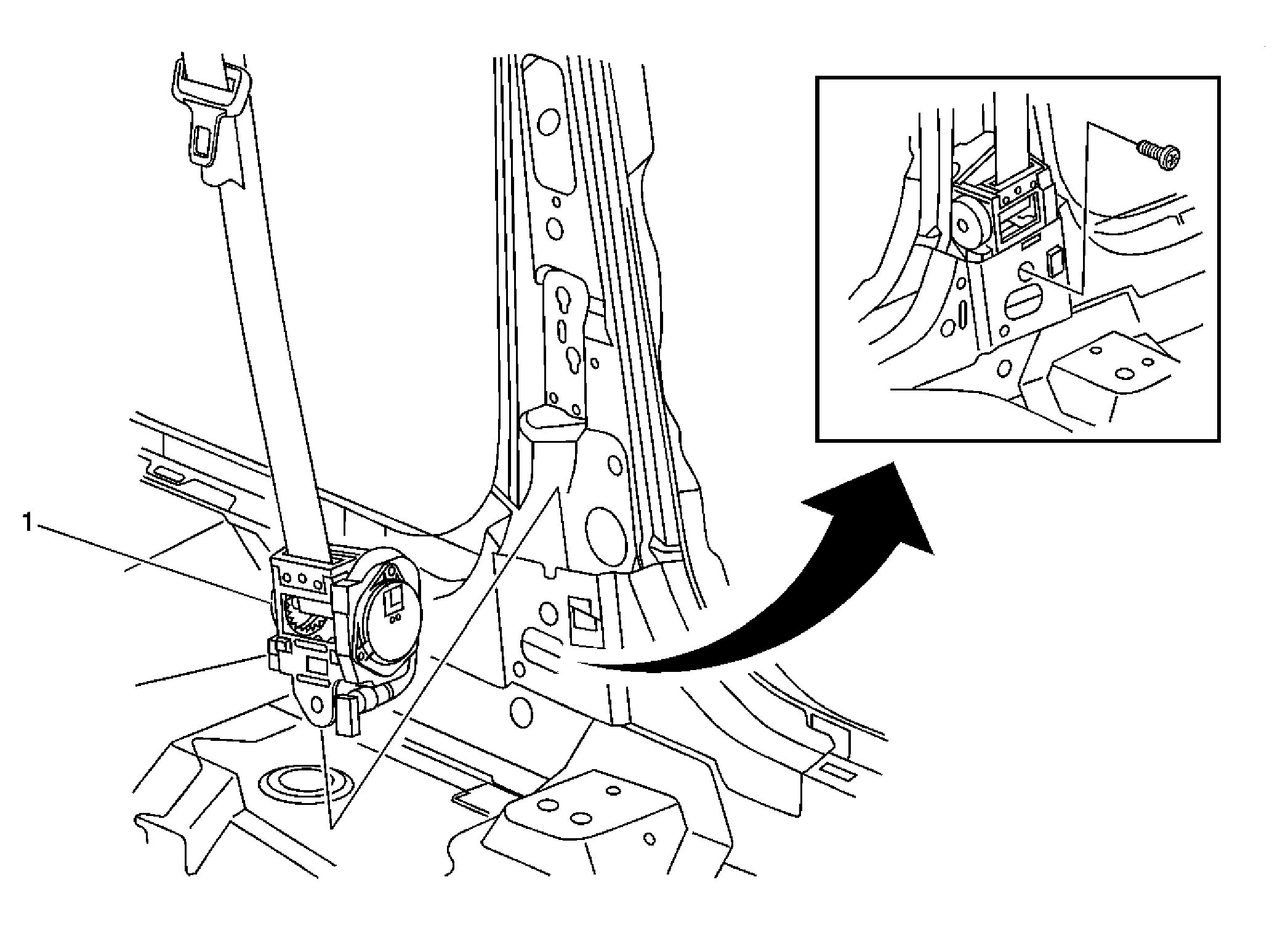

Fig 7: Right Front Side Of Vehicle In B Component View - Pillar (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretensioner - RF (LF Similar)

Fig 8: Right Center Of Passenger Compartment Component View (Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretensioner - LF (RF Similar)
