SIR Connector End Views

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
Inflatable Restraint I/P Module C1 Terminal Identification

GM878484Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 54550268
  • 2-Way F (GY w/YE Case)
Pin Wire Color Circuit No. Function
1 L-GN/RD 3024 I/P Module - Stage 1 - Low Control
2 RD/WH 3025 I/P Module - Stage 1 - High Control
Inflatable Restraint I/P Module C2 Terminal Identification

GM878484Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 54550266
  • 2-Way F (BK w/YE Case)
Pin Wire Color Circuit No. Function
1 PK/BK 3026 I/P Module - Stage 2 - Low Control
2 L-BU/OG 3027 I/P Module - Stage 2 - High Control
Inflatable Restraint Sensing and Diagnostic Module (SDM) Terminal Identification

GM1394178Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15357038
  • 34-Way F Micro-Pack 100 W 2.5 CL (YE)
Pin Wire Color Circuit No. Function
A1 TN 3021 Steering Wheel Module - Stage 1 - High Control
A2 BN 3020 Steering Wheel Module - Stage 1 - Low Control
A3 OG 3024 I/P Module - Stage 1 - Low Control
A4 YE 3025 I/P Module - Stage 1 - High Control
A5 BK/WH 2118 Seat Belt Pretensioner - Left - High Control
A6 OG/BK 2119 Seat Belt Pretensioner - Left - Low Control
A7 OG 2117 Seat Belt Pretensioner - Right - Low Control
A8 L-GN 2116 Seat Belt Pretensioner - Right - High Control
A9 BK/WH 151 Ground
A10 YE 1139 Ignition 1 Voltage
A11 PU 1807 Class 2 Serial Data (Primary)
A12 PU 1807 Class 2 Serial Data (Primary)
A13 - - Not Used
A14 BK/WH 238 Seat Belt Switch - Left
A15-A18 - - Not Used
B1 WH 3023 Steering Wheel Module - Stage 2 - High Control
B2 PK 3022 Steering Wheel Module - Stage 2 - Low Control
B3 PU 3026 I/P Module - Stage 2 - Low Control
B4 GY 3027 I/P Module - Stage 2 - High Control
B5-B8 - - Not Used
C1 PU/WH 5019 Roof Rail Module - Left - High Control (ASF)
C2 PK 5020 Roof Rail Module - Left - Low Control (ASF)
C3 WH/BK 5022 Roof Rail Module - Right - Low Control (ASF)
C4 YE/BK 5021 Roof Rail Module - Right - High Control (ASF)
C5 WH 2132 Side Impact Sensing Module - Left - Signal (ASF)
C6 YE 2131 Side Impact Sensing Module - Left - Voltage (ASF)
C7 TN 2133 Side Impact Sensing Module - Right - Voltage (ASF)
C8 D-GN 2134 Side Impact Sensing Module - Right - Signal (ASF)
Inflatable Restraint Steering Wheel Module Coil C1 Terminal Identification

GM878495Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 9986-8328
  • 10-Way F (YE)
Pin Wire Color Circuit No. Function
1 BK 28 Horn Relay Control
2 BK 550 Ground
3 PK 1539 Ignition 1 Voltage
4 GY 1884 Cruise Control Set/Coast and Resume/Accelerate Signal
5-6 - - Not Used
7 PK 3022 Steering Wheel Module Stage 2 Low Control
8 WH 3023 Steering Wheel Module Stage 2 High Control
9 BN 3020 Steering Wheel Module Stage 1 Low Control
10 TN 3021 Steering Wheel Module Stage 1 High Control
Inflatable Restraint Steering Wheel Module Coil C2 Terminal Identification

GM878487Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 54550268-C
  • 2-Way F (GY w/YE Case)
Pin Wire Color Circuit No. Function
1 BN 3020 Steering Wheel Module Stage 1 Low Control
2 TN 3021 Steering Wheel Module Stage 1 High Control
Inflatable Restraint Steering Wheel Module Coil C3 Terminal Identification

GM878487Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 54550266-A
  • 2-Way F (BK w/YE Case)
Pin Wire Color Circuit No. Function
1 PK 3022 Steering Wheel Module Stage 2 Low Control
2 WH 3023 Steering Wheel Module Stage 2 High Control
Inflatable Restraint Steering Wheel Module Coil C4 Terminal Identification

GM878485Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 6098-3389
  • 4-Way F (WH)
Pin Wire Color Circuit No. Function
1 GY 1884 Cruise Control Set/Coast and Resume/Accelerate Signal
2 PK 1539 Ignition 1 Voltage
3 BK 550 Ground
4 - - Not Used
Inflatable Restraint Steering Wheel Module Coil C5 Terminal Identification

GM1546432Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 6098-3387
  • 3-Way F (WH)
Pin Wire Color Circuit No. Function
1 BK 550 Ground
2 TN 28 Horn Relay Control
3 - - Not Used
Inflatable Restraint Roof Rail Module Terminal Identification - Left (ASF)

GM646194Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186799
  • 2-Way M 280 Series (YE)
Pin Wire Color Circuit No. Function
A PU/WH 5019 Roof Rail Module - Left - High Control
B PK 5020 Roof Rail Module - Left - Low Control
Inflatable Restraint Roof Rail Module Terminal Identification - Right (ASF)

GM646194Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186799
  • 2-Way M 280 Series (YE)
Pin Wire Color Circuit No. Function
A YE/BK 5021 Roof Rail Module - Right - High Control
B WH/BK 5022 Roof Rail Module - Right - Low Control
Inflatable Restraint Side Impact Sensor (SIS) Terminal Identification - Left (ASF)

GM877918Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15356727
  • 2-Way F 150 GT Series (YE)
Pin Wire Color Circuit No. Function
A YE 2131 Side Impact Sensing Module - Left - Voltage
B WH 2132 Side Impact Sensing Module - Left - Signal
Inflatable Restraint Side Impact Sensor (SIS) Terminal Identification - Right (ASF)

GM877918Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15356727
  • 2-Way F 150 GT Series (YE)
Pin Wire Color Circuit No. Function
A TN 2133 Side Impact Sensing Module - Right - Voltage
B D-GN 2134 Side Impact Sensing Module - Right - Signal

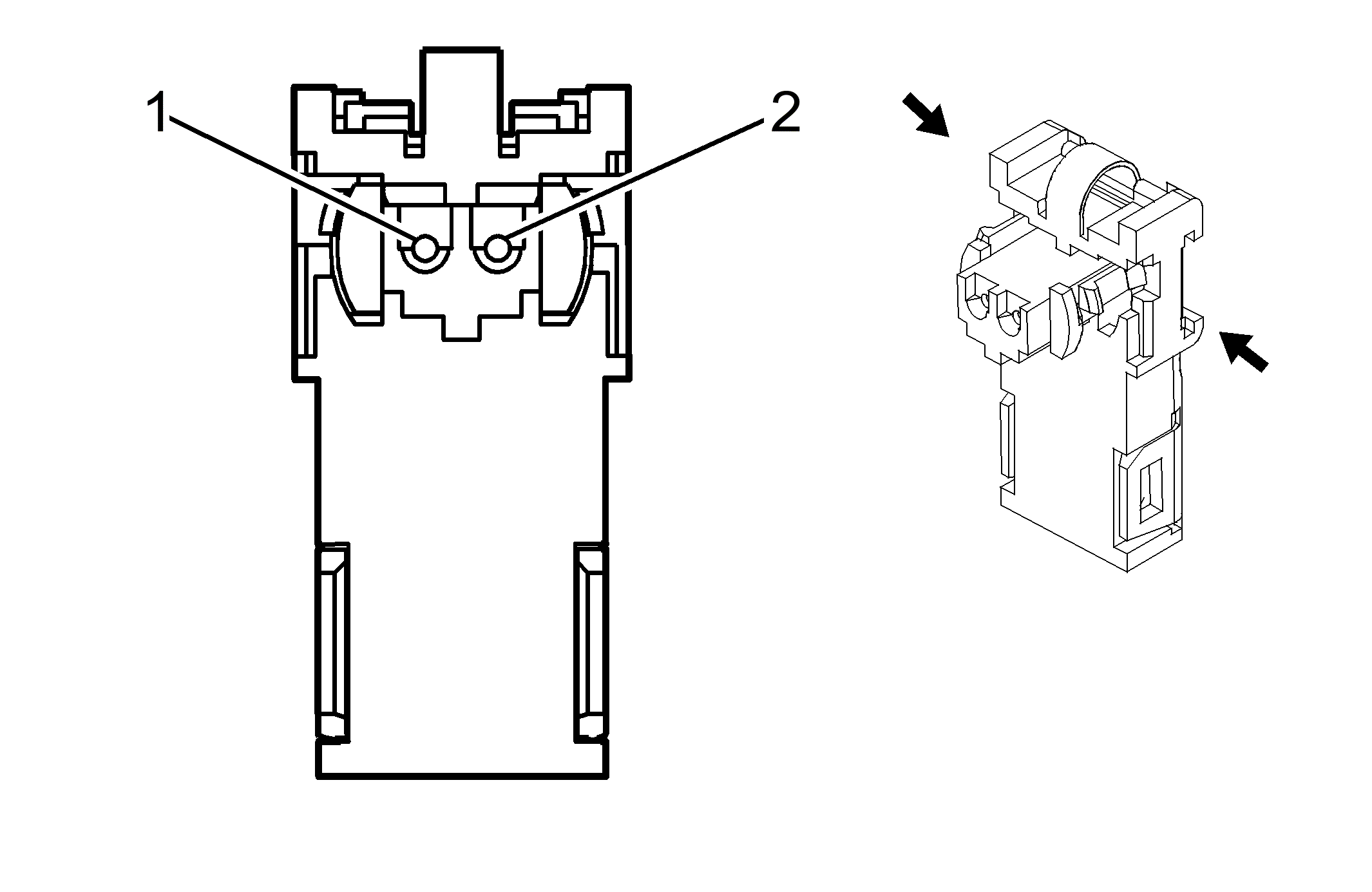

Seat Belt Pretensioner Terminal Identification - LF (Sedan)

GM878503Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1376030-1
  • 2-Way F (YE)
Pin Wire Color Circuit No. Function
1 OG/BK 2119 Seat Belt Pretensioner - Left - Low Control
2 BK/WH 2118 Seat Belt Pretensioner - Left - High Control
Seat Belt Pretensioner Terminal Identification - LF (Coupe)

GM295469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110505
  • 2-Way F (YE)
Pin Wire Color Circuit No. Function
A OG/BK 2119 Seat Belt Pretensioner - Left - Low Control
B BK/WH 2118 Seat Belt Pretensioner - Left - High Control
Seat Belt Pretensioner Terminal Identification - RF (Sedan)

GM878503Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1376030-1
  • 2-Way F (YE)
Pin Wire Color Circuit No. Function
1 OG 2117 Seat Belt Pretensioner - Right - Low Control
2 L-GN 2116 Seat Belt Pretensioner - Right - High Control
Seat Belt Pretensioner Terminal Identification - RF (Coupe)

GM295469Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110505
  • 2-Way F (YE)
Pin Wire Color Circuit No. Function
A OG 2117 Seat Belt Pretensioner - Right - Low Control
B L-GN 2116 Seat Belt Pretensioner - Right - High Control
