Cellular Communication Component Views

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.

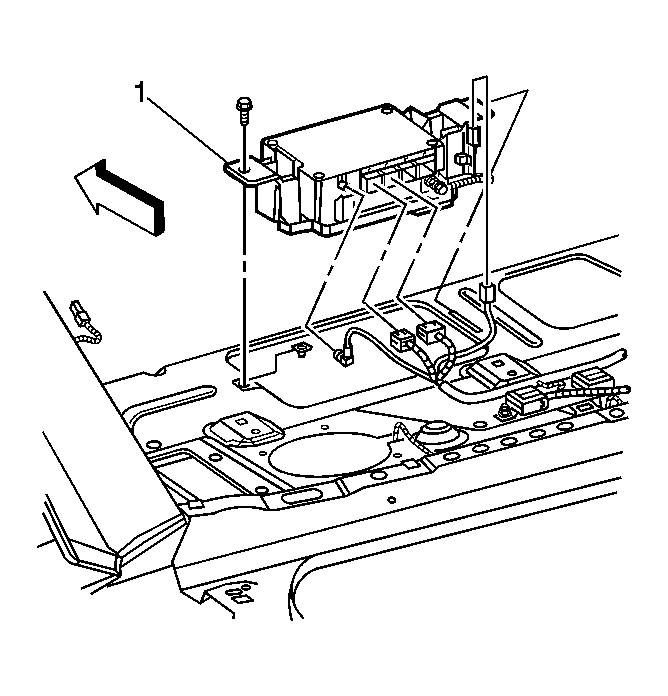

Fig 1: View Of Left Side of the Rear Window Shelf (UE1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communication Interface Module (VCIM)

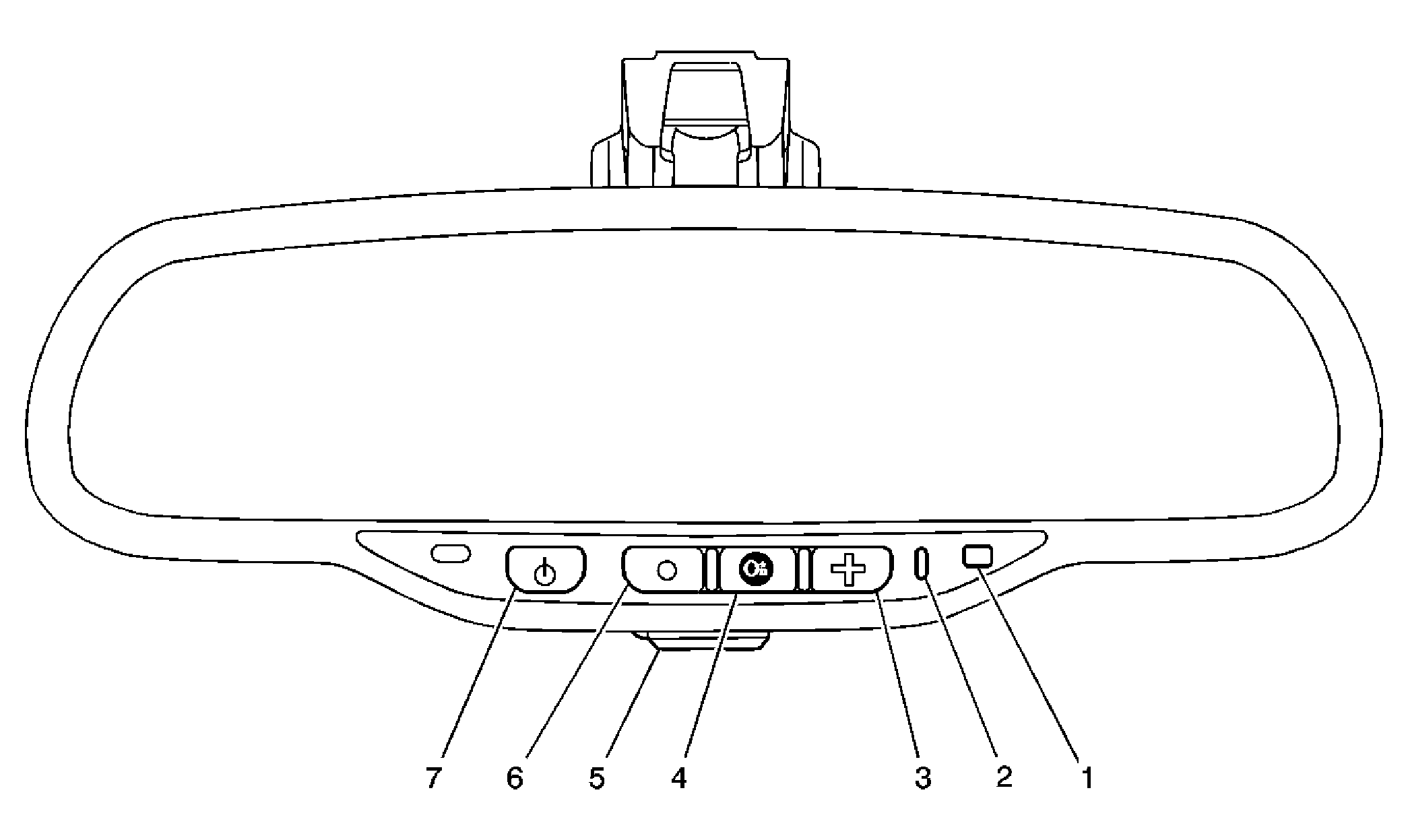

Fig 2: Inside Rearview Mirror Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlight Sensor (DF5)
2	OnStar® Indicator (UE1)
3	Emergency Button (UE1)
4	OnStar® Call Center Button (UE1)
5	OnStar® Microphone (UE1)
6	Answer/End Call Button (UE1)
7	Inside Rearview Mirror (ISRVM) On./Off Button (DF5)

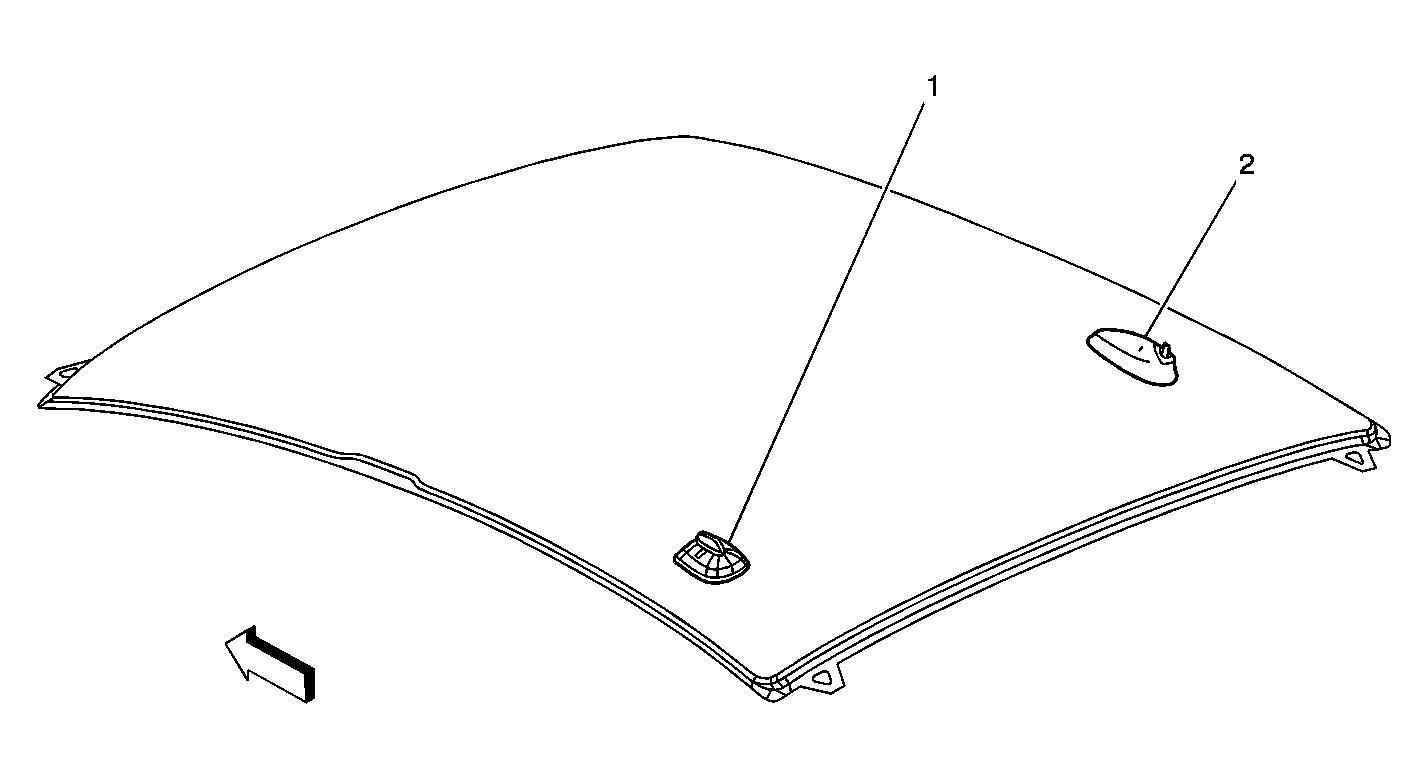

Fig 3: Roof Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Antenna (U2K)
2	Cellular/Navigation Antenna (UE1)
