Installation Procedure

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the antenna cable and electrical connections to the VCIM.
  2. Install the VCIM into the mounting bracket.

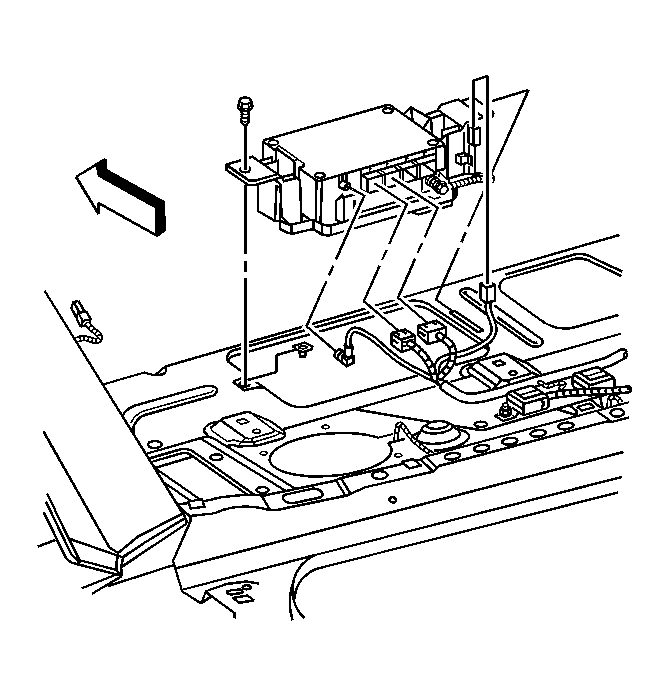

    3. Fig 1: View Of Vehicle Communication Interface Module
    GM888377Courtesy of GENERAL MOTORS CORP.
  3. Install the rear shelf trim. Refer to Trim Panel Replacement - Rear Window Shelf (Early Production) or Trim Panel Replacement - Rear Window Shelf (Late Production) in Interior Trim.
    4. IMPORTANT: After replacing the vehicle communication interface module, you must reconfigure the OnStar® system. Failure to reconfigure the system will result in an additional customer visit for repair. In addition, pressing and holding the white dot button on the keypad will NOT reset this version of the OnStar® system. This action will cause a DTC to set.
  4. Reconfigure the OnStar® system. Refer to OnStar Reconfiguration .
