Mirror Component Views
WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Door Frame |
| 2 | Outside Rearview Mirror - Driver (DG7) |
| 3 | Speaker - LF Door Tweeter (UQ3) |
| 4 | Window Motor (A31) - Driver |
| 5 | Outside Rearview Mirror Switch (DG7) |
| 6 | Door Lock Switch (AU3) - Driver |
| 7 | Window Switch (A31) - Driver |
| 8 | Inflatable Restraint Side Impact Module (SIS) - Left (ASF) |
| 9 | Door Latch (AU3) - Driver |
| Callout | Component Name |
|---|---|
| 1 | Door Frame |
| 2 | Door Latch (AU3) - Passenger |
| 3 | Inflatable Restraint Side Impact Module (SIS) - Right (ASF) |
| 4 | Door Lock Switch (AU3) - Passenger |
| 5 | Window Switch (A31) - Passenger |
| 6 | Speaker - RF Door Tweeter (UQ3) |
| 7 | Outside Rearview Mirror - Passenger (DG7) |

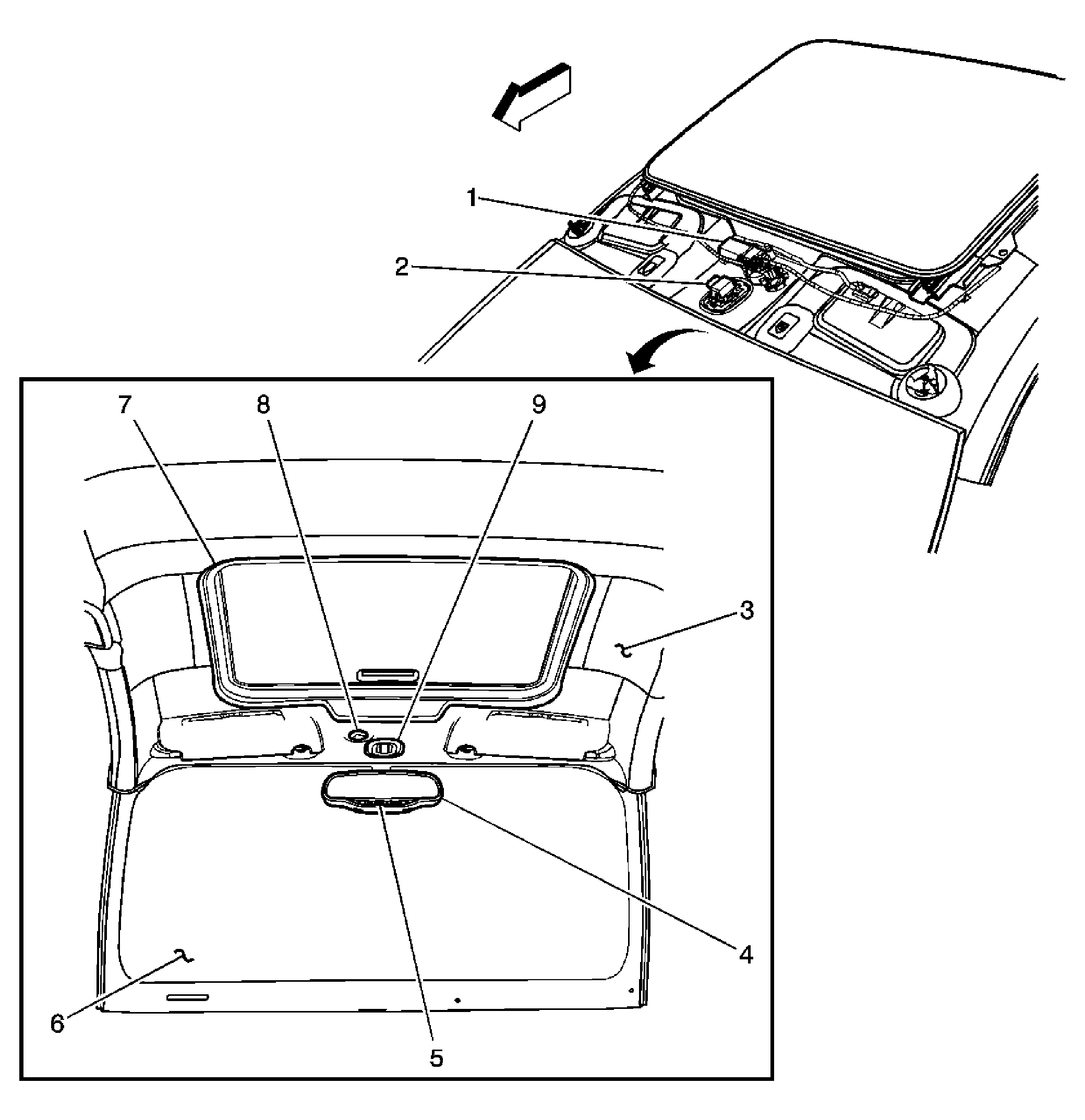

| Callout | Component Name |
|---|---|
| 1 | Sunroof Motor (CF5) |
| 2 | Sunroof Switch (CF5) |
| 3 | Headliner |
| 4 | Inside Rearview Mirror (ISRVM) |
| 5 | OnStar® Button Assembly (UE1) |
| 6 | Windshield |
| 7 | Sunroof Panel (CF5) |
| 8 | Cellular Telephone Microphone (UE1) |
| 9 | Sunroof Switch |
