Wiper/Washer System Connector End Views

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.

Windshield Washer Fluid Pump Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15326801 2-Way F GT 150 Series (BK)
Pin	Wire Color	Circuit No.	Function
A	BK	150	Ground
B	RD	228	Windshield Washer Pump Control

Windshield Wiper/Washer Switch Terminal Identification

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15332141 6-Way F GT 150 280 Sealed (BK)
Pin	Wire Color	Circuit No.	Function
A	-	-	Not Used
B	L-GN	1715	Windshield Wiper Switch High Signal
C	GY	112	Windshield Wiper Switch Signal 1
D	RD	228	Windshield Washer Switch
E	YE	143	Accessory Voltage
F	-	-	Not Used

Windshield Wiper Motor Assembly Terminal Identification

Courtesy of GENERAL MOTORS CORP.

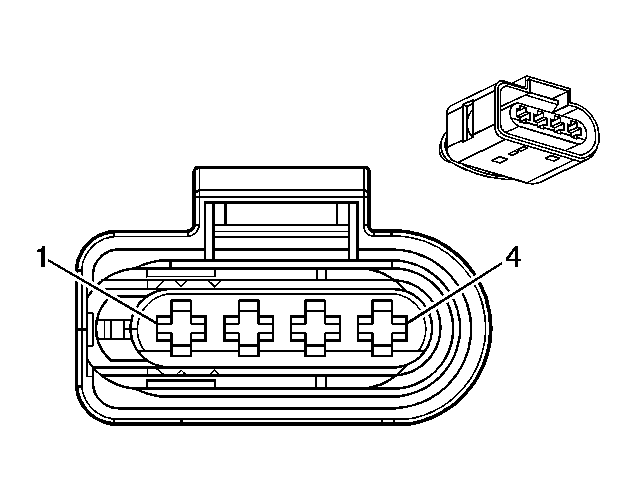

Connector Part Information		6382454-1 4-Way F Tyco (BK)
Pin	Wire Color	Circuit No.	Function
1	PU	92	Windshield Wiper Motor High Speed
2	D-GN	95	Windshield Wiper Motor Low Speed
3	YE	196	Windshield Wiper Motor Park Switch Signal
4	BK	150	Ground
