Removal Procedure

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms. Refer to Wiper Arm Replacement .
  2. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
  3. Disconnect the wiring connector from the wiper motor.
  4. Remove the fasteners attaching the wiper module to the plenum.
  5. Remove the wiper module assembly from the plenum.

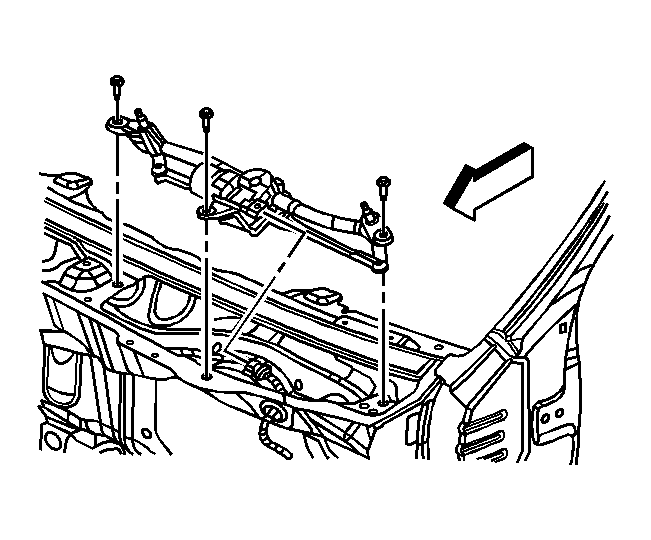

    6. Fig 1: View Of Wiper Module Assembly
    GM869668Courtesy of GENERAL MOTORS CORP.
