Cooling System Connector End Views

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
Coolant Level Switch Terminal Identification

GM635009Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052641
  • 2-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A YE/BK 68 Low Coolant Level Indicator Signal
B PK 439 Ignition 1 Voltage (2.2L)
PK/BK 5291 Ignition 1 Voltage (2.0L)
Cooling Fan Terminal Identification - 2.2L

GM684799Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12077900
  • 2-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A L-BU 409 Cooling Fan Motor Supply Voltage
B BK 1050 Ground

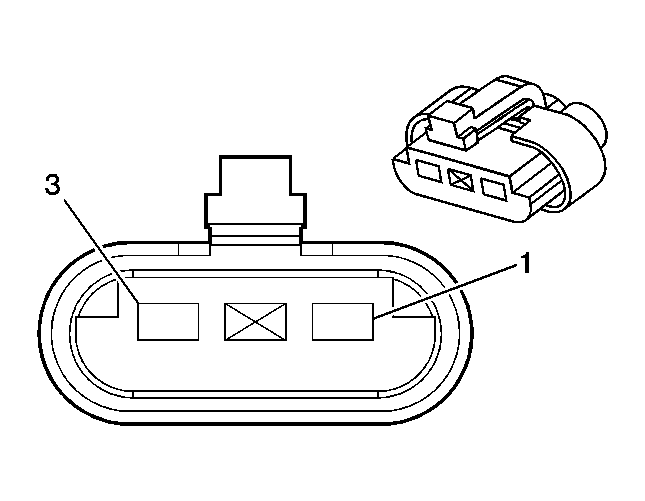

Cooling Fan 1 Terminal Identification - 2.0L

GM1283123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • F8ZB-14A464-DA
  • 3-Way F (TN w/BK Case)
Pin Wire Color Circuit No. Function
1 L-BU 409 Cooling Fan Motor Supply Voltage
2 - - Not Available
3 WH 504 Cooling Fan Low Reference
Cooling Fan 2 Terminal Identification - 2.0L

GM1283123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • F8ZB-14A464-DA
  • 3-Way F (TN w/BK Case)
Pin Wire Color Circuit No. Function
1 GY 532 Cooling Fan Motor Supply Voltage
2 - - Not Available
3 BK 1150 Ground
Cooling Fan S/P Relay Terminal Identification - 2.0L

GM535919Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110539
  • 5-Way F Metri-Pack 280 Series Sealed (BK)
Pin Wire Color Circuit No. Function
30 WH 504 Cooling Fan Low Reference
85 D-BU 473 High Speed Cooling Fan Relay Control
86 RD 742 Battery Positive Voltage
87 BK 1050 Ground
87A GY 532 Cooling Fan Motor Supply Voltage
Cooling Fan 2 Relay Terminal Identification - 2.0L

GM535912Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129716
  • 4-Way F Metri-Pack 280 Series Sealed (GY)
Pin Wire Color Circuit No. Function
30 RD 742 Battery Positive Voltage
85 D-BU 473 High Speed Cooling Fan Relay Control
86 RD 742 Battery Positive Voltage
87 GY 532 Cooling Fan Motor Supply Voltage
